In stock
Server Chassis
CHS-SRV-K330F-2

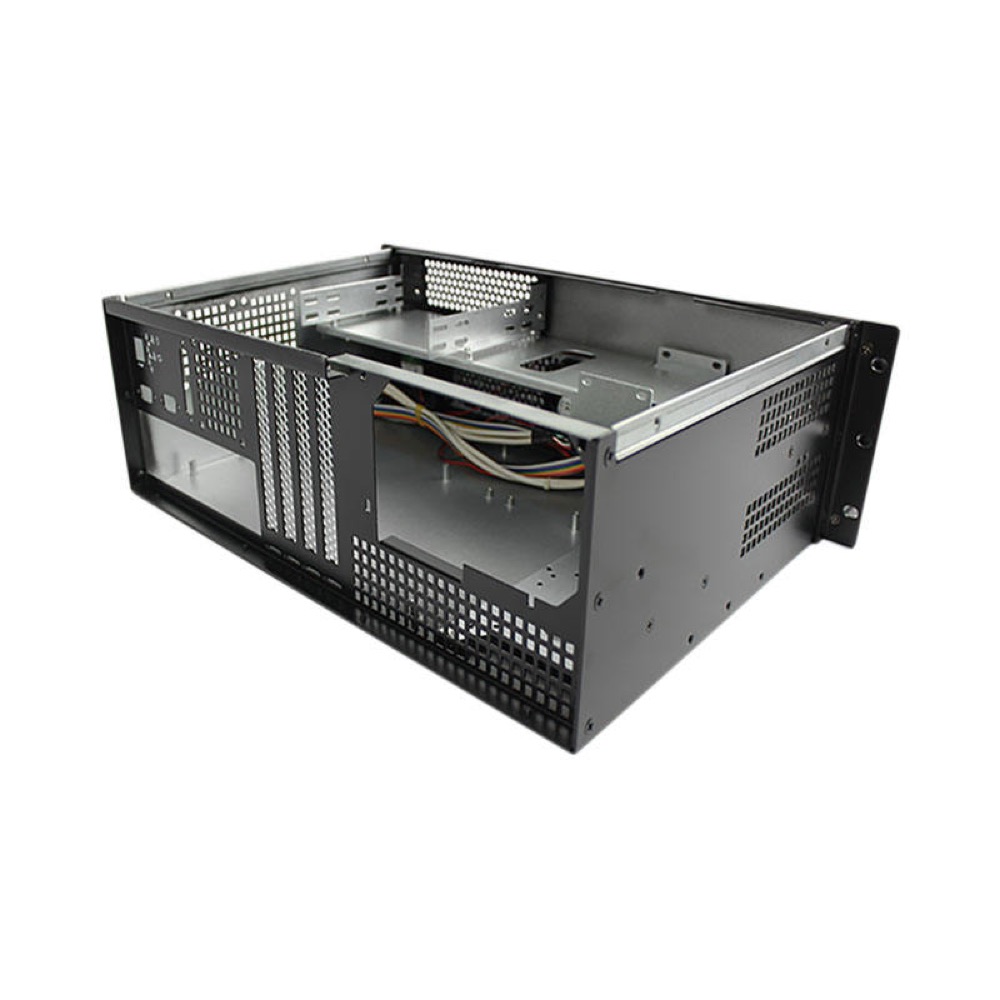

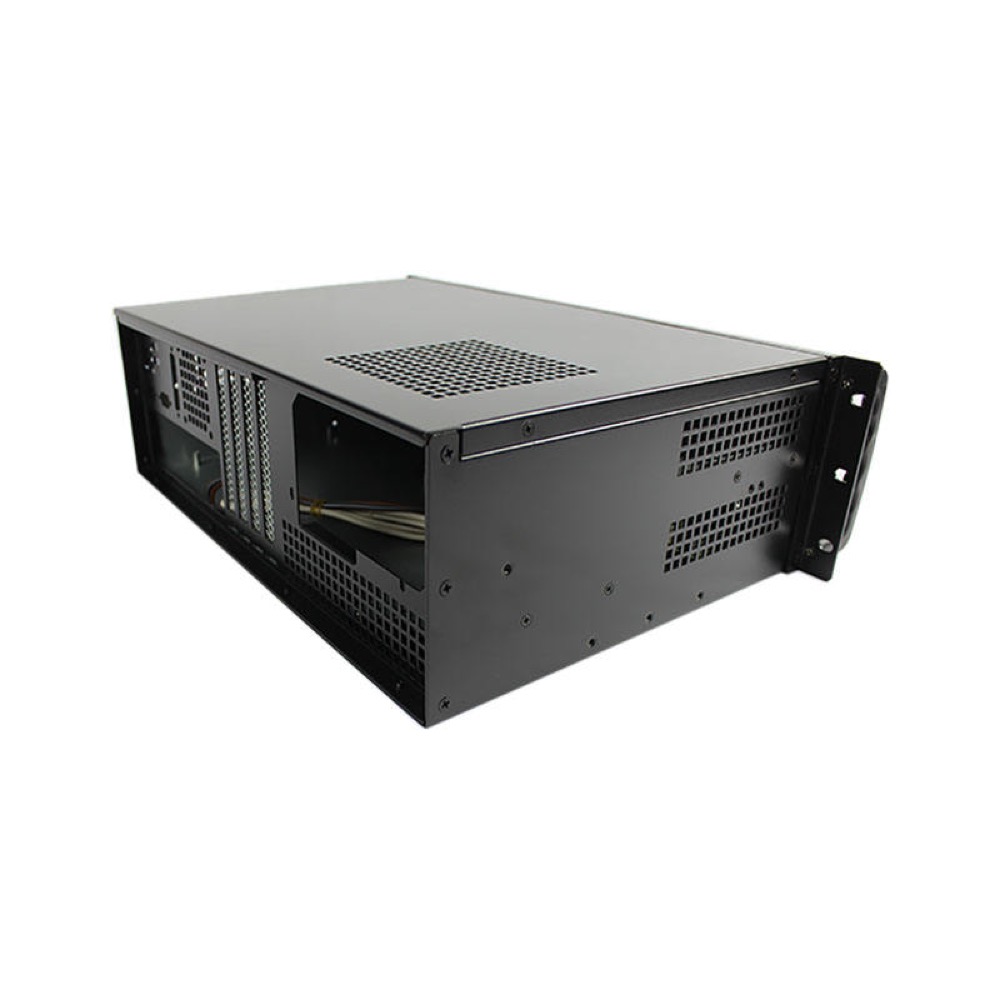

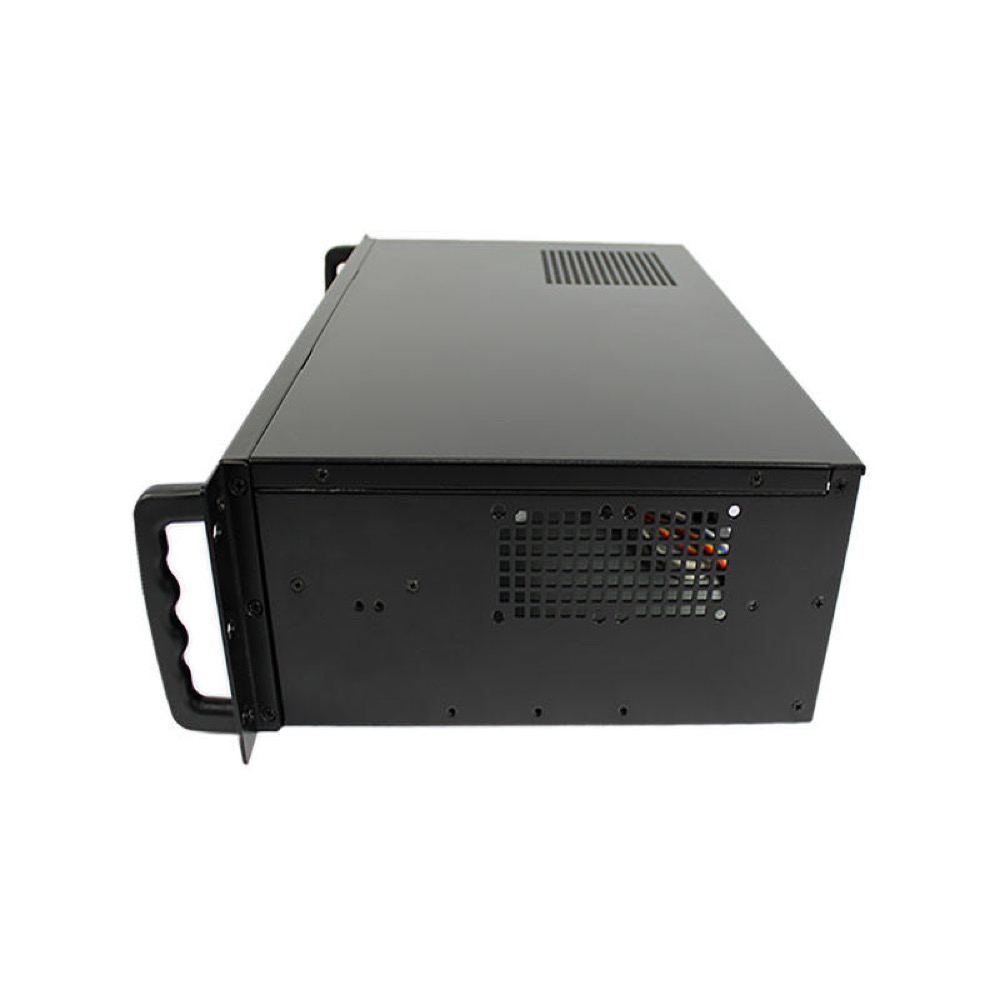

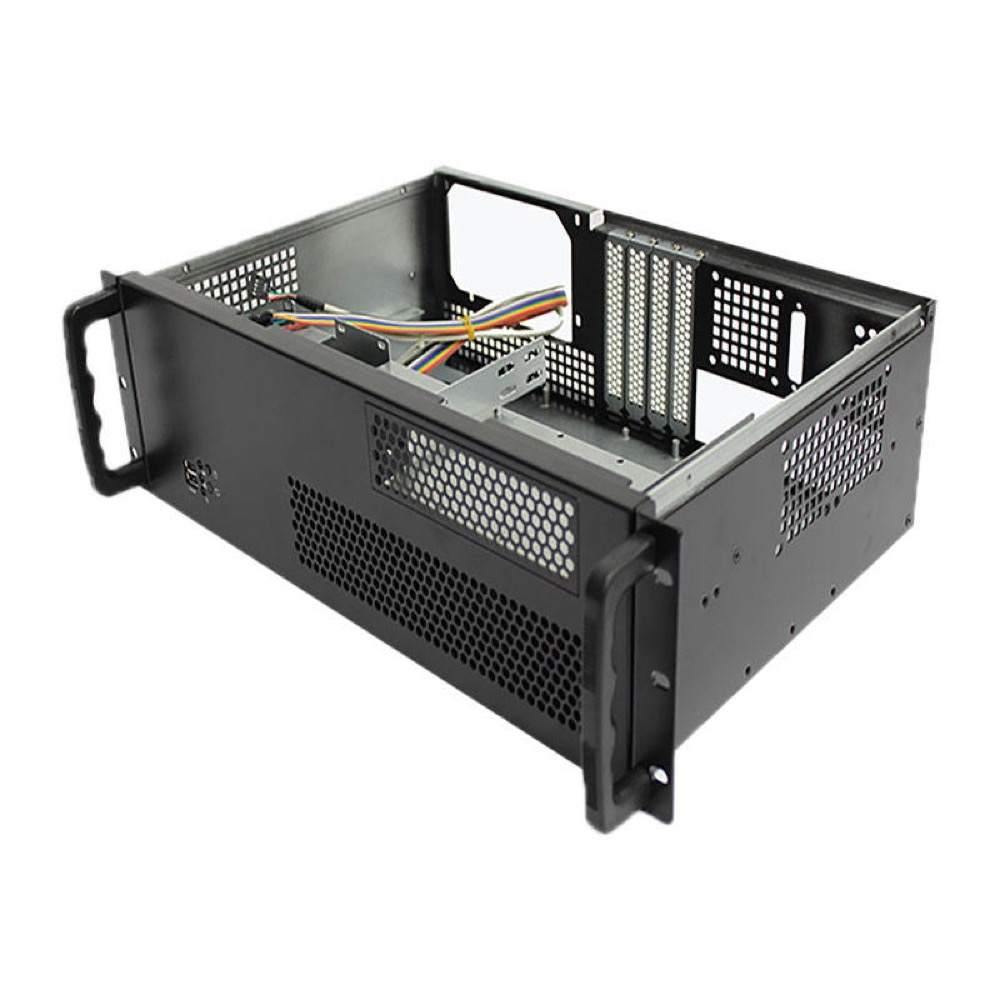

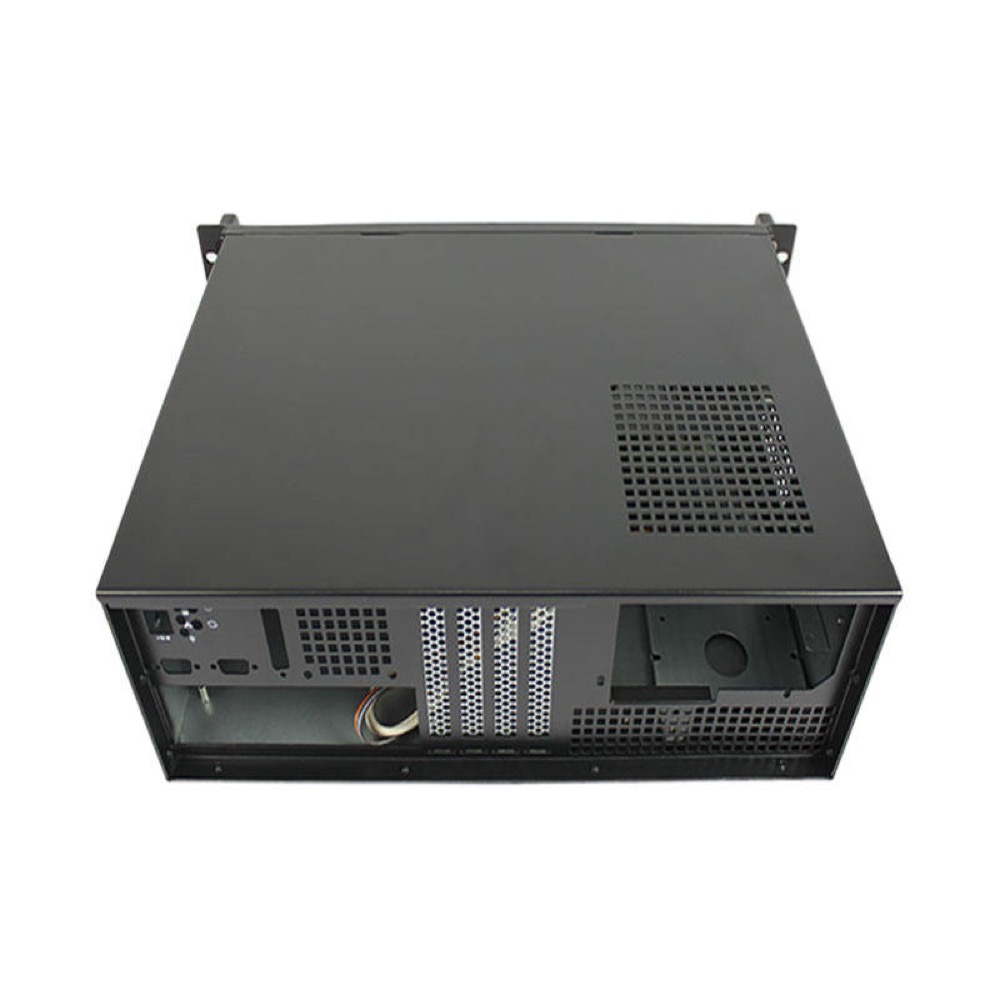

K330F-2 3U Short-Depth ATX Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 300(D) × 133(H) mm
MountingRackmount
MotherboardATX
Drive Bays2 bays
K330F-2 3U short-depth rackmount chassis for ATX systems. The supplier lists a steel SGCC enclosure, support for two 3.5-inch hard drives and one 5.25-inch optical-drive position, four full-height PCIe slots, ATX PSU support, dual 6025 cooling fans, CPU cooler height up to 110 mm, and GPU length up to 173 mm. Supplier-listed dimensions are 482(W) × 300(D) × 133(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K330F-2 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 3U rackmount chassis with two 6025 cooling fans. PSU, motherboard, storage drives, and optical drive are not included. |
| Use Case / Application | Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 3U |
| Material | SGCC Steel |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 300 mm |
| Weight | 6.52 kg gross / 5.3 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 3.5-inch HDD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | Full-height PCIe slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 60 × 60 × 25 mm (6025) × 2 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power button, Reset button, Power indicator, HDD activity indicator |
| Custom I/O Details | Supplier lists one 5.25-inch optical-drive position, CPU cooler height up to 110 mm, GPU length up to 173 mm, four full-height straight PCIe slots, two USB 2.0 ports, power/reset switches, and power/HDD indicators. |
