In stock
Server Chassis
CHS-SRV-K325LF

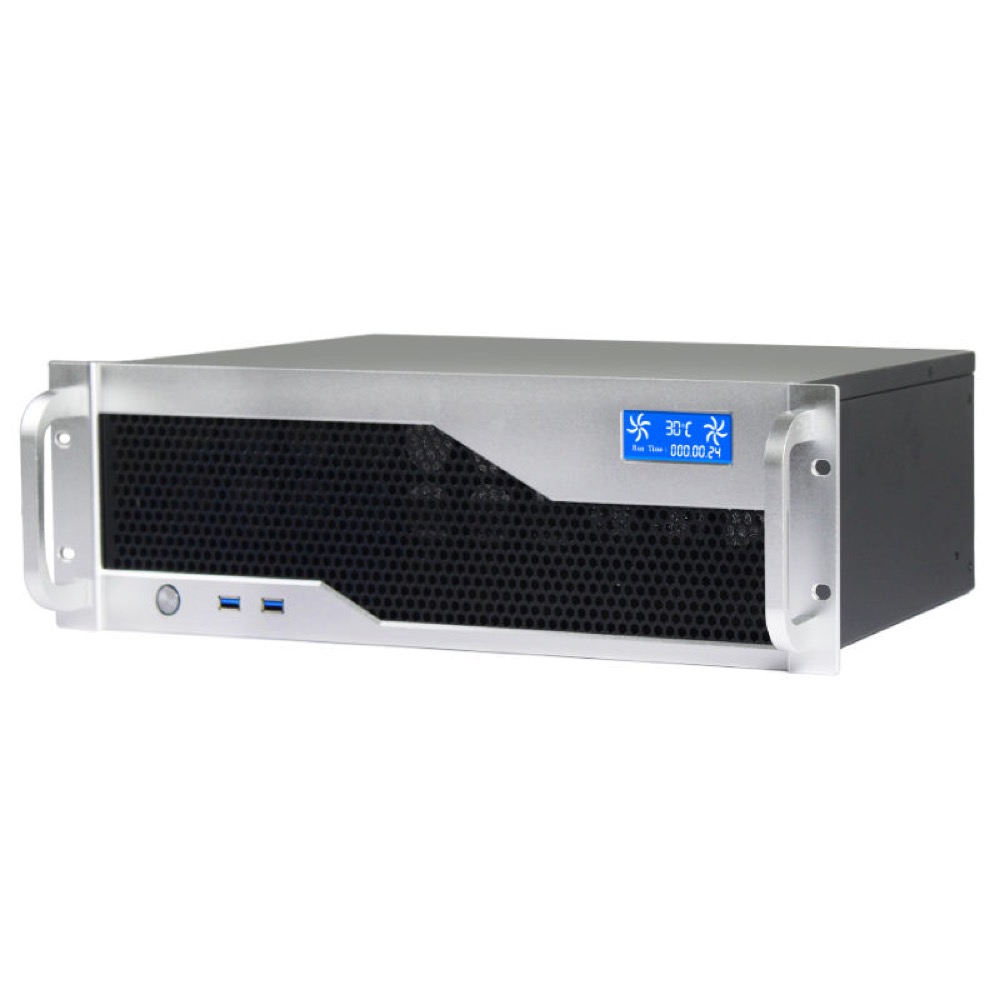

K325LF 3U Mini-ITX Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis

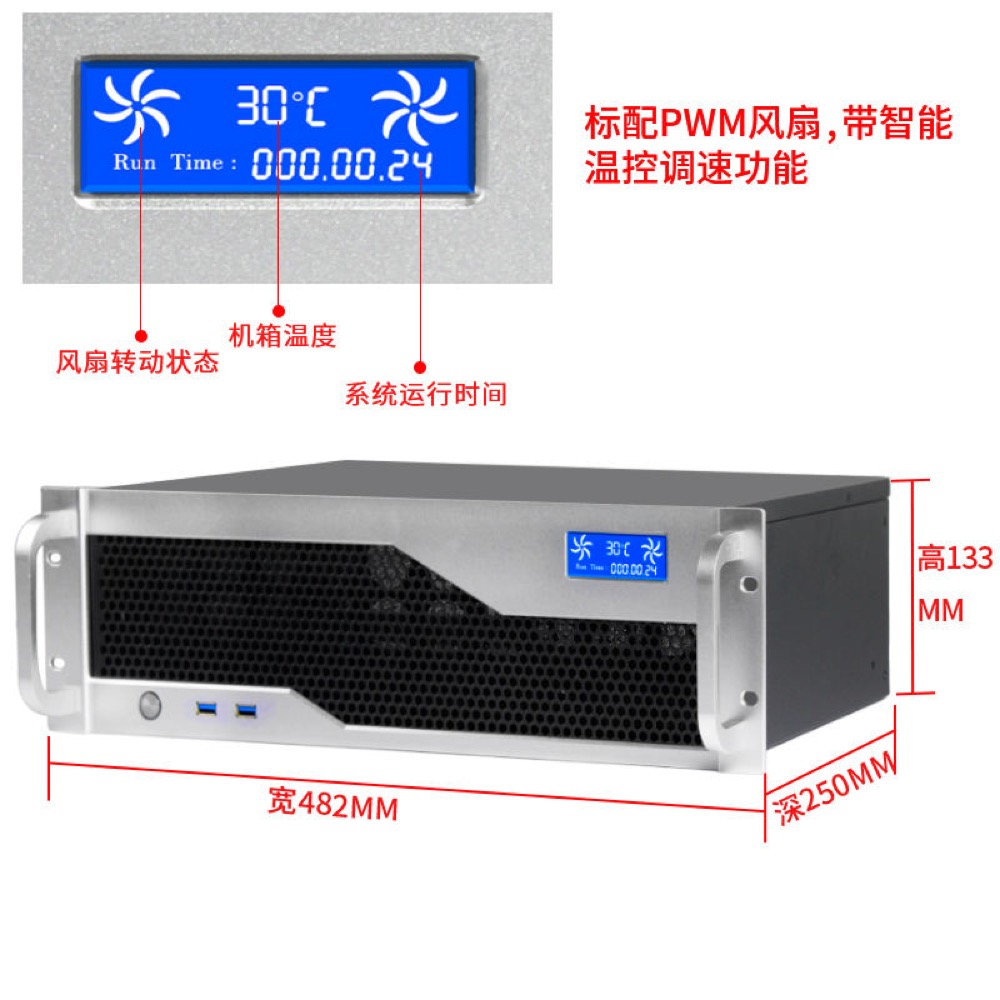

Dimension482(W) × 250(D) × 133.5(H) mm
MountingRackmount
MotherboardMini-ITX, ATX (title-listed)
Drive Bays2 bays
K325LF 3U 19-inch short-depth industrial rackmount chassis for server and industrial computer applications. The supplier lists an aluminum-alloy and steel enclosure measuring 482(W) × 250(D) × 133.5(H) mm, Mini-ITX form factor with an ATX reference in the product title, motherboard envelope up to 200 × 250 mm, ATX PSU support, one 3.5-inch or two 2.5-inch drive positions, five PCIe slots, front USB 3.0, power controls, and a front temperature LCD. The supplier also lists fan support and CPU-cooler clearance, but the page contains conflicting cooler-clearance values and does not specify the fan count or size.
Specifications
Identity
| Model Number | CHS-SRV-K325LF |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 3U rackmount chassis with fan support, front temperature LCD, and front I/O controls. ATX PSU support is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 3U |
| Material | Aluminum alloy and steel |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 133.5 mm |
| Depth | 250 mm |
| Weight | 5.0 kg gross / 3.8 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | Up to 200 × 250 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 1 × 3.5-inch HDD, Alternate layout: 2 × 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support

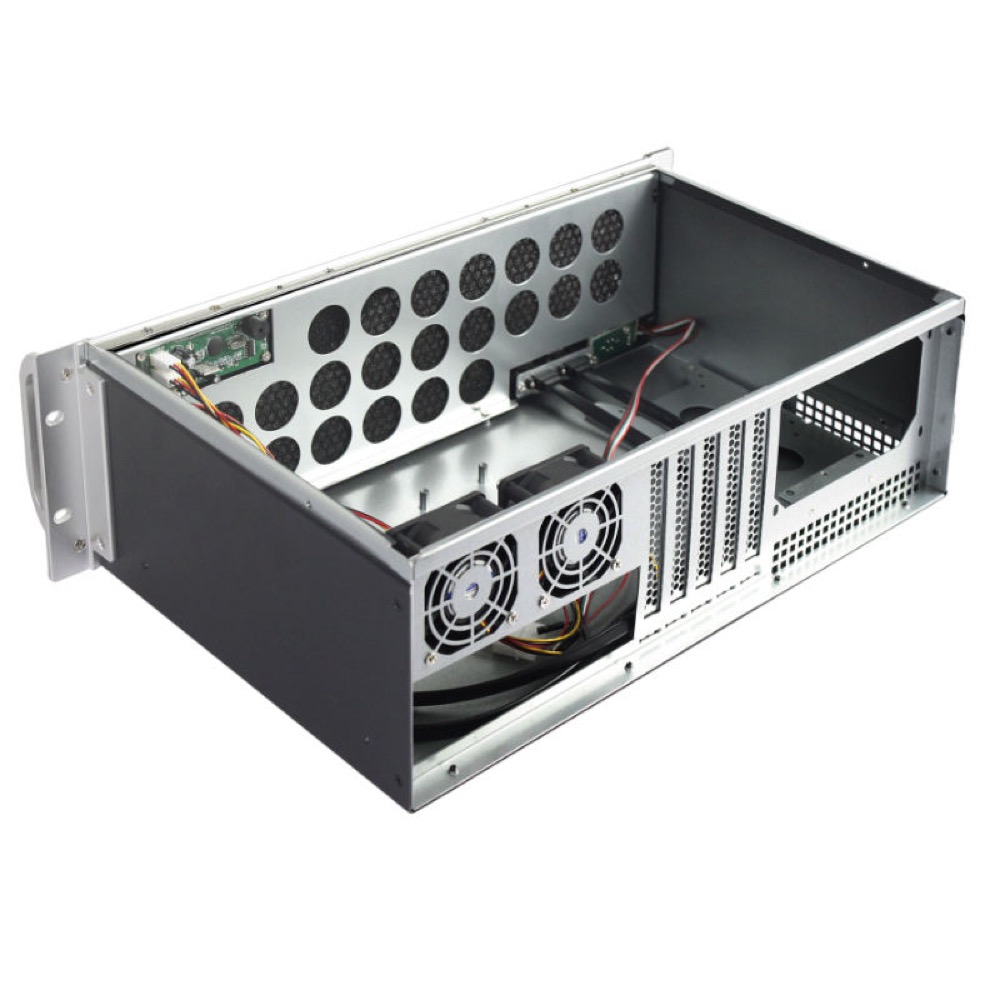

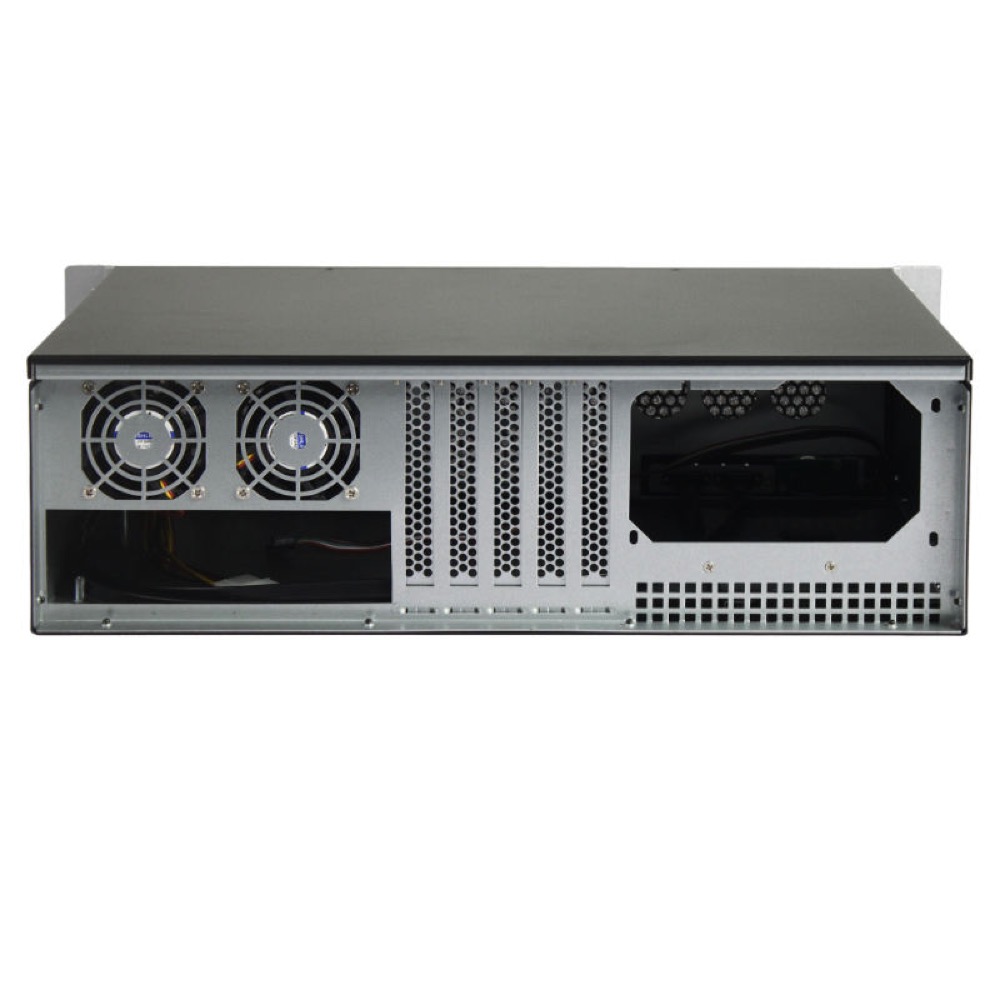

| PCIe Slots | 5 slots |
| PCIe Slot Types | PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | Fan included/support listed; exact size and count not specified by supplier mm |
| Maximum CPU Cooler Height | 70 mm in key attributes; detailed supplier description also states 110 mm |
Display and LCD
| LCD / Display Included | Yes |
| LCD Resolution | Temperature LCD; resolution not specified |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Power on/off, Temperature LCD |
| Custom I/O Details | Supplier lists two USB 3.0 ports, power on/off control, a front temperature LCD, five PCIe slots, ATX PSU support, one 3.5-inch HDD or two 2.5-inch HDD/SSD positions, and fan support. The key attributes state CPU-cooler clearance up to 70 mm, while the detailed supplier description states 110 mm; this discrepancy is retained for supplier confirmation. Exact fan count/size, LCD size/resolution, rear I/O, and PCIe slot height are not specified. |
