Server Chassis
CHS-SRV-R1528L

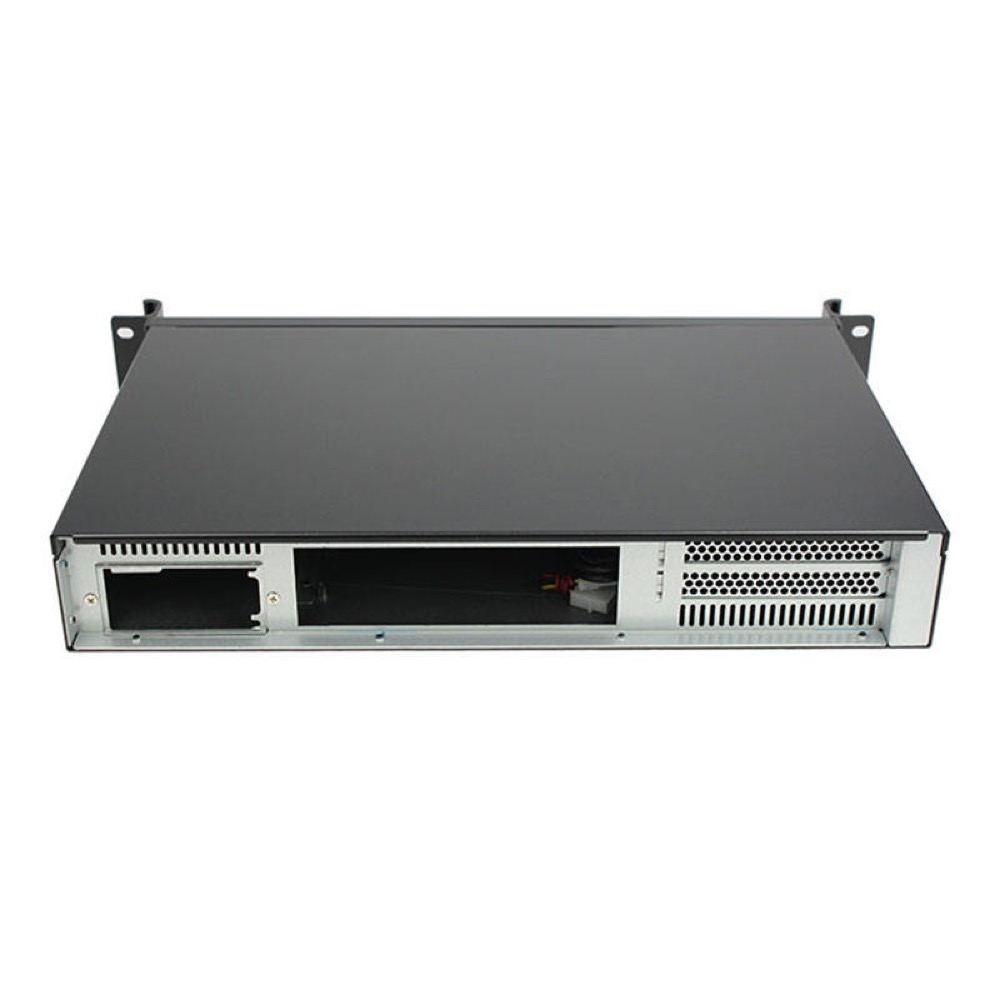

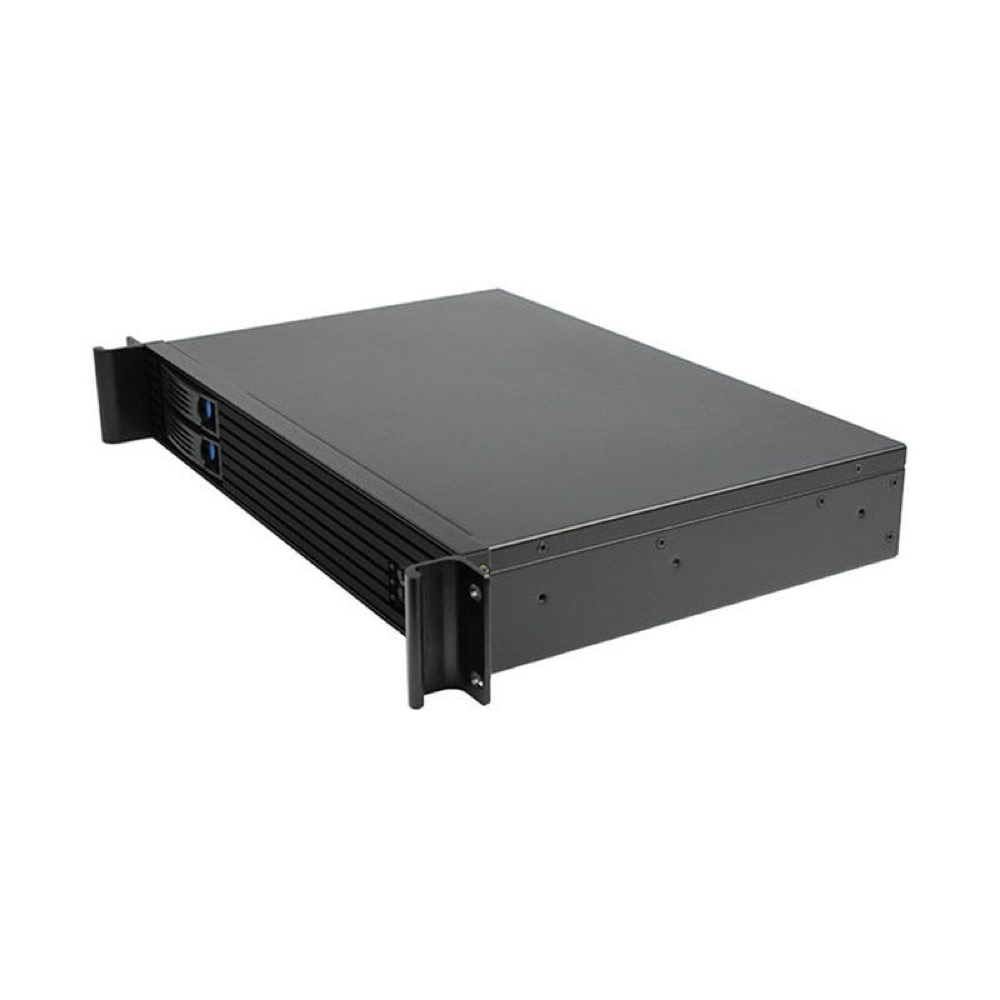

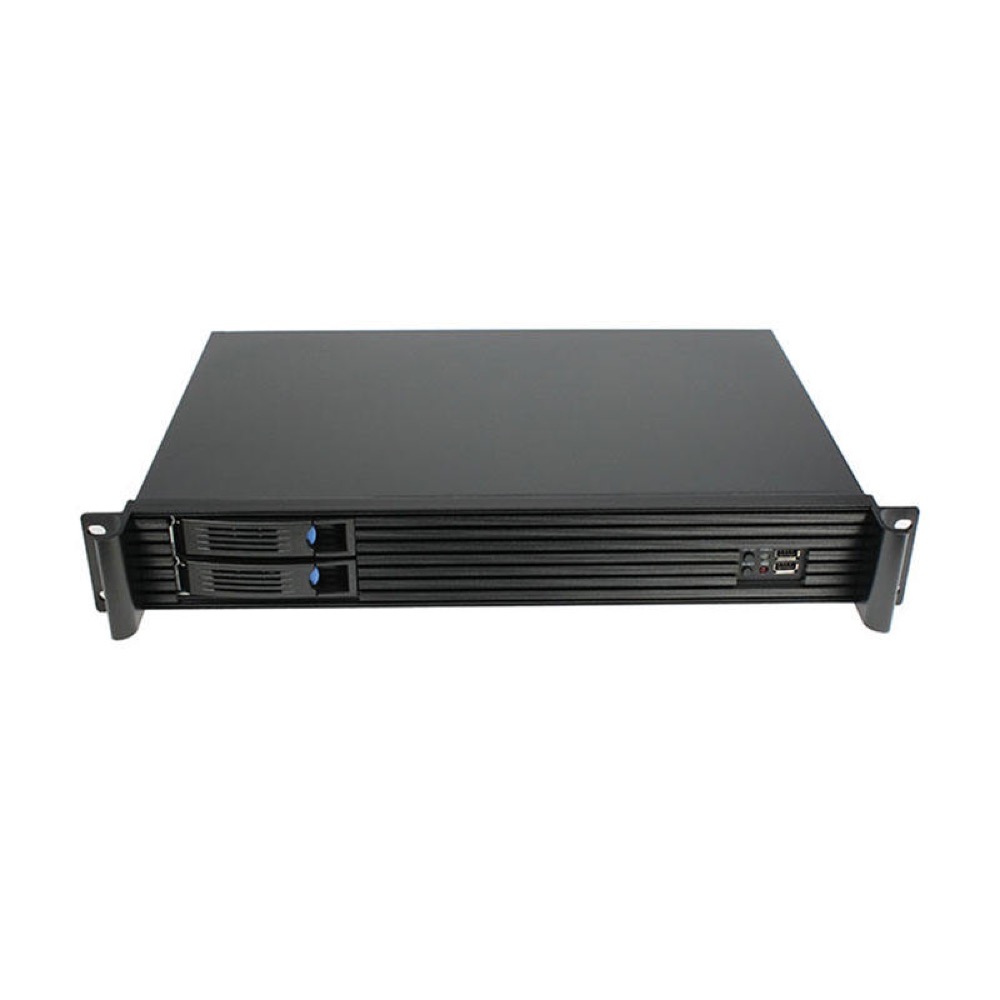

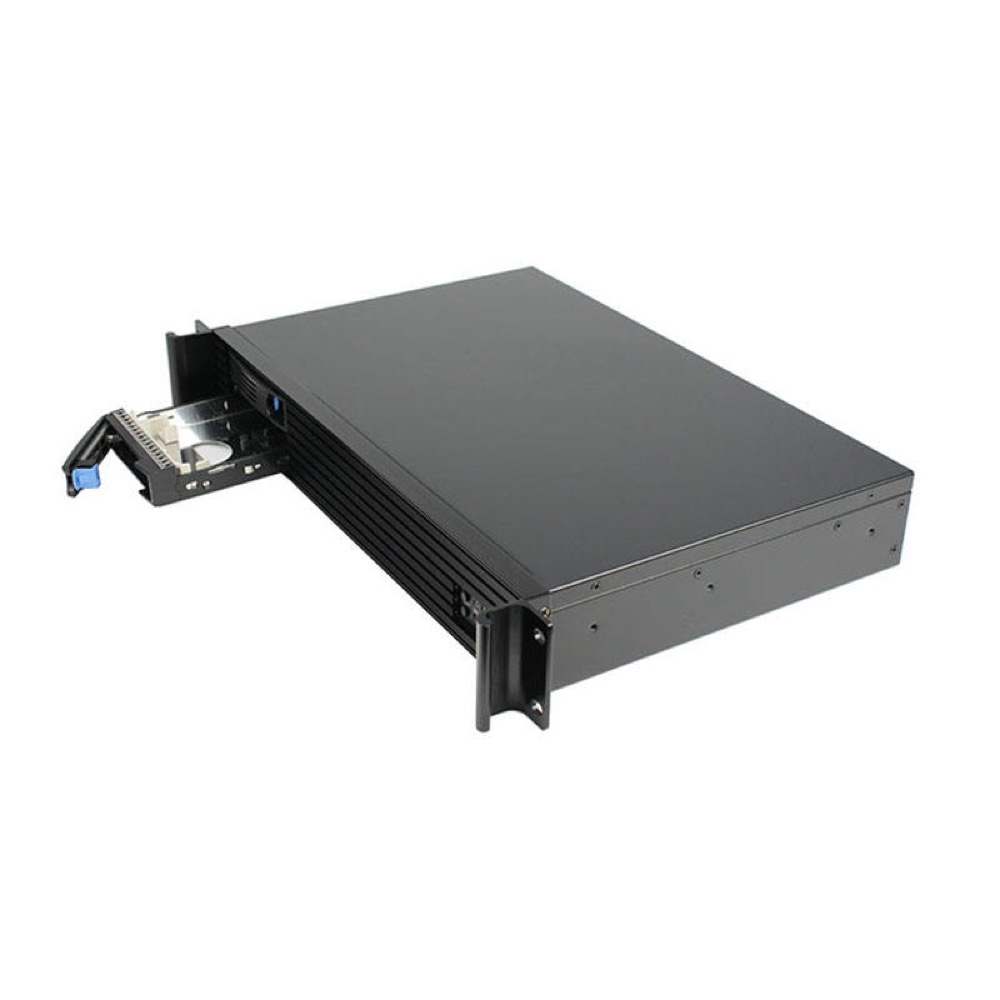

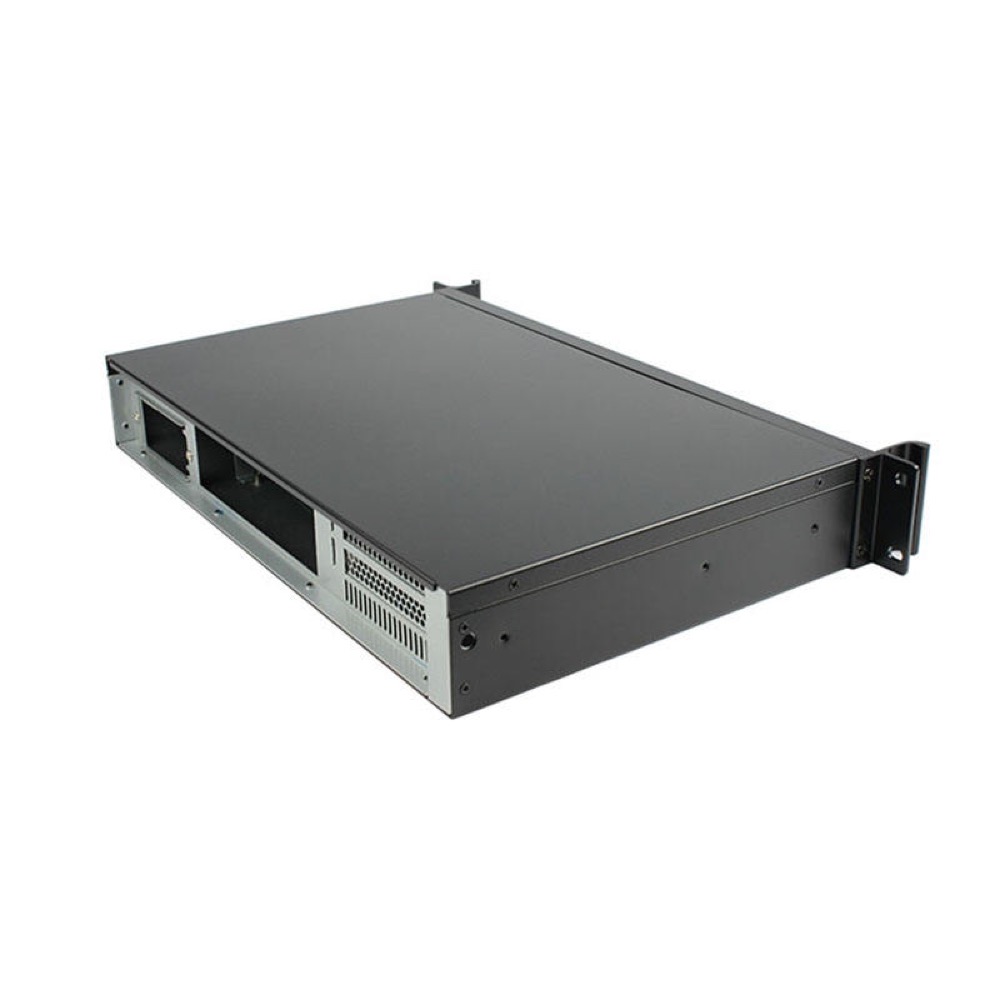

R1528L 1.5U Mini-ITX Hot-Swap Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 280(D) × 67.5(H) mm
MountingRackmount
MotherboardMini-ITX
Drive Bays2 bays
Compact 1.5U industrial-control rackmount chassis with a 482 × 280 × 67.5 mm enclosure, 170 × 170 mm Mini-ITX motherboard support, two hot-swap 3.5-inch or 2.5-inch drive positions, FLEX PSU support, two full-height straight expansion slots, and two 6020 cooling fans. The chassis uses 1.2 mm SGCC steel and is listed with CE/RoHS certification.
Specifications
Identity
| Model Number | CHS-SRV-R1528L |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 1.5U rackmount chassis with two 6020 cooling fans and hot-swap drive-tray support. FLEX PSU support is provided; PSU, motherboard, CPU, memory, and drives are not included. |
| Use Case / Application | Industrial PC, Server, Storage Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 1.5U |
| Material | SGCC steel, 1.2 mm |
| Width | 482 mm |
| Height | 67.5 mm |
| Depth | 280 mm |
| Weight | 7.0 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7 × 7 in) |
Power Supply
| PSU Support | FLEX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 2 × 3.5-inch HDD or 2 × 2.5-inch drives |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 2 bays |
PCIe and GPU Support
| PCIe Slots | 2 slots |
| PCIe Slot Types | 2 × full-height, Straight expansion slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 60 × 60 × 20 mm (6020) × 2 |
I/O and Connectivity
| Custom I/O Details | Supplier lists two full-height straight expansion slots, two 6020 fans, two hot-swap HDD positions, and FLEX PSU support. Front I/O details are not specified. |
