In stock
Server Chassis
CHS-SRV-K139L

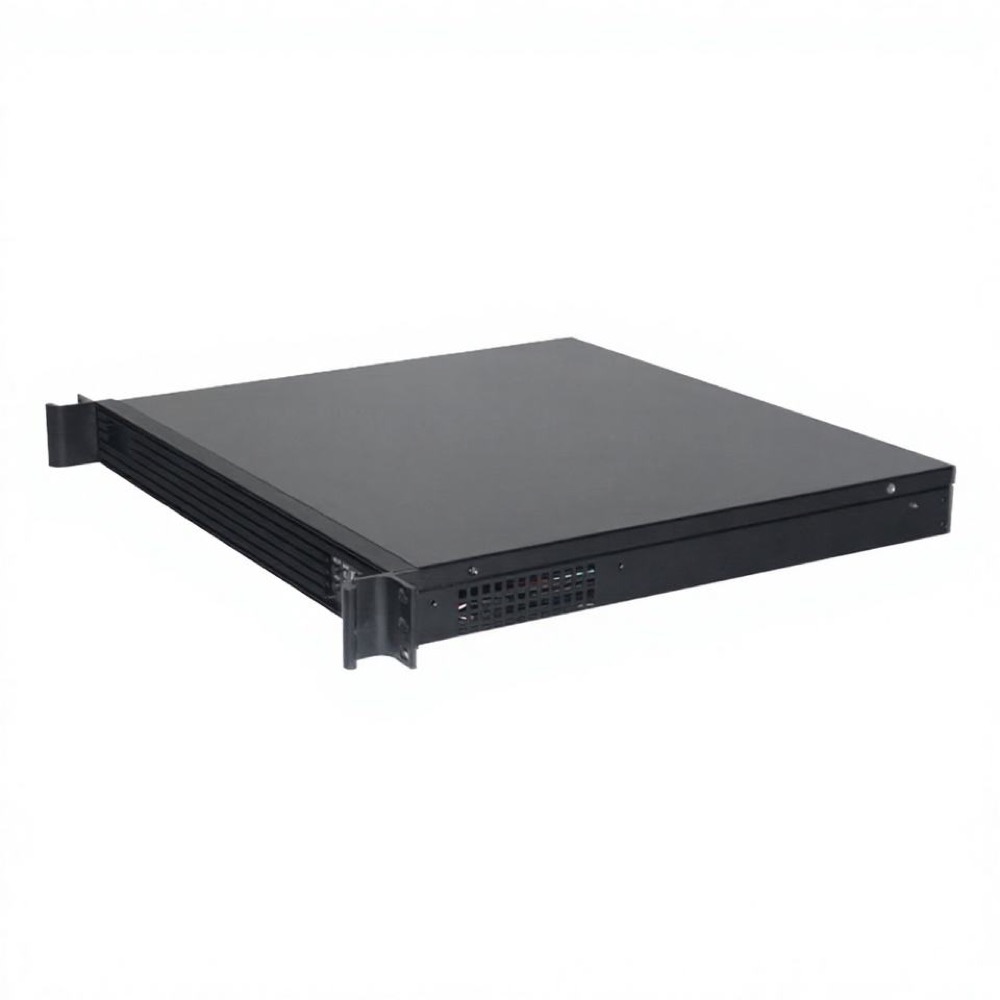

K139L 1U Mini-ITX Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 390(D) × 44.5(H) mm
MountingRackmount
MotherboardMini-ITX
Drive Bays2 bays

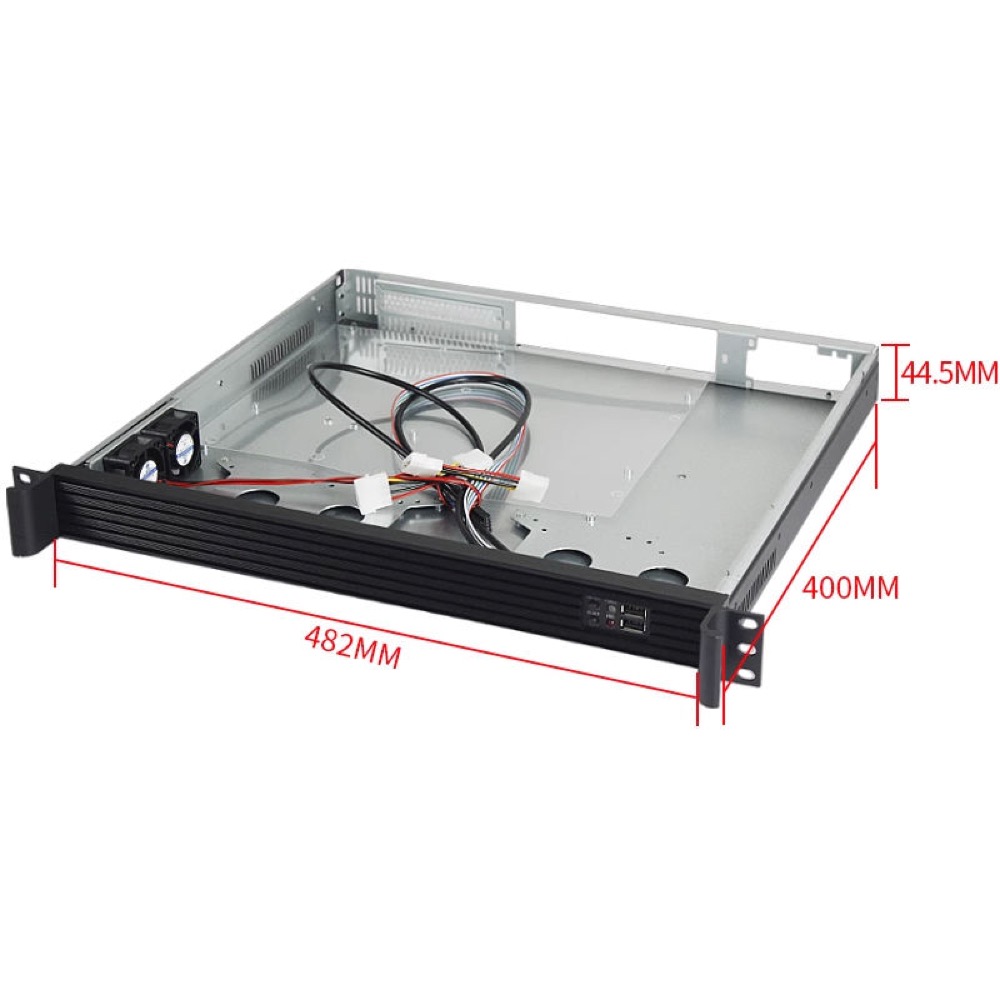

Compact 1U 19-inch rackmount chassis for Mini-ITX industrial server systems. The supplier lists one 3.5-inch drive or two 2.5-inch drives, 1U/FLEX PSU support, one full-height and lateral expansion slot with an optional riser card, two 4020 fans, and front USB 2.0, power, reset, and status indicators. The enclosure uses an aluminum front panel with an SGCC steel body. The detailed technical table lists 482(W) × 390(D) × 44.5(H) mm; the product title refers to a 400 mm depth variant.
Specifications
Identity
| Model Number | CHS-SRV-K139L |
| Product Type | Server Chassis |
Configuration and Use

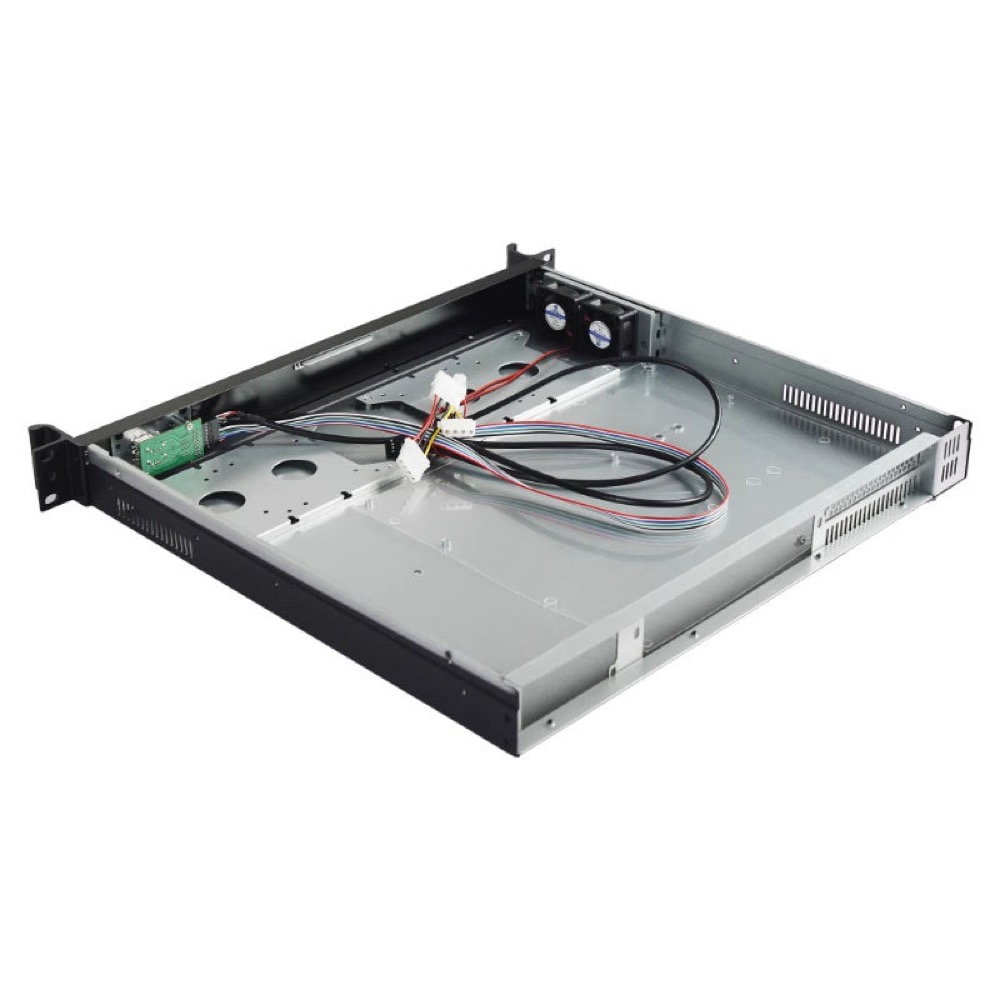

| Included Components | Empty 1U rackmount chassis with two 4020 cooling fans. 1U/FLEX PSU support is provided; PSU and riser card are not included. |
| Use Case / Application | Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 1U |
| Material | Aluminum front panel with SGCC steel body, 1.0 mm thickness |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 44.5 mm |
| Depth | 390 mm |
| Weight | 4.9 kg gross package weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | Mini-ITX; supplier’s detailed table also shows 305 × 243 mm, so confirm the exact board envelope before engineering sign-off |
Power Supply
| PSU Support | 1U standard PSU, Flex ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | One 3.5-inch HDD or two 2.5-inch HDD/SSD |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | Full-height, Lateral slot |
| Riser Card Support | Optional riser card required for the intended expansion configuration |
| Riser Card Included | No |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 40 × 40 × 20 mm (4020) × 2 |
I/O and Connectivity
| Front I/O | USB 2.0, Power, Reset, Power indicator, HDD indicator |
| Custom I/O Details | Front panel: two USB 2.0 ports, power switch, restart switch, power indicator, and hard-disk indicator. One full-height/lateral slot is available; supplier states that a riser card is optional/needed. Supplier notes that a standard I/O shield will not fit a 1U chassis. |
