Server Chassis
CHS-SRV-K155F

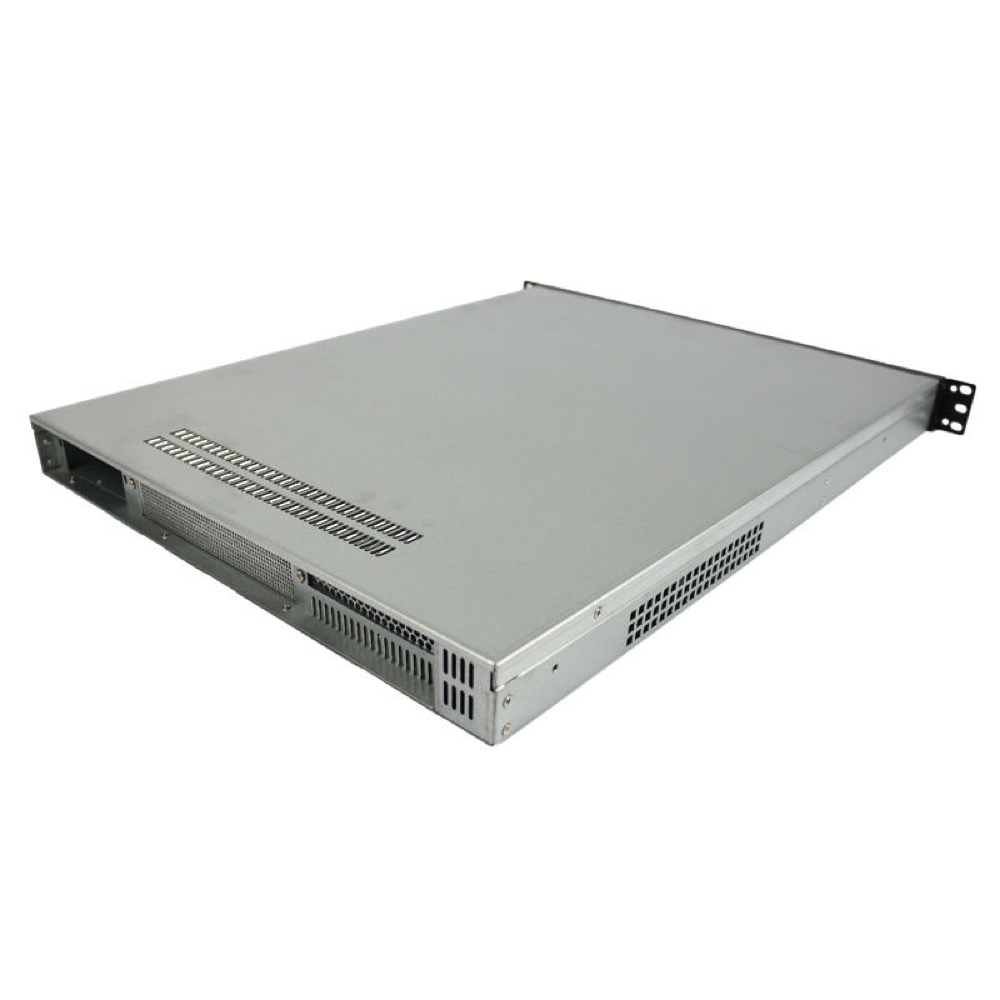

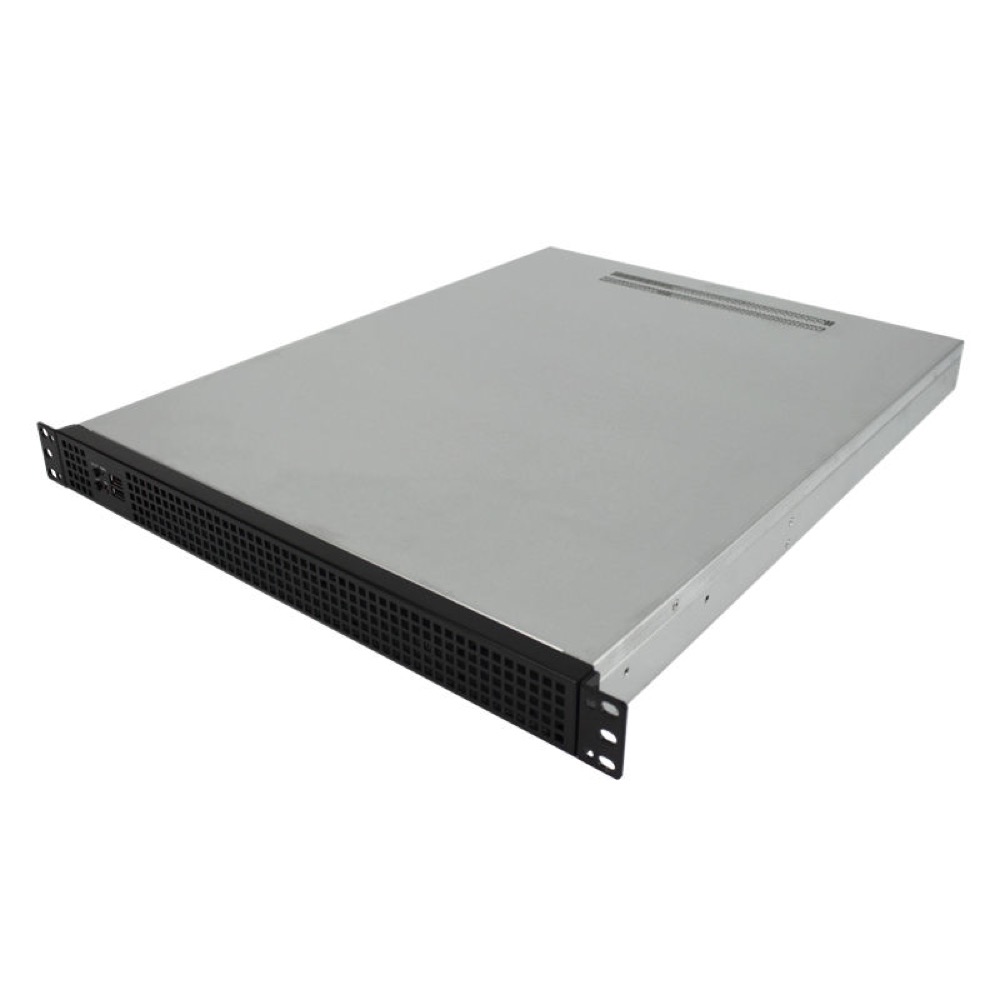

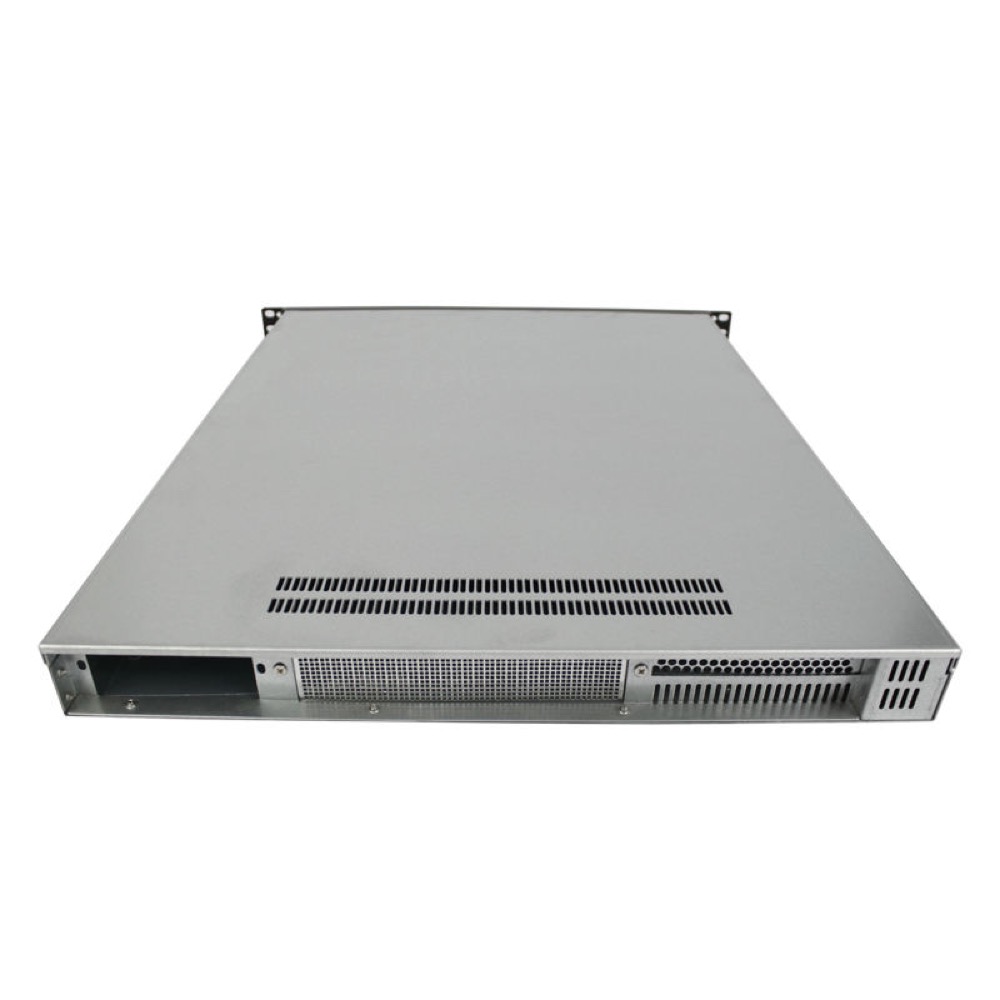

K155F 1U ATX Rackmount Storage Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 550(D) × 44.5(H) mm
MountingRackmount
MotherboardATX
Drive Bays4 bays
Full-depth 1U 19-inch rackmount chassis for industrial PCs and server storage systems. The supplier lists an ATX-sized 305 × 245 mm board footprint, four 3.5-inch hard disks, no optical-drive bay, 1U standard power-supply support, one full-height straight expansion slot with optional riser, two USB 2.0 ports, and power, reset, and status indicators. The enclosure uses 1.2 mm zinc-plated steel and measures 482(W) × 550(D) × 44.5(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K155F |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 1U steel rackmount chassis with 4020 cooling fans. 1U standard PSU support is provided; PSU, motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | Server, Storage Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 1U |
| Material | Zinc-plated steel, 1.2 mm |
| Finish / Color | Silver |
| Width | 482 mm |
| Height | 44.5 mm |
| Depth | 550 mm |
| Weight | 6.95 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 in) |
Power Supply
| PSU Support | 1U standard PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 4 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 4 × 3.5-inch hard disks |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | Full-height, Straight slot |
| Riser Card Support | Riser card needed; optional |
| Riser Card Included | No |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 40 × 40 × 20 mm (4020) × 4 detailed listing; key attribute lists 2 fans |
I/O and Connectivity

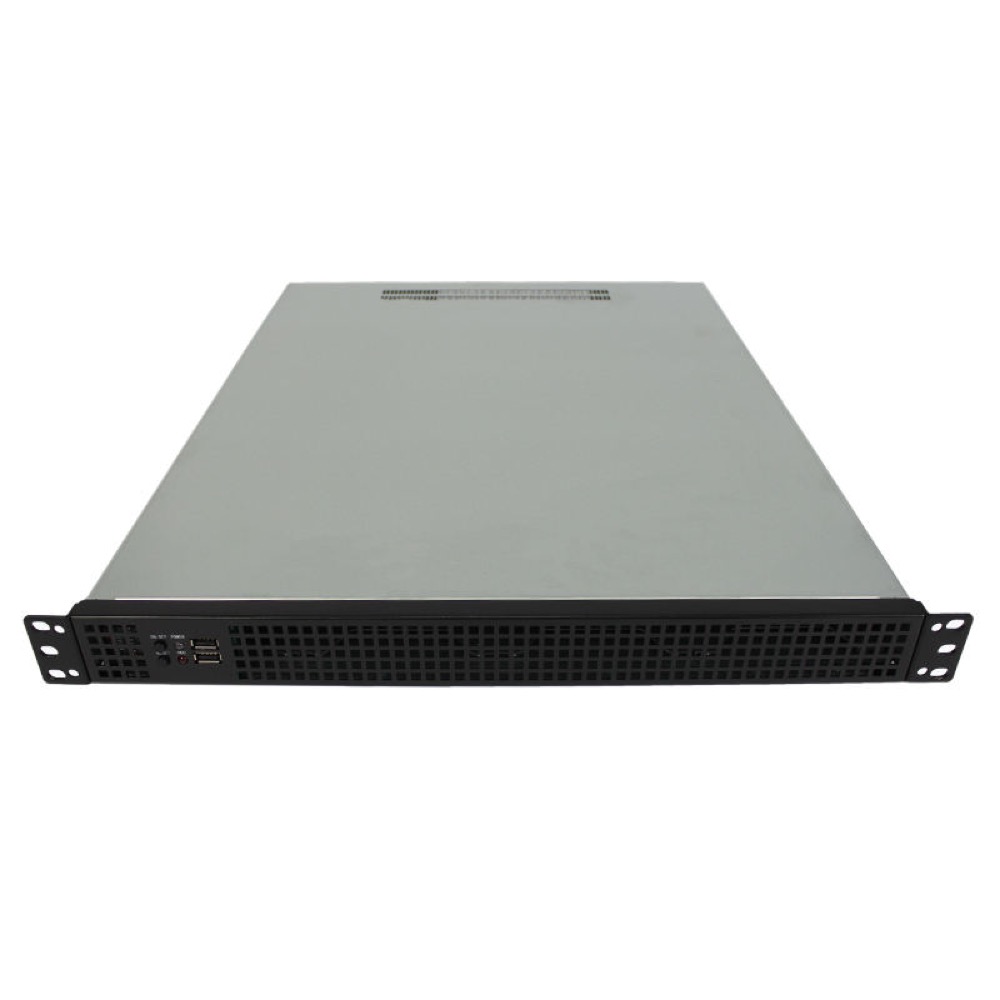

| Front I/O | 2 × USB 2.0, Power switch, Reset switch, Power indicator, HDD indicator |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power switch, restart switch, power indicator, and hard-disk indicator. Supplier lists CE/RoHS certification and one full-height straight slot with optional riser. |
