Server Chassis
CHS-SRV-K125LD

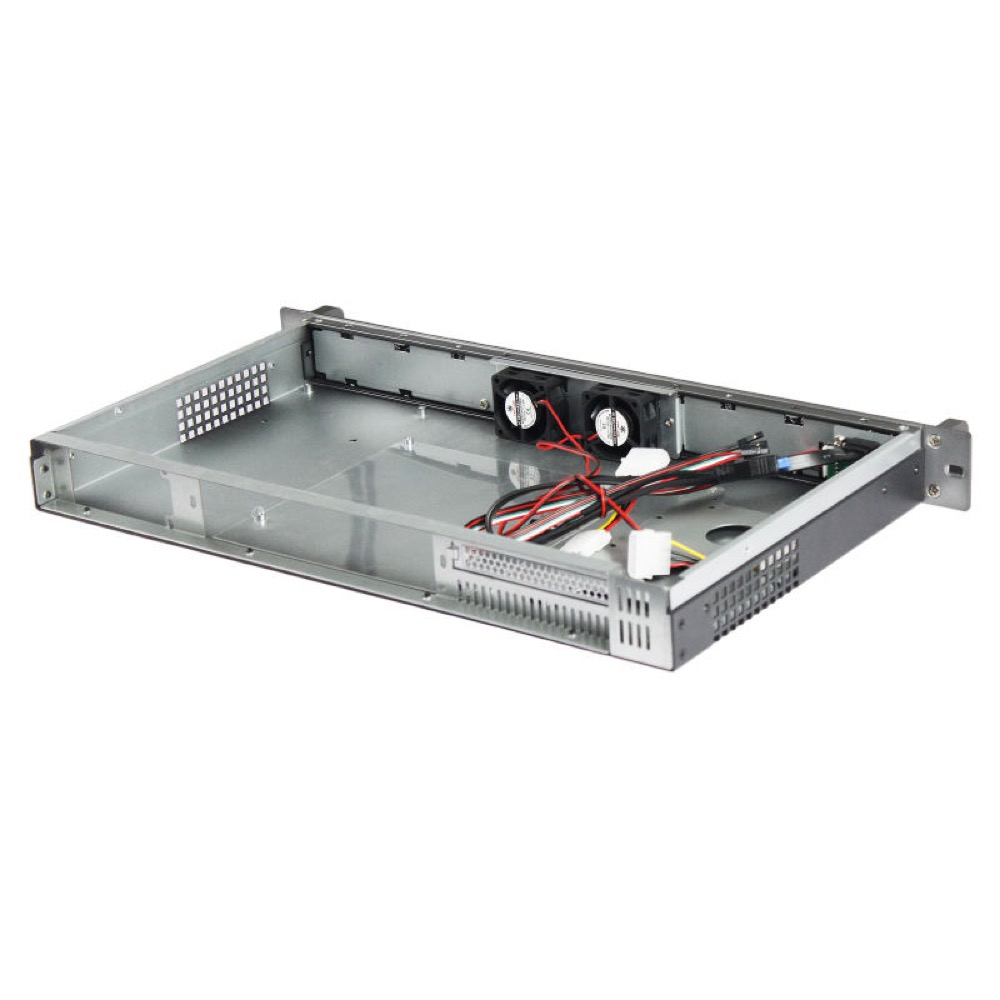

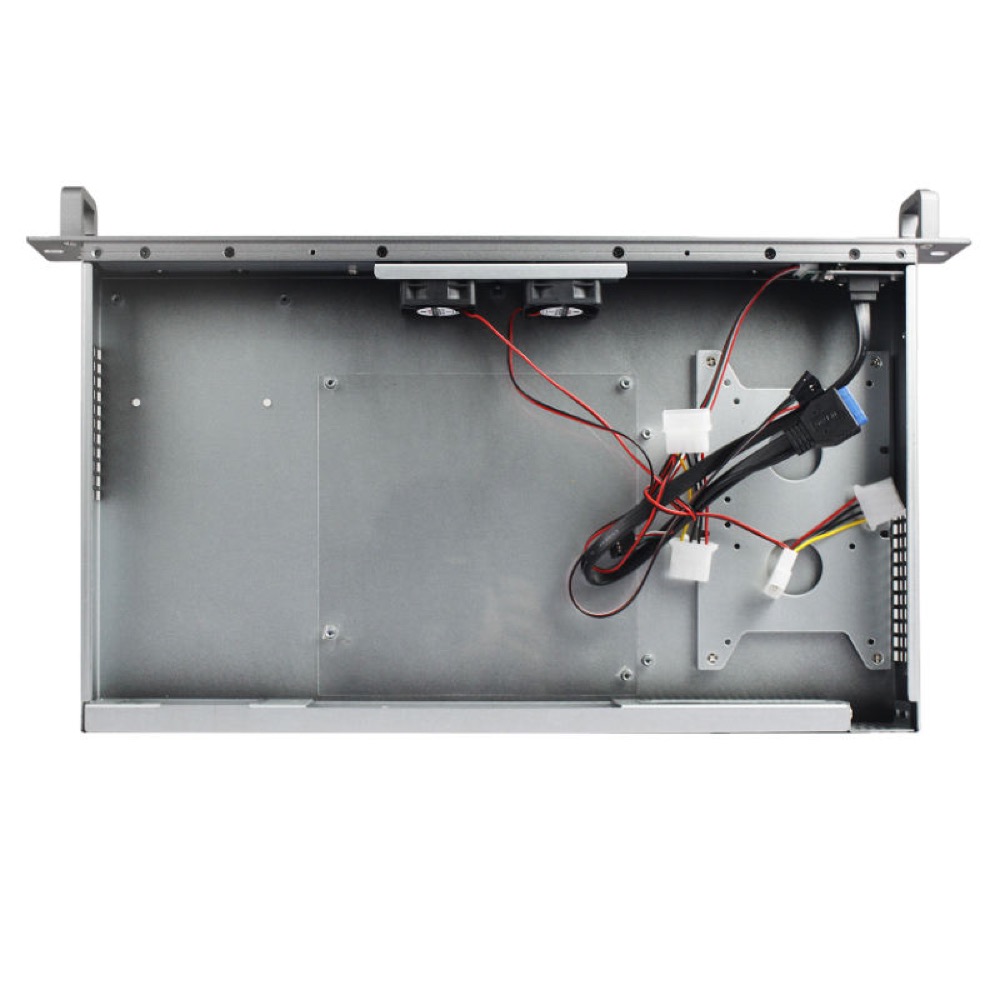

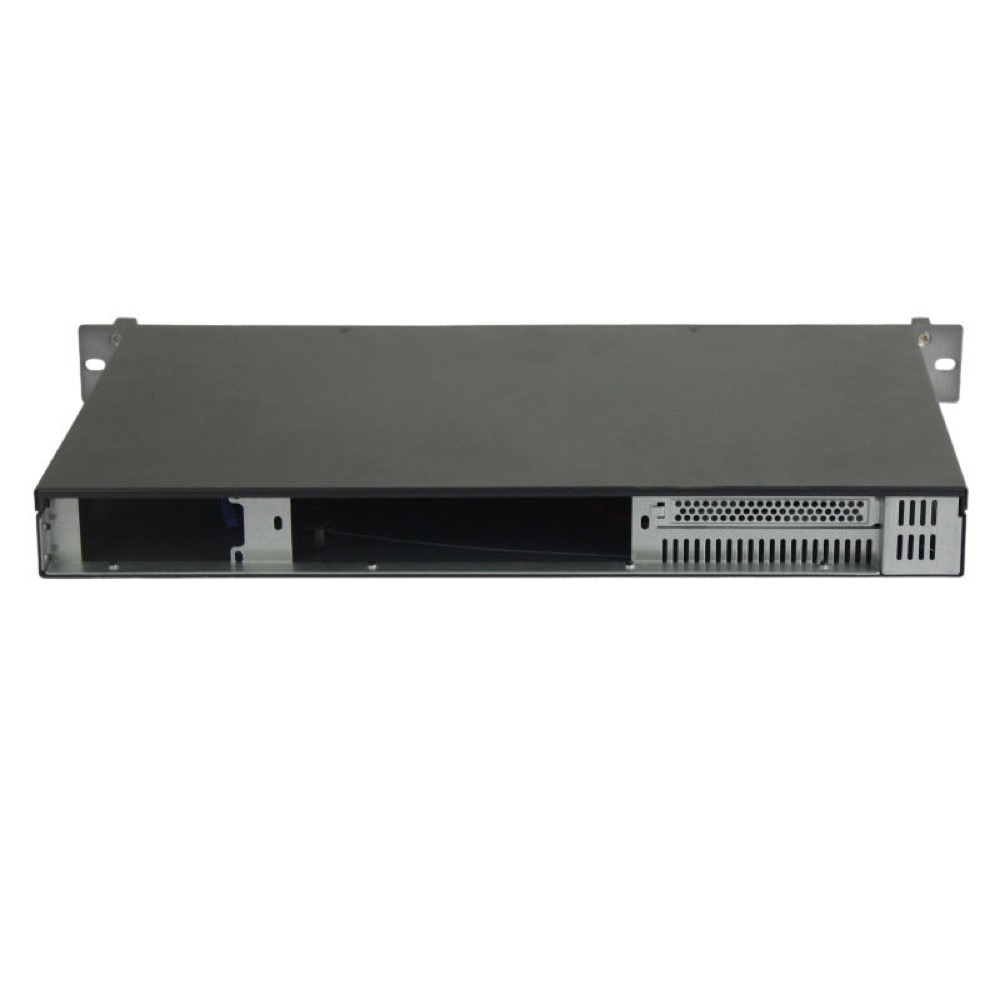

K125LD 1U Mini-ITX Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 250(D) × 44.5(H) mm
MountingRackmount
MotherboardMini-ITX
Drive Bays2 bays
Compact 1U 19-inch rackmount chassis for Mini-ITX industrial PC and server systems. The supplier lists a 170 × 170 mm Mini-ITX footprint, FLEX PSU support, one 3.5-inch or two 2.5-inch drives, one full-height parallel expansion slot requiring a separately sold riser, two 4020 fans, and a front USB 3.0 port with power/reset controls and indicators. The chassis uses an aluminum front panel and 1.0 mm SGCC steel body. Supplier-listed dimensions are 482(W) × 250(D) × 44.5(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K125LD |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 1U rackmount chassis with two 4020 cooling fans. FLEX PSU support is provided; PSU and switching/riser card are not included. |
| Use Case / Application | Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 1U |
| Material | Aluminum front panel with 1.0 mm SGCC steel body |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 44.5 mm |
| Depth | 250 mm |
| Weight | 3.65 kg gross (key attribute; detailed page also lists 2.65 kg G.W. and 3.5 kg N.W.) |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7 × 7 in) |
Power Supply
| PSU Support | Flex ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | One 3.5-inch HDD or two 2.5-inch HDD/SSD |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | Full-height, Straight/parallel slot |
| Riser Card Support | Switching/riser card required; sold separately |
| Riser Card Included | No |
Cooling and Thermal

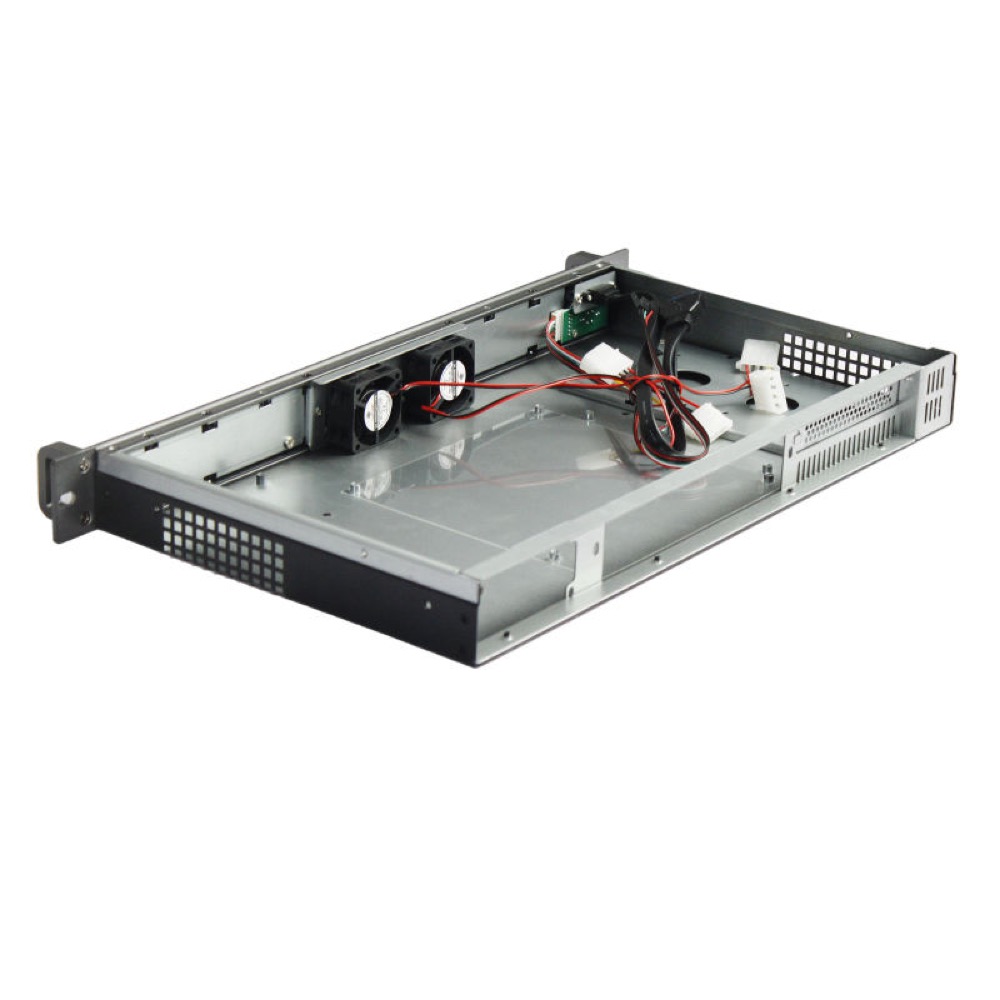

| Included Fan Count | 2 fans |
| Fan Size | 40 × 40 × 20 mm (4020) × 2 |
I/O and Connectivity

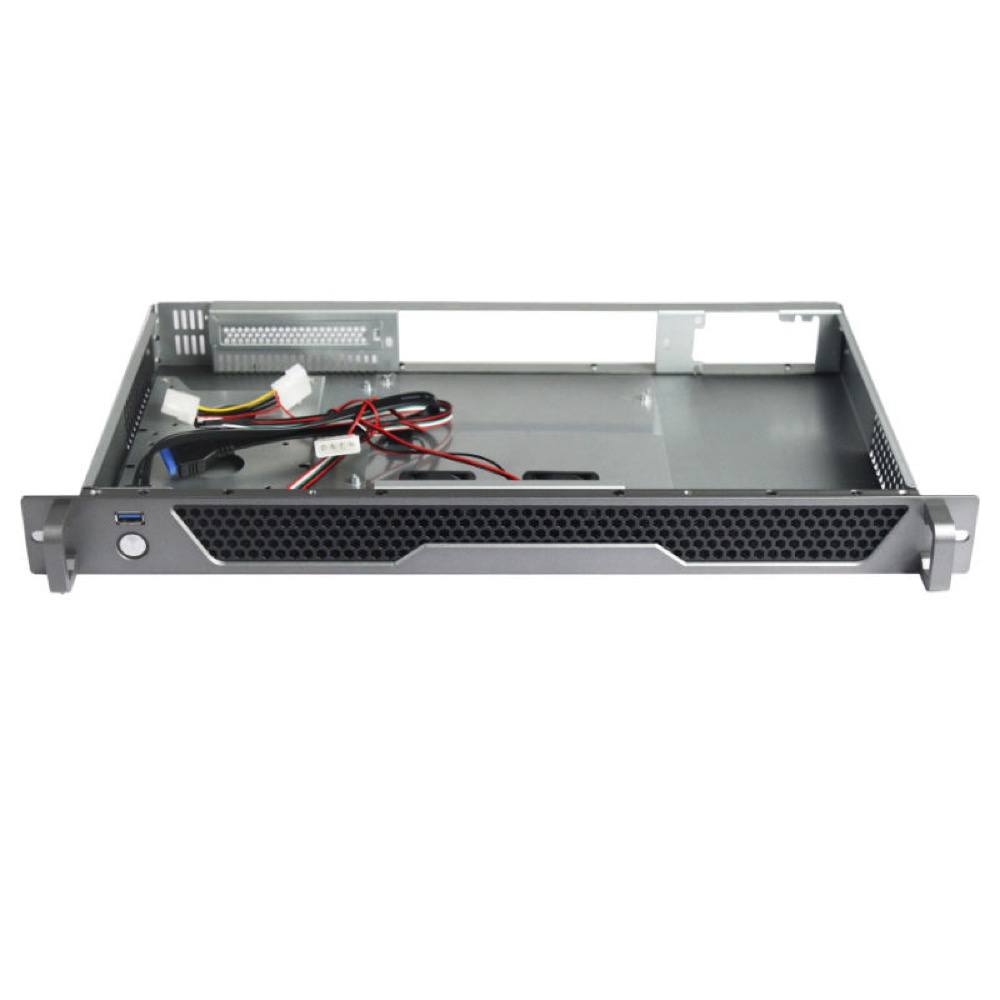

| Front I/O | USB 3.0, Power switch, Reset, Power indicator |
| Custom I/O Details | Front panel includes one USB 3.0 port, power switch with indicator, and reset control. The single full-height parallel slot requires a separately sold riser card. Supplier also lists no CD-ROM support. |
