In stock in key attributes; supplier description table states Used
Server Chassis
CHS-SRV-K325LD-LCD

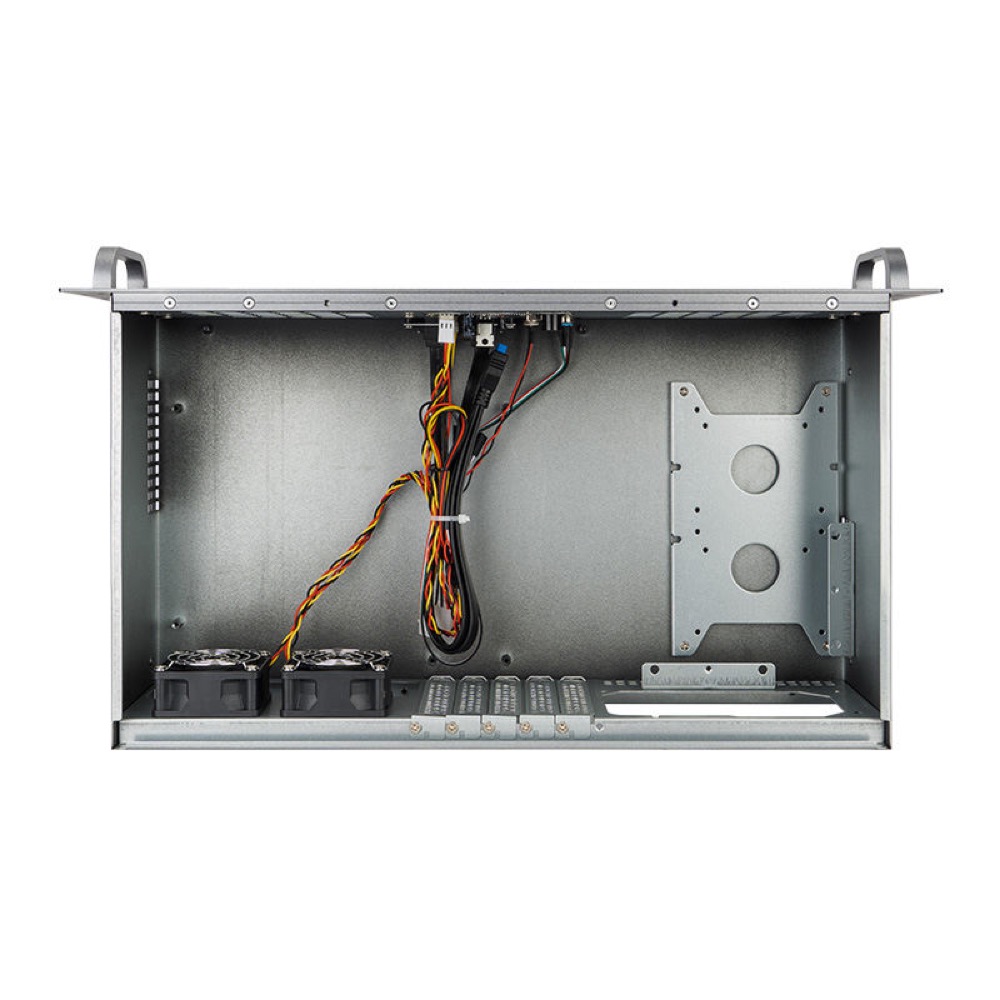

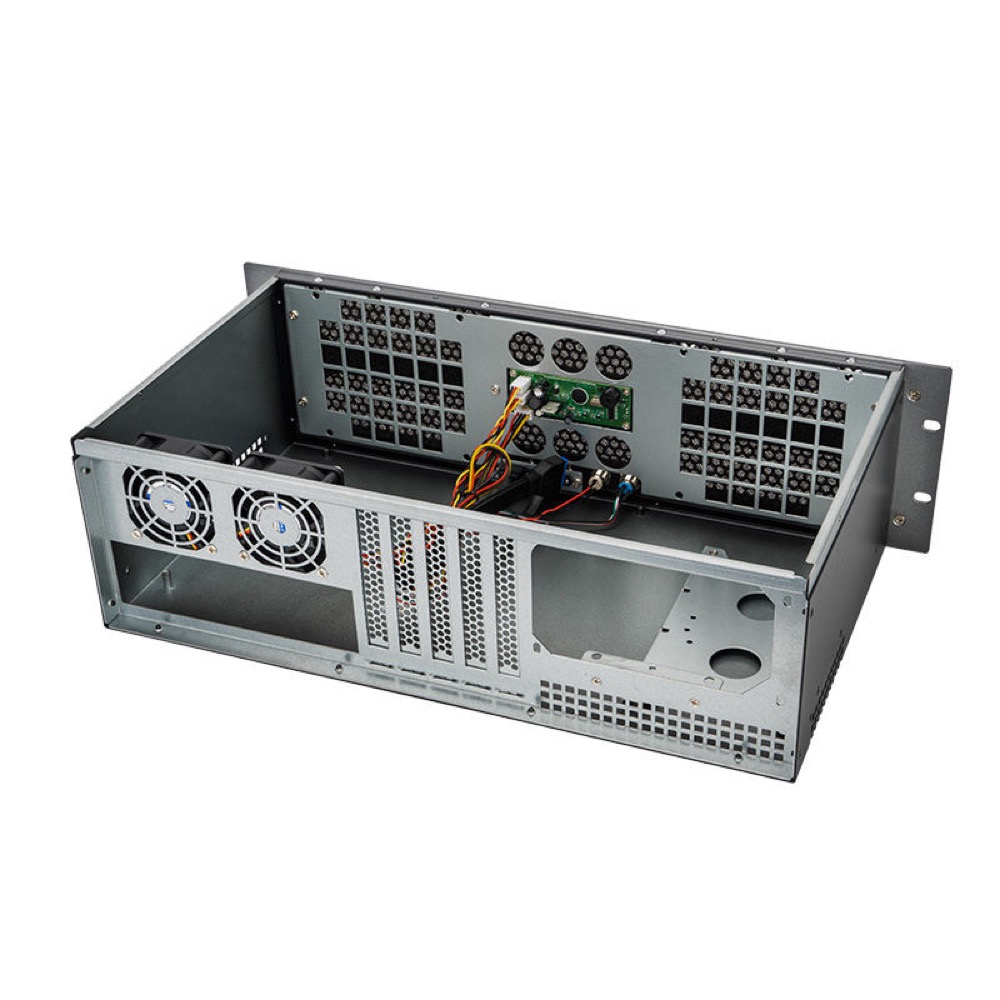

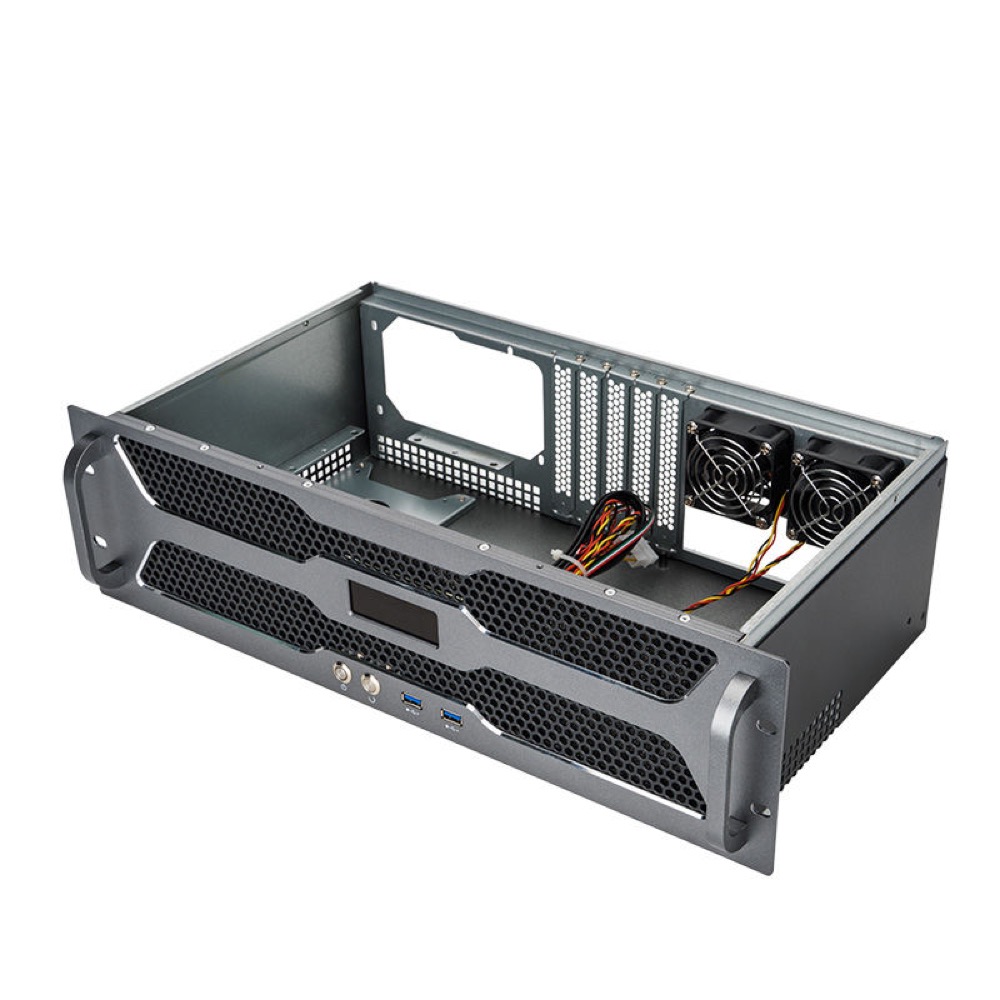

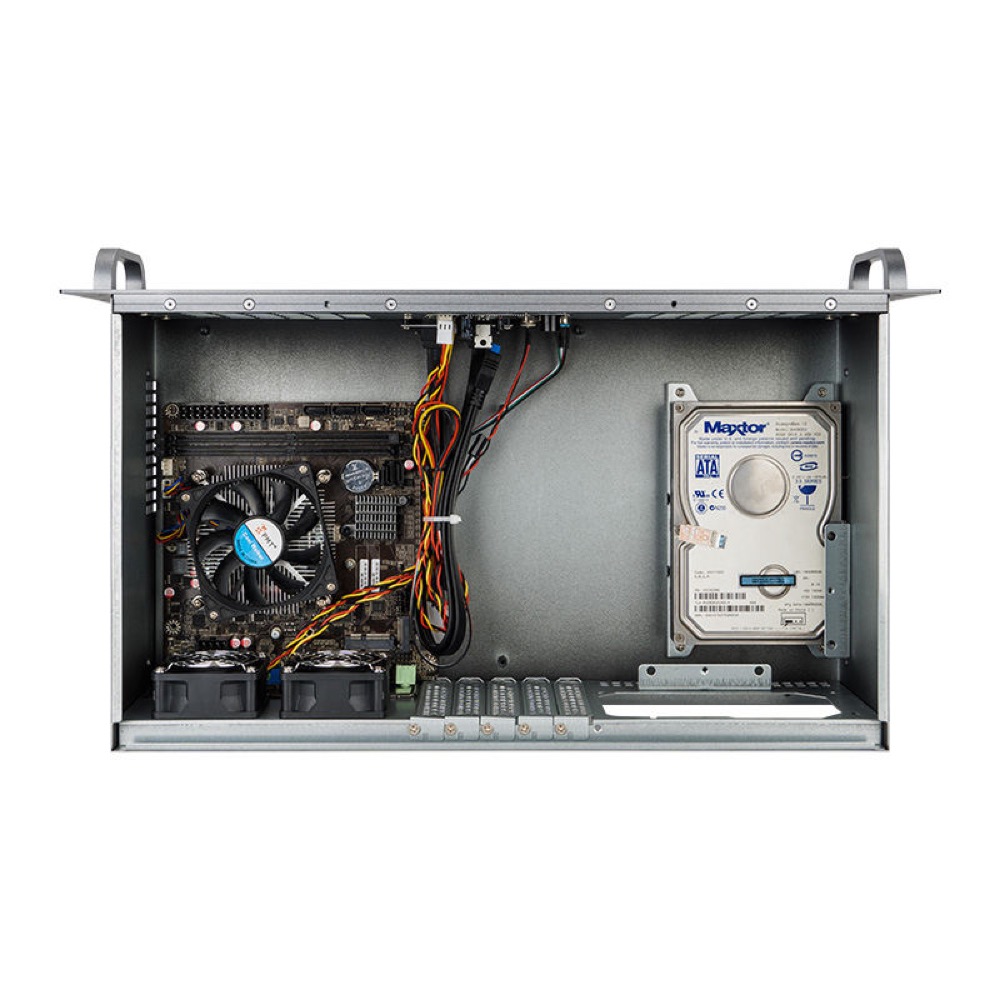

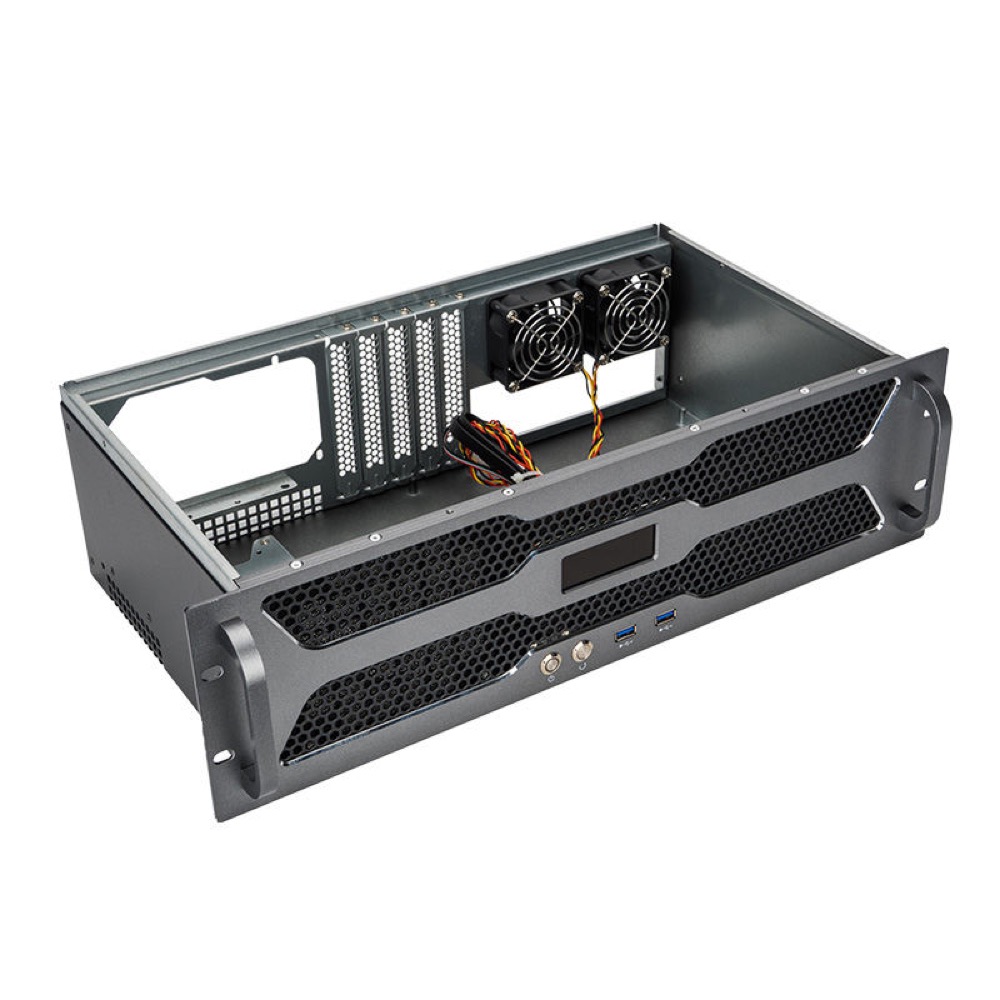

K325LD 3U Mini-ITX Rackmount Chassis with Temperature LCD
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 250(D) × 133.5(H) mm
MountingRackmount
MotherboardMini-ITX
Drive Bays2 bays
K325LD 3U 19-inch short-depth industrial rackmount chassis for compact server and industrial PC applications. The supplier lists a 482 × 250 × 133.5 mm enclosure with Mini-ITX support, ATX PSU support, one 3.5-inch or two 2.5-inch drive positions, five PCIe slots, a front temperature LCD, two USB 3.0 ports, power controls, and an included cooling fan. The supplier gives two motherboard and cooler-clearance values across its key and detailed specifications; both are preserved in the source notes.
Specifications
Identity
| Model Number | CHS-SRV-K325LD-LCD |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 3U rackmount chassis with front temperature LCD, two USB 3.0 ports, power controls, and an included cooling fan. ATX PSU support is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 3U |
| Material | Aluminum alloy and steel |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 133.5 mm |
| Depth | 250 mm |
| Weight | 5.05 kg gross / 3.95 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 200 × 250 mm in key attributes; 170 × 170 mm in detailed specification |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 1 × 3.5-inch HDD, Alternate layout: 2 × 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 5 slots |
| PCIe Slot Types | 5 × PCIe expansion slots |
| Maximum GPU Length | Up to 210 mm |
Cooling and Thermal
| Maximum CPU Cooler Height | 70 mm in key attributes; 108 mm in detailed specification |
Display and LCD
| LCD / Display Included | Yes |
| Display Position | Front panel temperature display |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Power on/off, Temperature LCD |
| Custom I/O Details | Front panel includes two USB 3.0 ports, power on/off control, and a temperature LCD. Supplier lists five PCIe slots and one included fan; fan count and size are not specified. |
