Server Chassis
CHS-SRV-R339F-4C

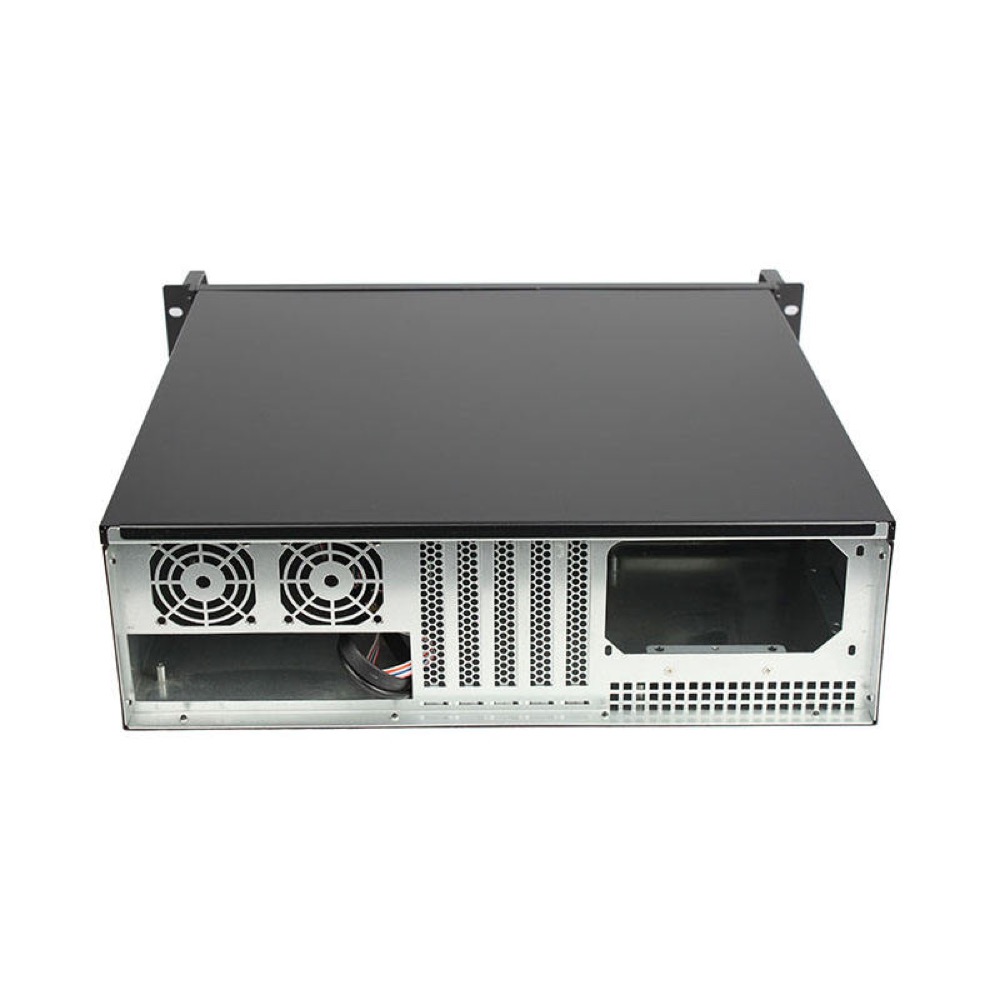

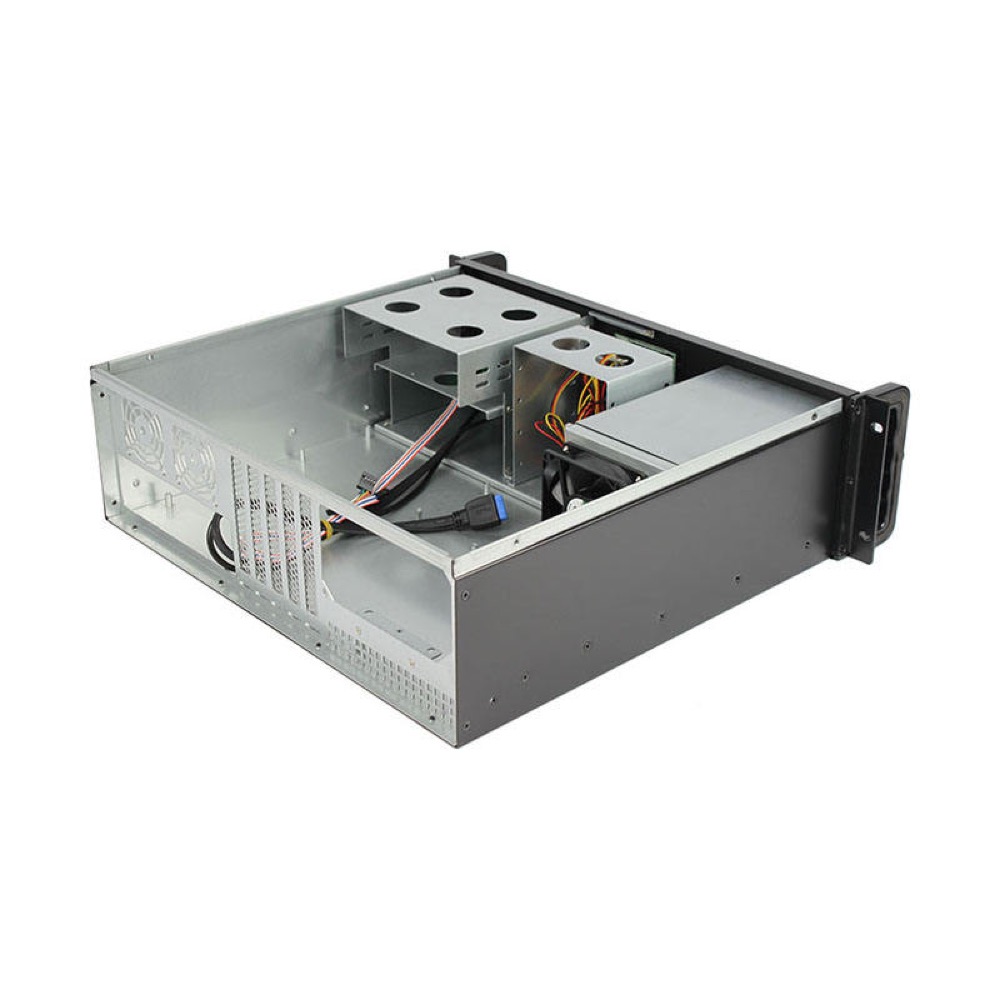

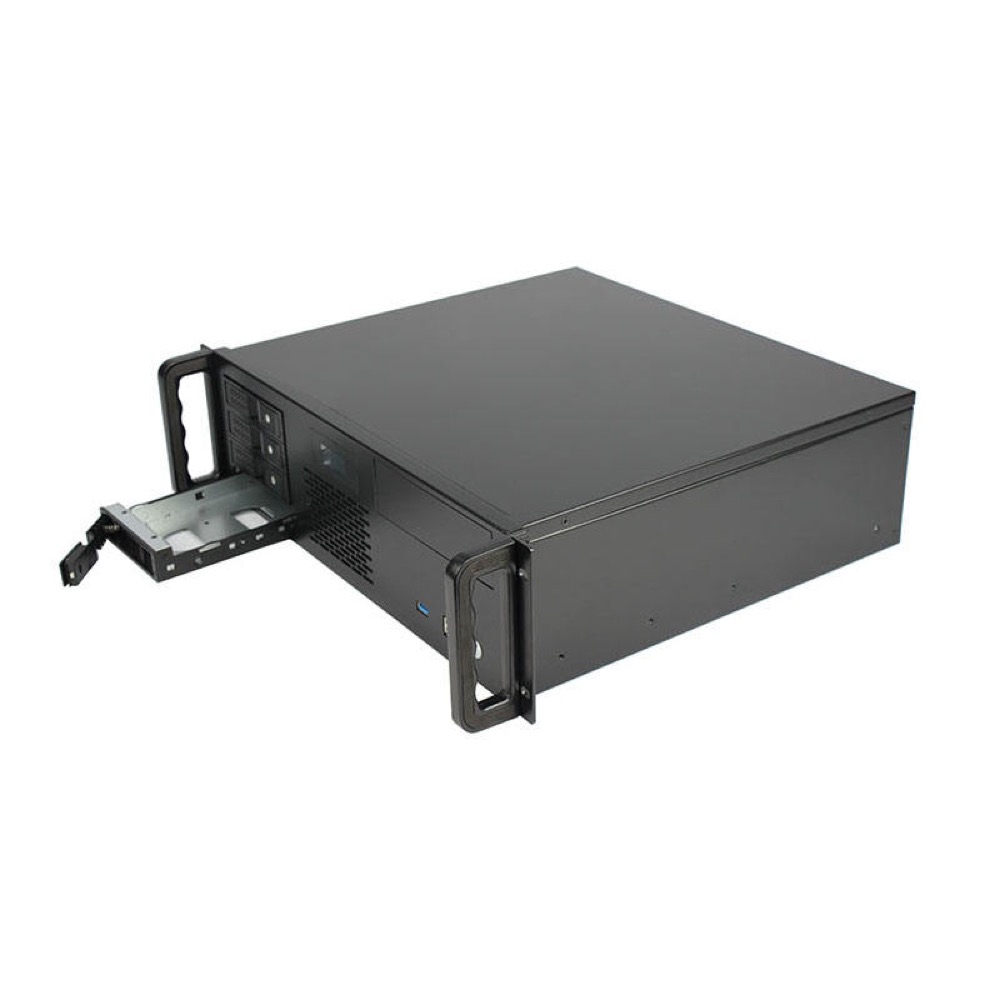

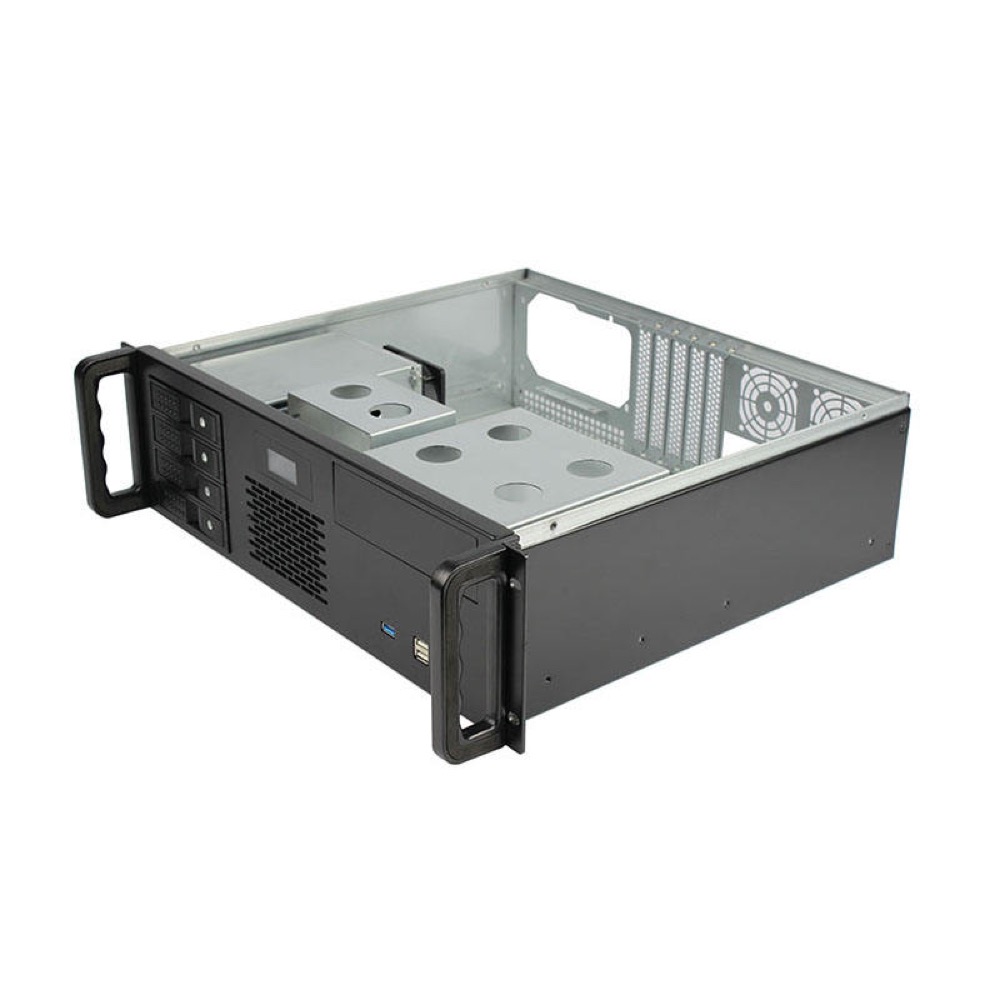

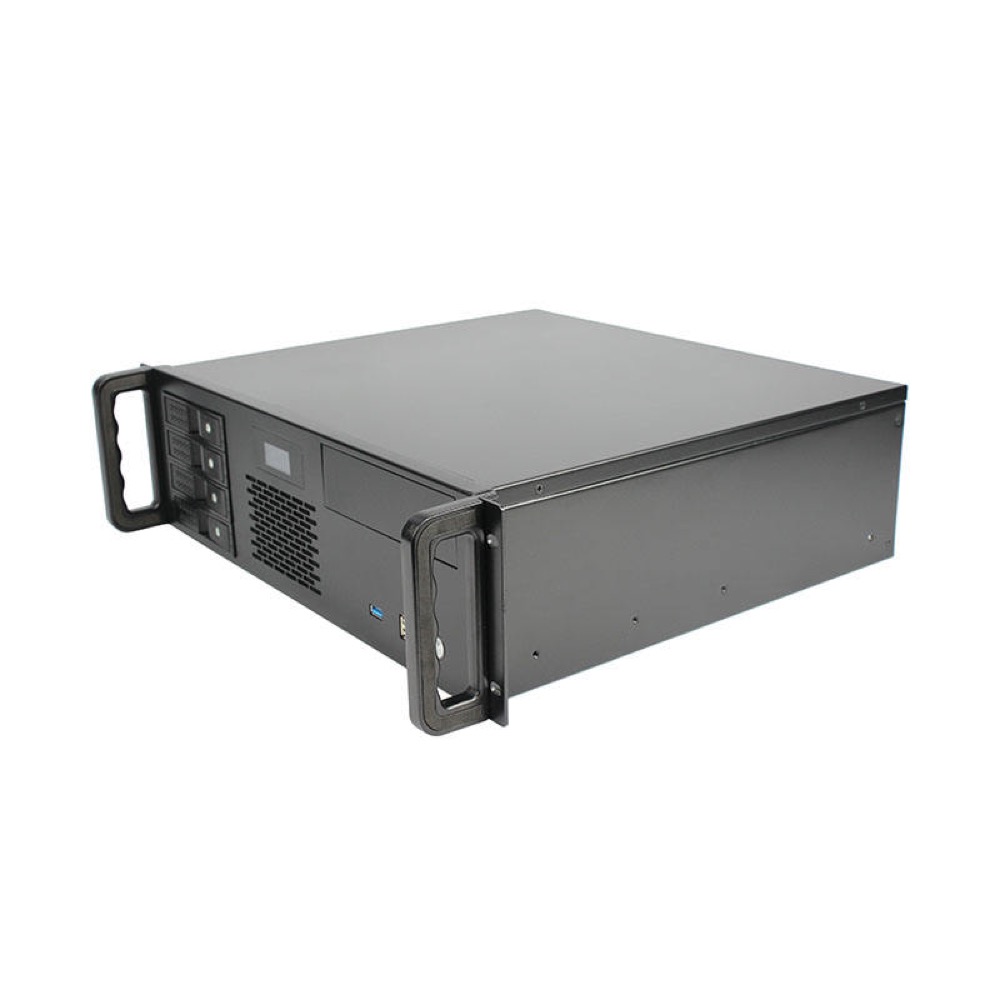

R339F-4C 3U Hot-Plug MicroATX Storage Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 390(D) × 133(H) mm
MountingRackmount
MotherboardMicroATX
Drive Bays4 bays
R339F-4C 3U rackmount storage chassis for MicroATX systems. The supplier lists four 3.5-inch hot-plug hard-drive bays, one 5.25-inch optical-drive position, five full-height PCIe slots, ATX PSU support, dual 8025 cooling fans, and an SGCC steel enclosure. Supplier-listed dimensions are 482(W) × 390(D) × 133(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-R339F-4C |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 3U rackmount storage chassis with two 8025 cooling fans and four hot-plug drive bays. PSU, motherboard, storage drives, and optical drive are not included. |
| Use Case / Application | Server, Storage / NAS |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 3U |
| Material | SGCC Steel |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 390 mm |
| Weight | 11.24 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 245 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 4 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 3.5-inch hot-plug HDD |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 4 bays |
PCIe and GPU Support
| PCIe Slots | 5 slots |
| PCIe Slot Types | Full-height PCIe slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, USB 3.0, Power button |
| Custom I/O Details | Supplier lists one 5.25-inch optical-drive position, five full-height straight PCIe slots, two USB 2.0 ports, one USB 3.0 port, one power switch, SGCC 1.2 mm material, and CE/RoHS certification. |
