In stock
Server Chassis
CHS-SRV-K230F

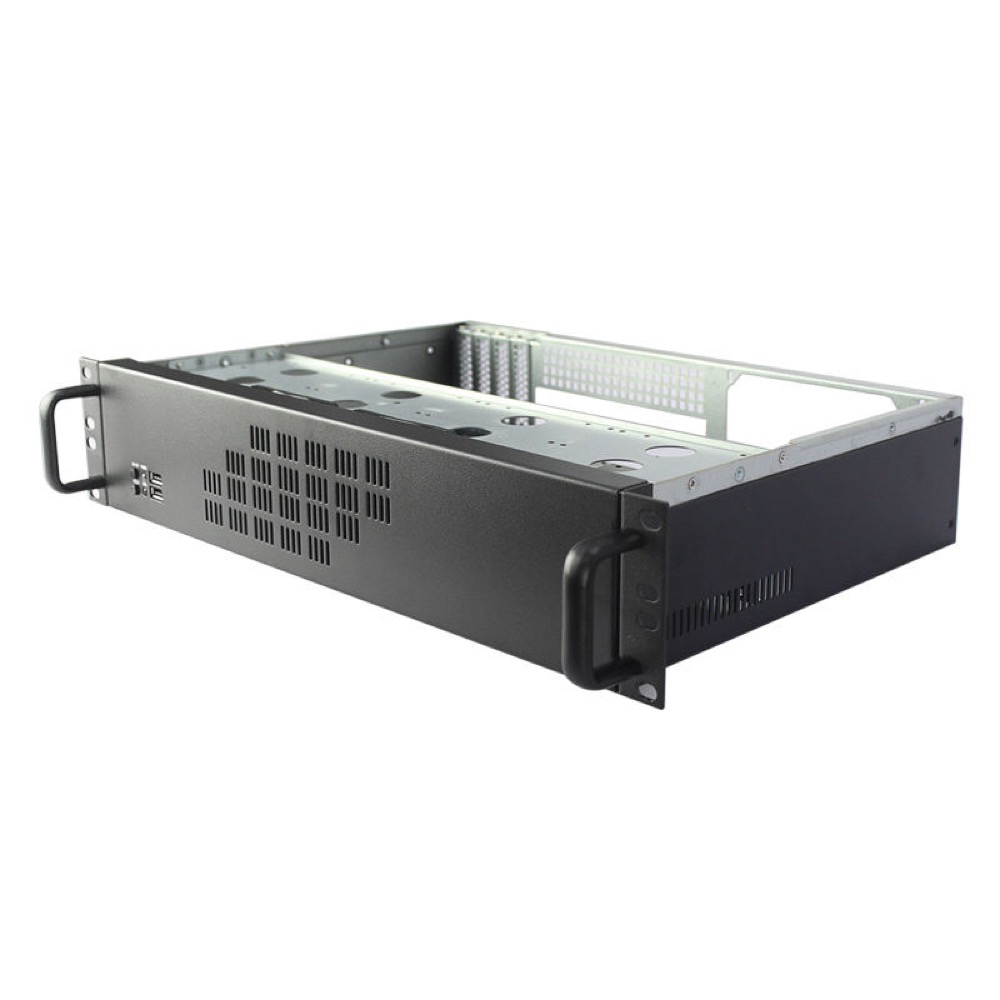

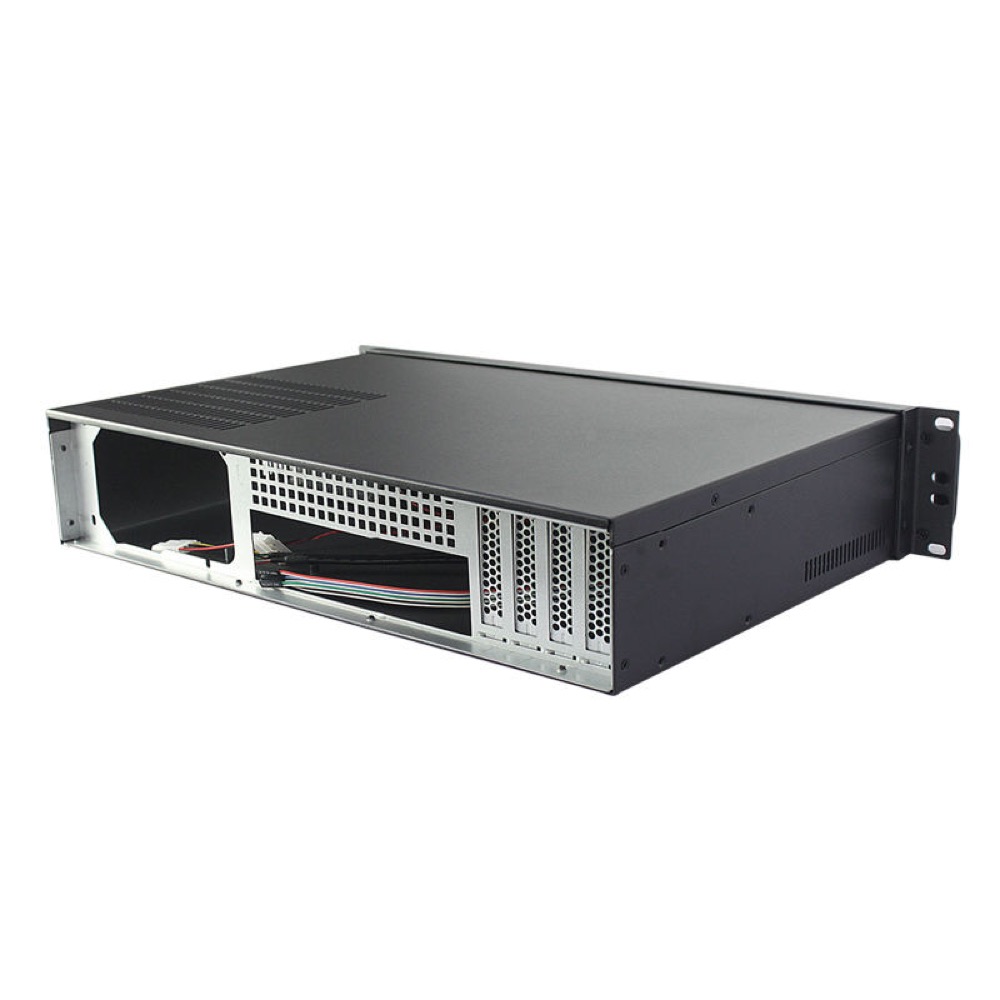

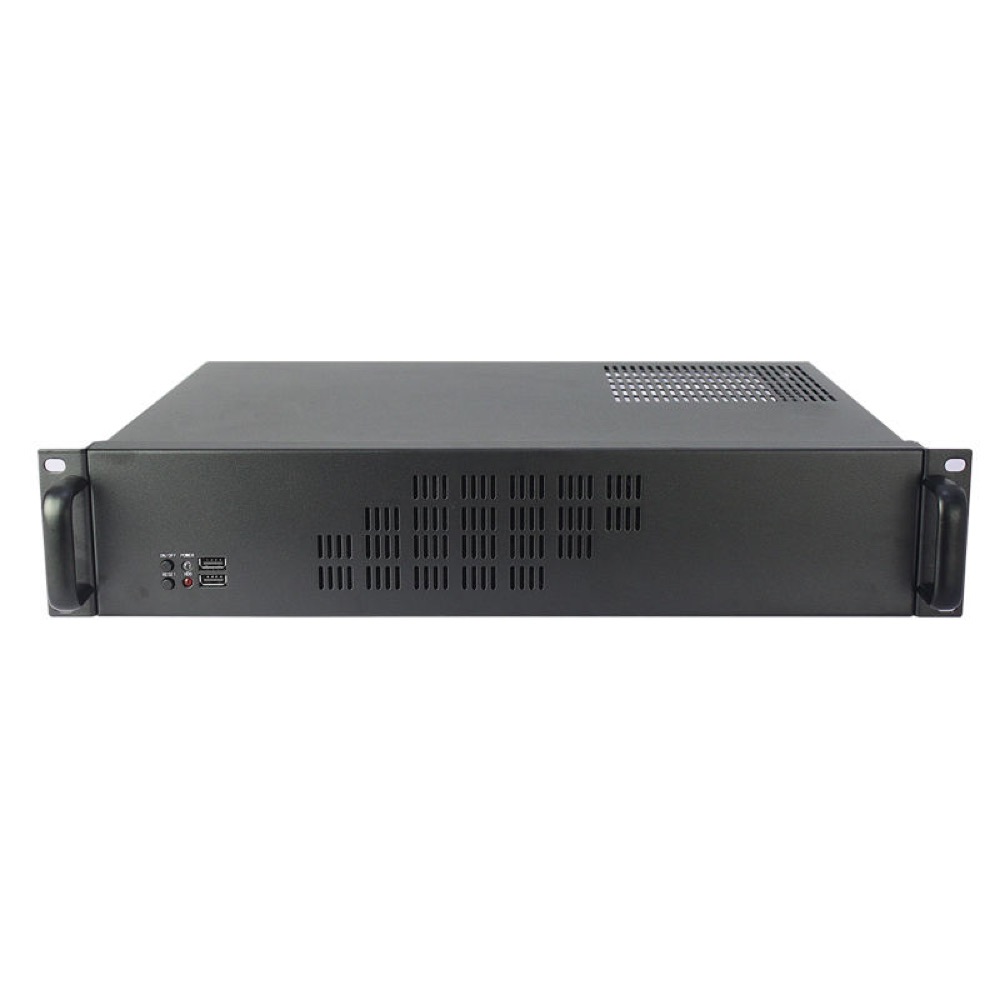

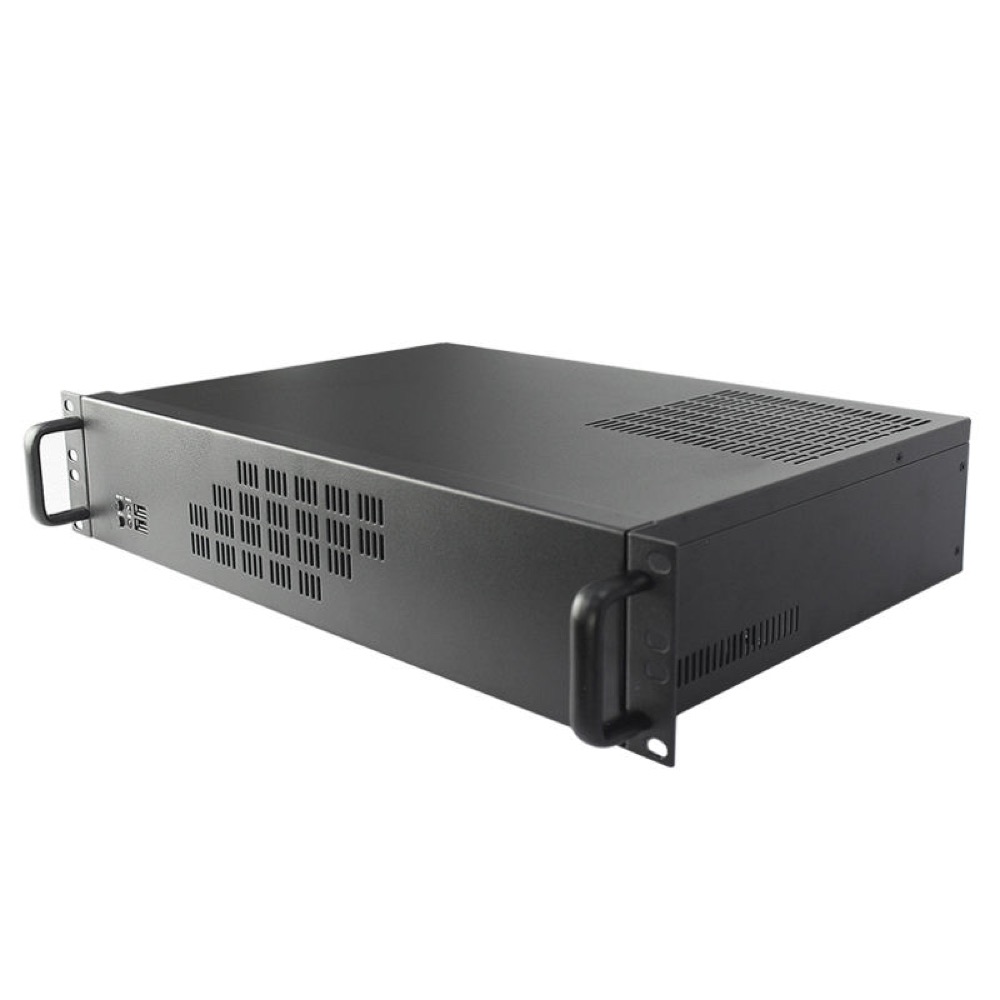

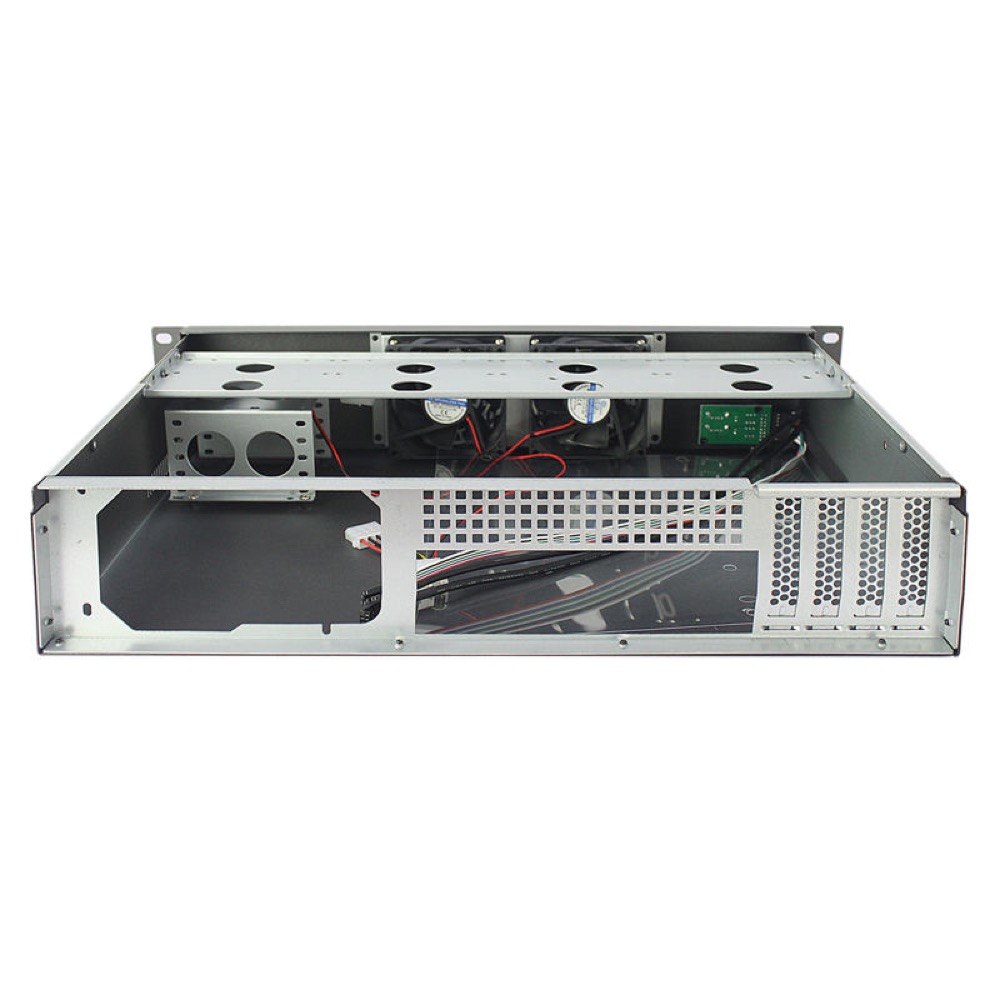

K230F 2U MicroATX Industrial Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 300(D) × 89(H) mm
MountingRackmount
MotherboardMicroATX
Drive Bays4 bays
K230F 2U 19-inch industrial rackmount chassis for MicroATX systems. The supplier lists a zinc-plated SGCC steel enclosure, support for four 3.5-inch hard drives or seven 2.5-inch drives, four half-height PCIe slots, ATX PSU support, dual 8020 fans, and USB 2.0, power, reset, and indicator controls. Supplier-listed dimensions are 482(W) × 300(D) × 89(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K230F |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis with two 8020 cooling fans. PSU, motherboard, and storage drives are not included. |
| Use Case / Application | Industrial, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC Steel |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 300 mm |
| Weight | 6 kg gross / 4.8 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 245 × 245 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 4 bays |
| 2.5-inch Drive Bays | 7 bays |
| Drive Types | 3.5-inch HDD, 2.5-inch HDD (alternate configuration) |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | Half-height PCIe slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 20 mm (8020) × 2 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power button, Reset button, Power indicator, HDD activity indicator |
| Custom I/O Details | Supplier lists four 3.5-inch hard drives or seven 2.5-inch HDDs as alternate layouts, four half-height straight PCIe slots, two USB 2.0 ports, power/reset switches, power/HDD indicators, and 1.0 mm SGCC steel. |
