In stock
Server Chassis
CHS-SRV-R248-6C

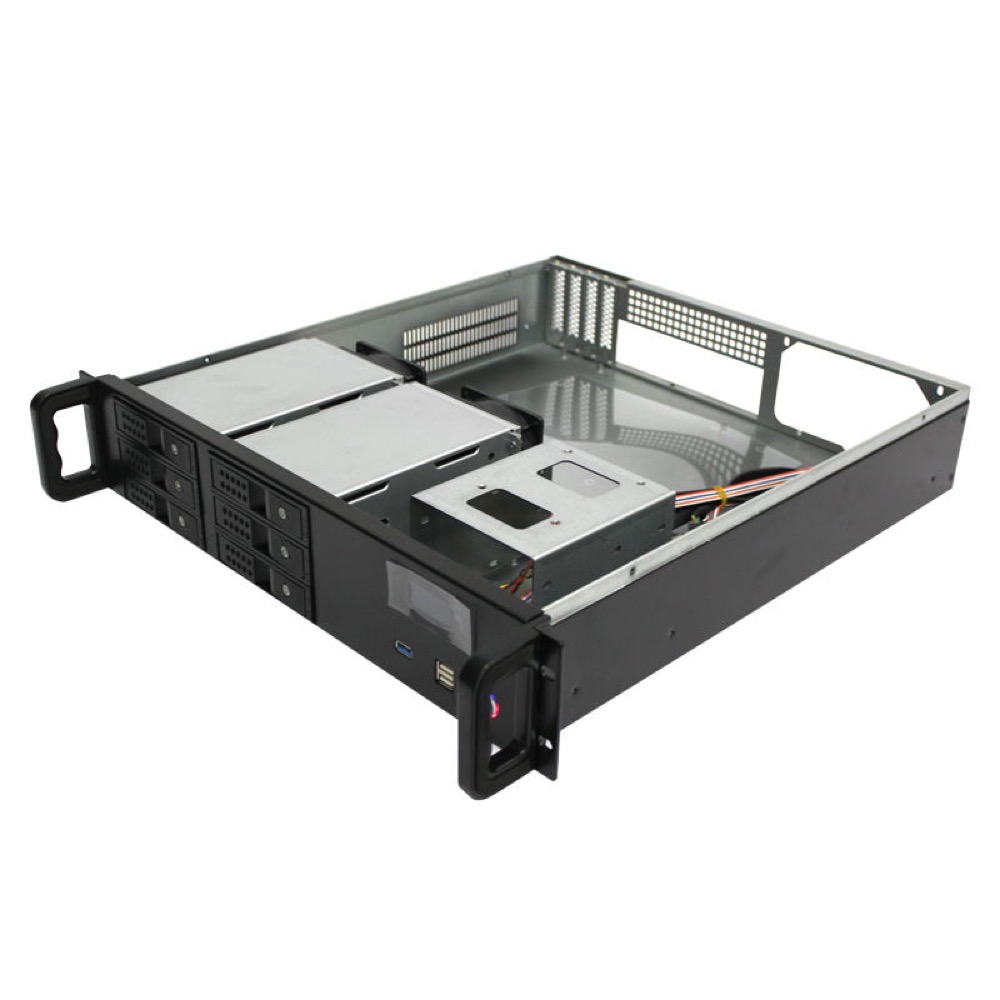

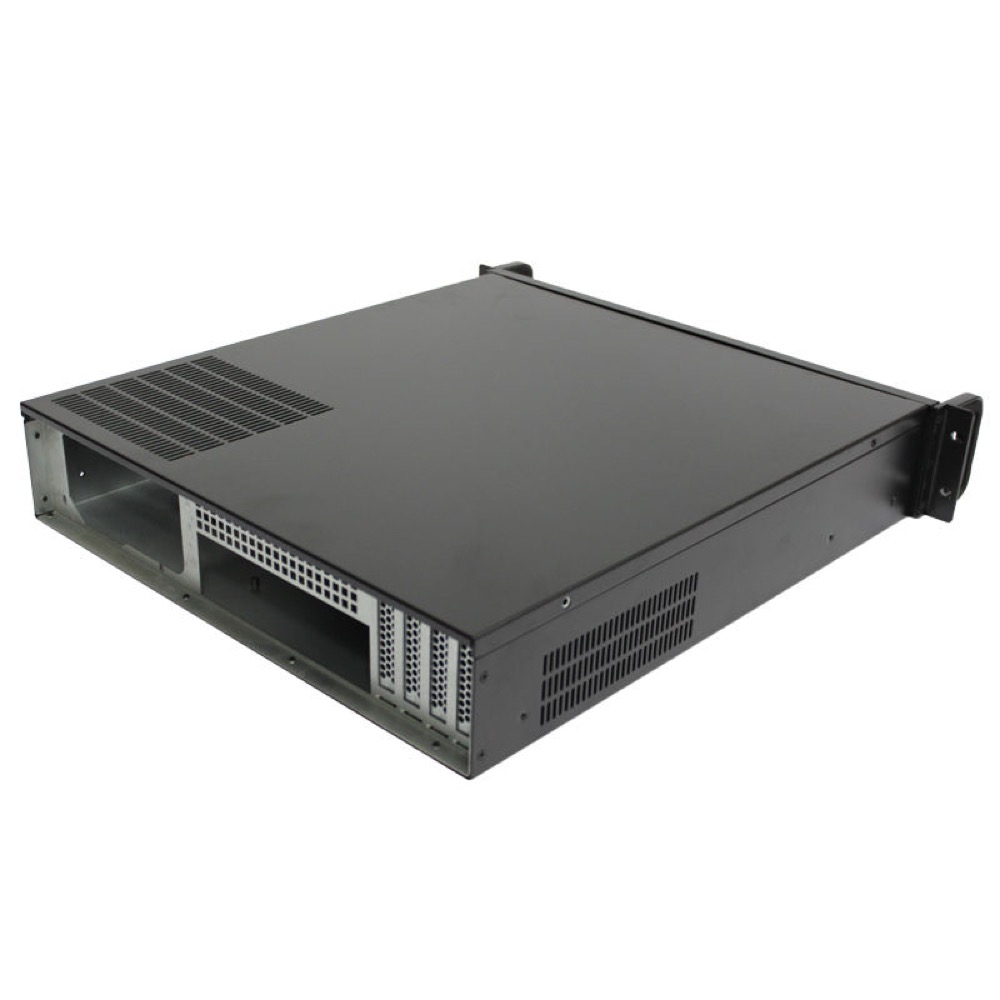

19inch Industrial Rackmount Chassis 2U Server Case/Storage Chassis with Screen 6Bay Hotswap for 3.5 Incg HDD
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 480(D) × 89(H) mm
MountingRackmount
MotherboardMicroATX
Drive Bays10 bays

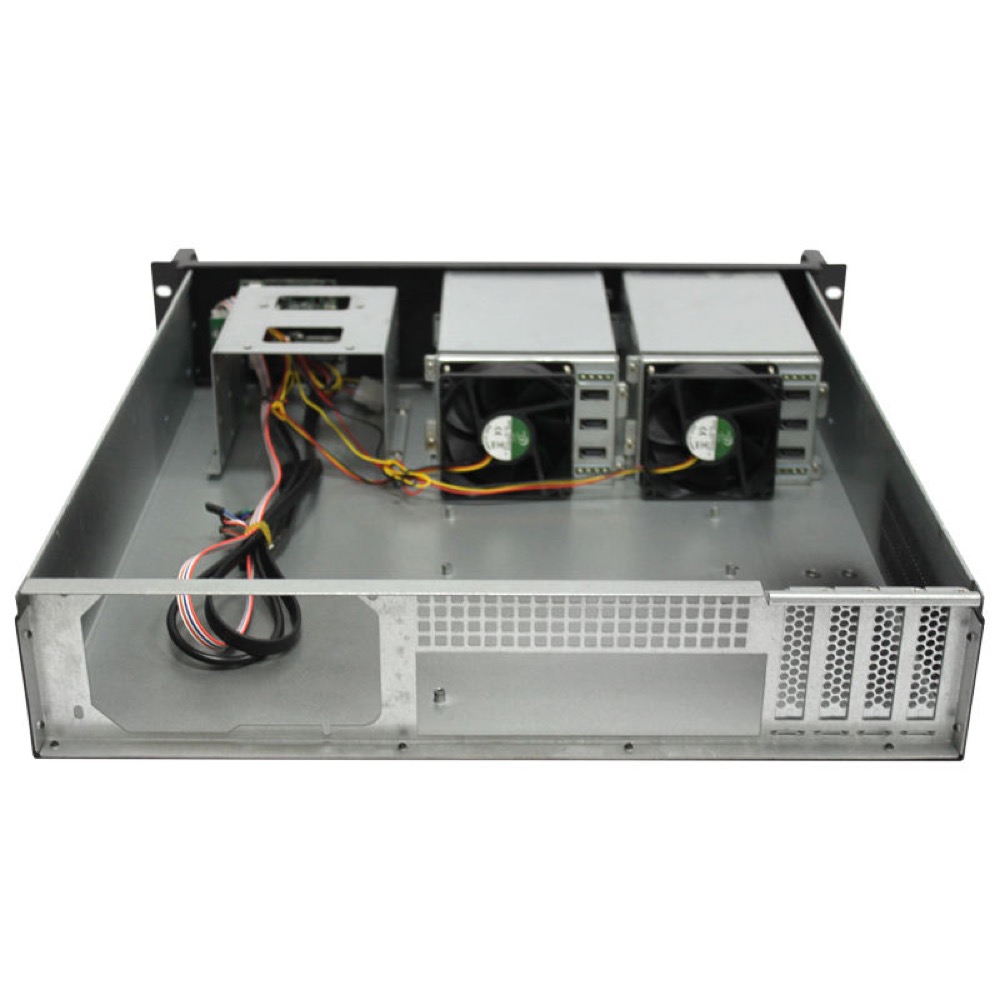

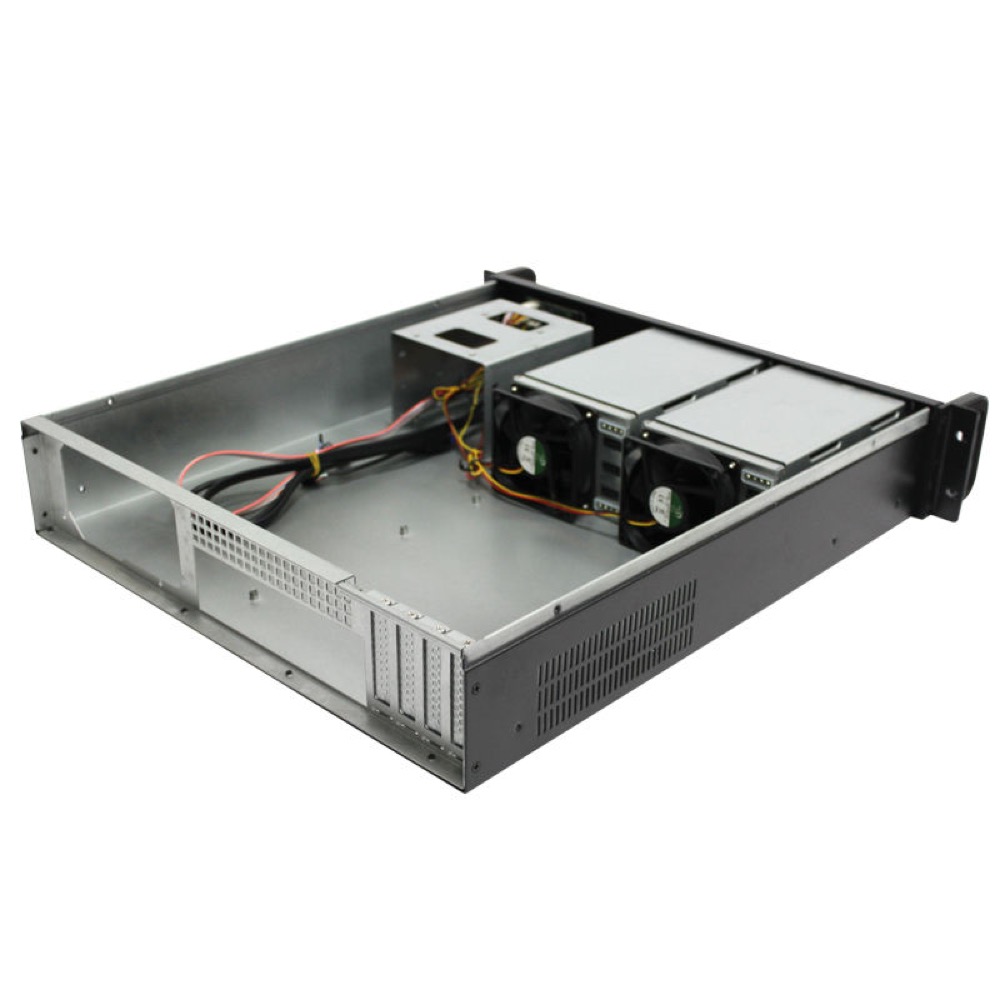

2U 19-inch storage/server rackmount chassis for data-storage and server applications. Supplier-listed configuration: black SGCC steel with flower-free zinc plating and 1.2 mm material thickness, MicroATX motherboard support up to 245 × 245 mm (9.6 × 9.6 inches), ATX PSU support, six hot-swap 3.5-inch hard-drive bays, three built-in 3.5-inch positions and one 2.5-inch position, no CD-ROM bay, two 8025 cooling fans, four half-height straight PCI slots, and front panel I/O with two USB 2.0 ports, one USB 3.0 port, LCD temperature-control screen, metal switch, HDD LED, and power LED. Dimensions: 482(W) × 480(D) × 89(H) mm. Supplier lists CE/RoHS certification, stock availability, black finish, and 10.5 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-R248-6C |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; six hot-swap 3.5-inch drive bays; two 8025 cooling fans; front LCD temperature-control screen; ATX PSU support. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Storage / NAS |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, flower-free zinc plating, 1.2 mm |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 480 mm |
| Weight | 10.5 kg gross package weight; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 245 × 245 mm (9.6 × 9.6 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 9 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 6 hot-swap 3.5" HDD bays, 3 internal 3.5" HDD bays, 1 internal 2.5" HDD bay |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 6 bays |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | Half-height, Straight PCI slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
Display and LCD
| LCD / Display Included | Yes |
| Display Position | Front panel |
I/O and Connectivity

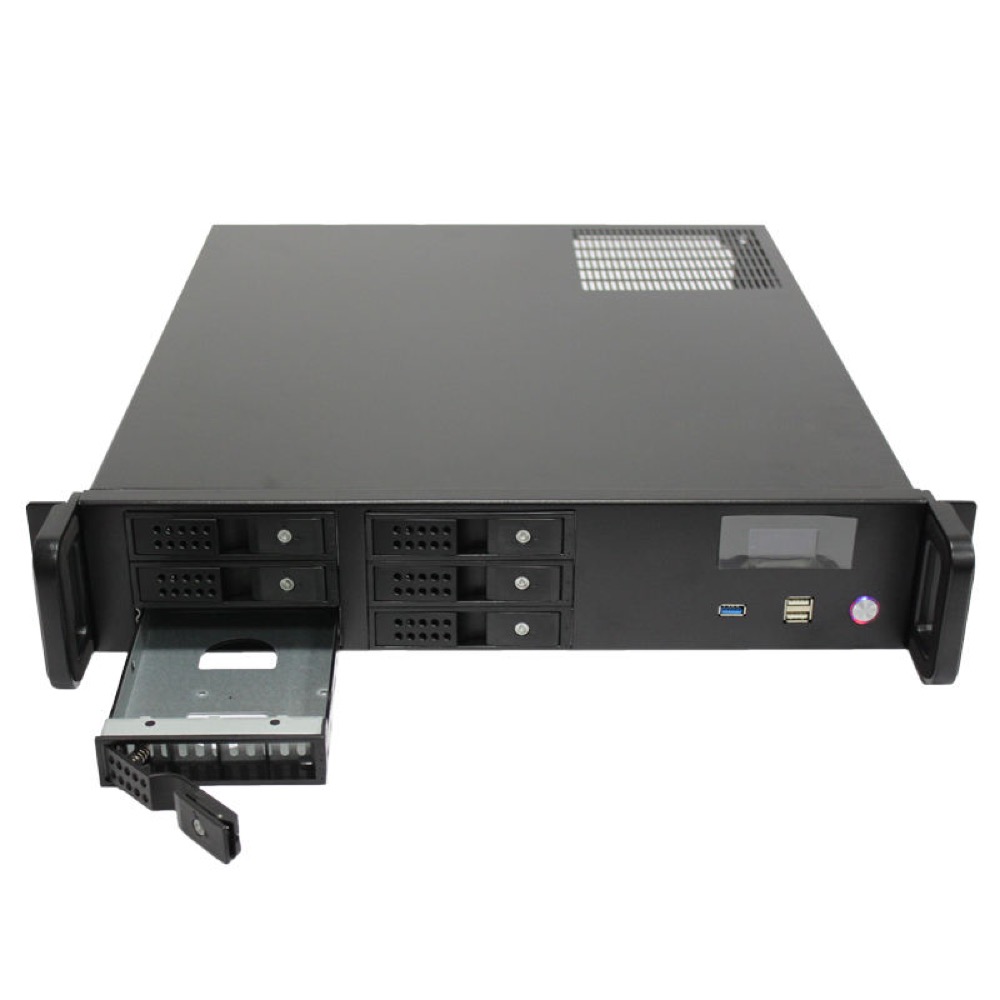

| Front I/O | 2 × USB 2.0, 1 × USB 3.0, LCD temperature-control screen, Metal switch, HDD LED, Power LED |
| Custom I/O Details | Supplier lists two USB 2.0 ports, one USB 3.0 port, one LCD temperature-control screen, one metal switch, HDD LED, and power LED. Supplier does not specify display size, resolution, touchscreen support, display interface, or additional rear I/O. |
