In stock
Server Chassis
CHS-SRV-K235L-1

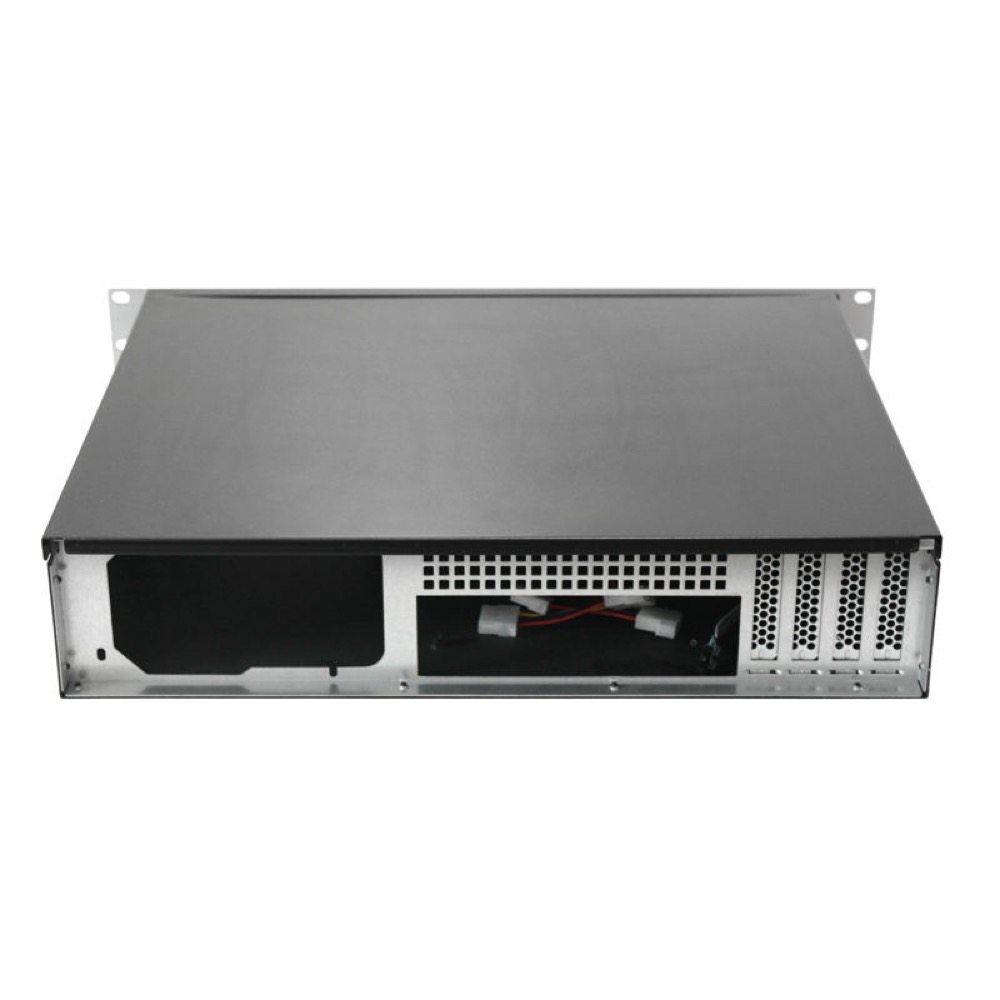

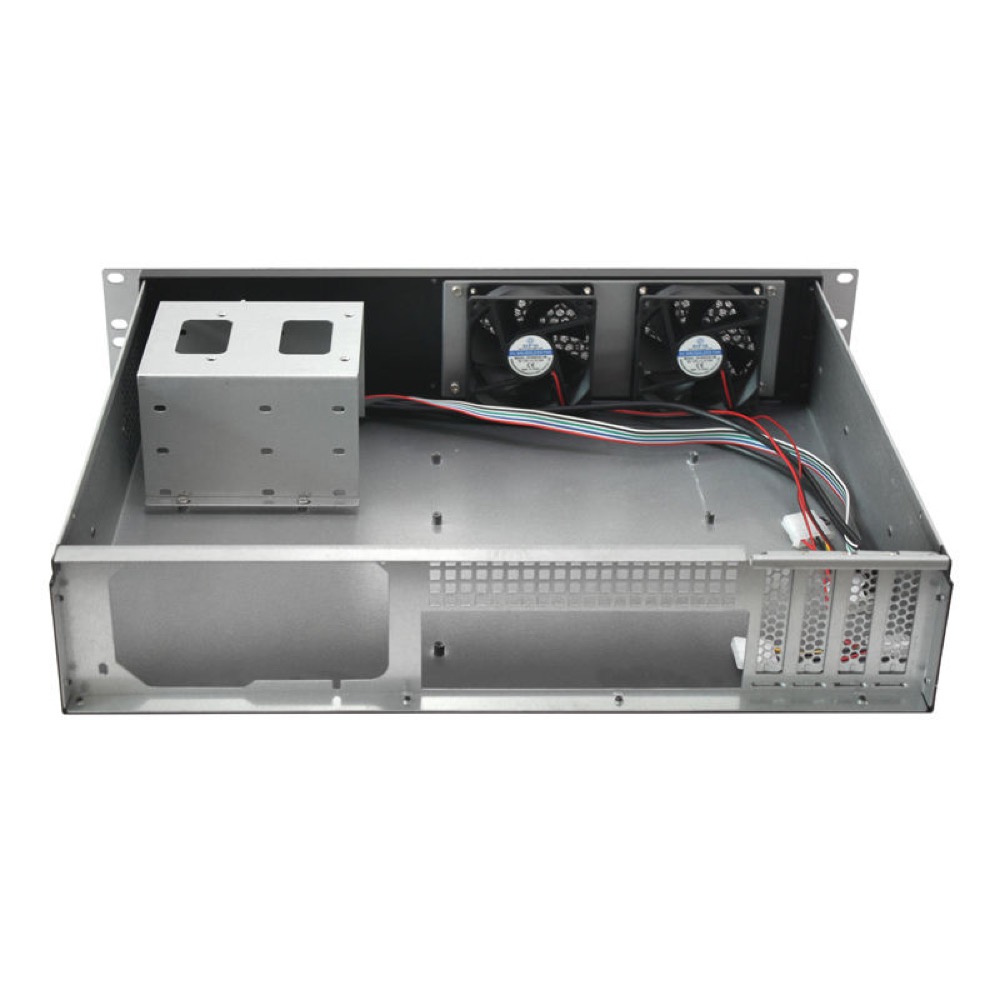

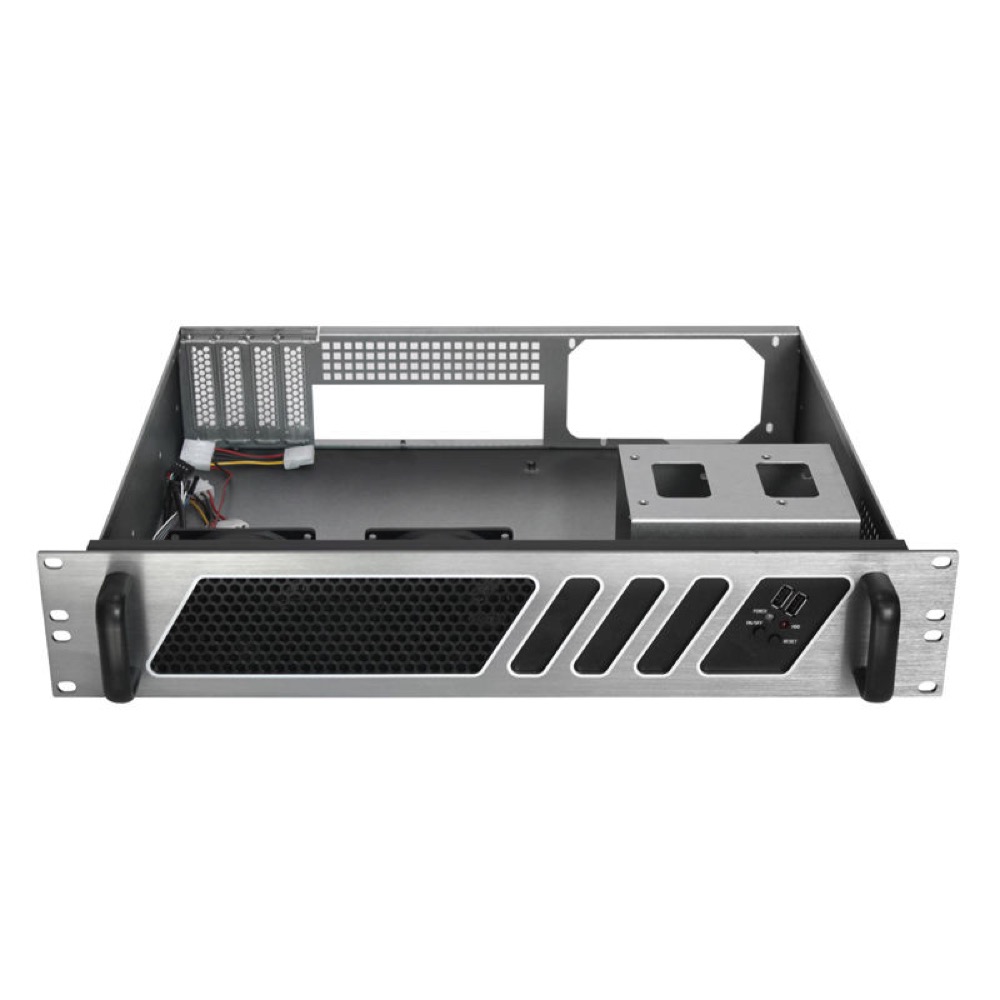

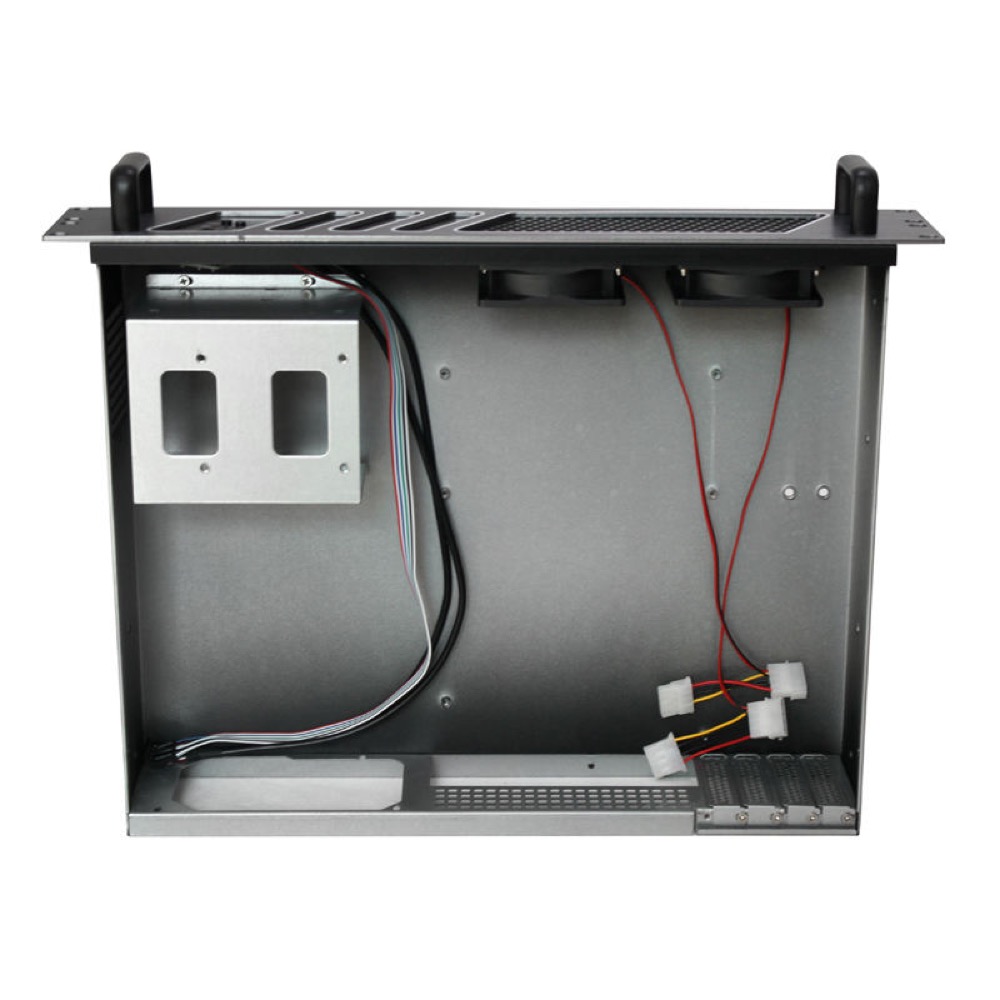

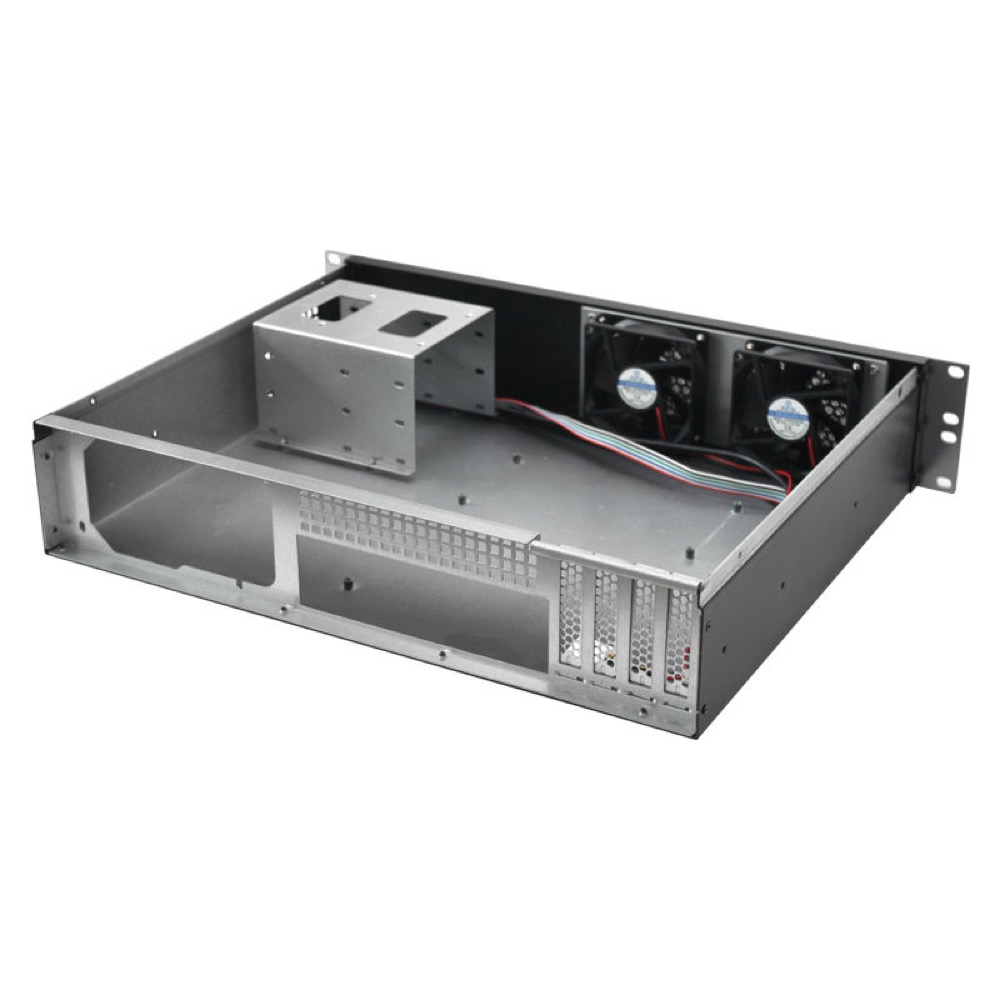

K235L-1 2U MicroATX Rackmount IPC Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 350(D) × 89(H) mm
MountingRackmount
MotherboardMicroATX
Drive Bays3 bays
K235L-1 2U 19-inch industrial rackmount IPC chassis for compact server, network, and industrial-control systems. The supplier lists a 482 × 350 × 89 mm SGCC steel enclosure with an aluminum front panel, MicroATX motherboard support up to 245 × 245 mm, three 3.5-inch hard-drive positions, ATX PSU support, four half-height straight expansion slots, two 8025 fans, and front USB 2.0, power, reset, and indicator controls. A riser card is optional when required by the expansion-card layout. It is an empty chassis; motherboard, CPU, memory, storage, and PSU are not included.
Specifications
Identity
| Model Number | CHS-SRV-K235L-1 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty SGCC chassis enclosure with aluminum front panel, three 3.5-inch drive positions, four half-height expansion slots, and two included 8025 fans. ATX PSU support is provided; PSU, motherboard, CPU, memory, storage, and optional riser card are not included. |
| Use Case / Application | Industrial PC, Server, Network Appliance |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, 1.2 mm; aluminum front panel |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 350 mm |
| Weight | 5.9 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 245 × 245 mm (9.6 × 9.6 inches) |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 3 × 3.5-inch HDD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | 4 × half-height straight expansion slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Reset switch, Power indicator, HDD indicator |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power switch, reset switch, power indicator, and HDD indicator. Supplier lists four half-height straight slots and says a riser card is optional when required. |
| USB Ports | 2 |
