In stock
Server Chassis
CHS-SRV-C235L2

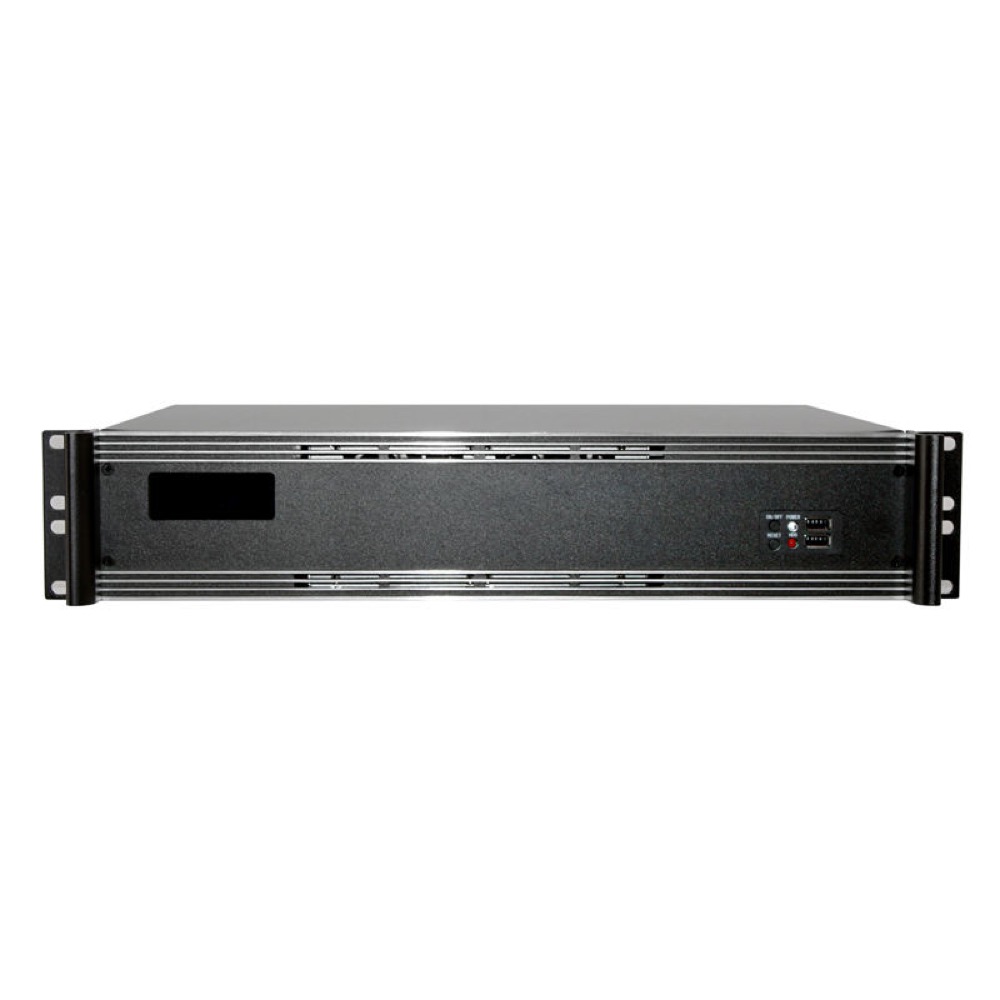

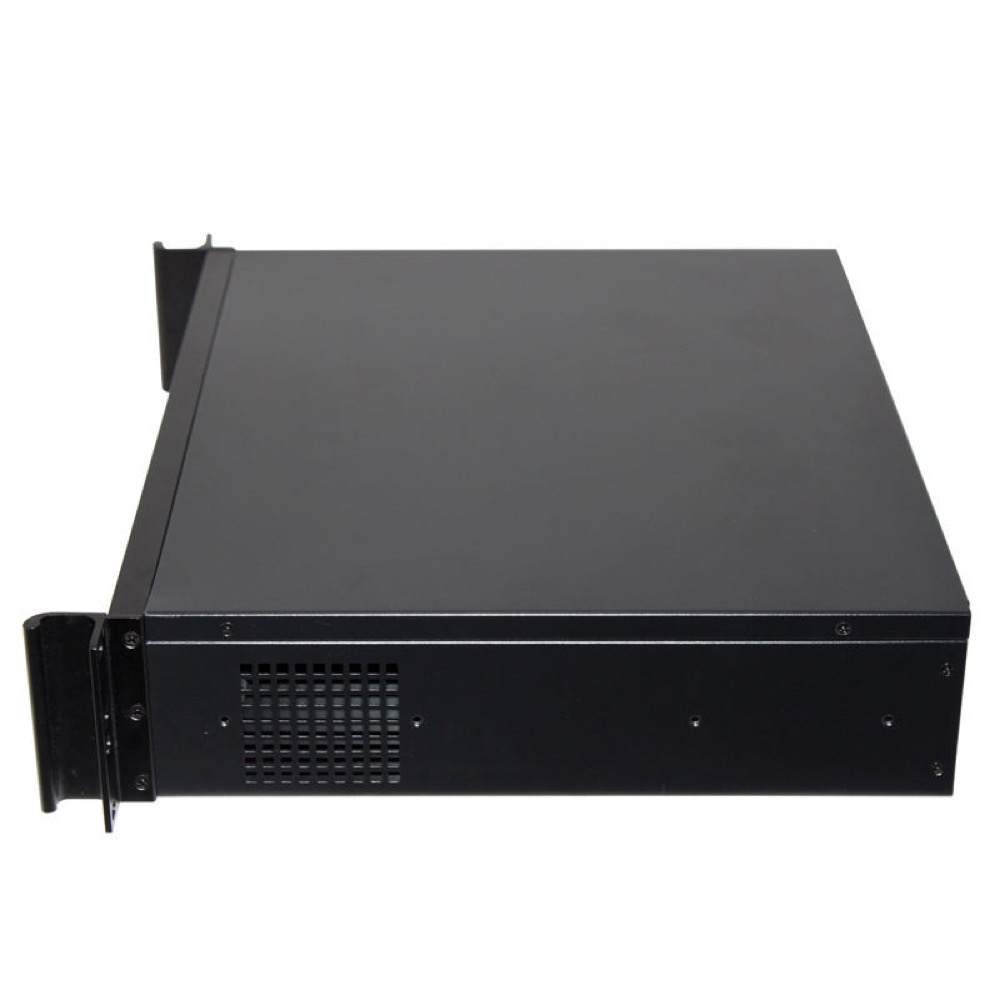

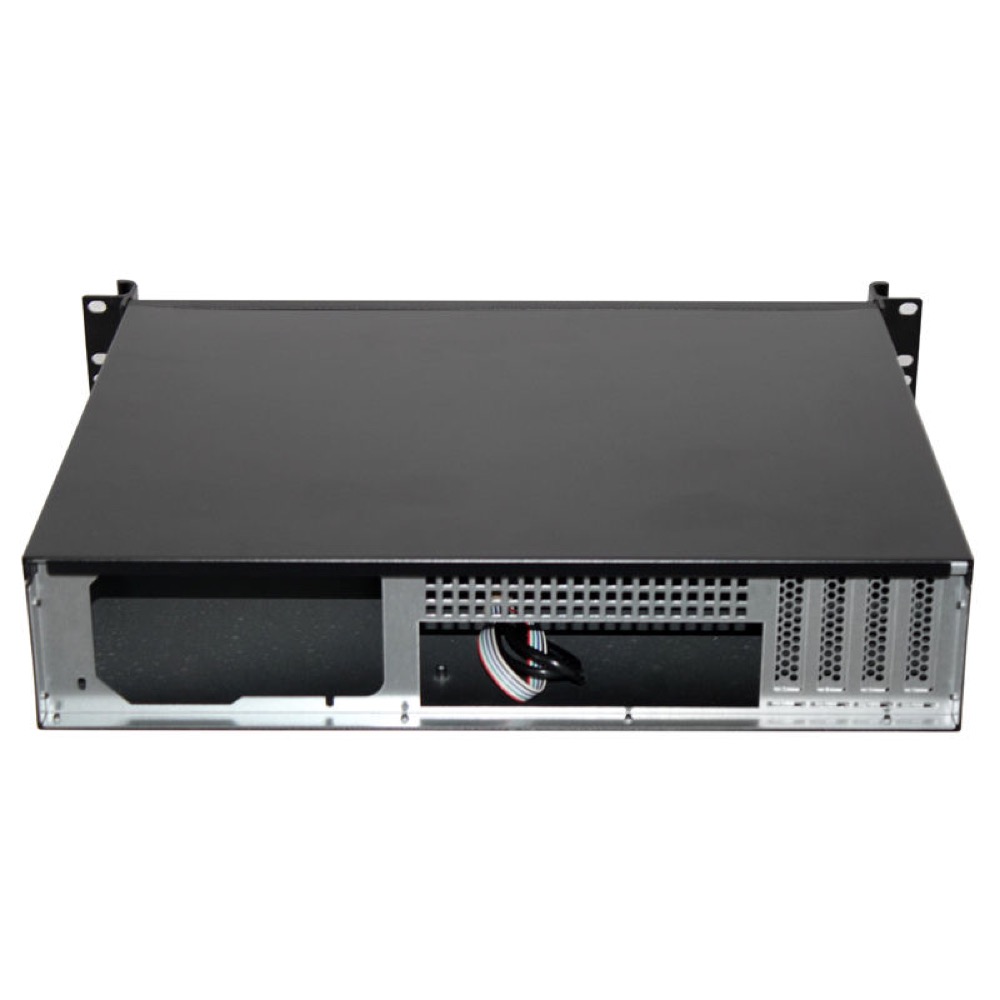

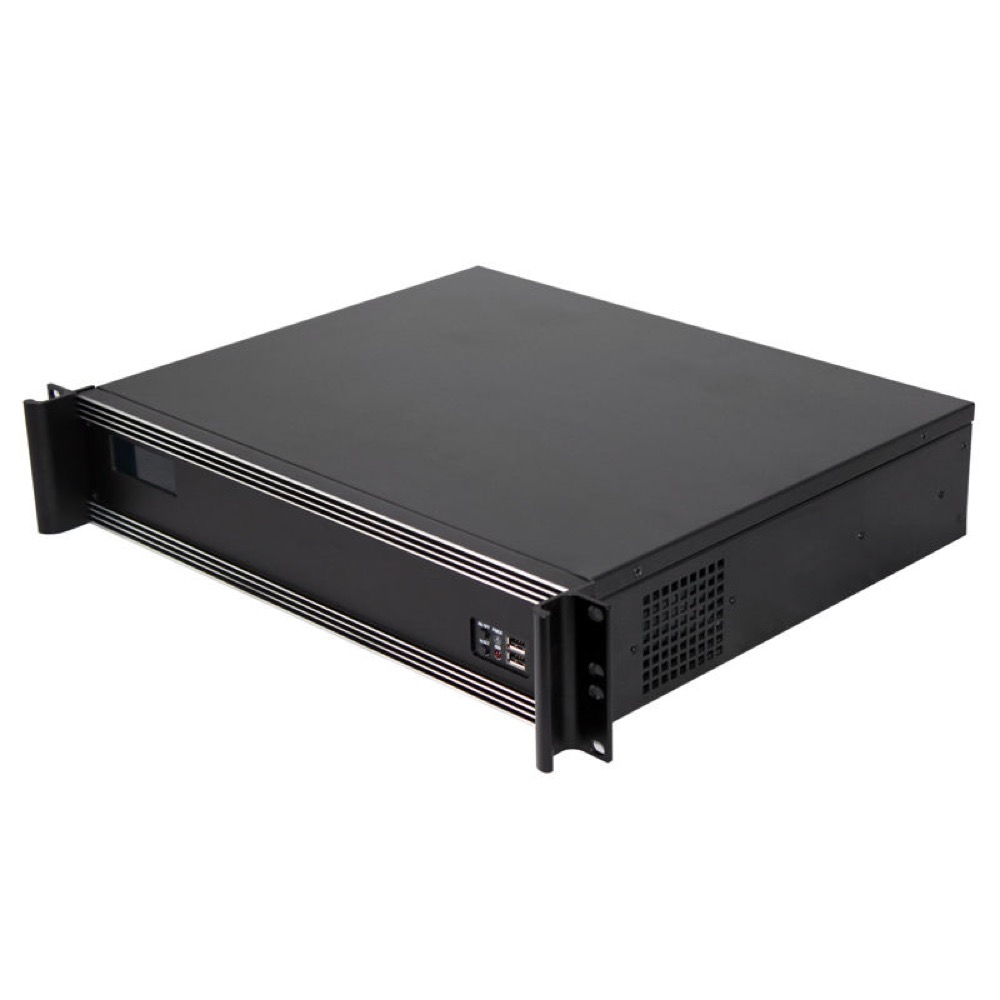

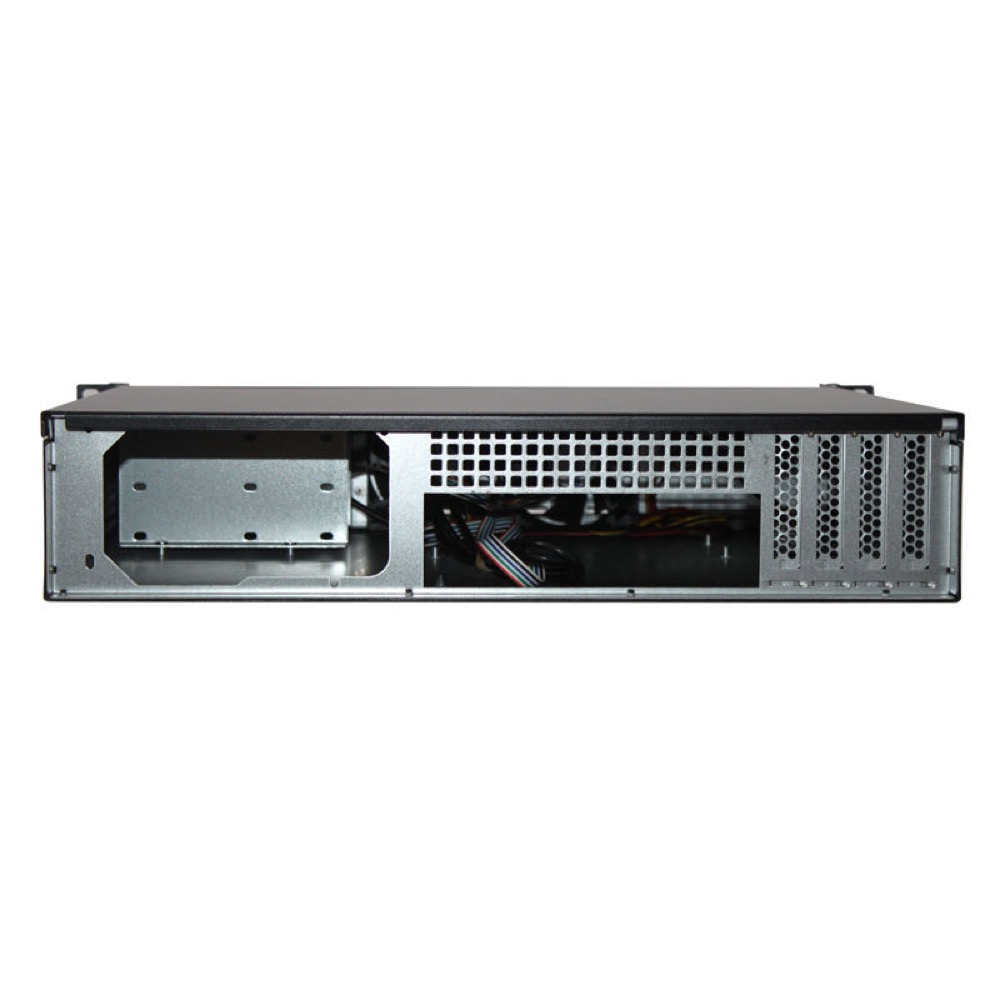

HOT SELLING 2U LCD RACKMOUNT CASE WITH FAN CAN SUPPORT 9.6*9.6 MOTHERBOARD ATX FAN and 2*8CM FANS
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 350(D) × 89(H) mm
MountingRackmount
MotherboardMicroATX
Drive Bays3 bays
2U 19-inch short-depth LCD rackmount industrial chassis for server and industrial PC applications. Supplier-listed configuration: SGCC steel with flower-free zinc plating and 1.2 mm material thickness, support for a 9.6 × 9.6-inch motherboard (245 × 245 mm), ATX PSU support, three 3.5-inch hard-drive positions, no CD-ROM bay, two 8025 cooling fans, four half/full-height straight expansion slots, and front panel controls with two USB 2.0 ports, a power switch with indicator, and one temperature screen. Dimensions: 482(W) × 350(D) × 89(H) mm. Supplier lists CE/RoHS certification, stock availability, and one-year warranty.
Specifications
Identity
| Model Number | CHS-SRV-C235L2 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; two 8025 cooling fans; front temperature screen; ATX PSU support. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, flower-free zinc plating, 1.2 mm |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 350 mm |
| Weight | 5.797 kg gross package weight; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 245 × 245 mm (9.6 × 9.6 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 3 bays |
| Drive Types | 3 × 3.5" HDD or 2 × 3.5" HDD + 1 × 2.5" HDD |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | Half-height / full-height, Straight slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
Display and LCD
| LCD / Display Included | Yes |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch with indicator, Temperature screen |
| Custom I/O Details | Supplier lists two USB 2.0 ports, one power switch with indicator, and one temperature screen. Supplier does not specify display size, resolution, touchscreen support, display interface, or additional rear I/O. |
