In stock
Server Chassis
CHS-SRV-K225LF
K225LF 2U Short-Depth Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 250(D) × 89(H) mm
MountingRackmount
MotherboardMicroATX, ITX
Drive Bays2 bays

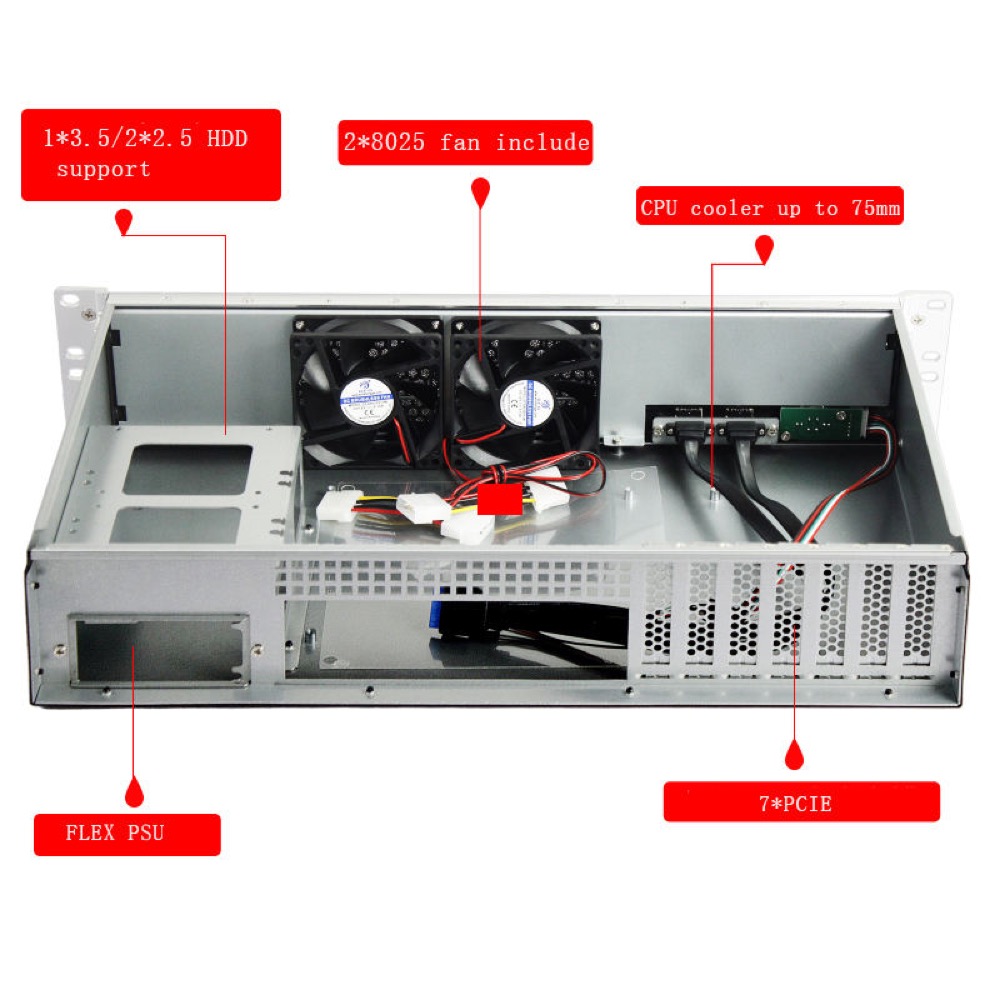

K225LF 2U 19-inch short-depth industrial rackmount chassis for compact server and industrial PC applications. The supplier lists a 482(W) × 250(D) × 89(H) mm enclosure with MicroATX/ITX motherboard support, ITX-size or Flex PSU compatibility, one 3.5-inch or two 2.5-inch drive positions, seven PCIe slots, dual 8025 fans, CPU-cooler clearance up to 75 mm, and front two USB 3.0 ports with power controls. The supplier explicitly states that it makes empty cases; motherboard, CPU, memory, storage, and PSU are not included.
Specifications
Identity
| Model Number | CHS-SRV-K225LF |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis with two included 8025 cooling fans and front USB/power controls. ITX/Flex PSU support is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | Not specified by supplier |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 250 mm |
| Weight | 4.5 kg gross / 3.2 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | MicroATX in key attributes; ITX in detailed specification |
Power Supply
| PSU Support | ITX-size PSU, Flex PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 1 × 3.5-inch HDD, Alternate layout: 2 × 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
| Maximum CPU Cooler Height | Up to 75 mm |
I/O and Connectivity

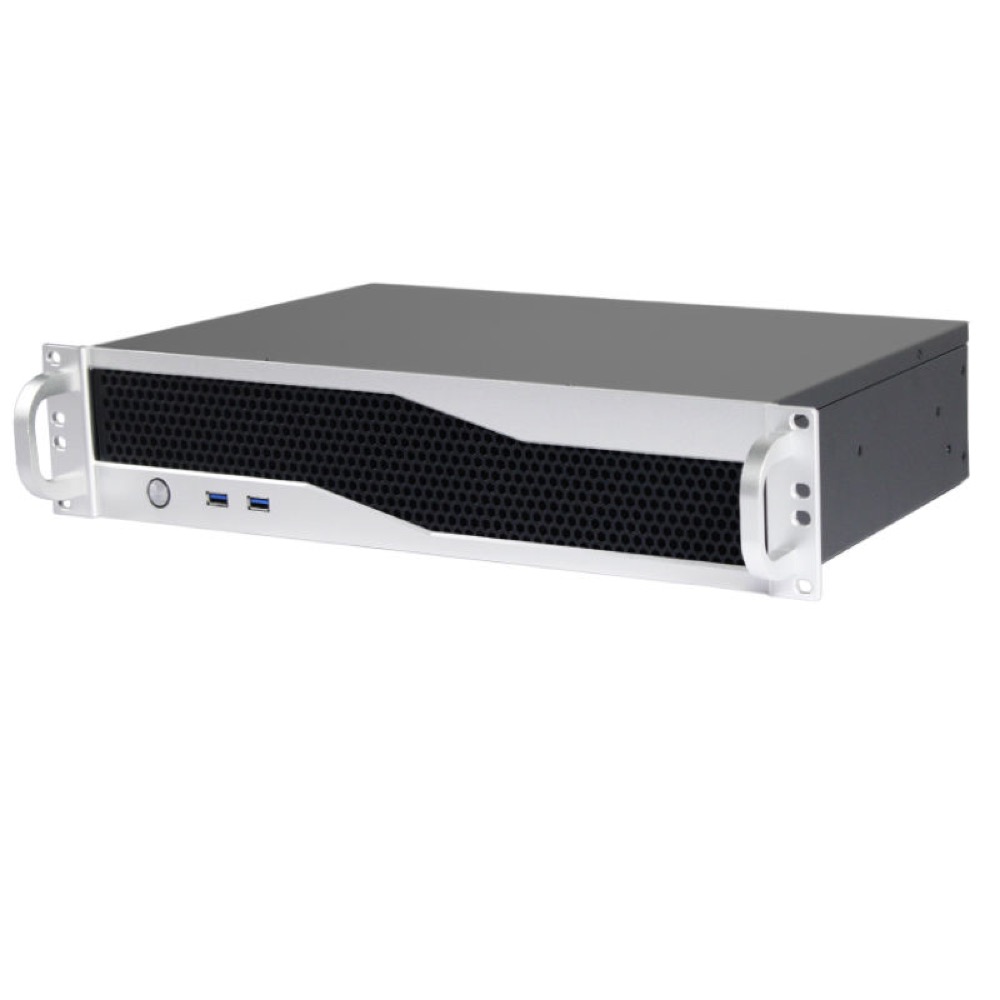

| Front I/O | 2 × USB 3.0, Power on/off |
| Custom I/O Details | Front panel includes two USB 3.0 ports and power on/off controls. Supplier lists seven PCIe slots, dual 8025 fans, one 3.5-inch or two 2.5-inch drive positions, ITX/Flex PSU compatibility, and up to 75 mm CPU-cooler clearance. The key attributes label the board support as MicroATX and PSU as ITX-size, while the detailed table labels them ITX and Flex PSU; both are retained. Supplier notes that this listing is an empty case. |
