In stock
Server Chassis
CHS-SRV-K255F

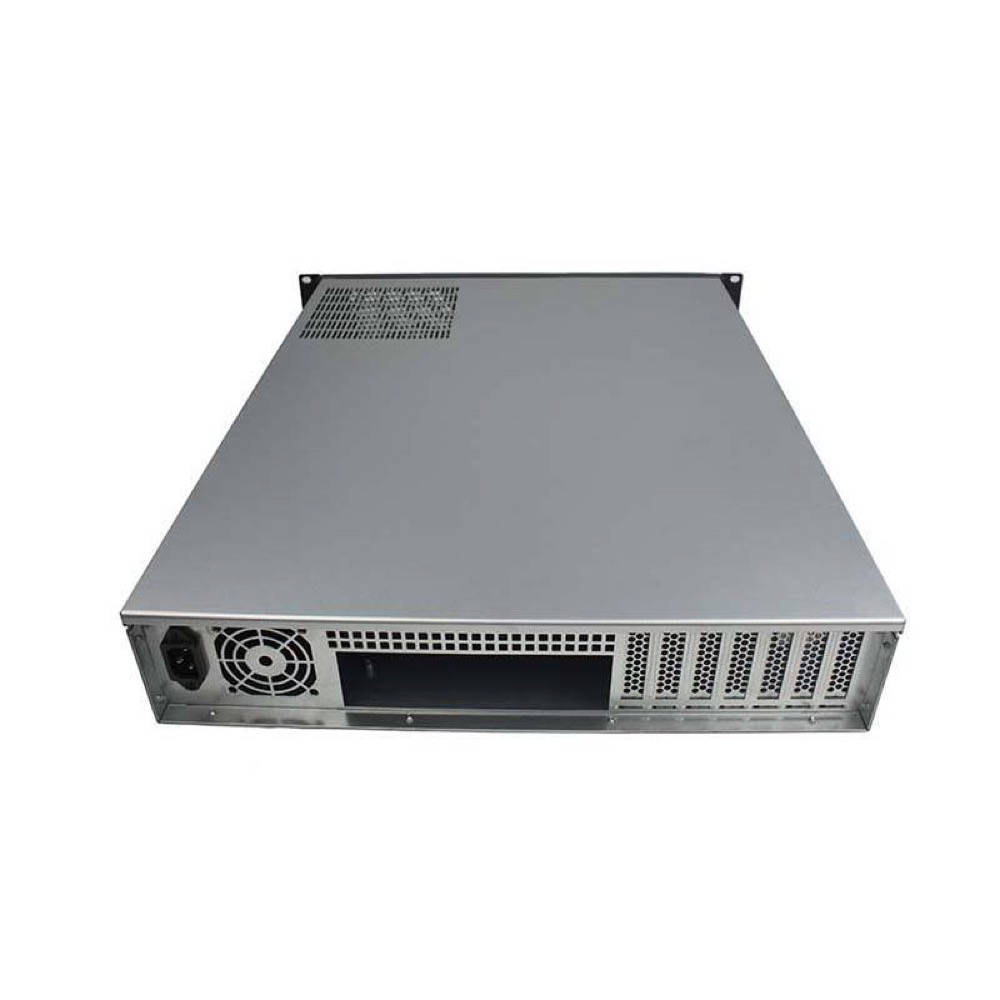

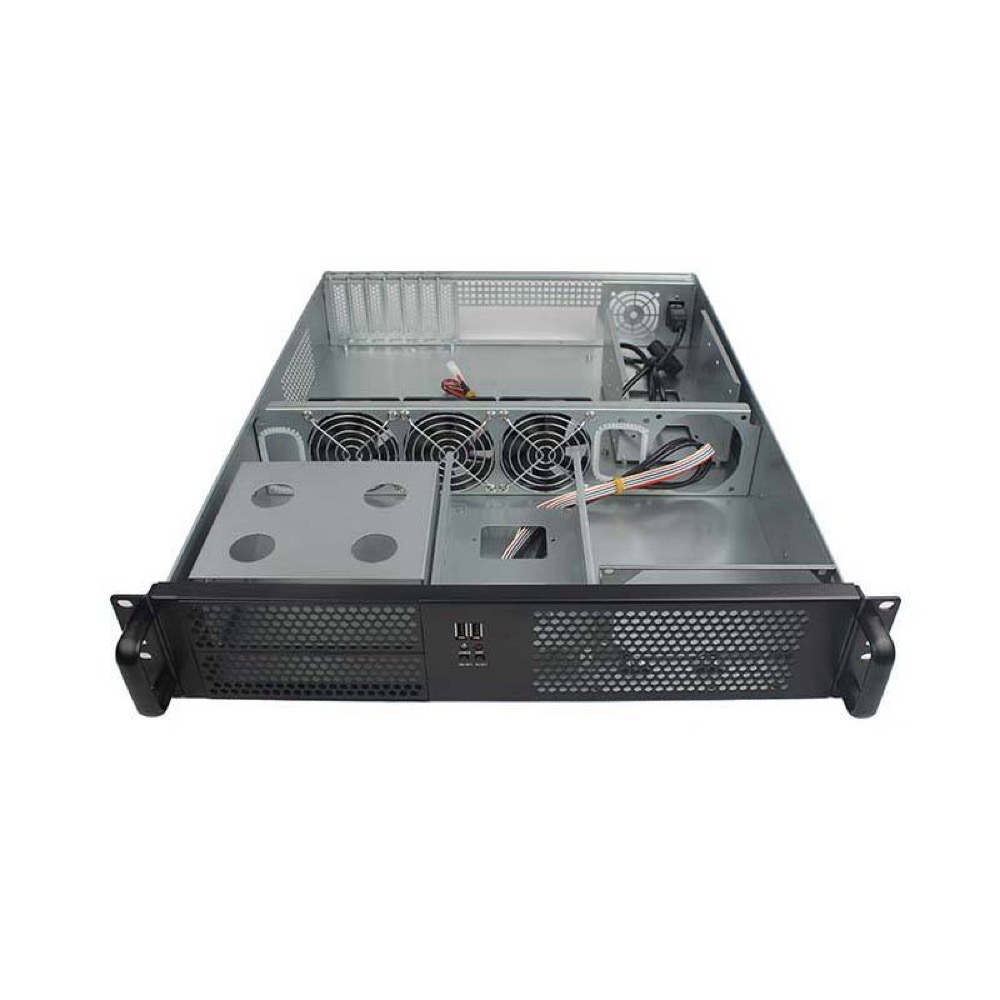

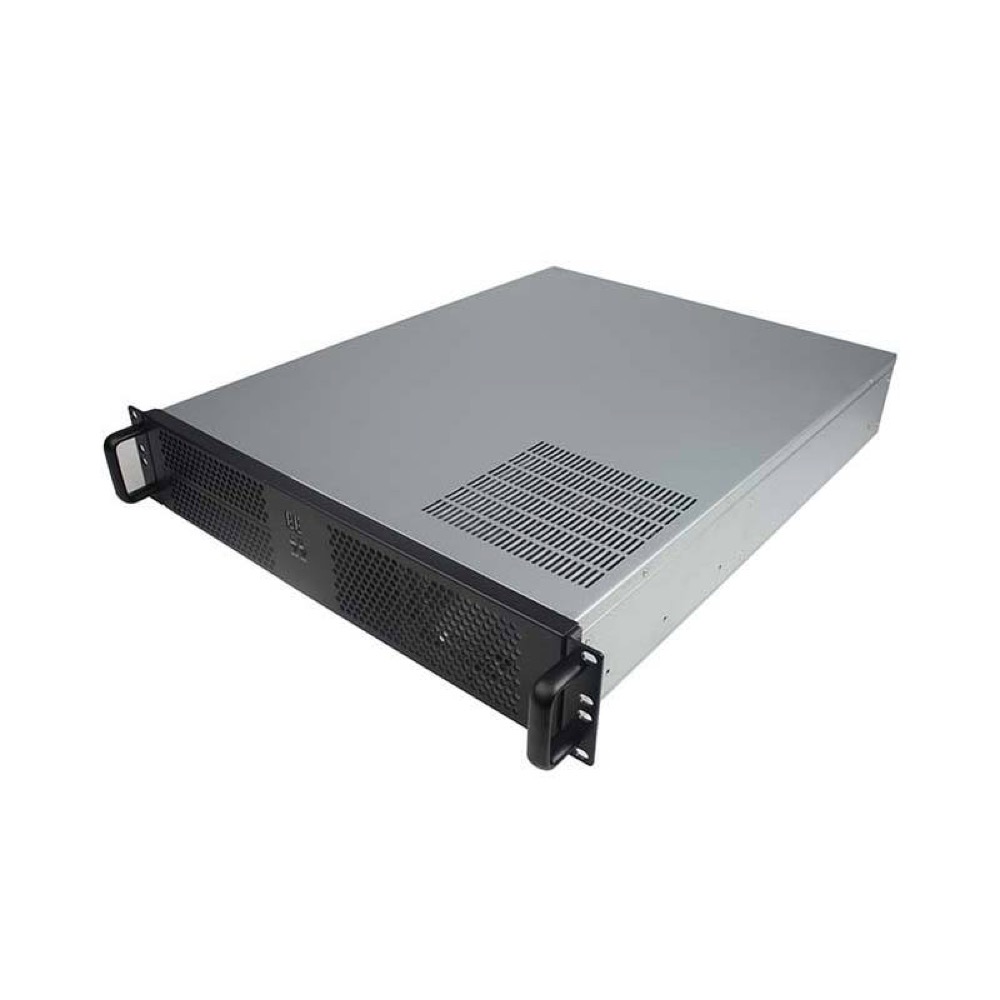

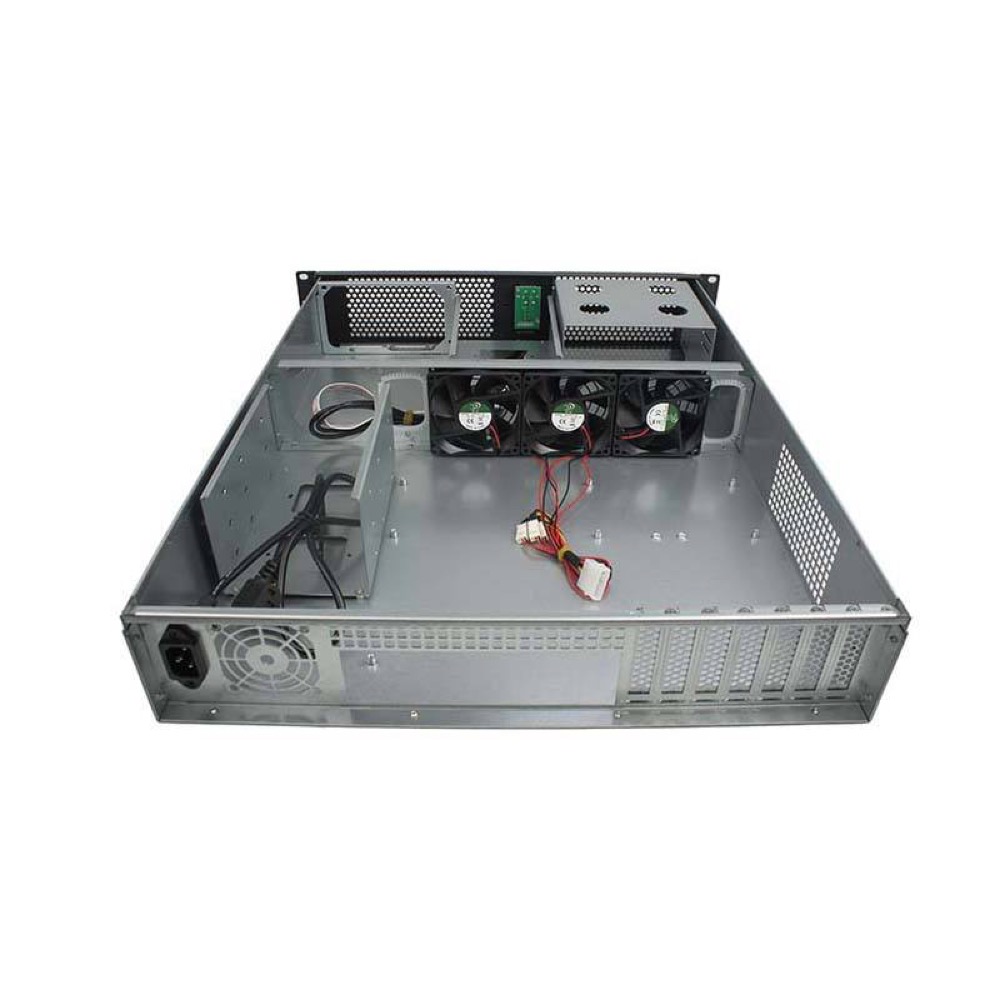

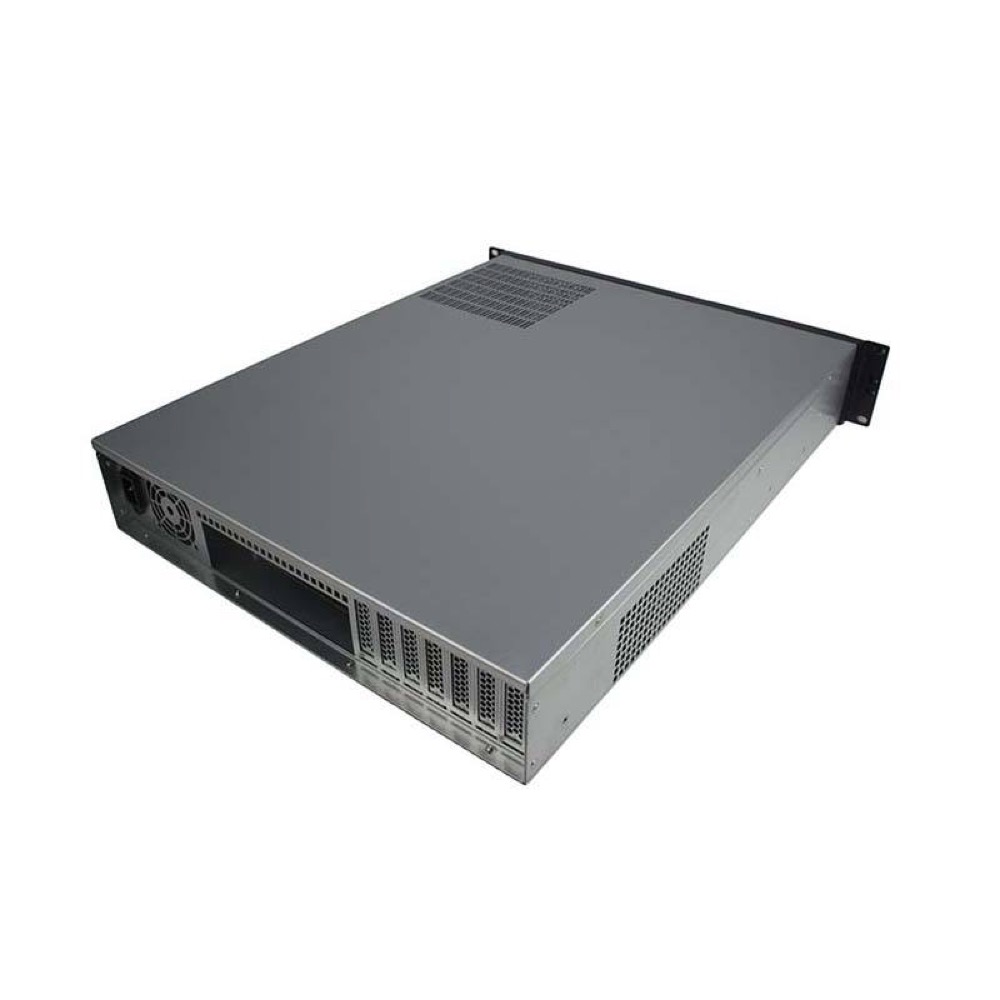

2U 19 Inch Rackmount Chassis/firewall Server case
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 550(D) × 89(H) mm
MountingRackmount
MotherboardMicroATX
Drive Bays5 bays
2U 19-inch rackmount chassis for firewall, industrial automation, communication, network security, surveillance, storage, and other server applications. Supplier-listed configuration: silver SGCC steel with flower-free zinc plating and 1.2 mm material thickness, MicroATX motherboard support up to 305 × 245 mm (12 × 9.6 inches), ATX PS2 desktop power-supply support, five 3.5-inch hard-drive positions, two 5.25-inch CD-ROM bays, four 8025 cooling fans, seven half-height straight expansion slots, and front panel USB 2.0, power, reset, power-indicator, and HDD-indicator controls. Dimensions: 482(W) × 550(D) × 89(H) mm. Supplier lists CE/RoHS certification, stock availability, and 9.24 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-K255F |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; four 8025 cooling fans; ATX PS2 PSU support; two 5.25-inch optical-drive bays. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Storage / NAS, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, flower-free zinc plating, 1.2 mm |
| Finish / Color | Silver |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 550 mm |
| Weight | 9.24 kg gross package weight; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 inches) |
Power Supply
| PSU Support | ATX PS2 |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 5 bays |
| Drive Types | 5 × 3.5" HDD |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Half-height, Straight slots |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Restart switch, Power indicator, HDD indicator |
| Custom I/O Details | Supplier lists two USB 2.0 ports, one power switch, one restart switch, one power indicator, and one HDD indicator. Supplier lists no additional rear I/O. |
