In stock
Server Chassis
CHS-SRV-R266-6

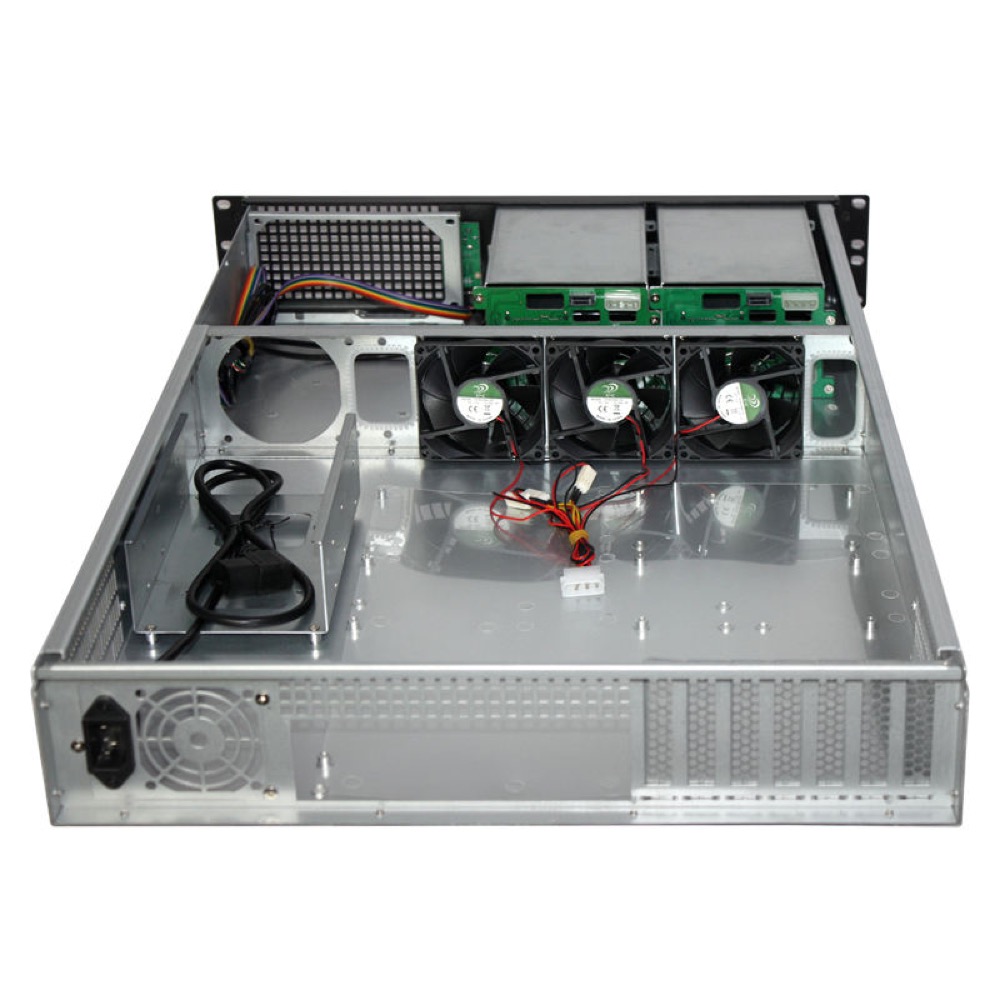

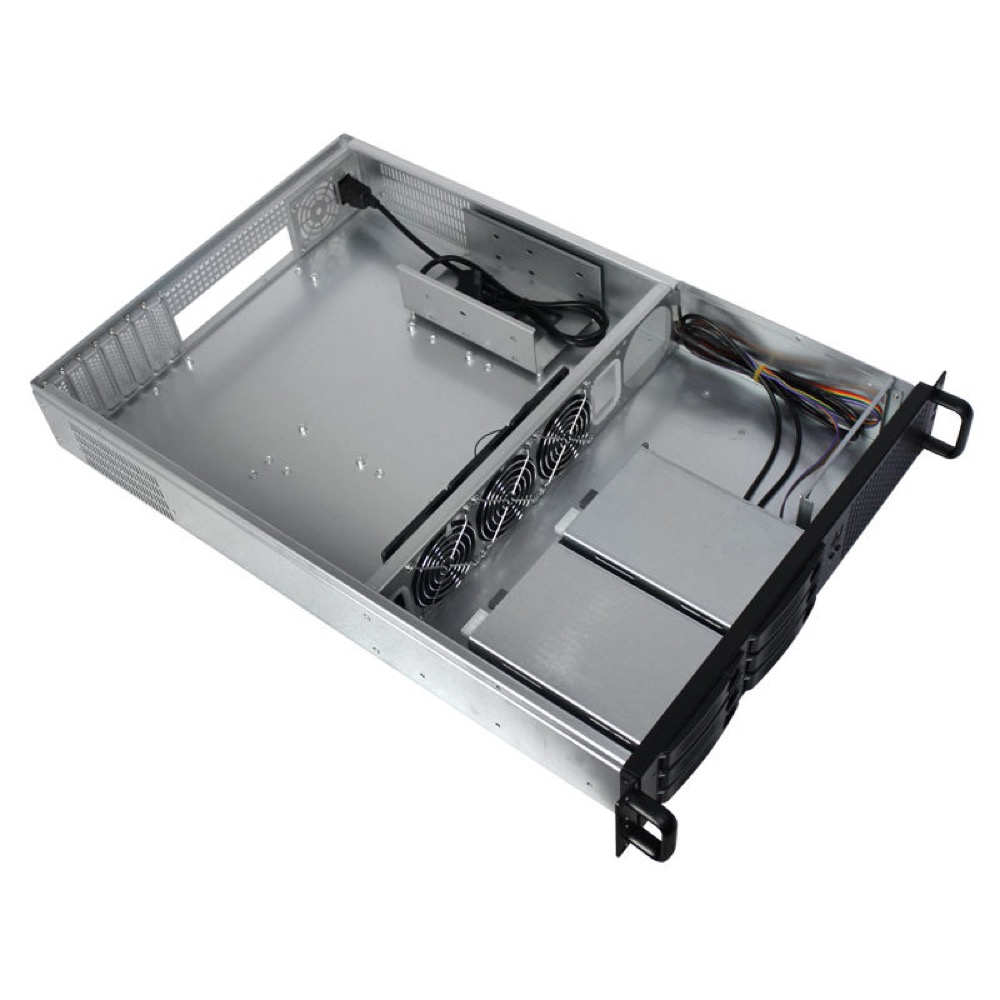

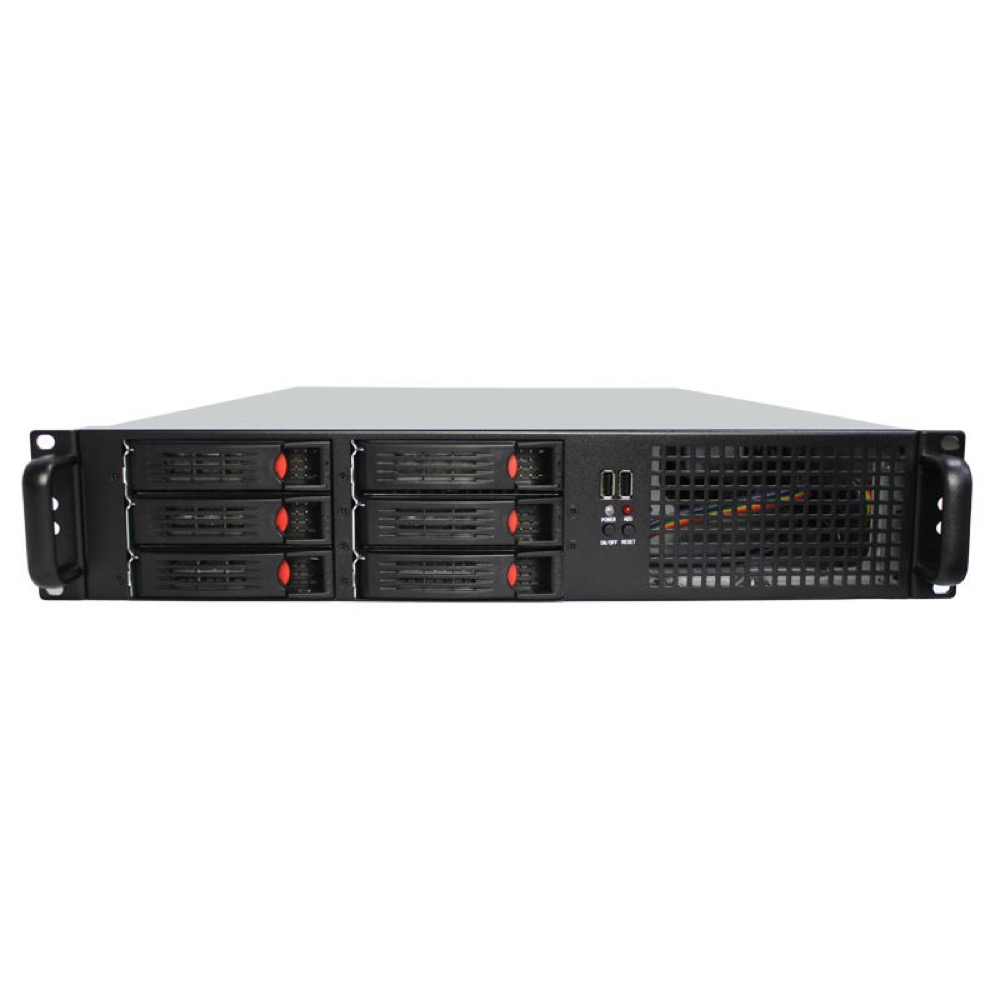

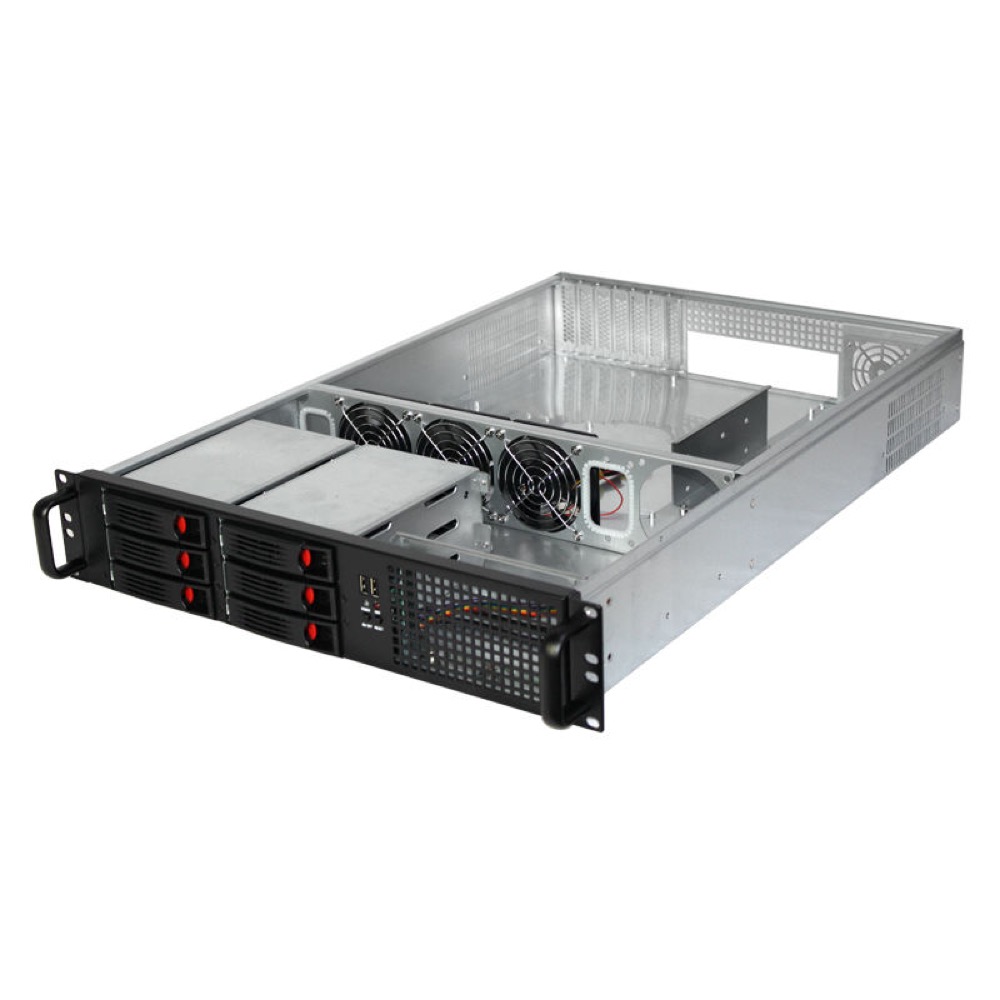

Hot-sale 2U Rack Mount Server case R266-6
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 660(D) × 89(H) mm
MountingRackmount
MotherboardBTX
Drive Bays6 bays
2U 19-inch rackmount server chassis for industrial and general server applications. Supplier-listed configuration: SGCC 1.2 mm steel construction, BTX motherboard support up to 305 × 340 mm (12 × 13 inches), ATX PSU support, six 3.5-inch hard-drive positions, four included 8025 cooling fans, seven half-height and straight expansion slots, and front USB connectivity. Dimensions: 482(W) × 660(D) × 89(H) mm. Supplier lists a silver finish, no CD-ROM bay, CE/RoHS certification, and a gross package weight of 10.078 kg.
Specifications
Identity
| Model Number | CHS-SRV-R266-6 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; four 8025 cooling fans; ATX PSU support. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | SGCC steel, 1.2 mm |
| Finish / Color | Silver |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 660 mm |
| Weight | 10.078 kg gross single package; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 340 mm (12 × 13 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 6 bays |
| Drive Types | 3.5" HDD |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | Half-height, Straight slots |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
I/O and Connectivity
| Front I/O | USB |
| Custom I/O Details | No CD-ROM bay. Supplier lists CE and RoHS certification; USB port count and front power/reset indicators are not specified. |
