Server Chassis
CHS-SRV-R266-8

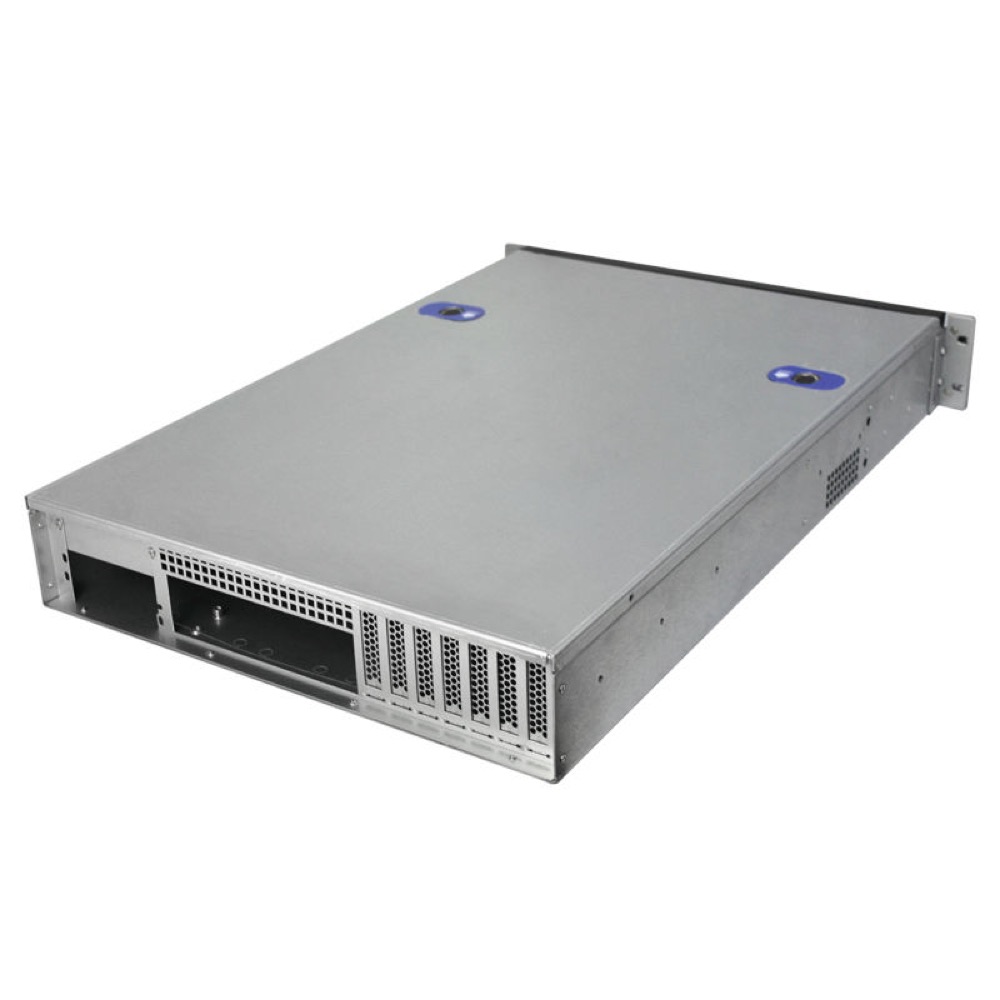

R266-8 2U Hot-Swap SATA/SAS Chassis with 10-Bay Storage
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 660(D) × 89(H) mm
MountingRackmount
MotherboardBTX
Drive Bays10 bays

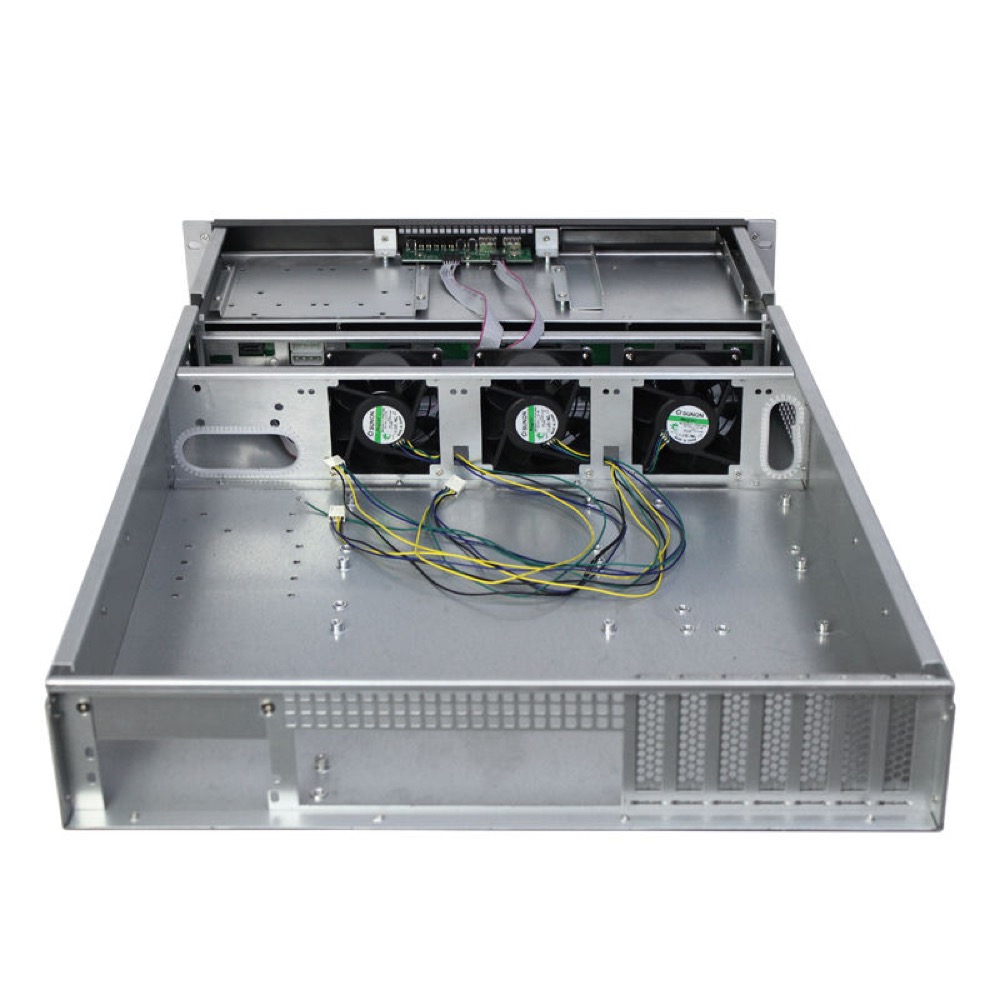

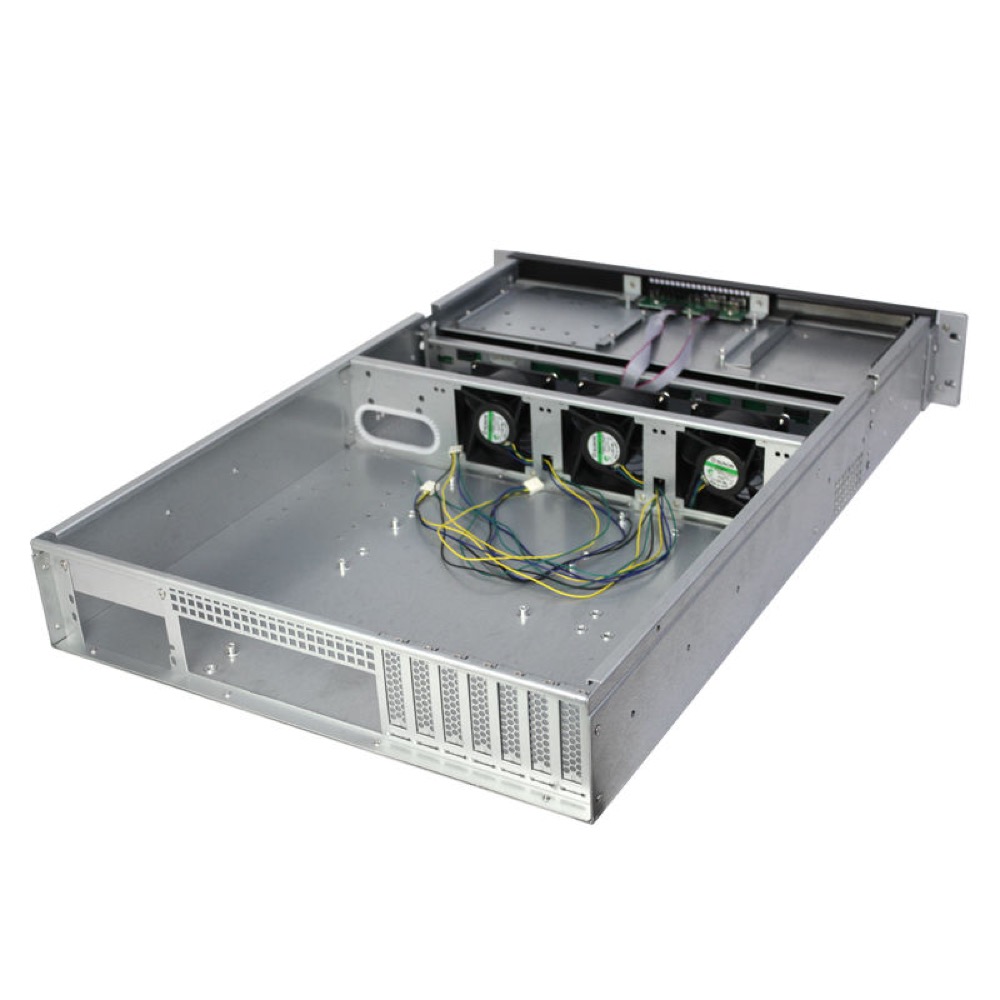

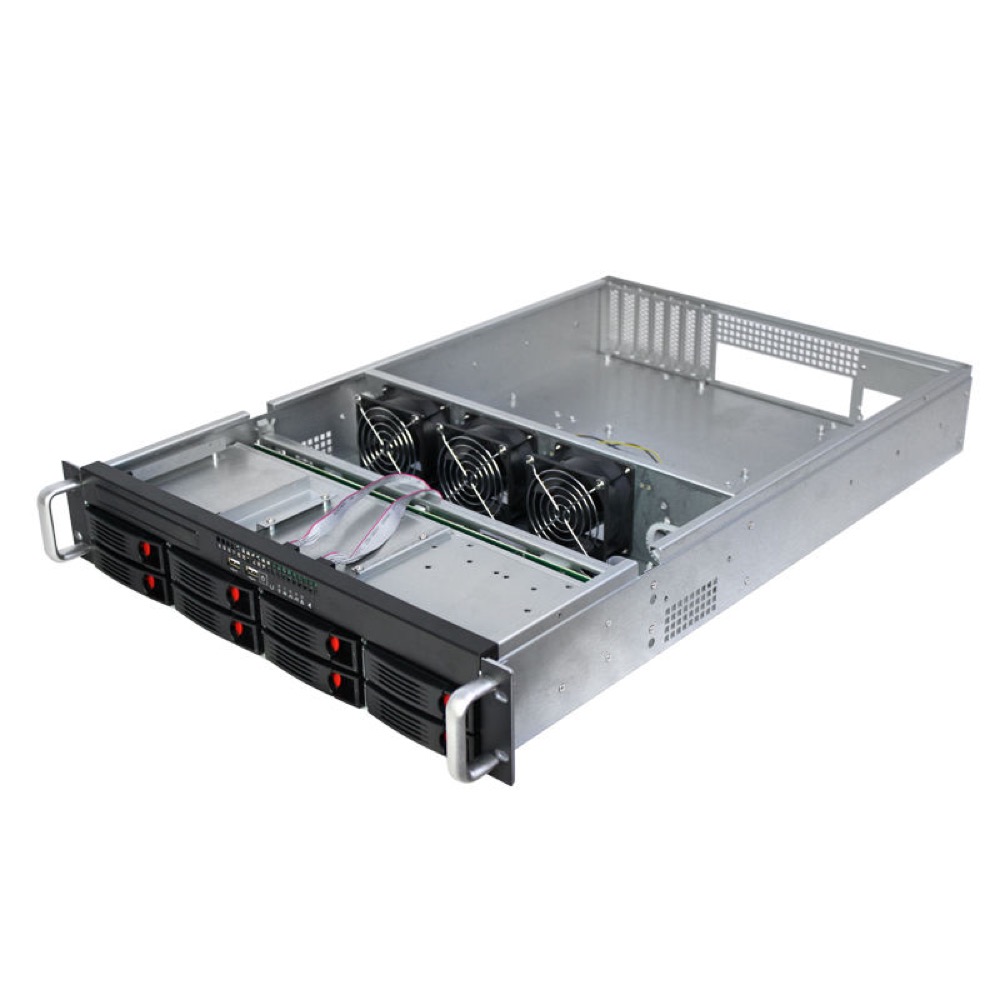

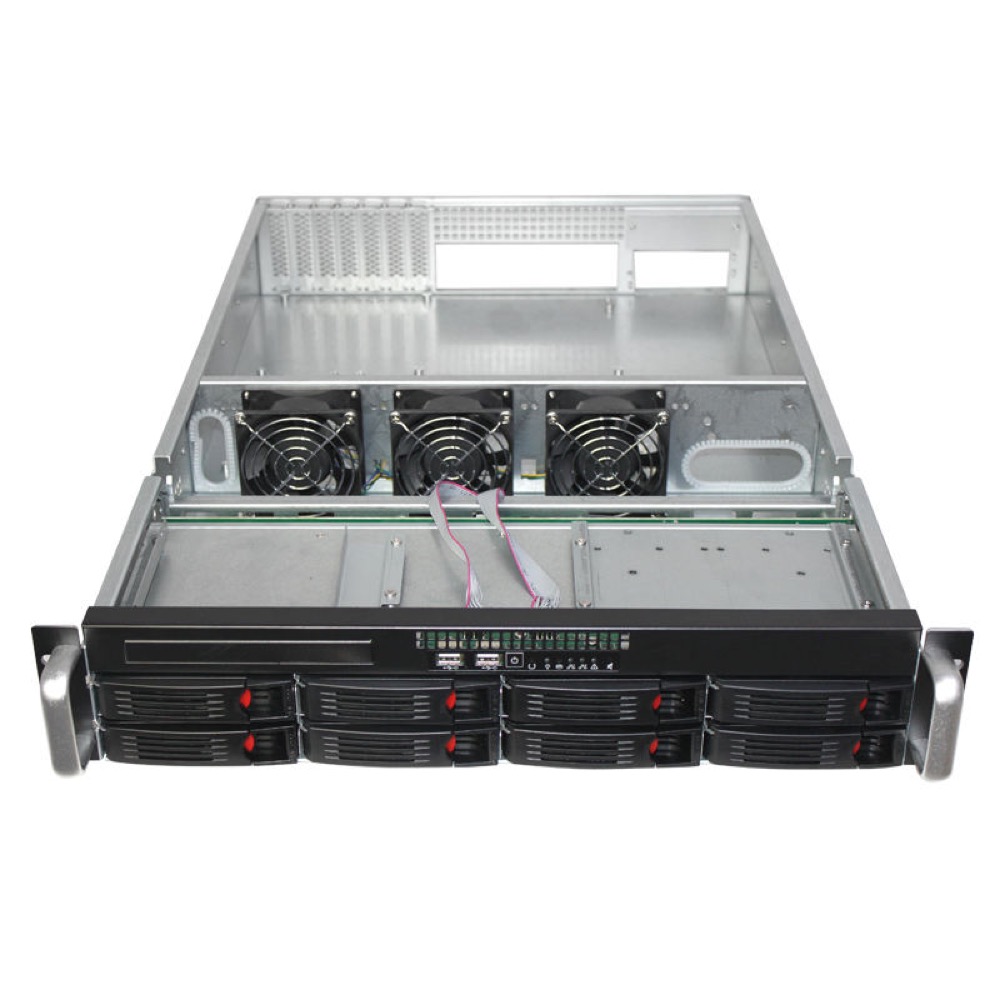

2U 19-inch industrial rackmount storage chassis with eight hot-swappable SATA/SAS 3.5-inch bays, two 2.5-inch drive positions, one notebook optical-drive position, seven full-height expansion slots, three included 8025 fans, and support for a 2U server power supply. The enclosure measures 482 × 660 × 89 mm and supports BTX-class boards up to 305 × 340 mm.
Specifications
Identity
| Model Number | CHS-SRV-R266-8 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 2U rackmount chassis with three included 8025 fans and hot-swap drive bays. Server PSU, motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | Storage Server, NAS, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | 1.2 mm SGCC steel |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 660 mm |
| Weight | 14.8 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 340 mm |
Power Supply
| PSU Support | 2U server PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 8 × hot-swappable 3.5-inch SATA/SAS bays, 2 × 2.5-inch drive positions |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × full-height and straight slots |
Cooling and Thermal
| Included Fan Count | 3 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 3 included |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Restart switch, Power indicator, Hard-drive indicator, 2 × network connection indicators |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power and restart switches, power and hard-drive indicators, and two network connection indicators. |
