Server Chassis
CHS-SRV-K239F

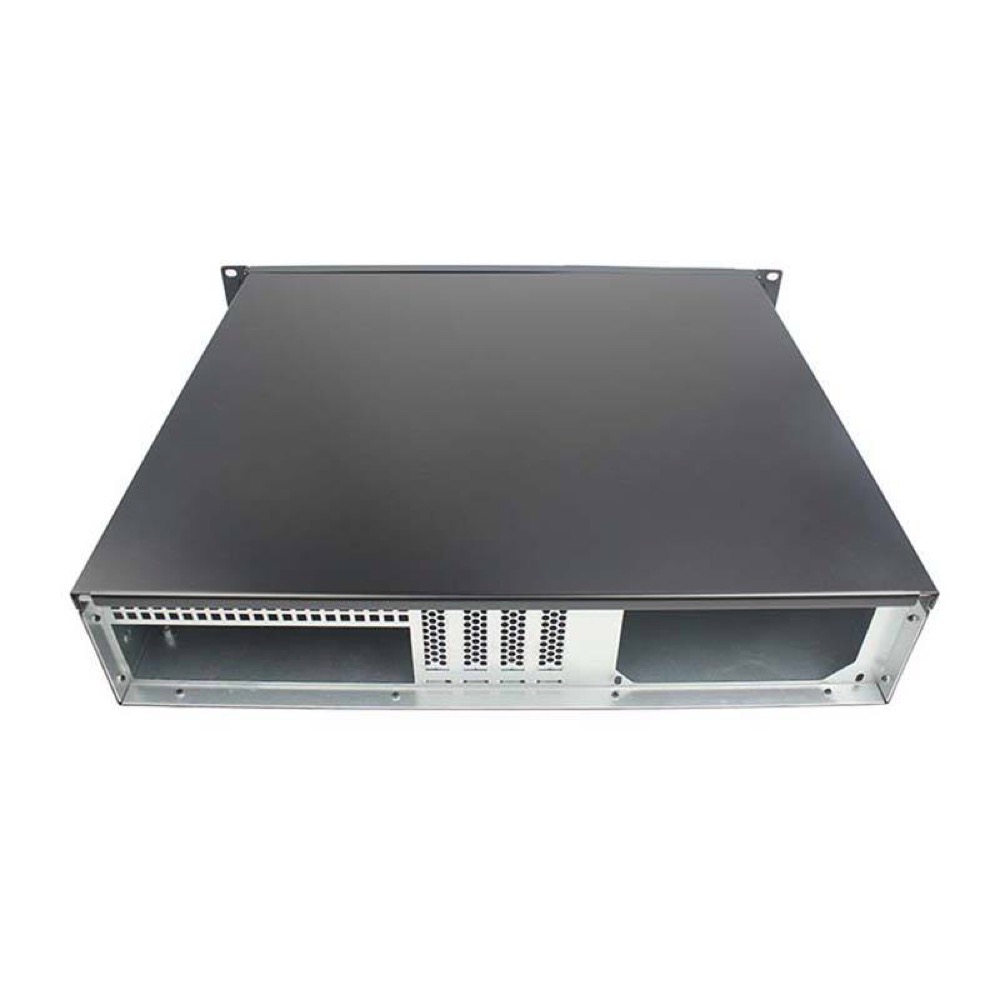

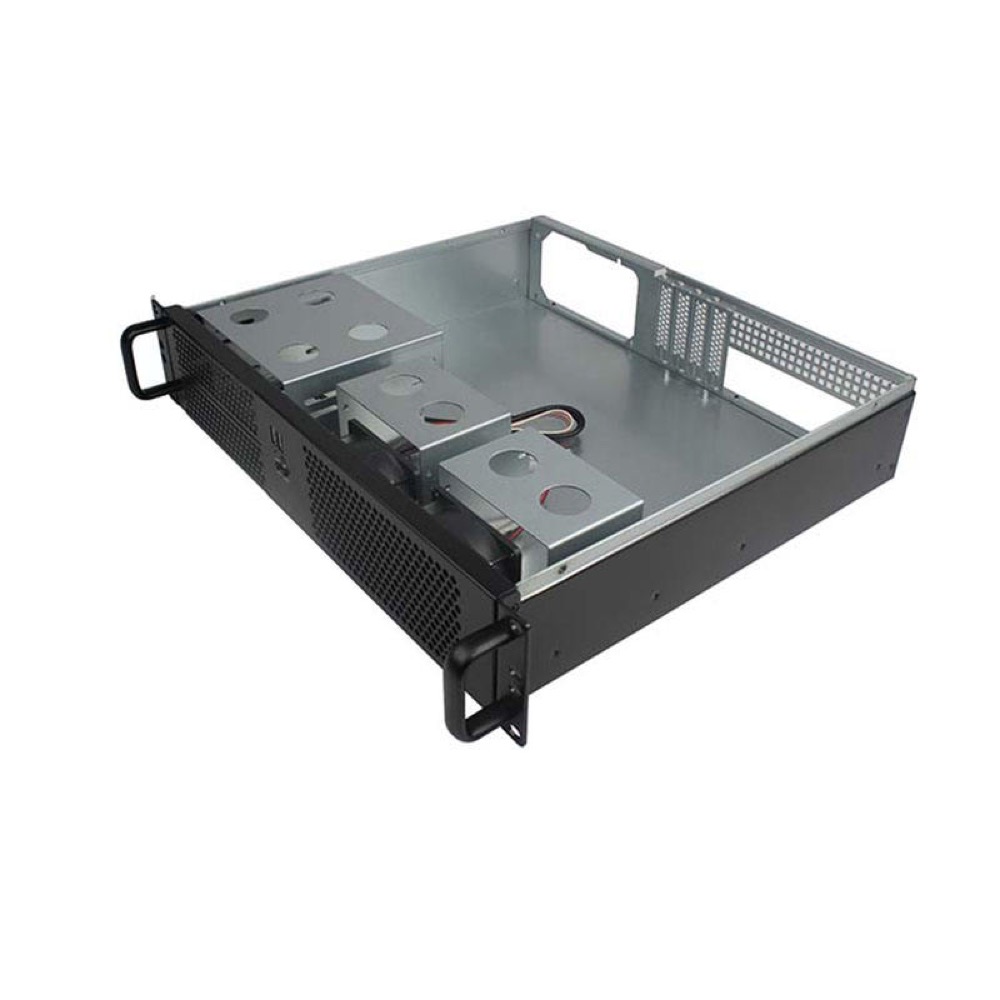

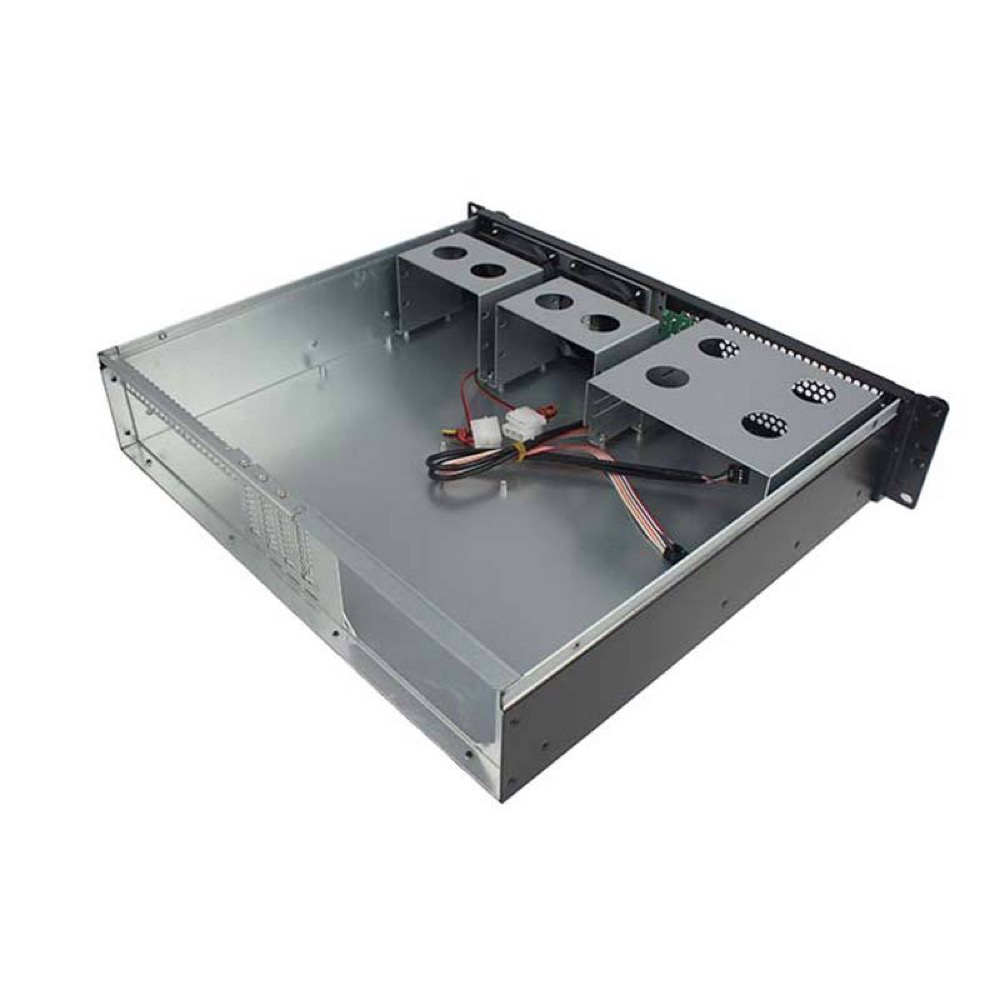

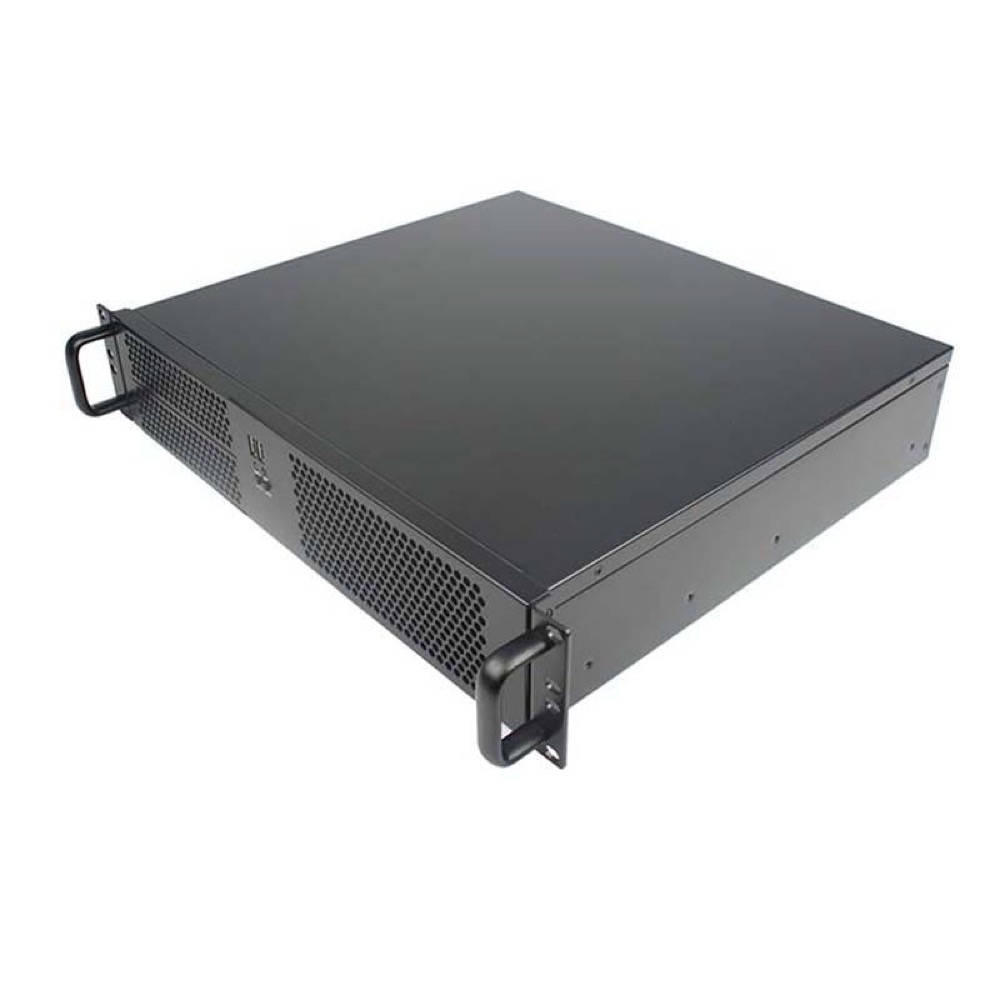

K239F 2U MicroATX Rackmount Storage Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension482(W) × 390(D) × 89(H) mm
MountingRackmount
MotherboardMicroATX
Drive Bays4 bays
K239F 2U 19-inch rackmount storage chassis for server and industrial PC installations. The supplier lists a 482 × 390 × 89 mm steel enclosure supporting MicroATX boards up to 245 × 245 mm, four 3.5-inch hard disks, two 5.25-inch optical-drive bays, an ordinary desktop-style ATX/PS2 power supply, four half-height straight expansion slots, two 8025 fans, and front USB 2.0, power, reset, and status indicators. Motherboard, PSU, CPU, memory, storage drives, and optical drives are not included.
Specifications
Identity
| Model Number | CHS-SRV-K239F |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty steel 2U chassis with two included 8025 fans and four half-height straight expansion slots. ATX/PS2 PSU support is provided; PSU, motherboard, CPU, memory, storage drives, and optical drives are not included. |
| Use Case / Application | Server, Storage Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 2U |
| Material | Steel, 1.0 mm; zinc-plated finish |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 390 mm |
| Weight | 6.5 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 245 × 245 mm (9.6 × 9.6 in) |
Power Supply
| PSU Support | ATX/PS2 desktop-style PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 4 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 4 × 3.5-inch hard disks |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | 4 × half-height straight slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
I/O and Connectivity

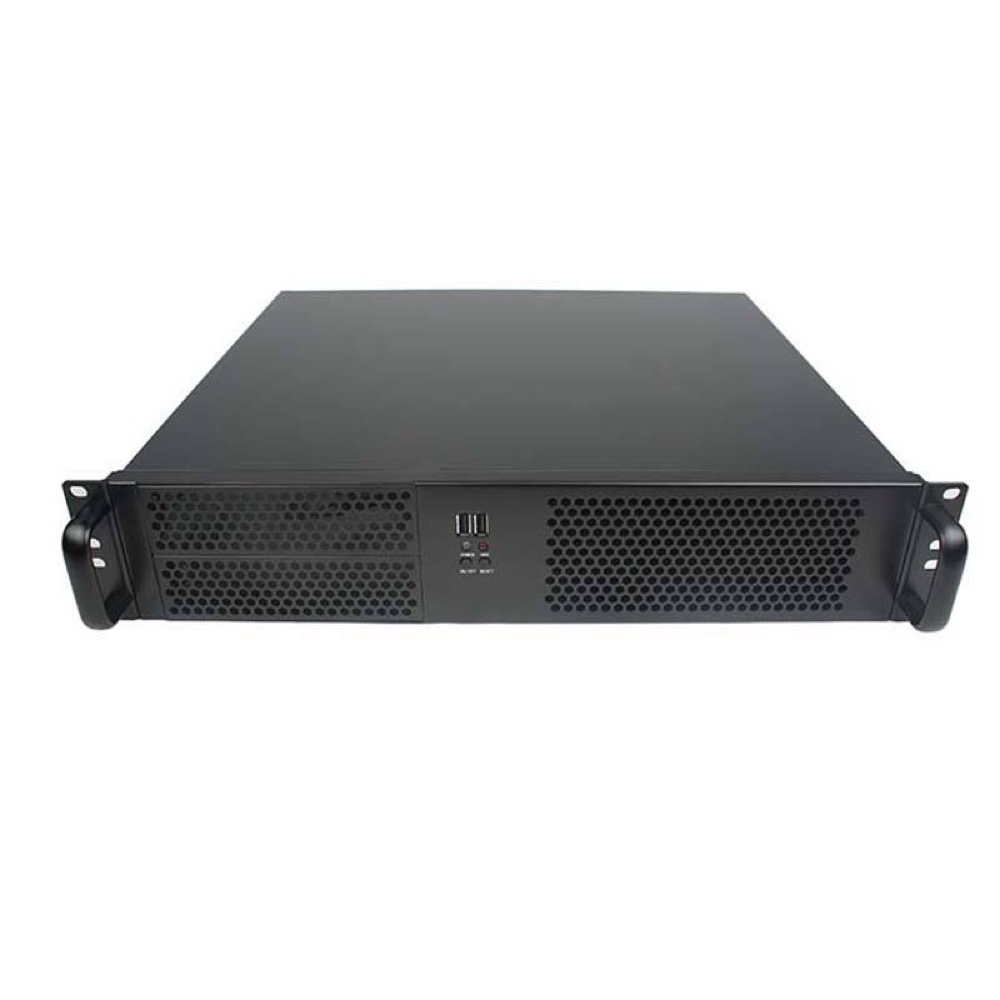

| Front I/O | 2 × USB 2.0, Power switch, Reset switch, Power indicator, HDD indicator |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power switch, reset switch, power indicator, and HDD indicator. Supplier lists four half-height straight slots and CE/RoHS certification. |
Similar products
Alternatives in this class
CHS-SRV-C235L2
HOT SELLING 2U LCD RACKMOUNT CASE WITH FAN CAN SUPPORT 9.6*9.6 MOTHERBOARD ATX FAN and 2*8CM FANS• Height: 89 mm

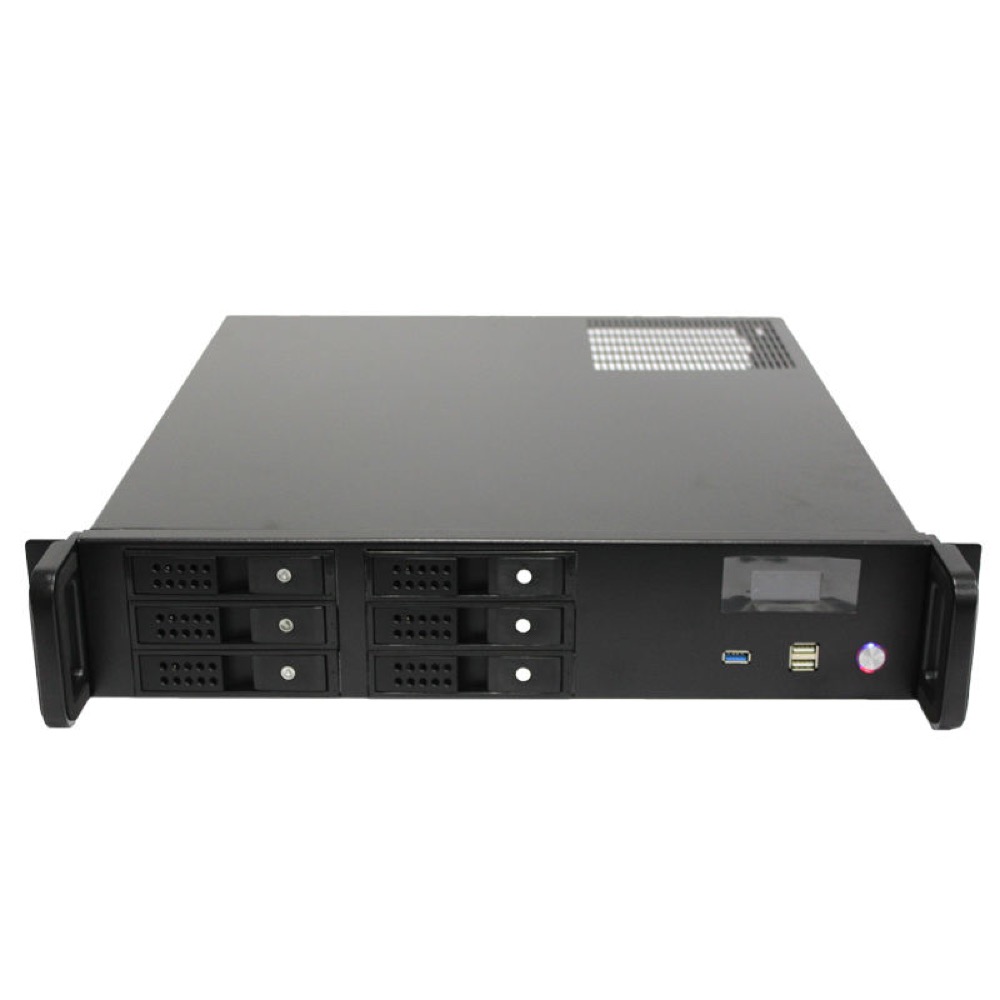

CHS-SRV-R248-6C
