Server Chassis
CHS-SRV-K125L

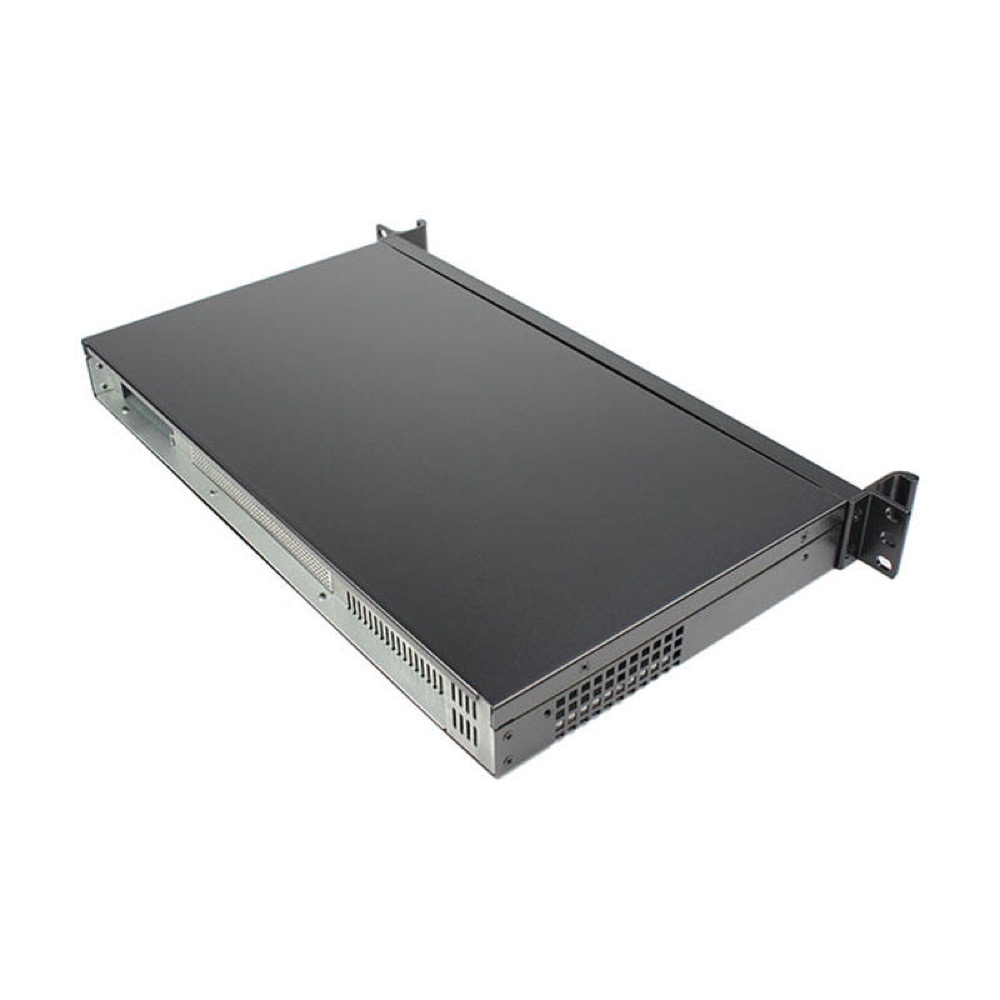

K125L 1U Mini-ITX Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 250(D) × 44.5(H) mm
MountingRackmount
MotherboardMini-ITX
Drive Bays2 bays

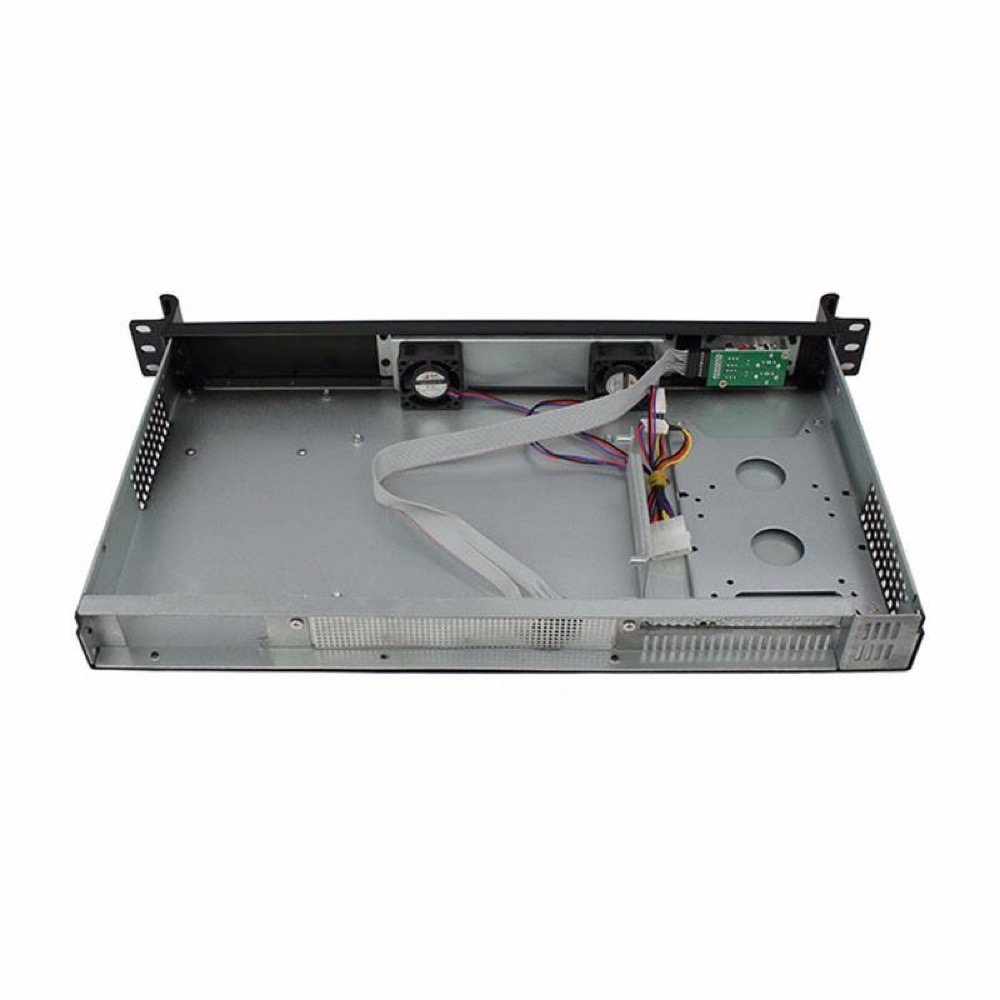

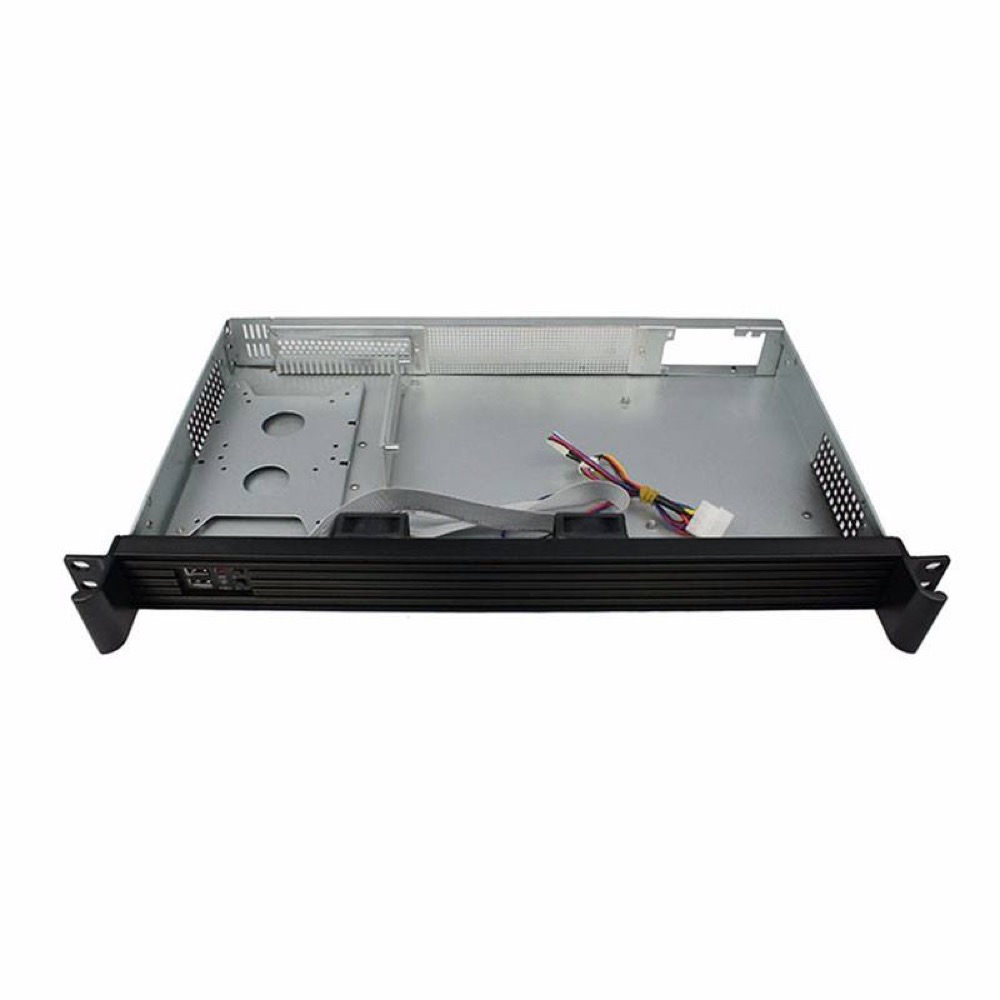

Short-depth 1U 19-inch rackmount chassis for Mini-ITX systems. The supplier lists a 170 × 170 mm Mini-ITX footprint, 1U FLEX PSU support, one 3.5-inch drive or two 2.5-inch drives, one full-height straight expansion slot requiring a separately sold switching/riser card, two 4020 fans, and front USB 2.0, power, reset, and status indicators. The chassis uses an aluminum front panel and SGCC steel body. Supplier-listed dimensions are 482(W) × 250(D) × 44.5(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-K125L |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 1U rackmount chassis with two 4020 cooling fans. FLEX PSU support is provided; PSU and switching/riser card are not included. |
| Use Case / Application | Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 1U |
| Material | Aluminum front panel with SGCC steel body, 1.0 mm thickness |
| Width | 482 mm |
| Height | 44.5 mm |
| Depth | 250 mm |
| Weight | 3.65 kg gross / 3 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm |
Power Supply
| PSU Support | Flex ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | One 3.5-inch HDD or two 2.5-inch HDD/SSD |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | Full-height, Straight slot |
| Riser Card Support | Switching/riser card supported; sold separately |
| Riser Card Included | No |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 40 × 40 × 20 mm (4020) × 2 |
I/O and Connectivity

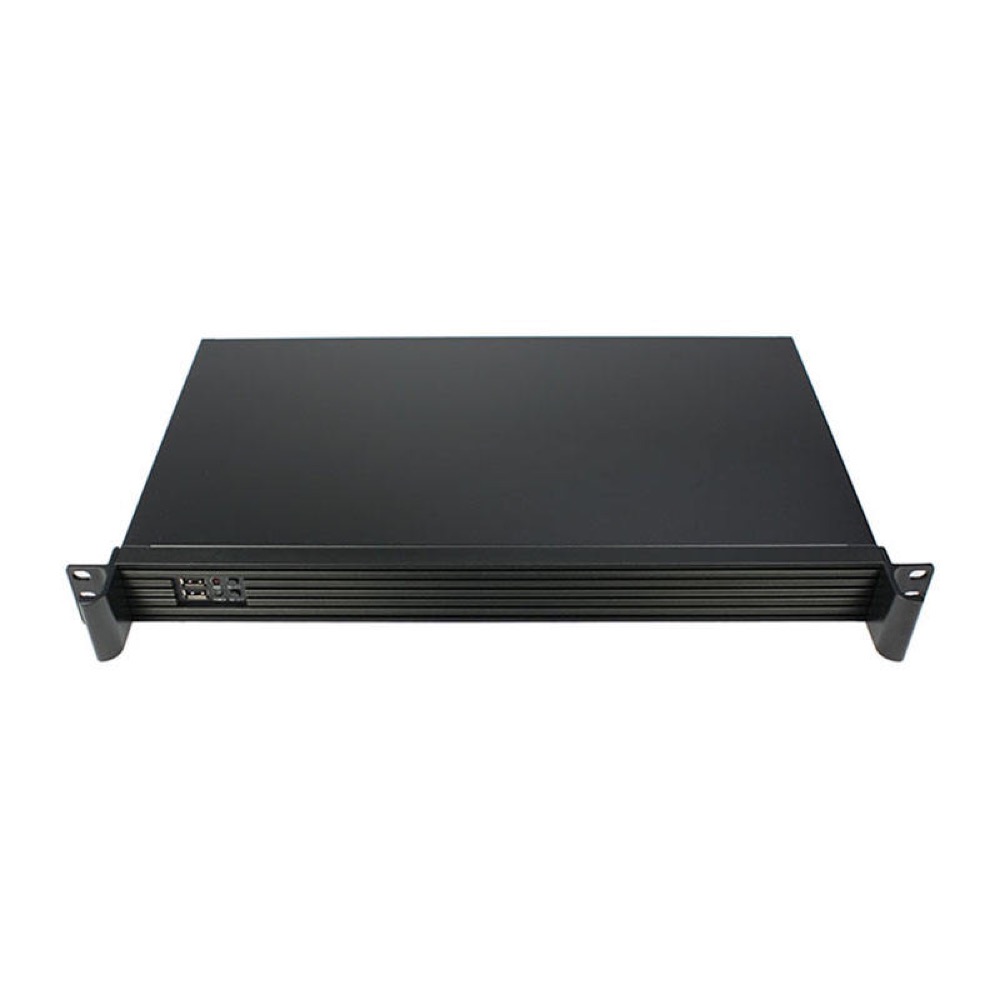

| Front I/O | USB 2.0, Power, Reset, Power indicator, HDD indicator |
| Custom I/O Details | Front panel: two USB 2.0 ports, power switch, restart switch, power indicator, and hard-disk indicator. One full-height straight expansion slot is available with a separately sold switching/riser card. Supplier notes that a standard I/O shield does not fit this 1U chassis. |
