Server Chassis
CHS-SRV-K1525L

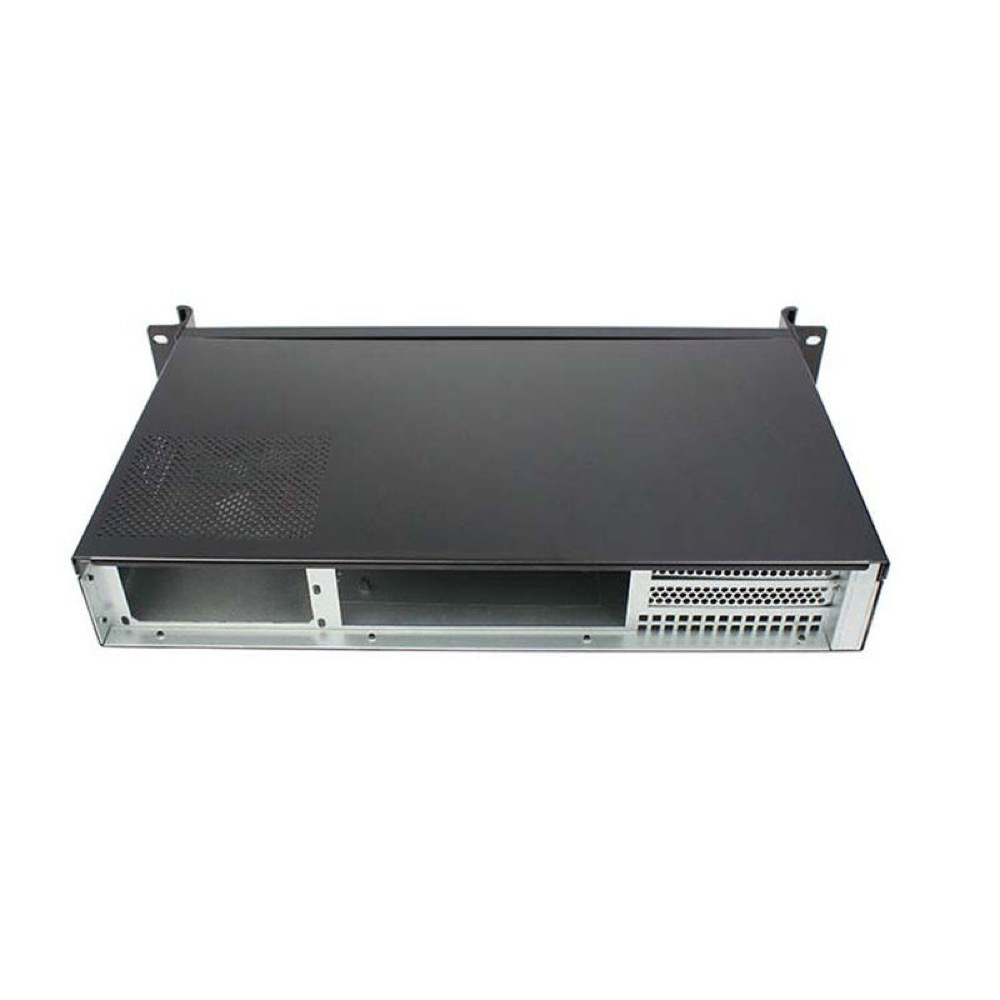

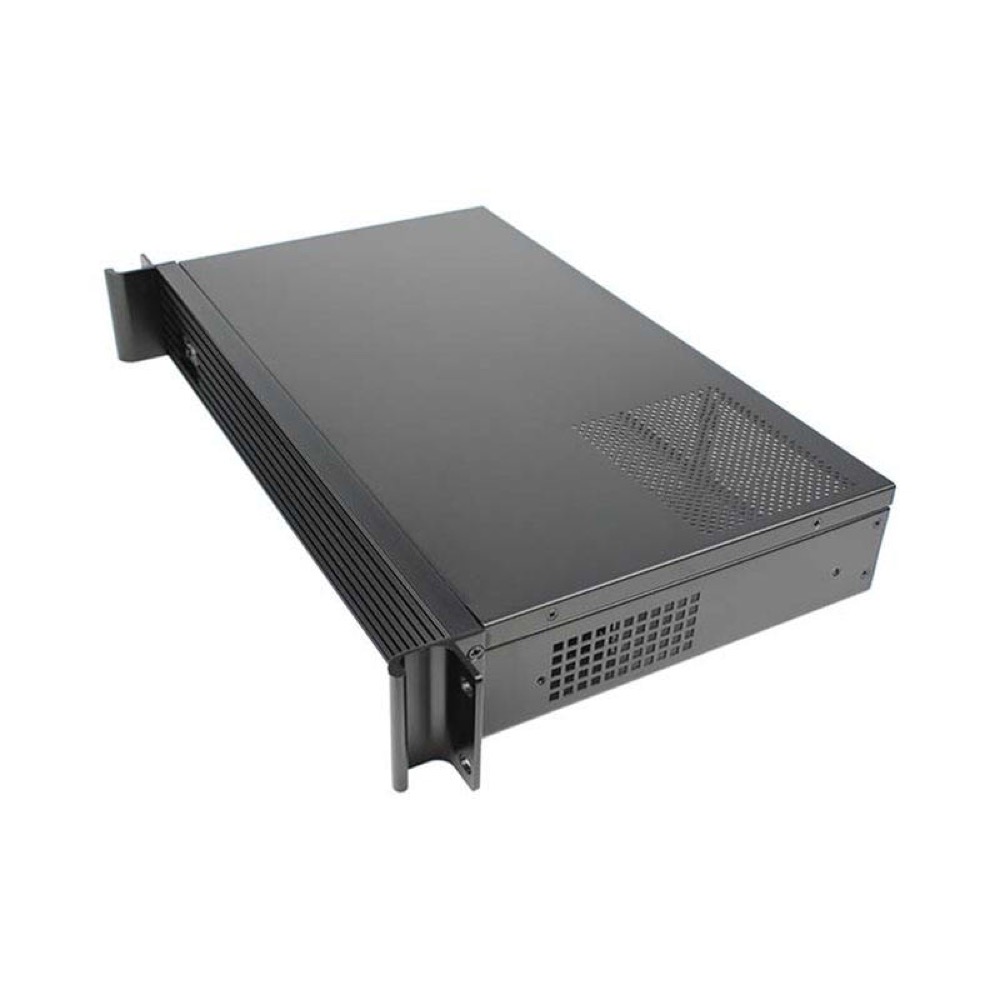

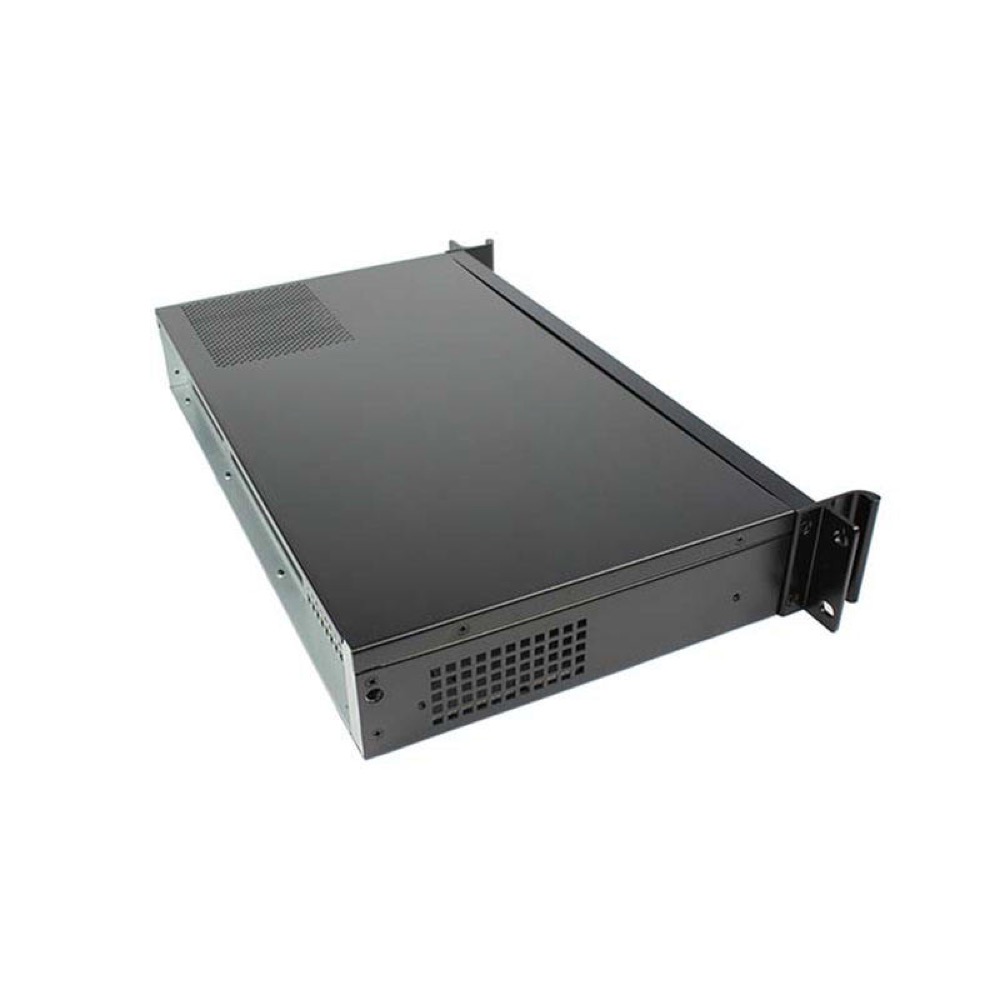

K1525L 1.5U Mini-ITX Dual-System Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 250(D) × 67.5(H) mm
MountingRackmount
MotherboardMini-ITX
Drive Bays5 bays

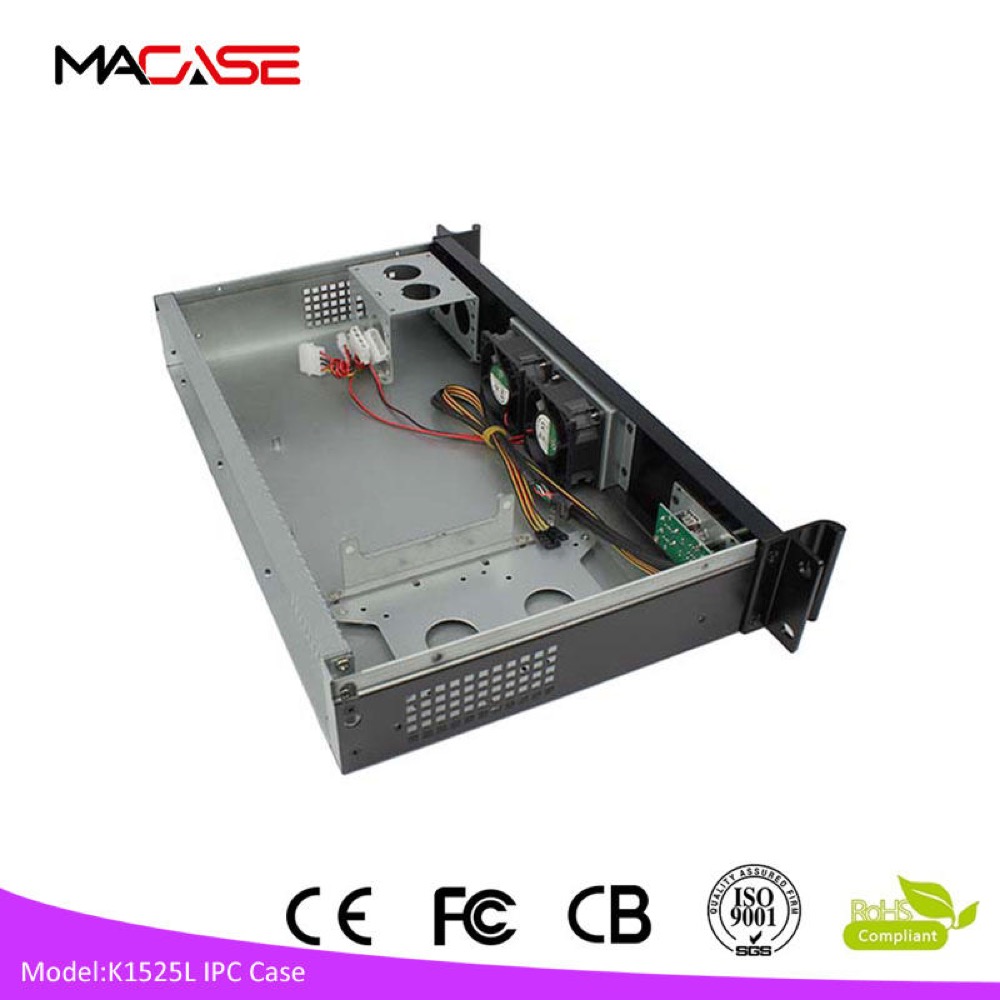

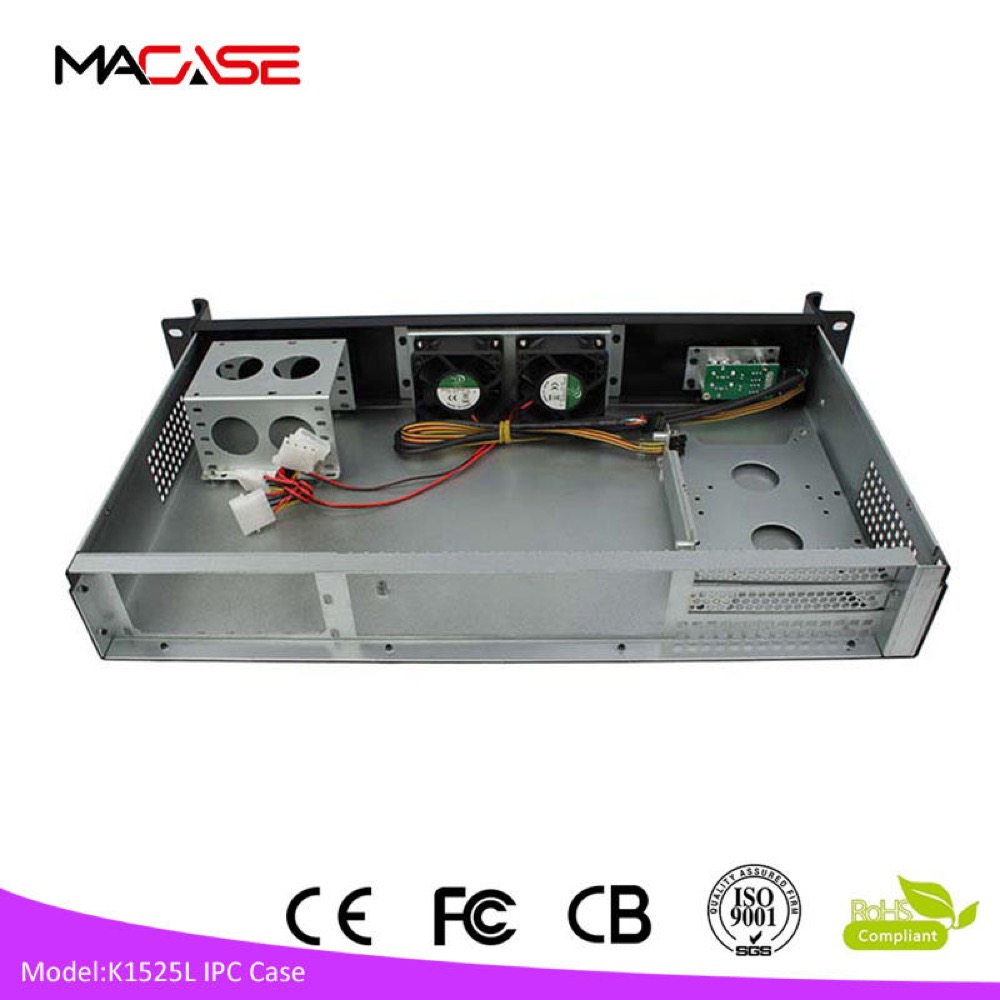

Compact 1.5U 19-inch rackmount chassis for dual-system industrial PC and server applications. The supplier lists a Mini-ITX/170 × 170 mm motherboard footprint, FLEX PSU support, five 2.5-inch drive positions or one 3.5-inch drive, no CD-ROM position, two full-height straight expansion slots with an optional riser, two 6025 fans, two front USB 2.0 ports, power/reset controls, and CE/RoHS certification. Dimensions are 482(W) × 250(D) × 67.5(H) mm. The supplier lists 4.11 kg gross package weight. PSU inclusion is not stated, so this is classified as an empty chassis.
Specifications
Identity
| Model Number | CHS-SRV-K1525L |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 1.5U rackmount chassis; two 6025 cooling fans. FLEX PSU support is provided, but the supplier does not state that a PSU or riser card is included. |
| Use Case / Application | Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 1.5U |
| Material | SGCC steel, 1.2 mm; aluminum alloy |
| Finish / Color | Silver |
| Width | 482 mm |
| Height | 67.5 mm |
| Depth | 250 mm |
| Weight | 4.11 kg gross package weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7 × 7 inches) |
Power Supply
| PSU Support | Flex ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 5 bays |
| Drive Types | Five 2.5-inch HDD/SSD or one 3.5-inch HDD |
PCIe and GPU Support
| PCIe Slots | 2 slots |
| PCIe Slot Types | Full-height, Straight slot |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 60 × 60 × 25 mm (6025) × 2 |
I/O and Connectivity
| Front I/O | USB 2.0, Custom I/O |
| Custom I/O Details | Front panel: two USB 2.0 ports, power switch, restart switch, power indicator, and HDD indicator. Two full-height straight expansion slots are available; supplier states that a riser card is optional/required for the intended configuration. |
