In stock
Server Chassis
CHS-SRV-C640
C640 6U Rackmount LCD Industrial Chassis
Product formEmpty chassis
FamilyPanel PC / Display Chassis
Dimension482(W) × 400(D) × 300(H) mm
MountingRackmount
MotherboardCEB, Micro-ATX, Mini-ITX
Drive Bays6 bays

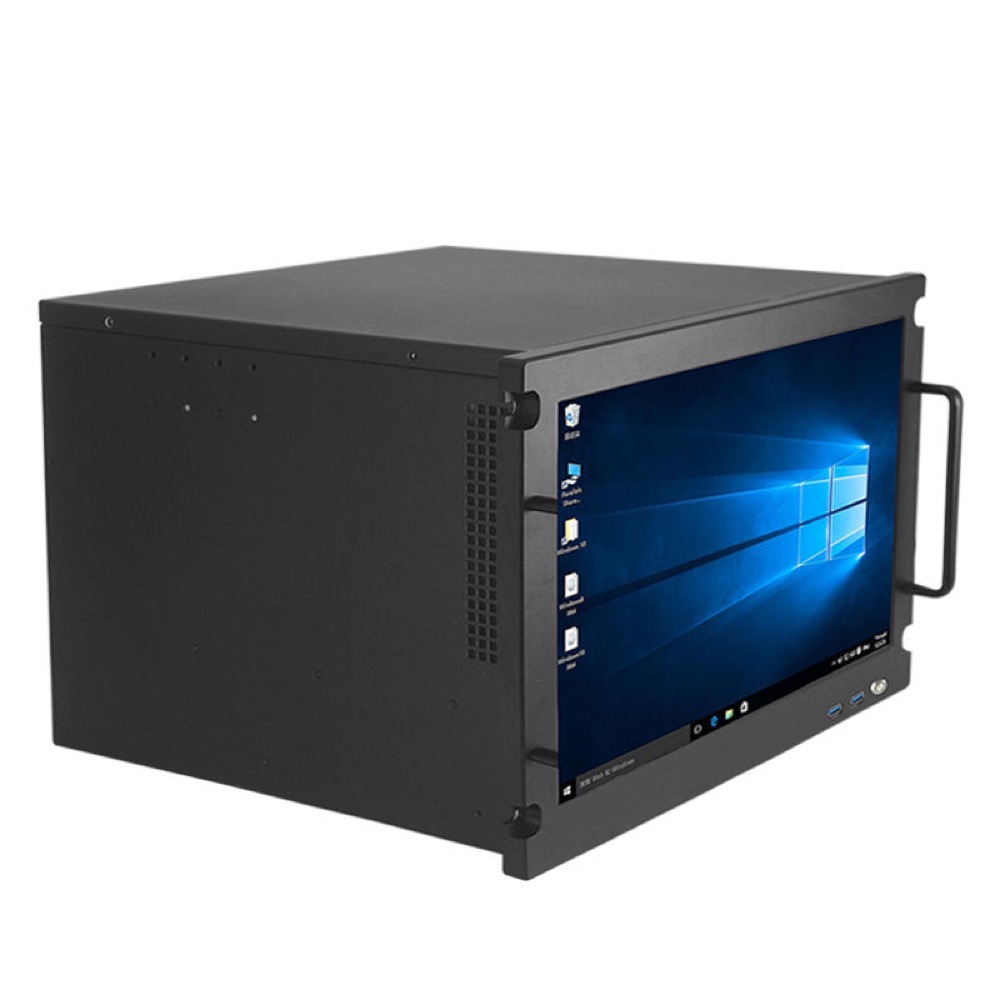

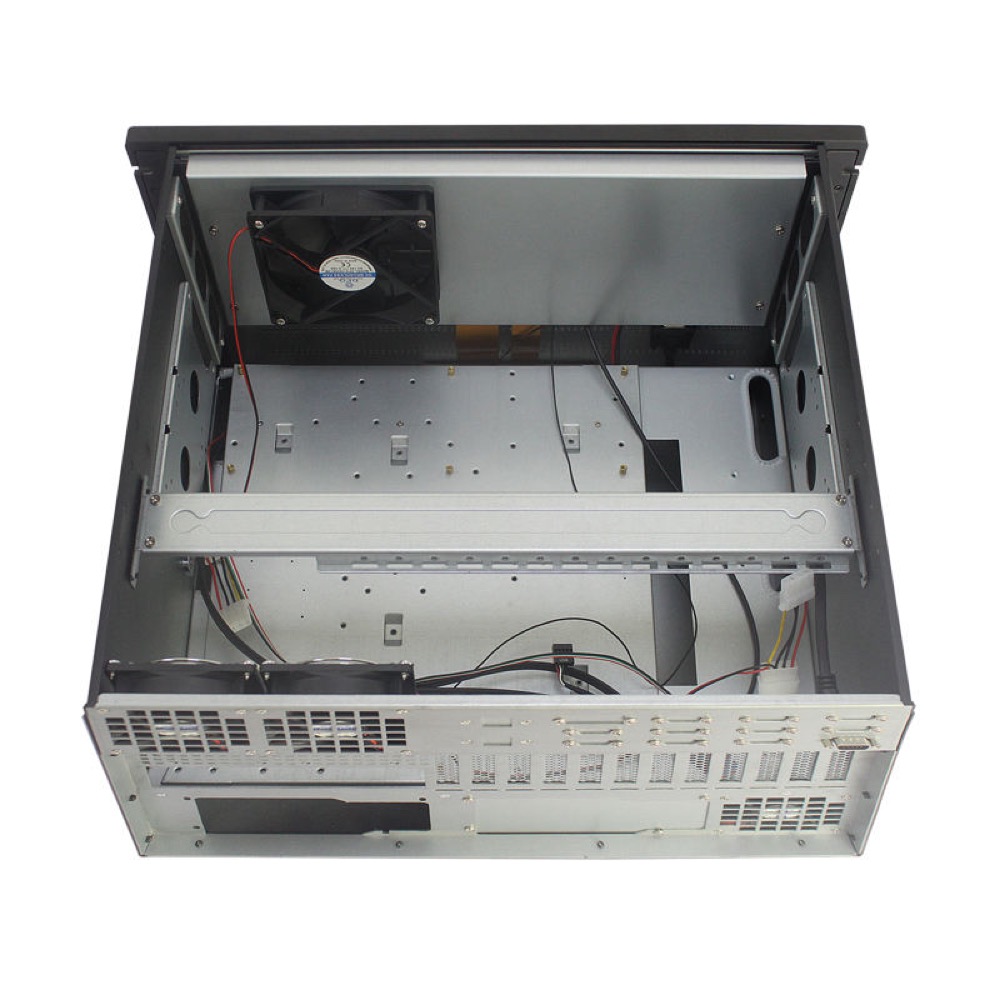

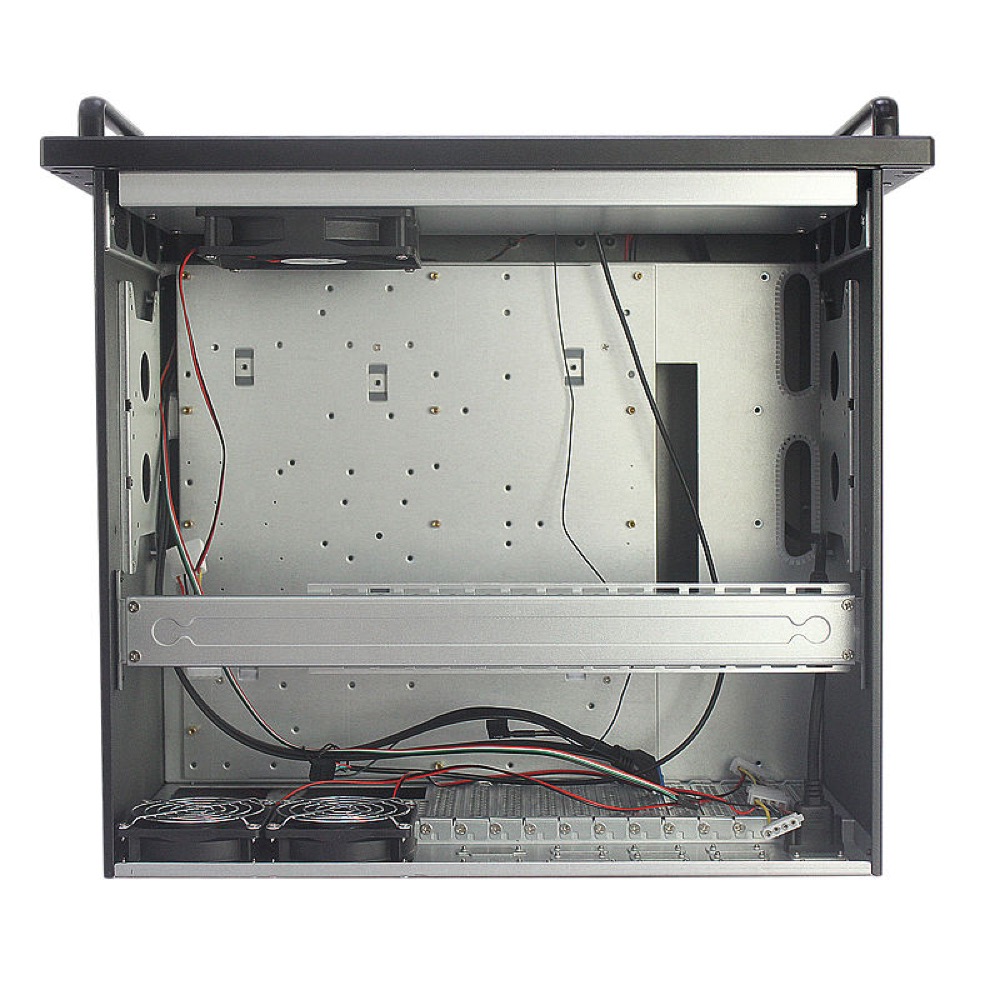

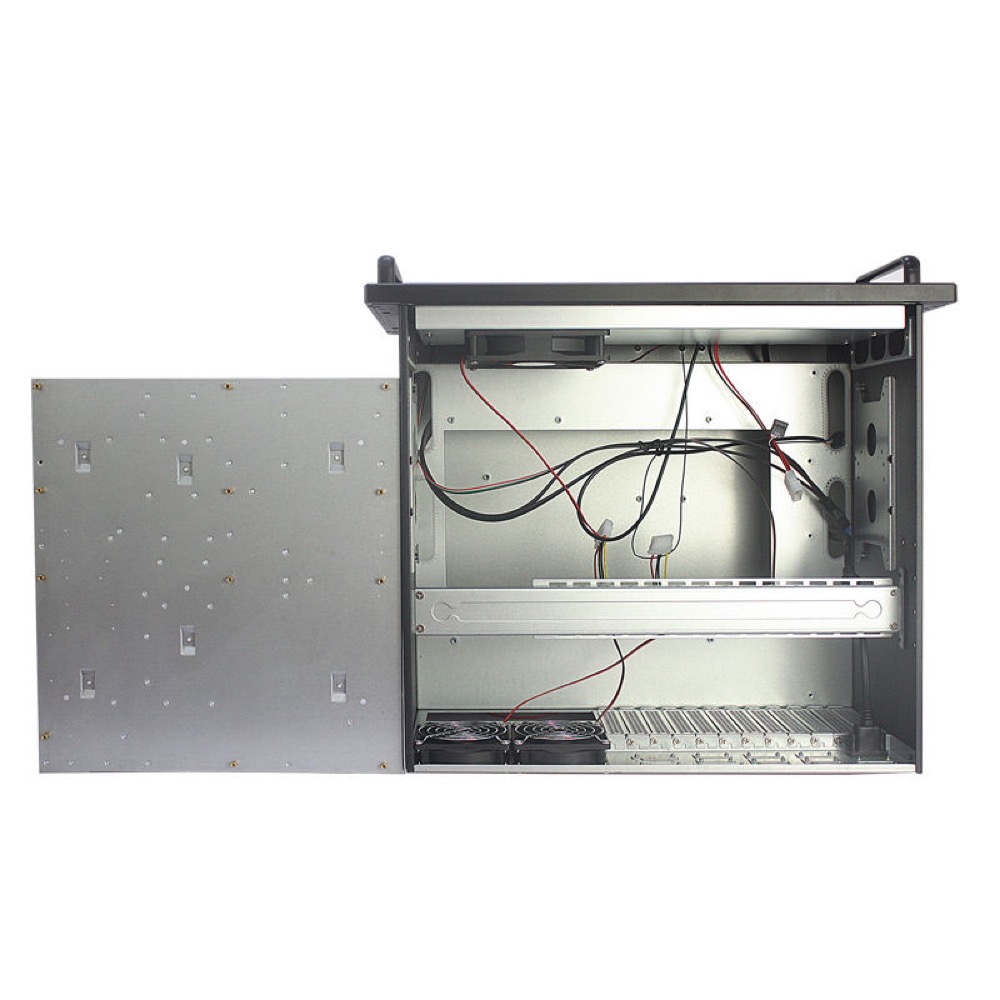

Heavy-duty 6U 19-inch industrial rackmount chassis with an integrated 18.5-inch touchscreen LCD. The supplier lists support for CEB, Micro-ATX, and Mini-ITX motherboards, two ATX PSU positions, two 3.5-inch drive trays or four 2.5-inch drive brackets, twelve PCIe slots, ten COM-port openings, one HDMI connector, three 12025 fans, three 8025 fans, and a front USB 3.0 port. The touchscreen resolution is listed as 1360 × 768. Supplier-listed dimensions are 482(W) × 400(D) × 300(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-C640 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 6U rackmount chassis with integrated 18.5-inch touchscreen LCD and six cooling fans. Two ATX PSU positions are provided, but the supplier does not state that PSUs or a motherboard are included. |
| Use Case / Application | Industrial PC, Server, Panel PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 6U |
| Material | SGCC steel with aluminum front panel, 1.2 mm material thickness |
| Width | 482 mm |
| Height | 300 mm |
| Depth | 400 mm |
| Weight | 20.6 kg gross / 17 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | CEB: 305 × 345 mm; CEB: 305 × 266.7 mm; Micro-ATX: 245 × 245 mm; Mini-ITX: 170 × 170 mm |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
| PSU Count | 2 units |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 4 bays |
| Drive Types | 2 × 3.5-inch HDD tray, 4 × 2.5-inch HDD bracket |
PCIe and GPU Support
| PCIe Slots | 12 slots |
| PCIe Slot Types | PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 6 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 3 + 80 × 80 × 25 mm (8025) × 3 |
Display and LCD
| LCD / Display Included | Yes |
| LCD Size | 18.5 in |
| LCD Resolution | 1360 × 768 |
| Touchscreen Support | Yes |
| Touch Technology | Touchscreen |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | USB 3.0, Power, Touchscreen LCD |
| Rear I/O | COM ports, HDMI |

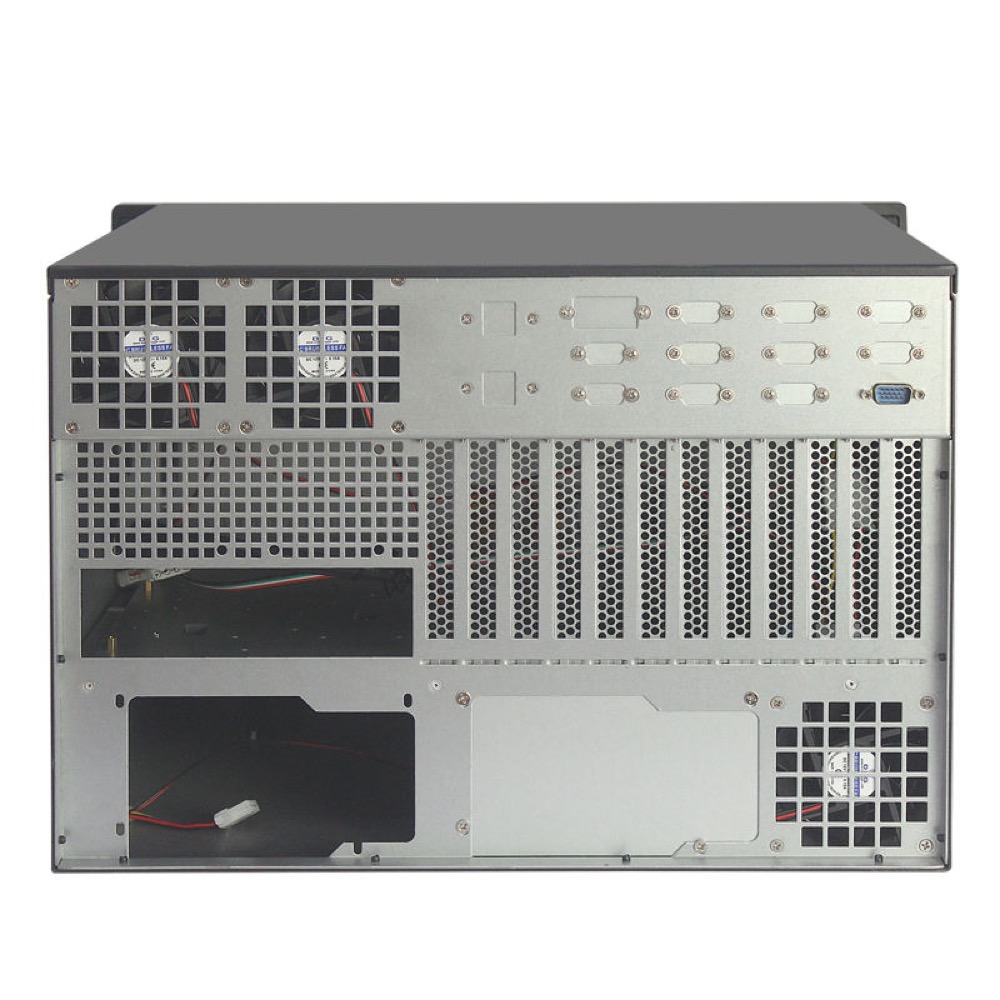

| Custom I/O Details | Front panel: two USB 3.0 ports, power switch with indicator, and an 18.5-inch touchscreen LCD. Expansion area: twelve PCIe slots, ten COM-port openings, and one HDMI connector. LCD resolution is listed as 1360 × 768. |
