In stock
Server Chassis
CHS-SRV-K668DF

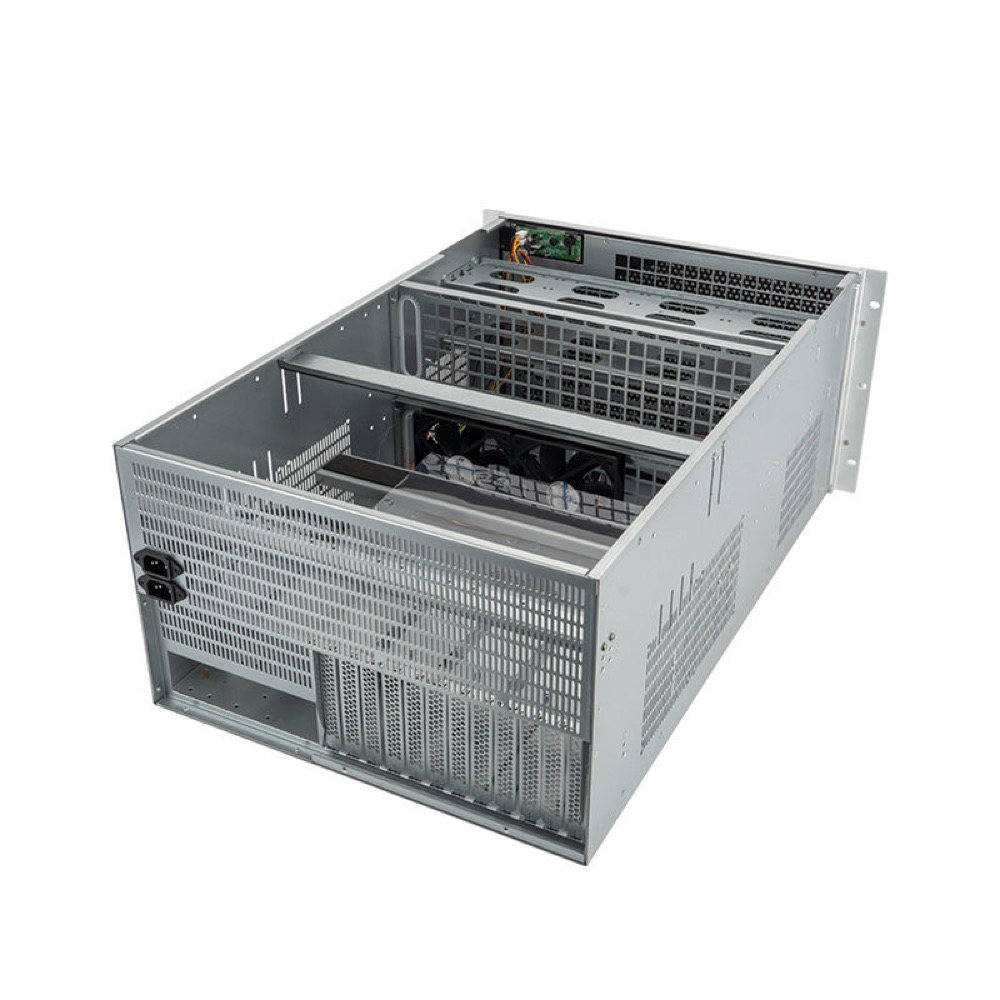

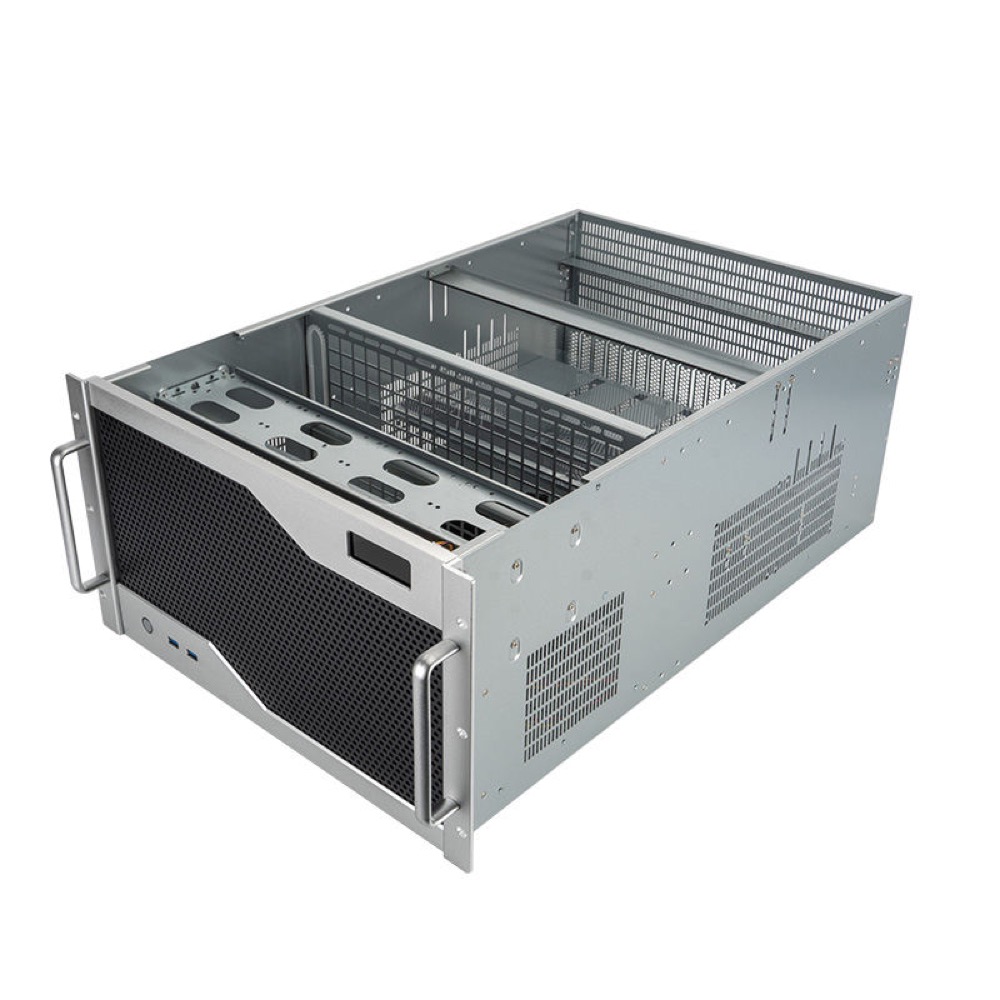

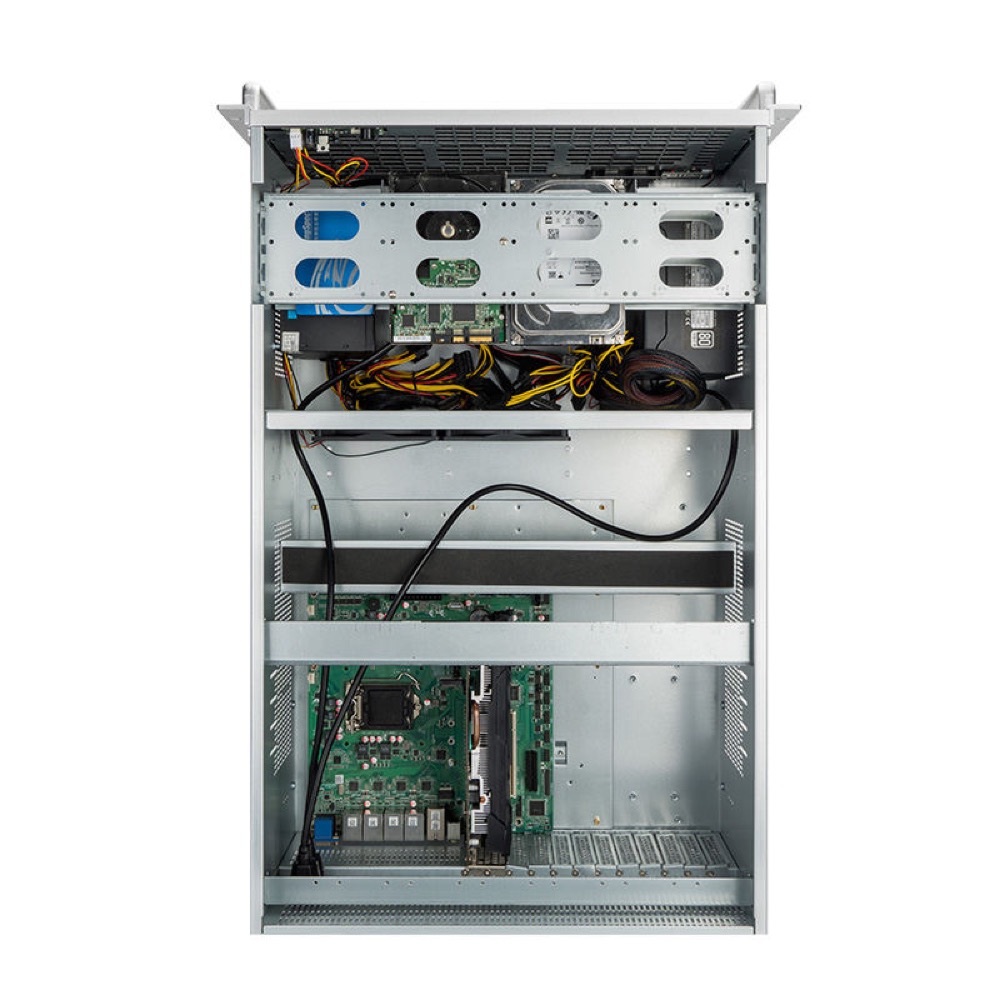

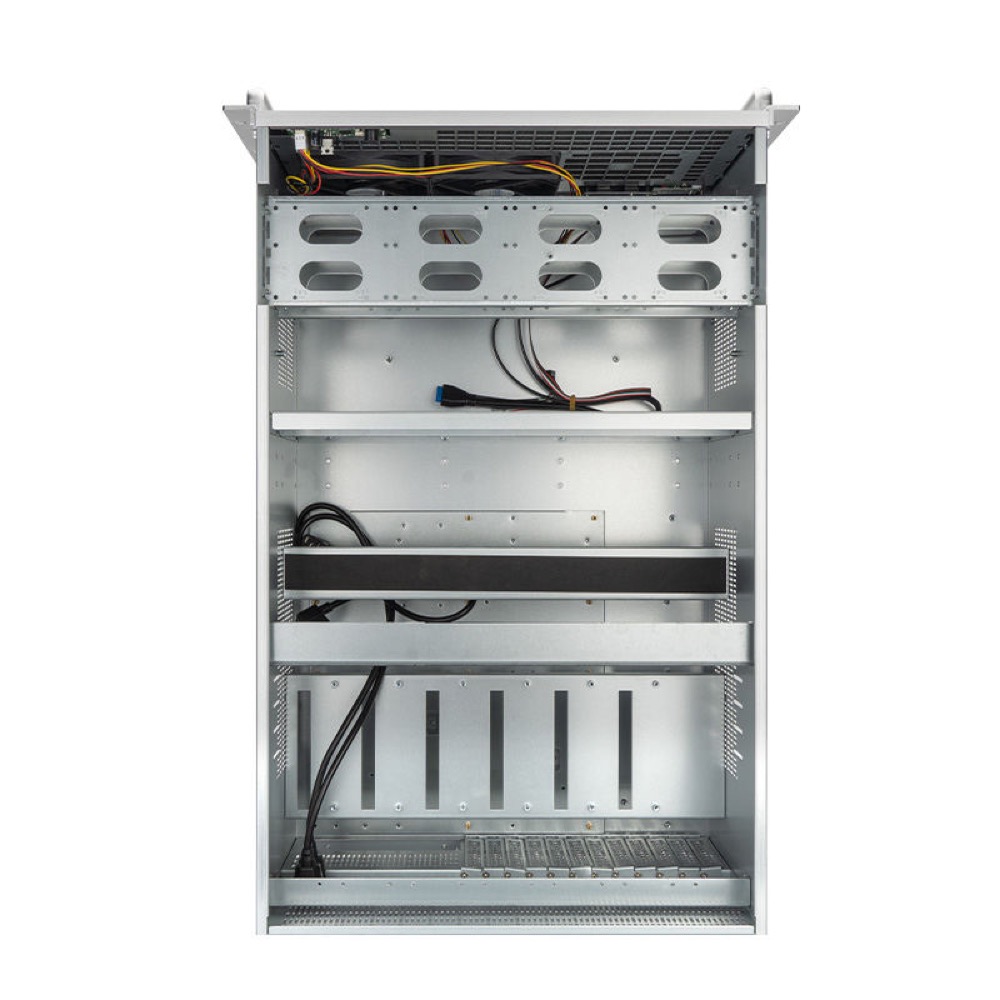

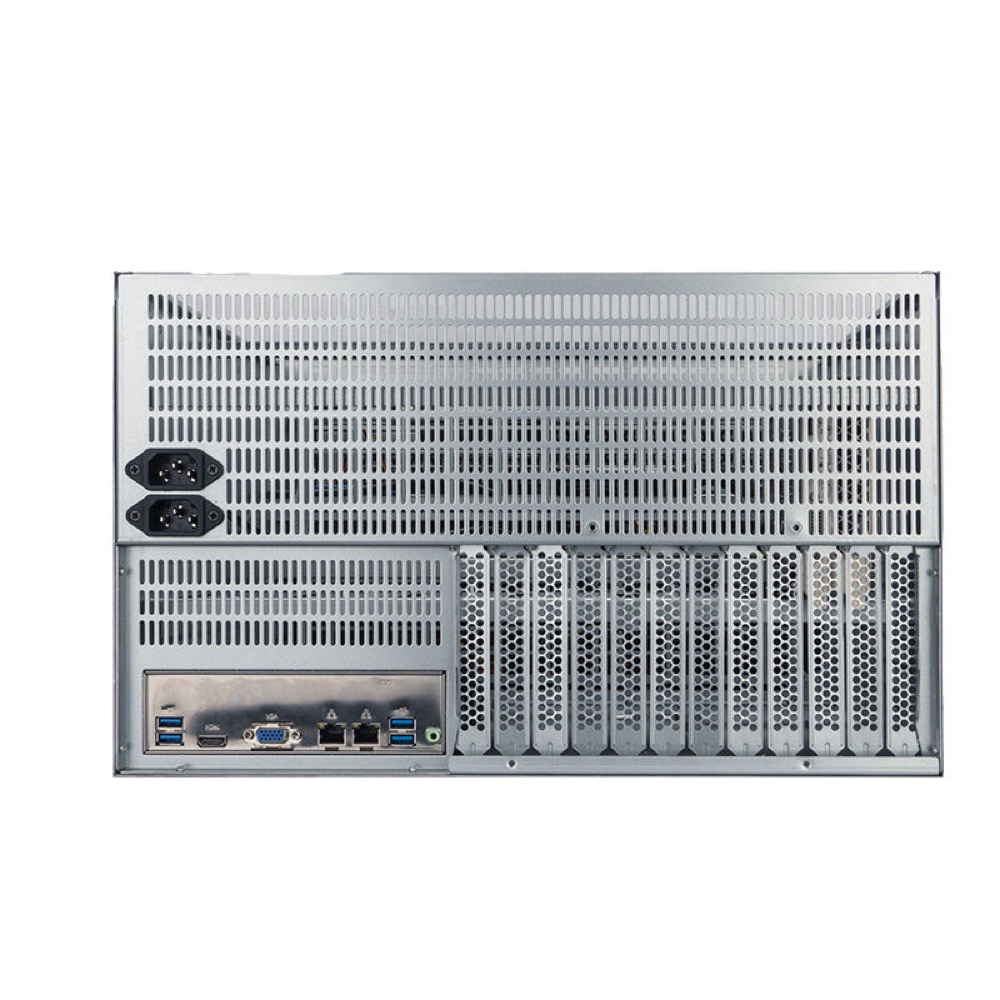

K668DF 6U GPU/AI Rackmount Chassis with Temperature LCD
Product formEmpty chassis
FamilyGPU / AI Chassis
Dimension482(W) × 680(D) × 266(H) mm
MountingRackmount
MotherboardEATX, CEB, ATX, MicroATX, Mini-ITX
Drive Bays8 bays
K668DF 6U 19-inch industrial GPU/AI rackmount chassis for multi-GPU servers and workstation systems. The supplier lists a 482 × 680 × 266 mm SGCC and aluminum-panel enclosure supporting EATX, CEB, ATX, MicroATX, and Mini-ITX boards, two ATX PSU positions, eight 3.5-inch or eight 2.5-inch drive brackets, twelve PCIe slots, support for up to six GPUs up to 385 mm long, CPU cooler clearance up to 218 mm, two included 12025 fans, optional additional fans, a front temperature LCD, and 240/360 mm water-cooler adapter support. It is an empty chassis; PSU, motherboard, GPU cards, CPU, memory, and storage are not included.
Specifications
Identity
| Model Number | CHS-SRV-K668DF |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 6U rackmount chassis with front temperature LCD and two included 12025 fans. Dual ATX PSU positions and 240/360 mm water-cooling adapter support are provided; PSUs, GPU cards, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | GPU Computing, AI Server, Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 6U |
| Material | SGCC steel body with aluminum panel; 1.2 mm body and 4 mm panel |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 266 mm |
| Depth | 680 mm |
| Weight | 18.4 kg gross; 14.9 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | EATX 305 × 345 mm; CEB 305 × 266.7 mm; MicroATX 245 × 245 mm; Mini-ITX 170 × 170 mm |
Power Supply
| PSU Support | 2 × ATX PSU positions |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 8 bays |
| Drive Types | 8 × 3.5-inch HDD tray, 8 × 2.5-inch HDD bracket |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 12 slots |
| PCIe Slot Types | 12 × PCIe slots |
| Maximum GPU Count | 6 GPUs |
| Maximum GPU Length | Up to 385 mm |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 2 included; up to five additional 12025 fans listed as optional |
| Maximum CPU Cooler Height | Up to 218 mm |
Display and LCD
| LCD / Display Included | Yes |
| Display Position | Front panel temperature LCD |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Power switch with indicator, Temperature LCD |
| Custom I/O Details | Front panel includes two USB 3.0 ports, power switch with indicator, and a temperature LCD. Supplier lists twelve PCIe slots, six-GPU support up to 385 mm, dual ATX PSU positions, two included 12025 fans, optional additional fans, and 240/360 mm water-cooler adapter support. |
