In stock
Server Chassis
CHS-SRV-8W

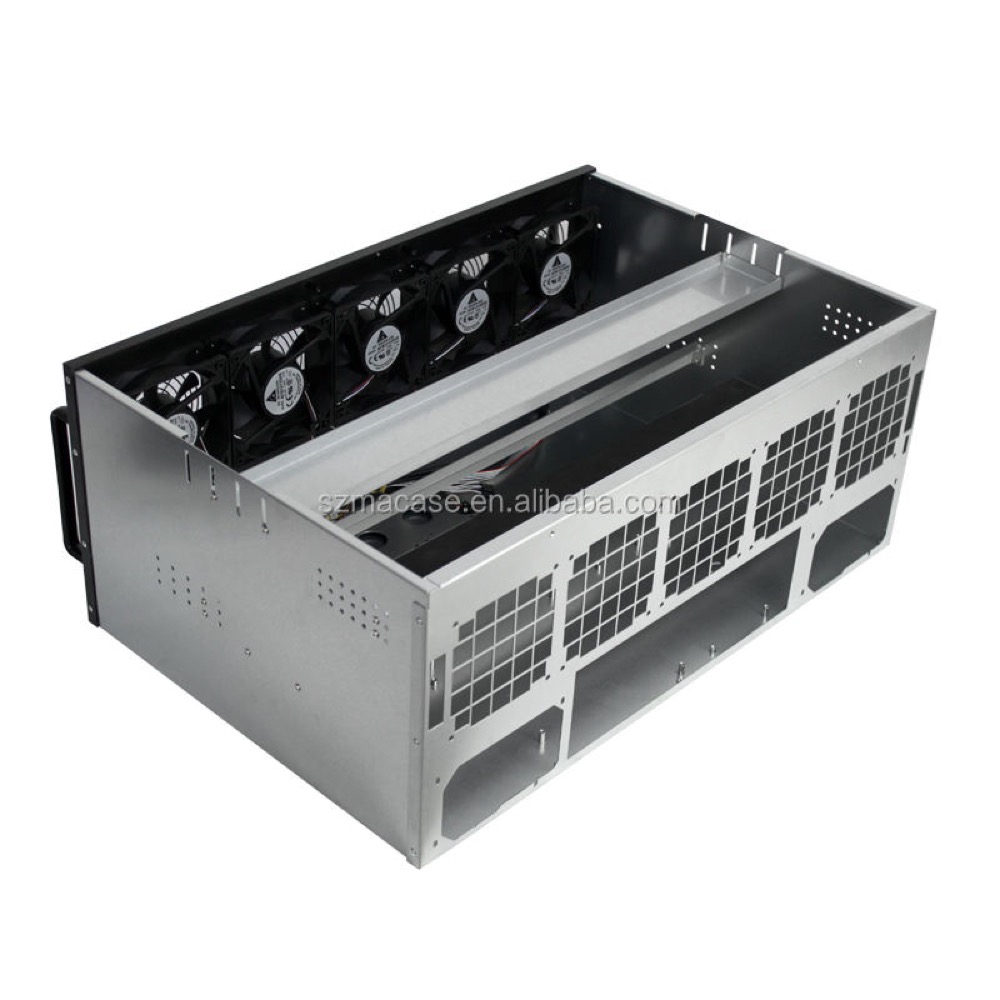

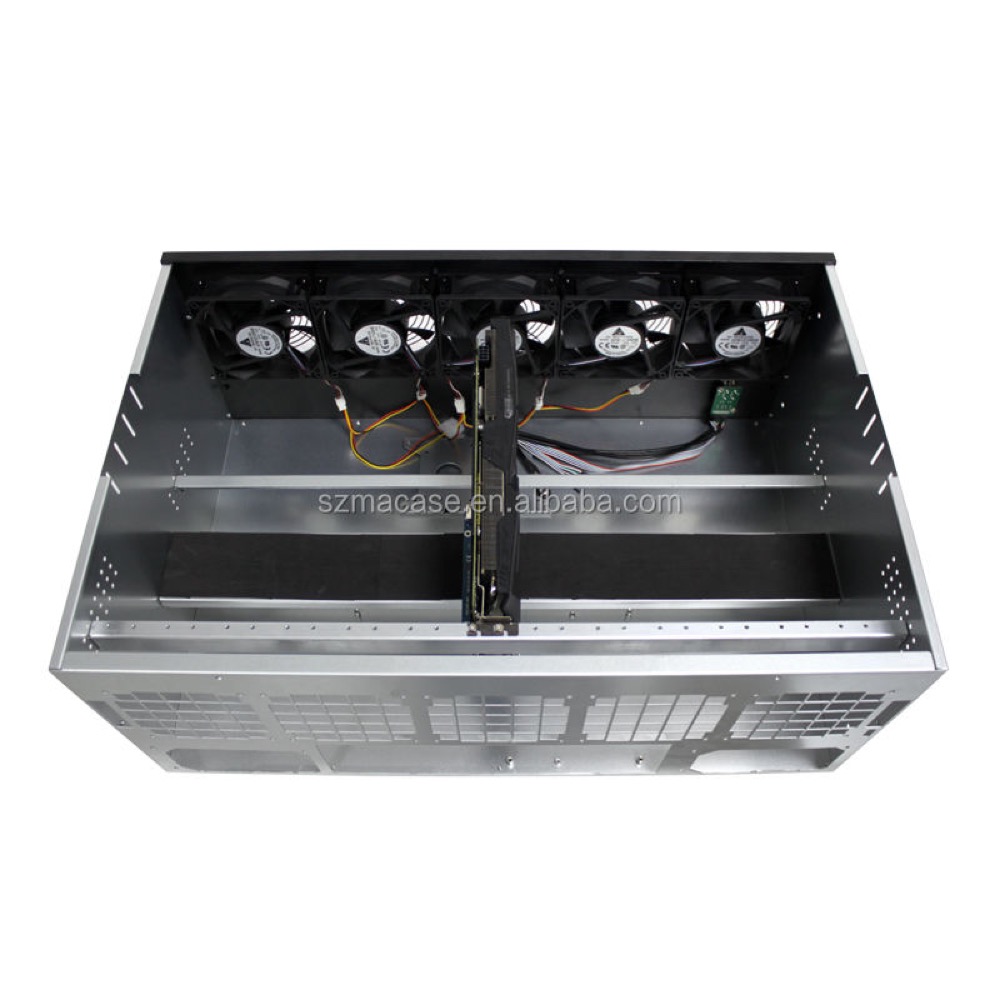

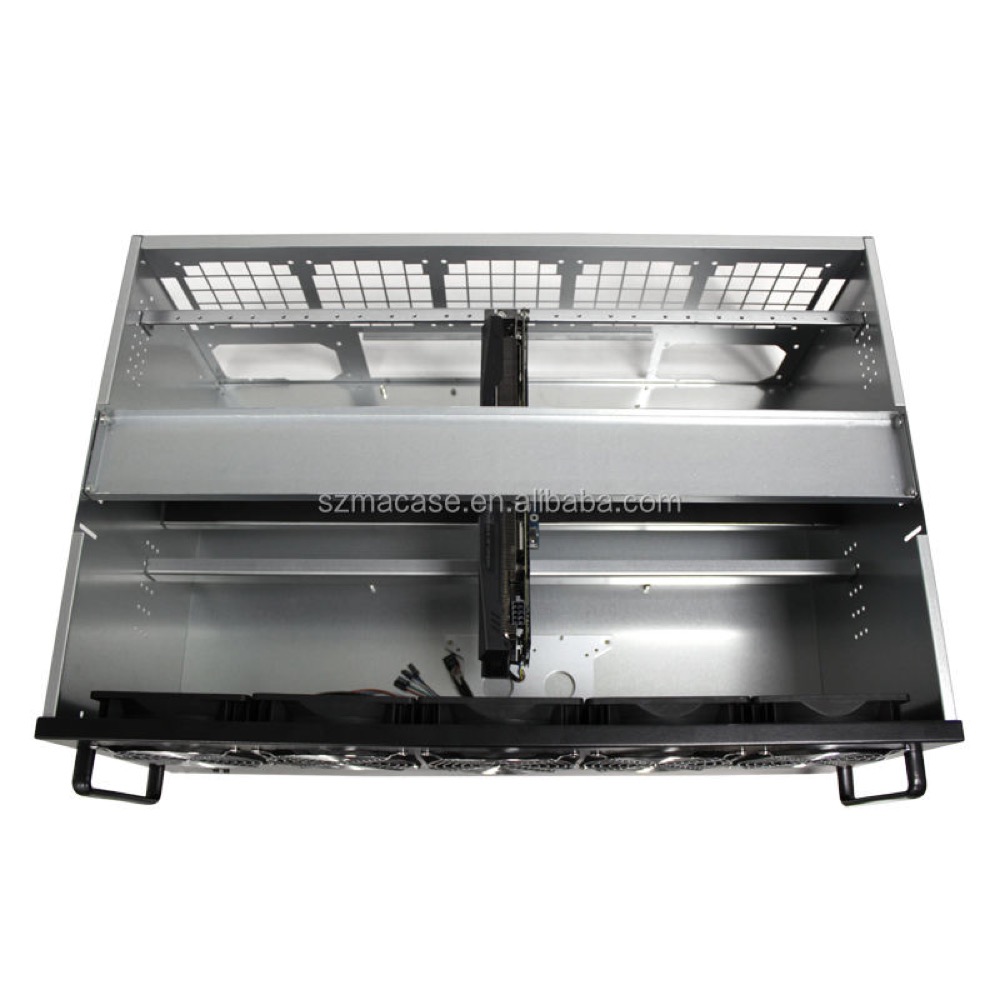

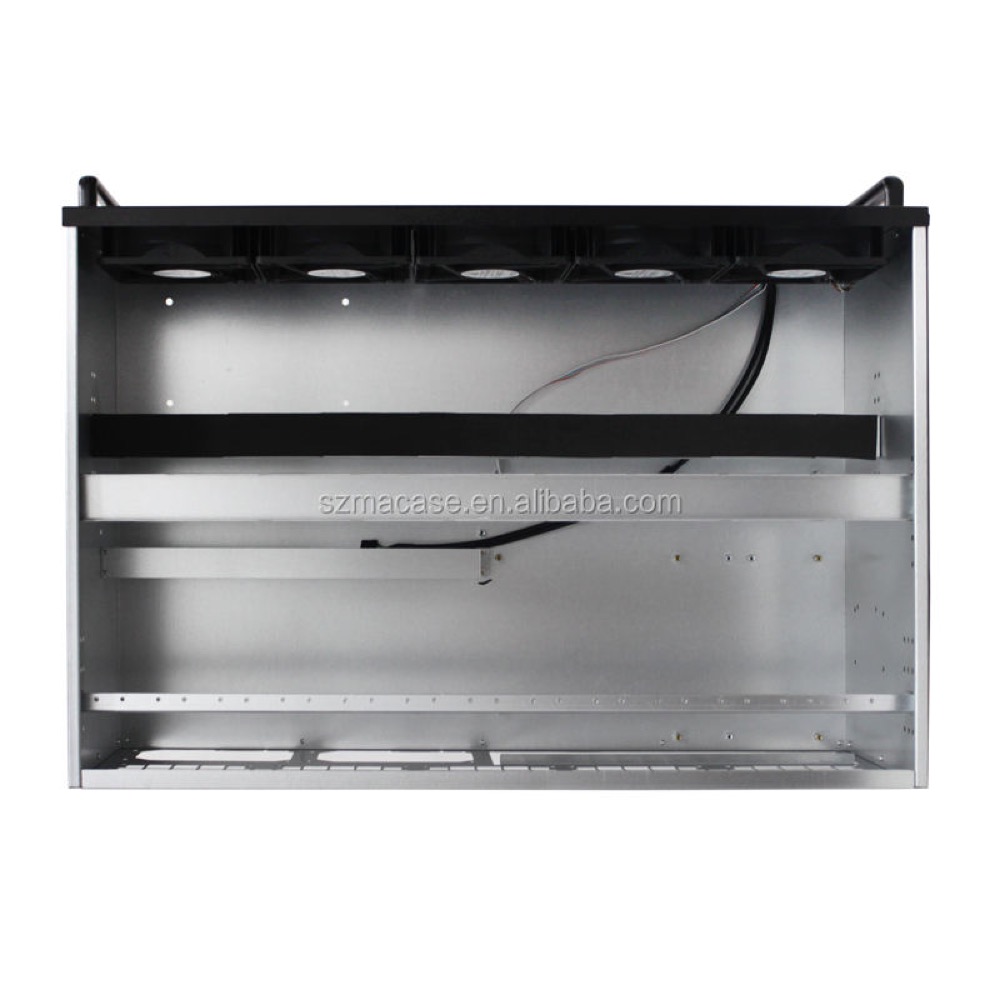

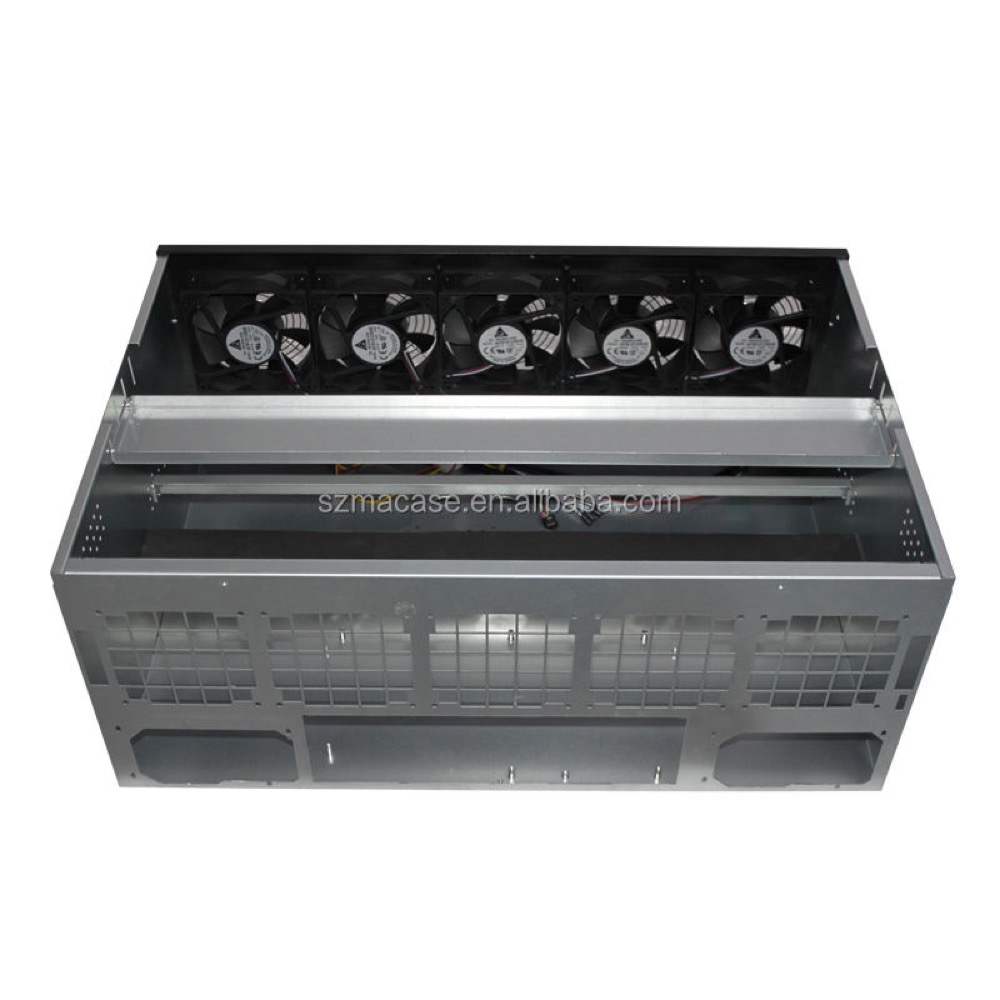

8W 6U GPU/AI Rackmount Chassis with 13-GPU Support
Product formEmpty chassis
FamilyGPU / AI Chassis
Dimension650(W) × 430(D) × 265(H) mm
MountingRackmount
MotherboardATX
Drive Bays1 bays
6U GPU/AI rackmount chassis for high-density GPU computing and AI server builds. The supplier lists a 650(W) × 430(D) × 265(H) mm enclosure, ATX motherboard support, dual ATX PSU positions, one 3.5-inch HDD bay or 2.5-inch adapter, five included 12038 fans, front USB 2.0, power and reset controls, and support for up to 13 GPUs with cards up to 340 mm long. The supplier's title calls the listing a 12-GPU case while its key attributes and detailed specification state 13-GPU support; this discrepancy is retained in the private source notes.
Specifications
Identity
| Model Number | CHS-SRV-8W |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 6U rackmount chassis with five included 12038 cooling fans. The enclosure supports an ATX motherboard, dual ATX PSU positions, one 3.5-inch HDD or 2.5-inch adapter, and up to 13 GPUs. PSU, motherboard, CPU, memory, storage drives, and GPUs are not included unless separately configured by the supplier. |
| Use Case / Application | GPU Computing, AI Server, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 6U |
| Material | Aluminum alloy and steel |
| Width | 650 mm |
| Height | 265 mm |
| Depth | 430 mm |
| Weight | 13.5 kg gross / 11 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 in) |
Power Supply
| PSU Support | 2 × ATX PSU positions |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 1 × 3.5-inch HDD or 2.5-inch adapter |
PCIe and GPU Support
| PCIe Slots | 13 slots |
| PCIe Slot Types | 13 × GPU/PCIe positions |
| Maximum GPU Count | 13 GPUs |
| Maximum GPU Length | Up to 340 mm |
Cooling and Thermal
| Included Fan Count | 5 fans |
| Fan Size | 120 × 120 × 38 mm (12038) × 5 included; five additional 120 mm fans listed as optional |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Reset switch |
| Custom I/O Details | Front panel lists two USB 2.0 ports, power and reset controls. Supplier also lists dual ATX PSU support, 13 GPU support, and a 2000W power-supply reference. |
