Server Chassis
CHS-SRV-6W8B

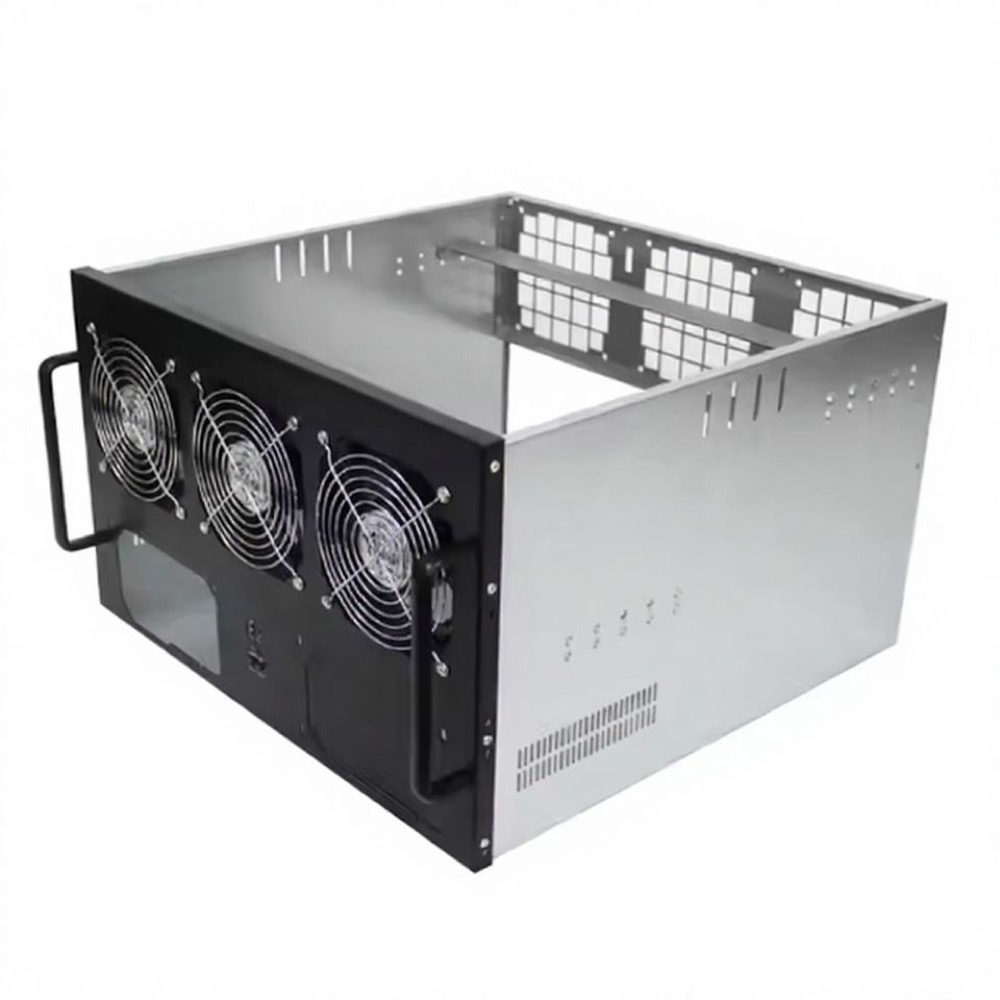

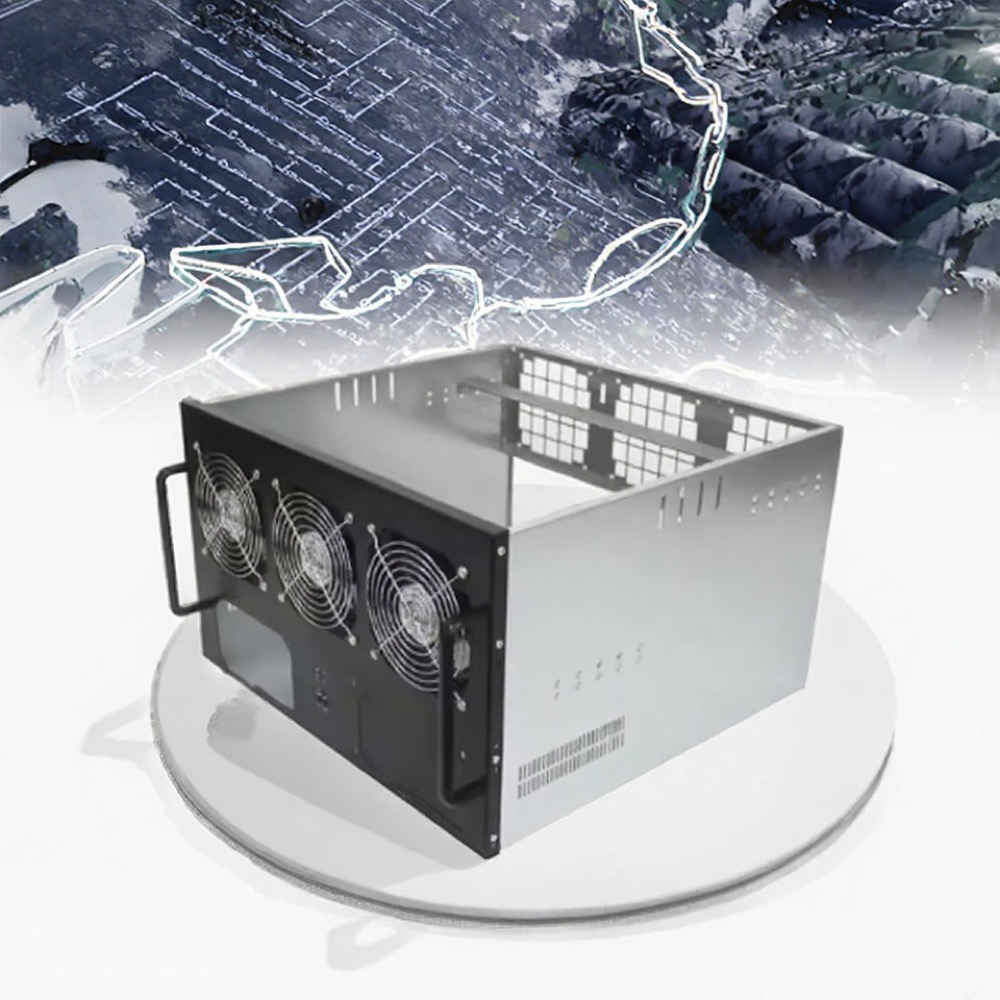

6W8B 6U GPU Rackmount Chassis
Product formEmpty chassis
FamilyGPU / AI Chassis
Dimension520(W) × 430(D) × 267(H) mm
MountingRackmount
MotherboardATX
Drive Bays2 bays
6U 19-inch rackmount GPU chassis for ATX-based compute systems. The supplier lists ATX motherboard support, ATX PSU support, one 3.5-inch and one 2.5-inch drive position, support for up to eight graphics cards up to 340 mm long, a steel enclosure with side-panel window, and front/rear cooling. The detailed product specification describes four 120 mm fans and four additional 120 mm fan positions; the key-attribute panel lists three pre-installed fans, so the final fan quantity should be confirmed with the supplier. Supplier-listed dimensions are 520(W) × 430(D) × 267(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-6W8B |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 6U rackmount chassis with supplier-listed pre-installed cooling fans. ATX PSU and motherboard support are provided; PSU, motherboard, and graphics cards are not included. |
| Use Case / Application | Server, GPU / AI |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 6U |
| Material | Steel |
| Finish / Color | Grey |
| Width | 520 mm |
| Height | 267 mm |
| Depth | 430 mm |
| Weight | 12 kg gross package weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 3.5-inch HDD, 2.5-inch HDD/SSD |
PCIe and GPU Support
| Maximum GPU Count | 8 GPUs |
| Maximum GPU Length | 340 mm |
Cooling and Thermal
| Included Fan Count | 4 fans |

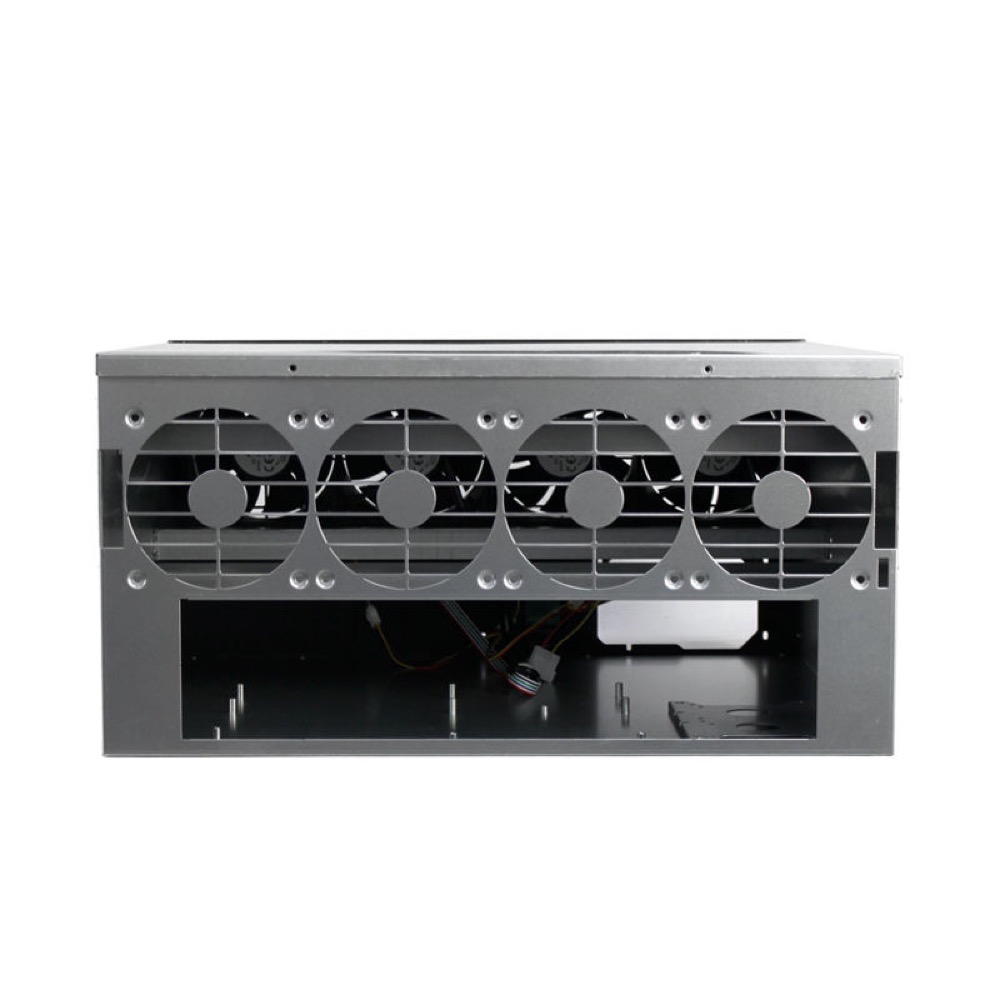

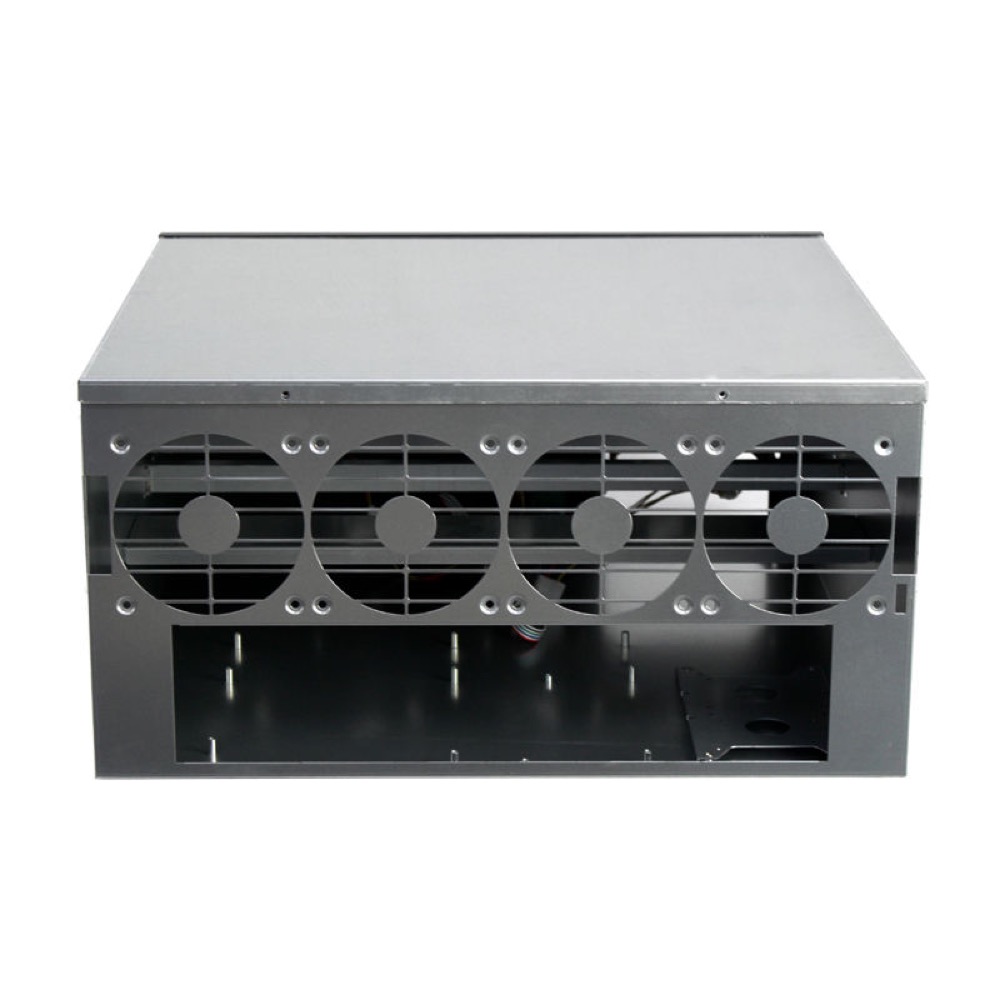

| Fan Size | 120 mm; detailed specification lists four powerful 120 mm fans and four reserved positions |
| Cooling Layout | Front, Rear |
I/O and Connectivity
| Front I/O | USB |
| Custom I/O Details | Supplier lists USB front connectivity, a side-panel window, support for up to eight 340 mm graphics cards, and front/rear cooling. Detailed PCIe slot count and PSU inclusion are not specified; the supplier lists ATX PSU support only. |
