In stock
Server Chassis
CHS-SRV-4W3

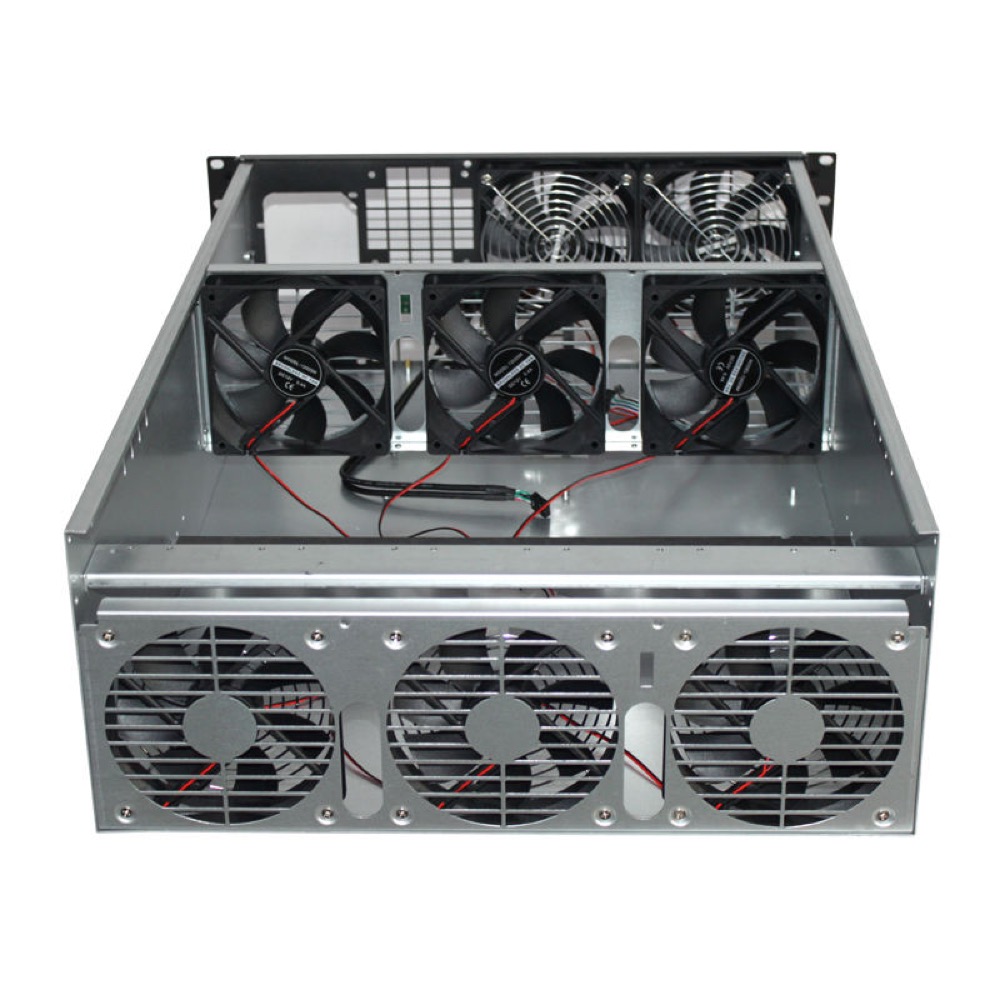

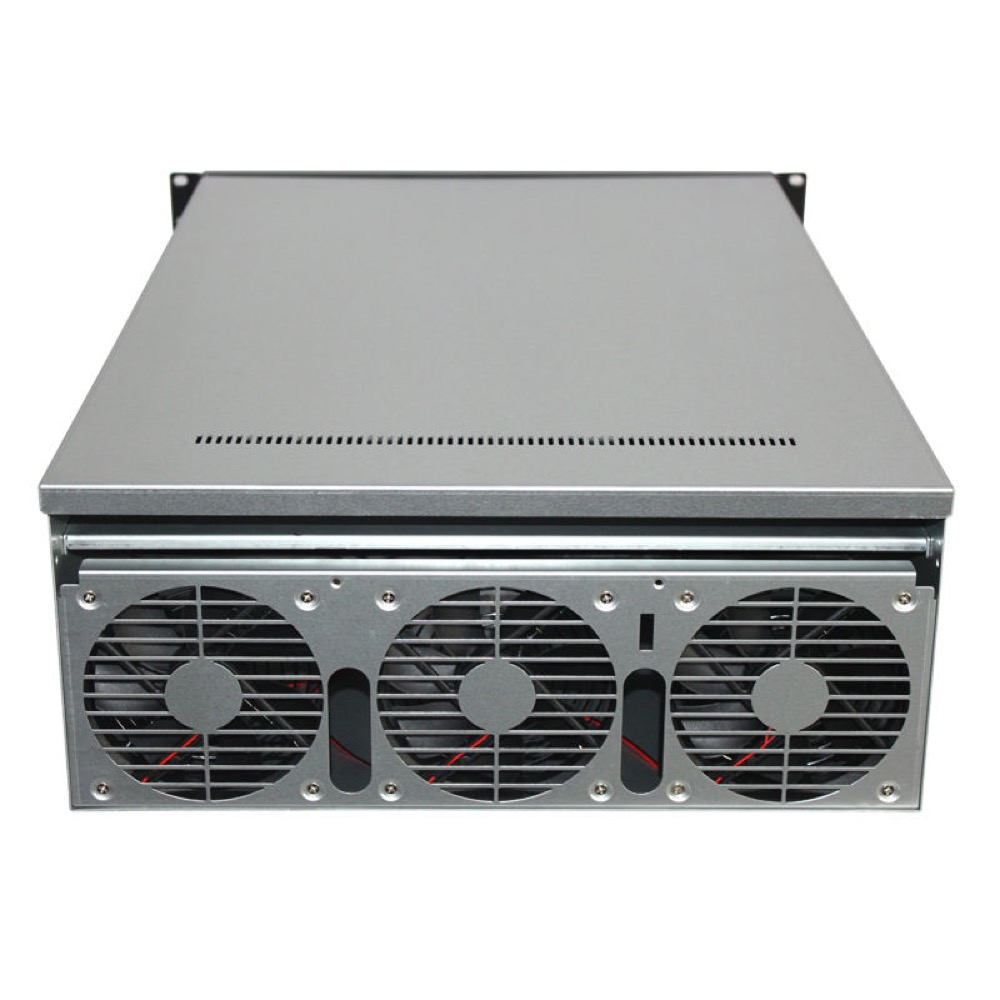

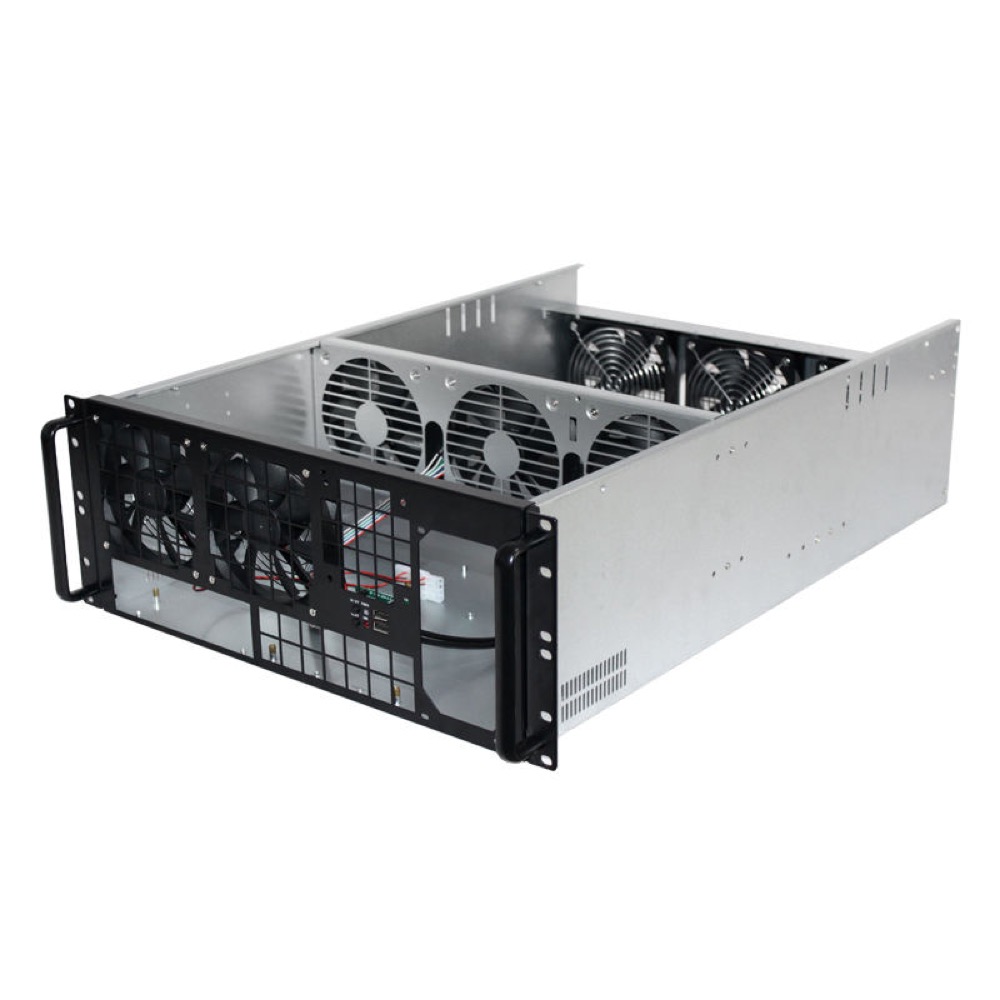

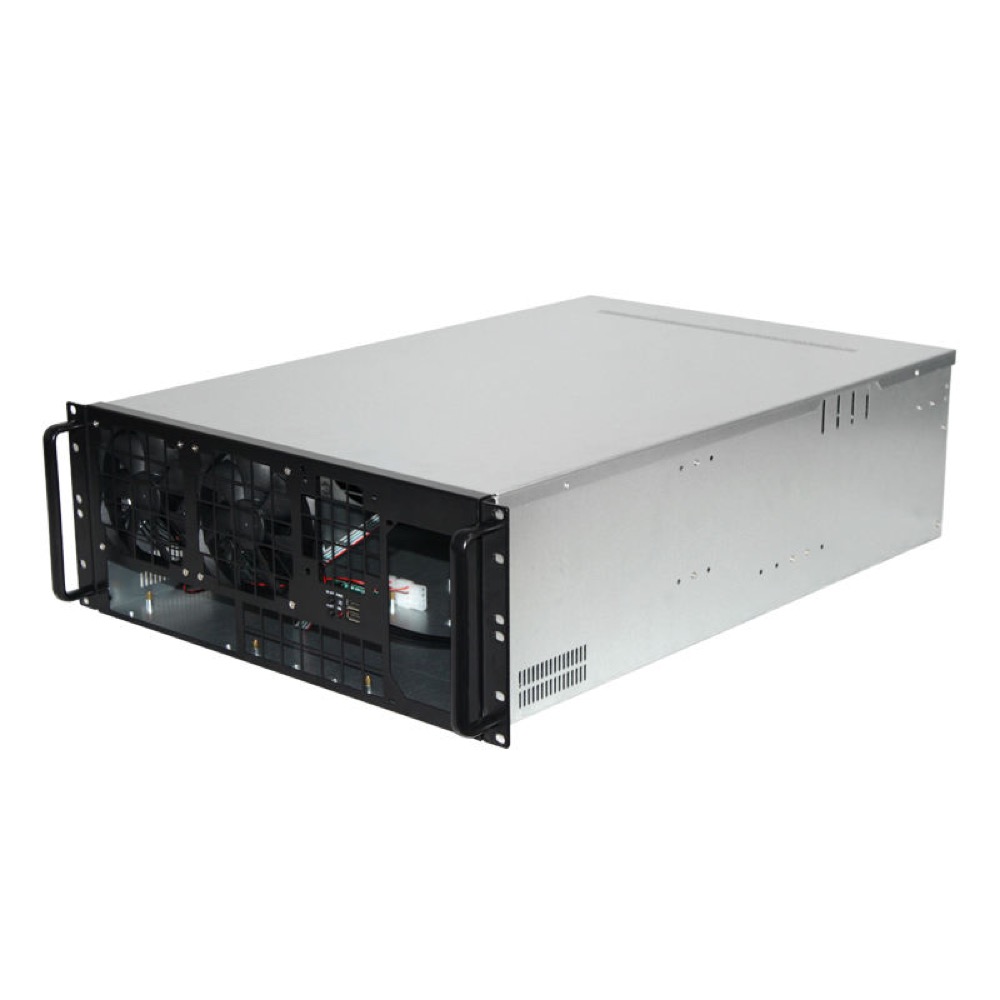

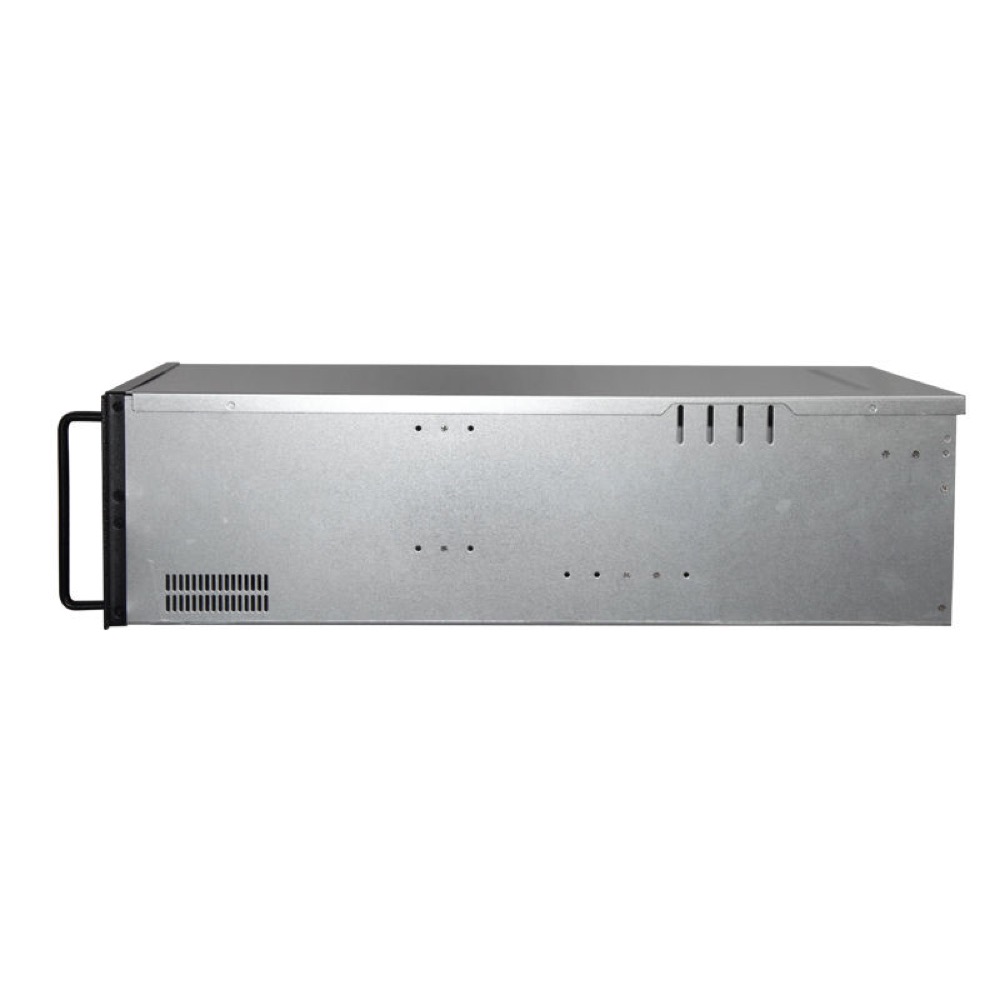

4U 6/8-GPU Rackmount Chassis
Product formEmpty chassis
FamilyGPU / AI Chassis
Dimension482(W) × 650(D) × 178(H) mm
MountingRackmount
MotherboardATX
Drive Bays2 bays
4U 19-inch rackmount GPU chassis for AI, workstation, and server applications. The supplier lists support for six or eight graphics cards, six 120 mm fans with three front fan positions reserved, one 3.5-inch drive or two 2.5-inch drives, an ATX PSU bay, two USB 2.0 ports, and a 12 × 9.6-inch (305 × 245 mm) motherboard footprint. The chassis is empty: the supplier does not state that a GPU, motherboard, or PSU is included. Dimensions are 482(W) × 650(D) × 178(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-4W3 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 4U rackmount chassis with six 120 mm cooling fans. ATX PSU support is provided, but the supplier does not state that a PSU, motherboard, or GPU is included. |
| Use Case / Application | Server, Workstation / GPU |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Masteel advanced flowerless galvanized sheet, 1.2 mm |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 650 mm |
| Weight | 10.382 kg net; 13.539 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 inches) |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 1 × 3.5-inch HDD or 2 × 2.5-inch HDD |
PCIe and GPU Support
| Maximum GPU Count | 8 GPUs |
Cooling and Thermal
| Included Fan Count | 6 fans |
| Fan Size | 120 × 120 mm (120 mm); three front 120 mm fan positions reserved |
I/O and Connectivity
| Front I/O | USB 2.0, Custom I/O |
| Custom I/O Details | Front panel: two USB 2.0 ports, power switch, restart switch, power indicator, and HDD indicator. Supplier states compatibility with six- or eight-GPU configurations and reserves three front 120 mm fan positions. |
