In stock
Server Chassis
CHS-SRV-K345L-7
K345L-7 3U Full-Height ATX Rackmount Chassis
Product formEmpty chassis
FamilyRack Server Chassis
Dimension482(W) × 450(D) × 133(H) mm
MountingRackmount
MotherboardATX
Drive Bays8 bays

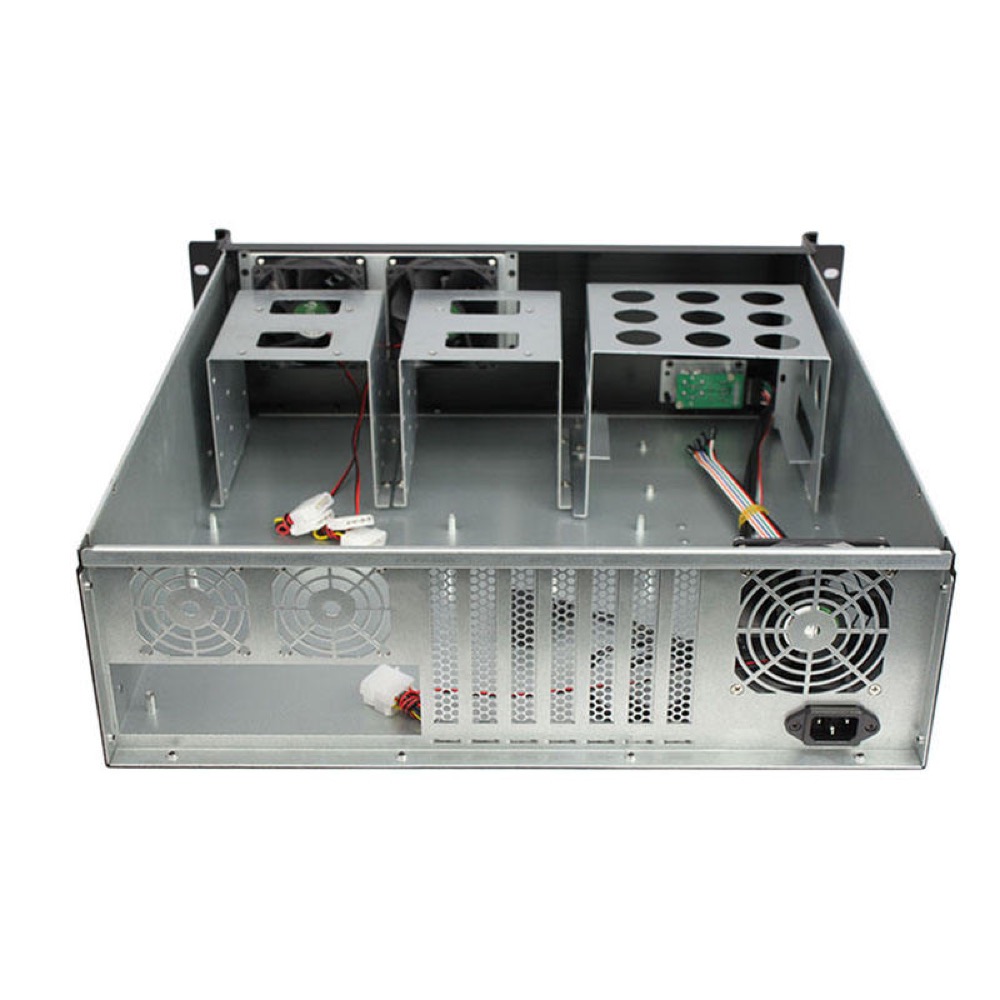

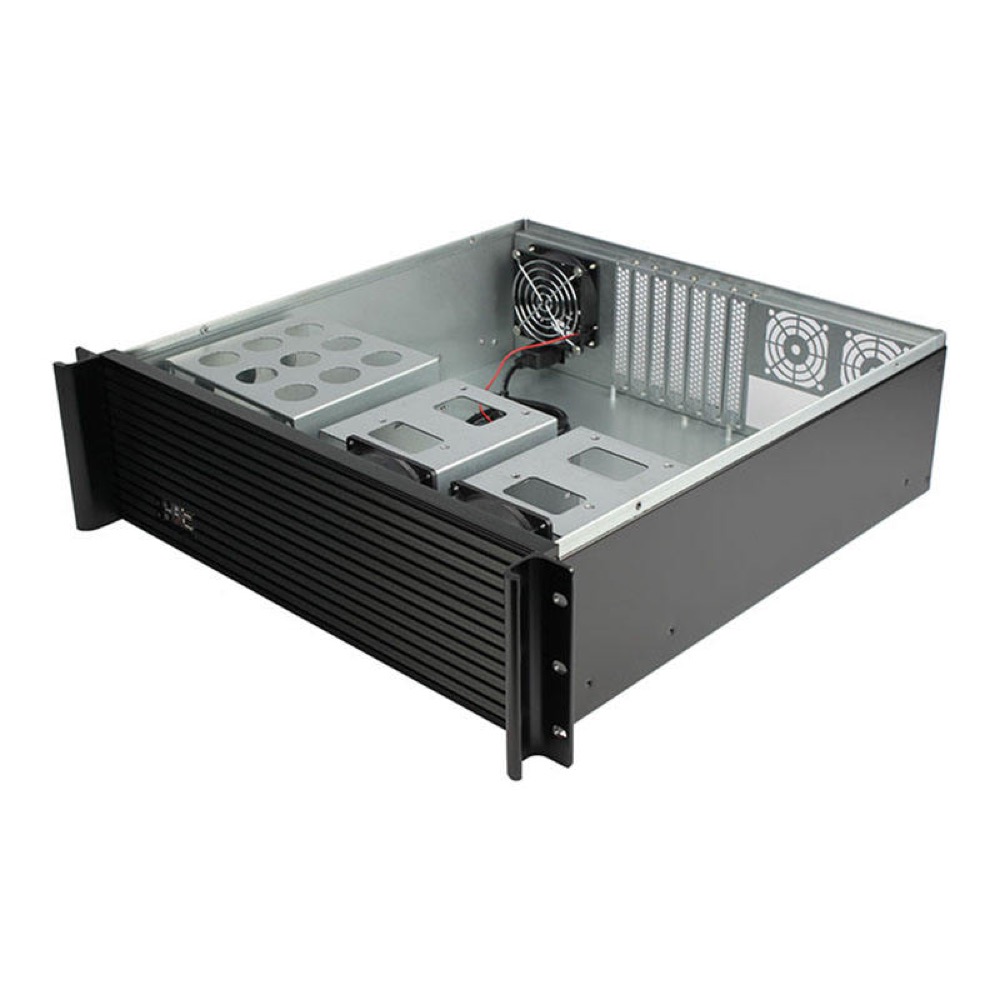

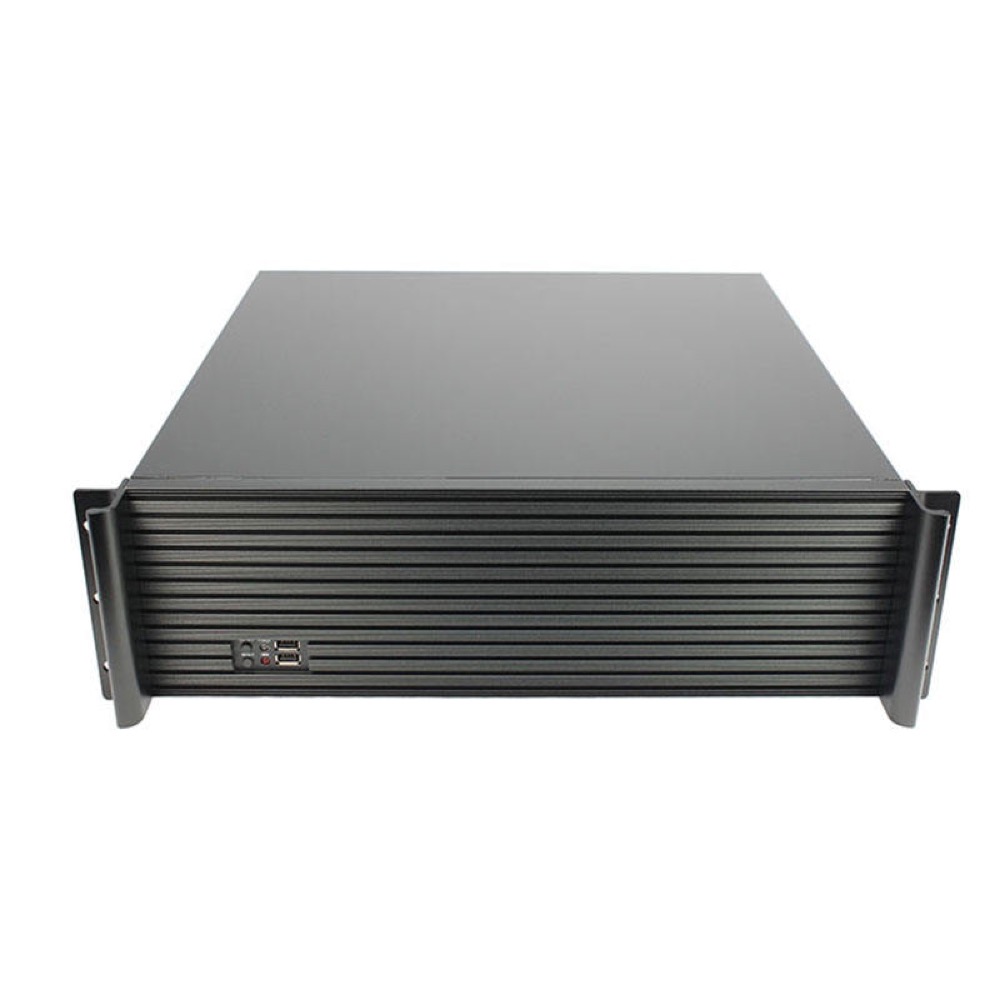

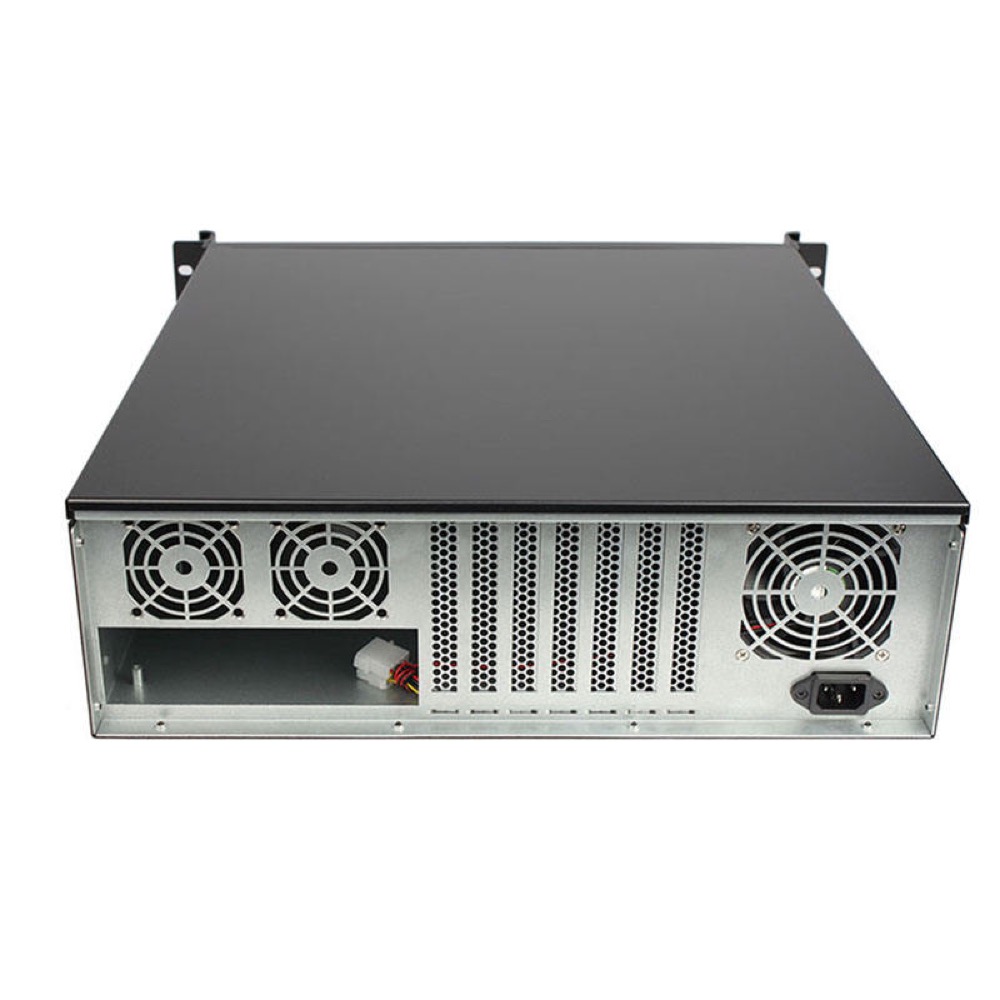

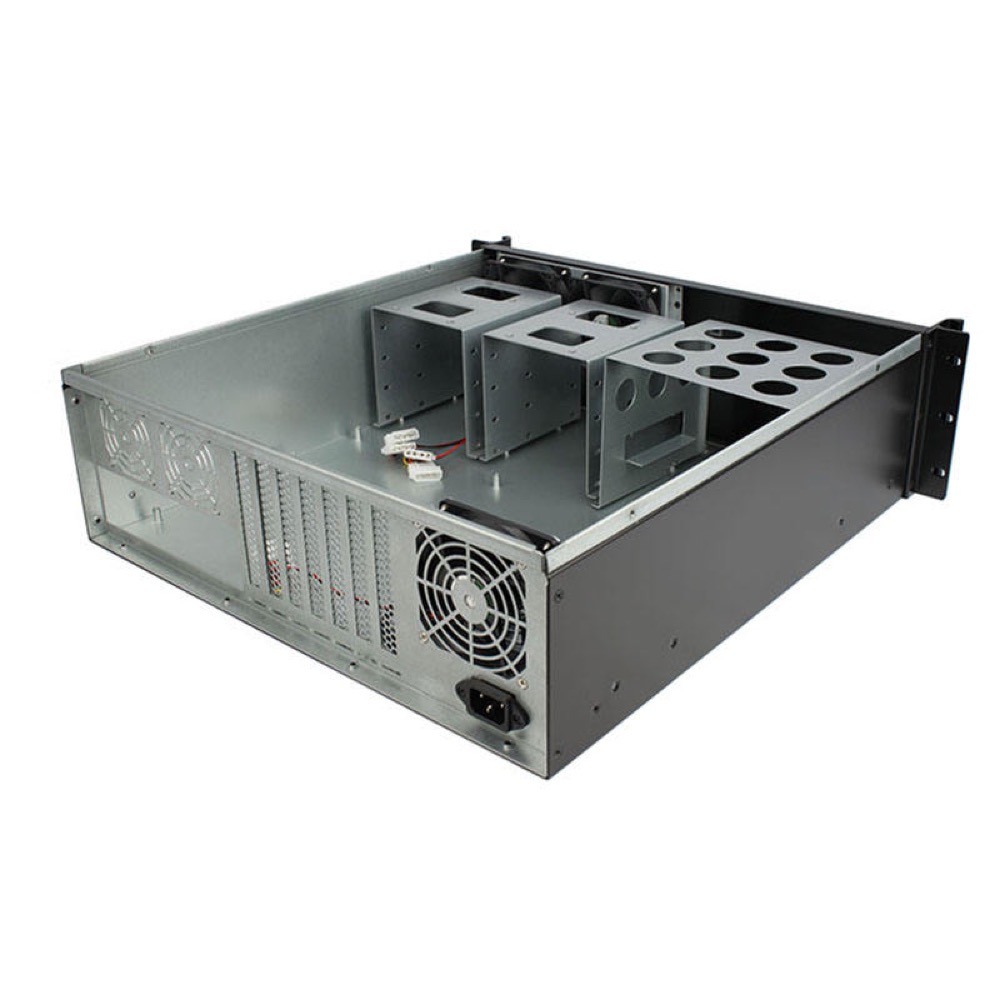

K345L-7 horizontal 3U rackmount chassis for server and industrial PC applications. The supplier lists a 482 × 450 × 133 mm steel enclosure supporting a 305 × 245 mm ATX-class motherboard, an ATX PSU, eight 3.5-inch hard drives, seven full-height expansion slots, and two 8025 fans. A riser card is optional when required by the installation. The listing is for an empty chassis with fans and front-panel controls; motherboard, CPU, memory, storage, PSU, and riser card are not included.
Specifications
Identity
| Model Number | CHS-SRV-K345L-7 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty 3U rackmount chassis with two included 8025 fans, front-panel controls, and eight 3.5-inch drive brackets. ATX PSU compatibility is provided; PSU, motherboard, CPU, memory, storage, and optional riser card are not included. |
| Use Case / Application | Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 3U |
| Material | SGCC steel |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 450 mm |
| Weight | 9.8 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm (12 × 9.6 in) |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 8 × 3.5-inch HDD positions |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × full-height straight expansion slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
I/O and Connectivity
| Front I/O | 2 × USB 2.0, Power switch, Restart switch, Power indicator, Hard-drive indicator |
| Custom I/O Details | Front panel includes two USB 2.0 ports, power and restart switches, and power and hard-drive indicators. The supplier states that a riser card is optional when using the seven full-height straight slots. |
