In stock
Server Chassis
CHS-SRV-K348L-GW550

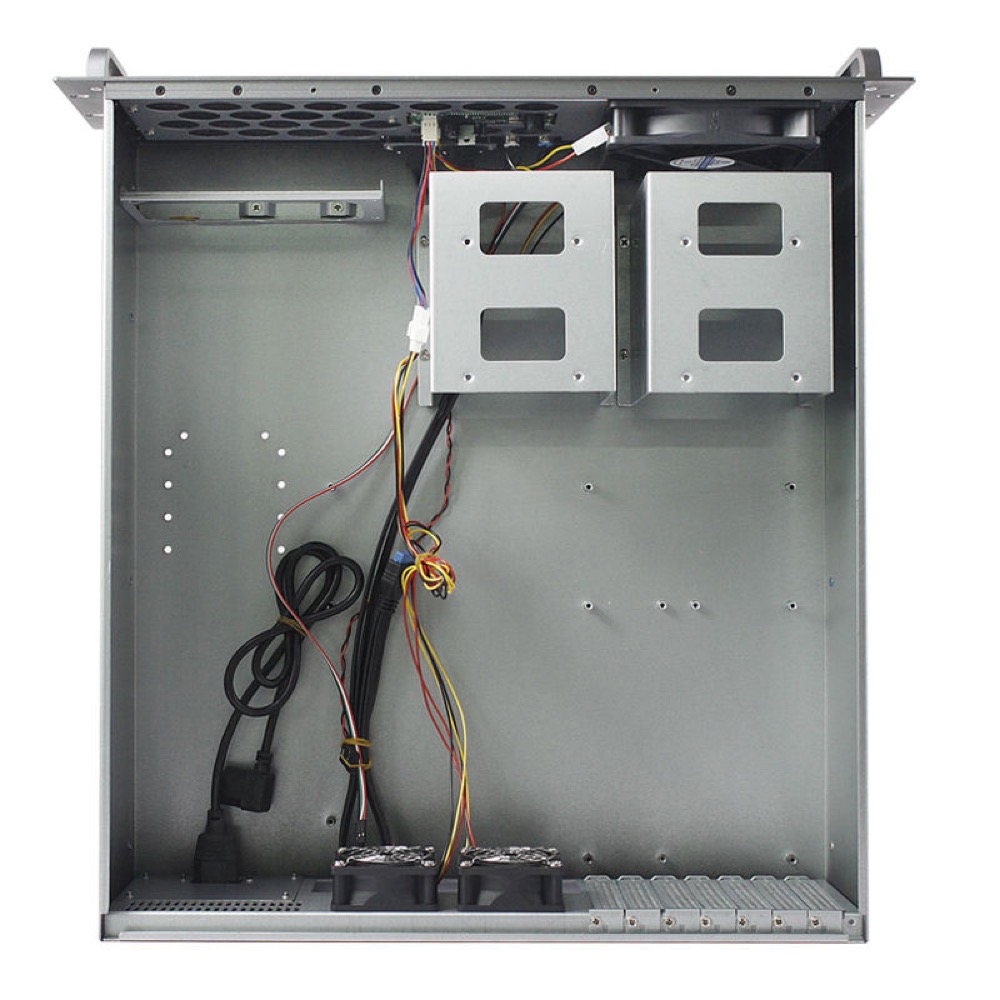

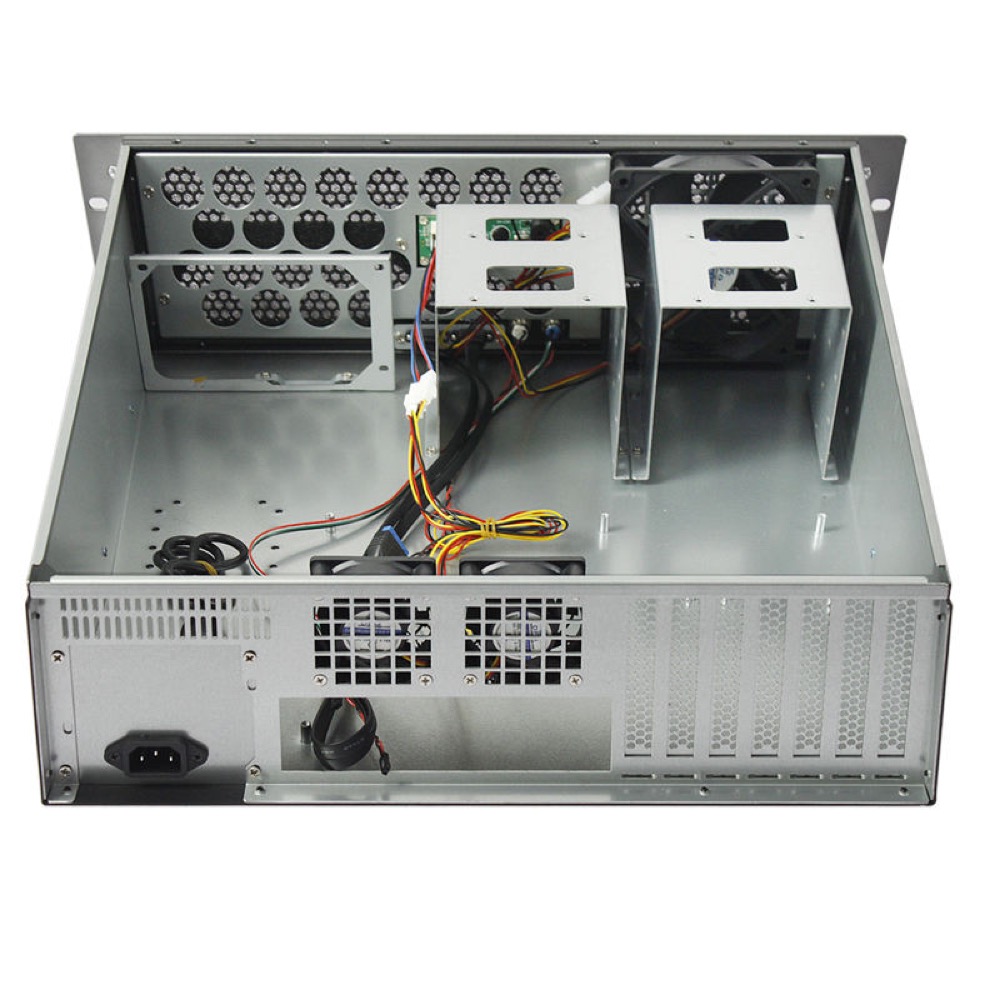

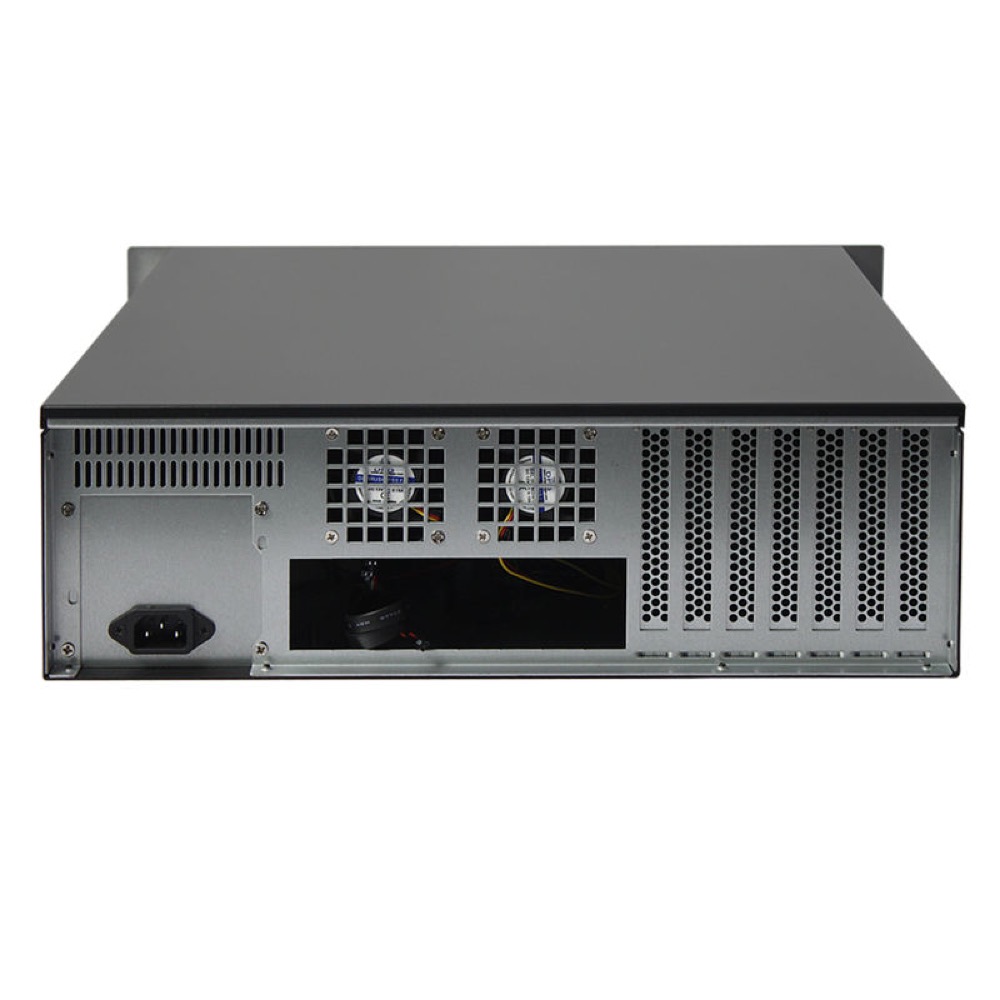

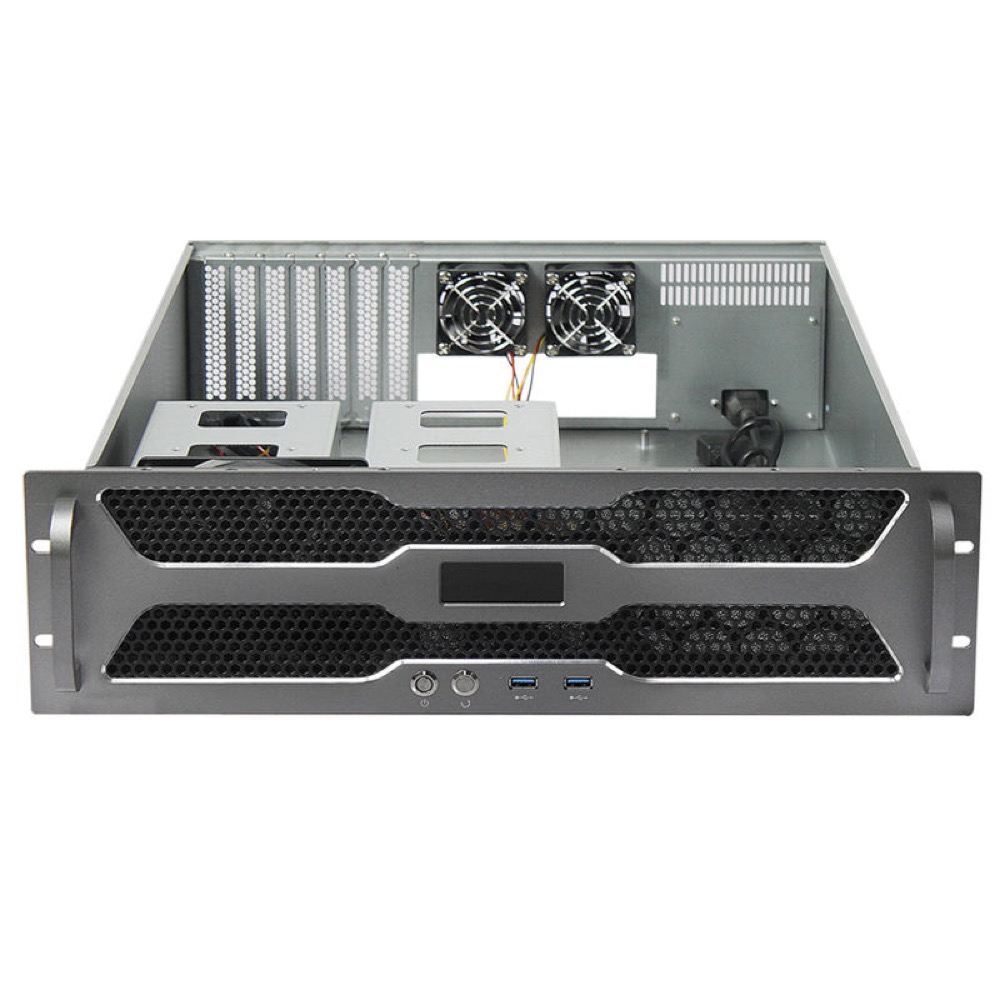

K348L 3U Rackmount Chassis with 550W Redundant PSU
Product formChassis with PSU
FamilyStorage / NAS Chassis
Dimension482(W) × 380(D) × 133.5(H) mm
MountingRackmount
MotherboardATX
Drive Bays8 bays
K348L 3U 19-inch storage/server chassis variant supplied with a Great Wall 550 W redundant PSU. The supplier lists ATX motherboard support up to 305 × 245 mm, eight 3.5-inch HDD positions or six 3.5-inch plus two 2.5-inch positions, seven PCIe slots, a front temperature LCD, two USB 3.0 ports, power/reset controls, two 8025 fans, and one 12025 fan. The supplier's key attributes list 482(W) × 380(D) × 133.5(H) mm; the description table separately shows 480 mm depth, which is retained in the source notes for confirmation.
Specifications
Identity
| Model Number | CHS-SRV-K348L-GW550 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | 3U rackmount chassis with front temperature LCD, two 8025 fans, one 12025 fan, and one included Great Wall 550 W 2U redundant PSU. Motherboard and storage drives are not included. |
| Use Case / Application | Server, Storage / NAS, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 3U |
| Material | Not specified by supplier |
| Width | 482 mm |
| Height | 133.5 mm |
| Depth | 380 mm |
| Weight | 9.8 kg gross / 8.5 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm |
Power Supply
| PSU Support | 2U redundant PSU, Great Wall 550W |
| PSU Included | Yes |
| PSU Count | 1 units |
| PSU Wattage | 550 W |
| Redundant PSU Support | Yes |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 8 × 3.5-inch HDD, Alternate layout: 6 × 3.5-inch HDD + 2 × 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 3 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 + 120 × 120 × 25 mm (12025) × 1 |
Display and LCD
| LCD / Display Included | Yes |
| Display Position | Front panel |
I/O and Connectivity
| Front I/O | Temperature LCD, 2 × USB 3.0, Power button with indicator, Reset button |
| Custom I/O Details | Front panel includes temperature LCD, two USB 3.0 ports, power with indicator, and reset. Supplier key attributes list 380 mm depth, while the supplier description table lists 480 mm depth; confirm final mechanical depth before quoting. Seven PCIe slots, eight 3.5-inch HDD positions, and the alternate six 3.5-inch plus two 2.5-inch layout are listed. |
