In stock
Server Chassis
CHS-SRV-S42
S42 Wall-Mounted ATX Industrial Chassis
Product formEmpty chassis
FamilyIndustrial / Embedded Chassis

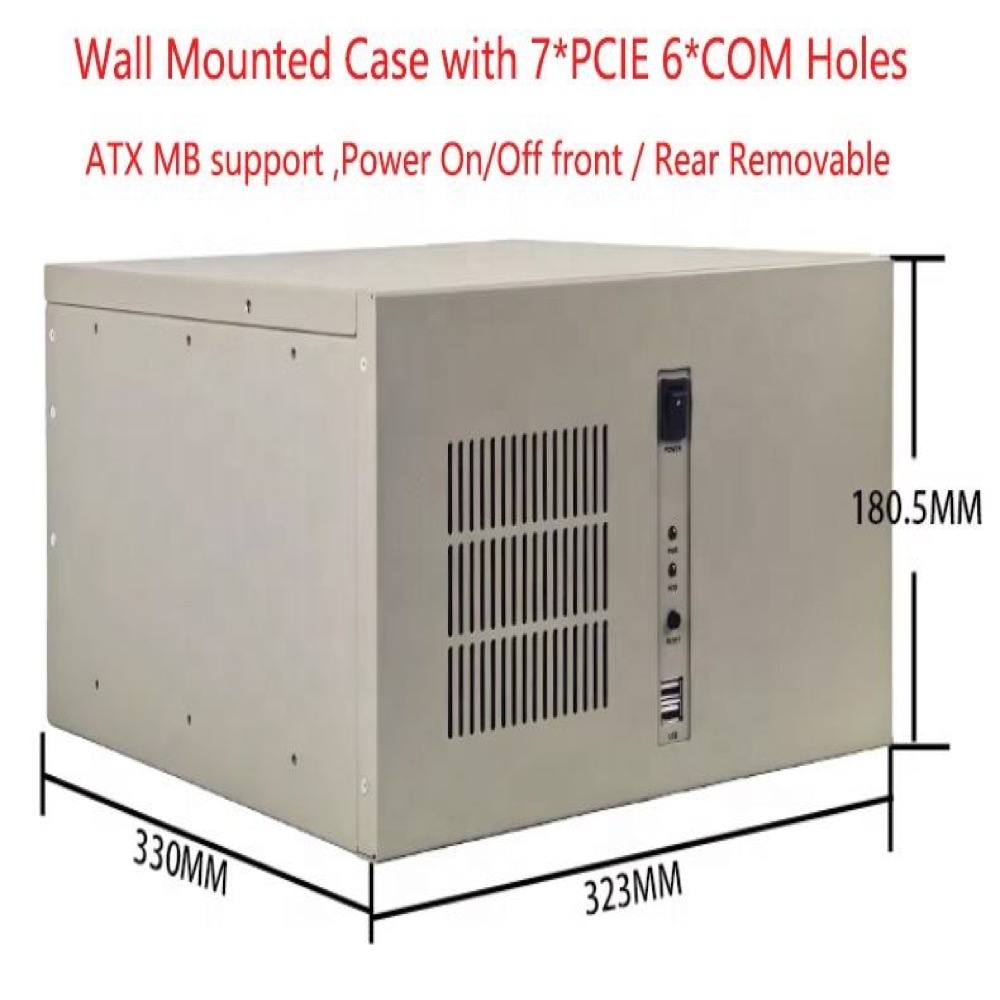

Dimension323(W) × 330(D) × 180.5(H) mm
MountingWall-mount
MotherboardATX
Drive Bays2 bays

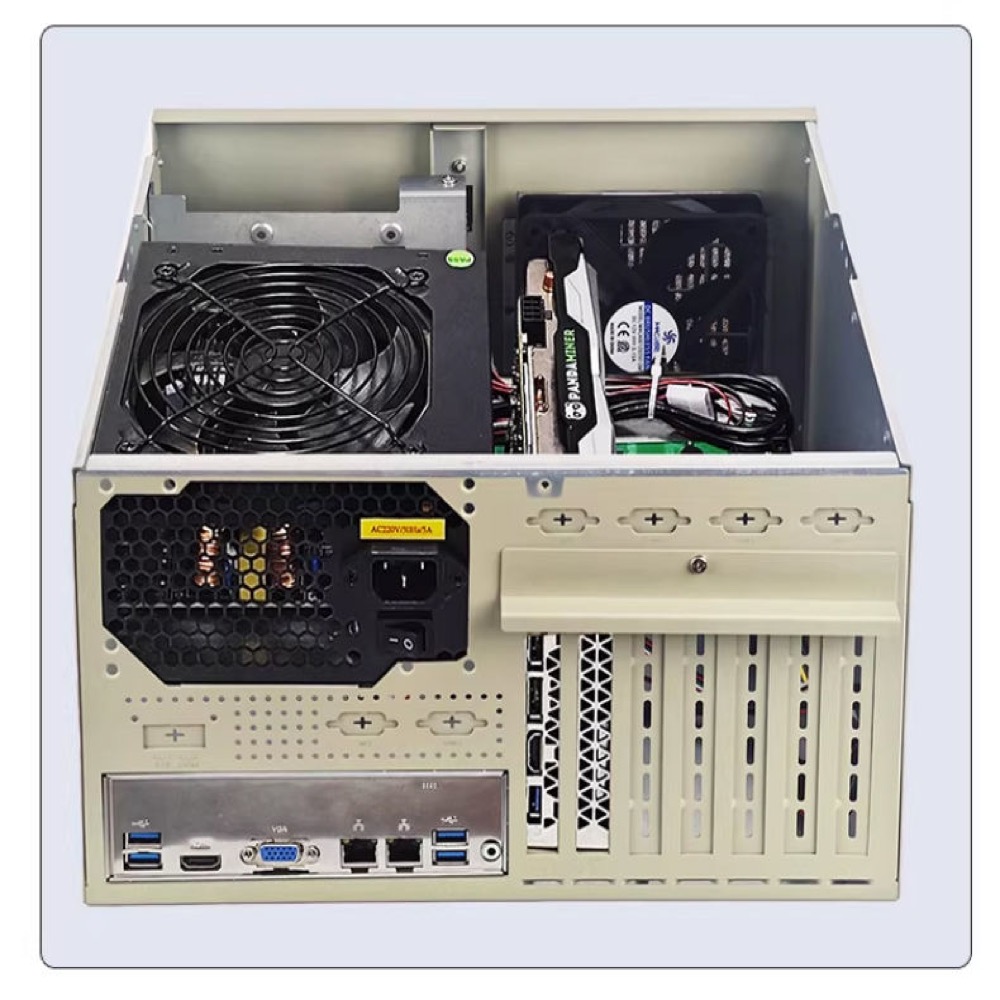

Wall-mounted industrial PC chassis for ATX motherboards and ATX power supplies. The supplier lists support for one 3.5-inch and one 2.5-inch drive, a 270 mm graphics card, a 65 mm CPU cooler, seven PCIe slots, one 12025 cooling fan, front power/reset controls with two USB 2.0 ports, and rear openings for six COM ports. The wall-mount bracket is part of the enclosure design. Supplier-listed dimensions are 323 × 330 × 180.5 mm.
Specifications
Identity
| Model Number | CHS-SRV-S42 |
| Product Type | Server Chassis |
Configuration and Use

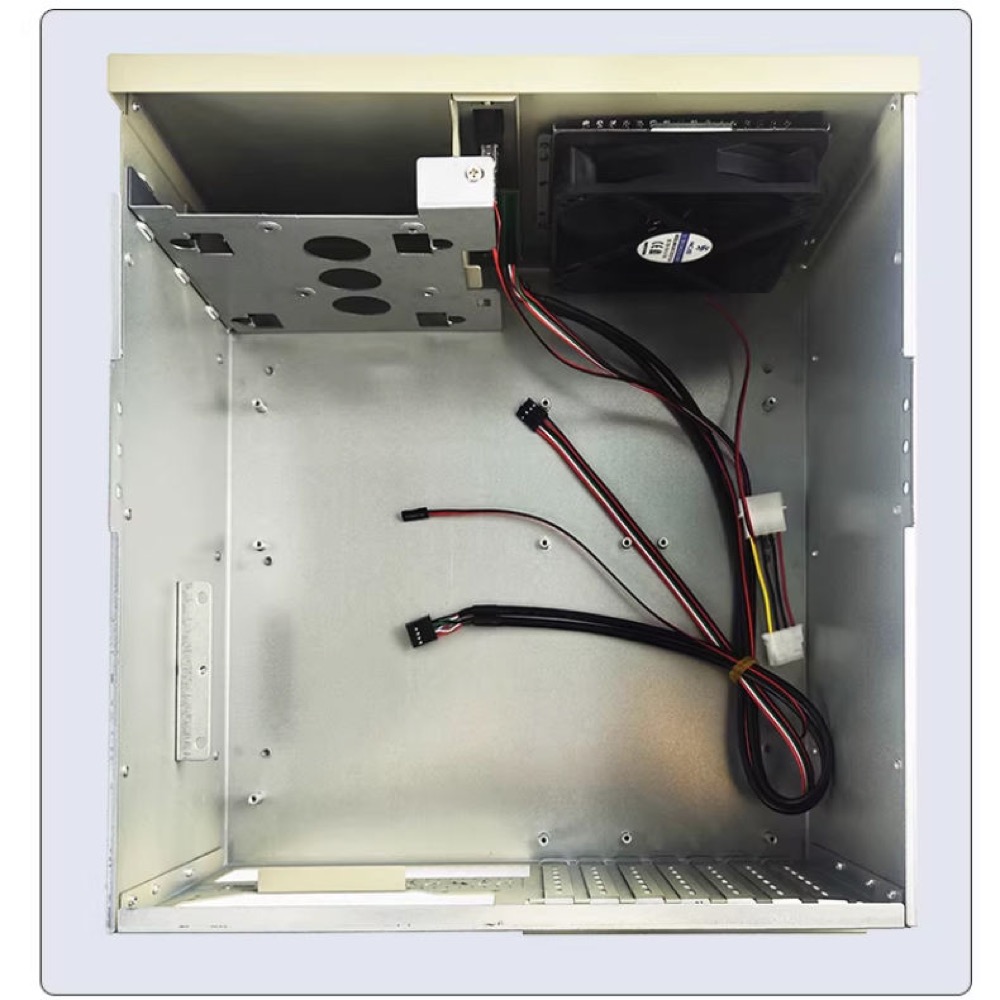

| Included Components | Empty chassis with integrated wall-mount side bracket and one 12025 cooling fan. ATX PSU support is provided, but the supplier does not state that a PSU or motherboard is included. |
| Use Case / Application | Industrial PC, Server |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Width | 323 mm |
| Height | 180.5 mm |
| Depth | 330 mm |
| Weight | 5.95 kg gross package weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX; exact board dimensions not specified by supplier |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 3.5-inch HDD, 2.5-inch HDD/SSD |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | PCIe expansion slots |
| Maximum GPU Length | 270 mm |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) |
I/O and Connectivity
| Front I/O | USB 2.0, Power, Reset |

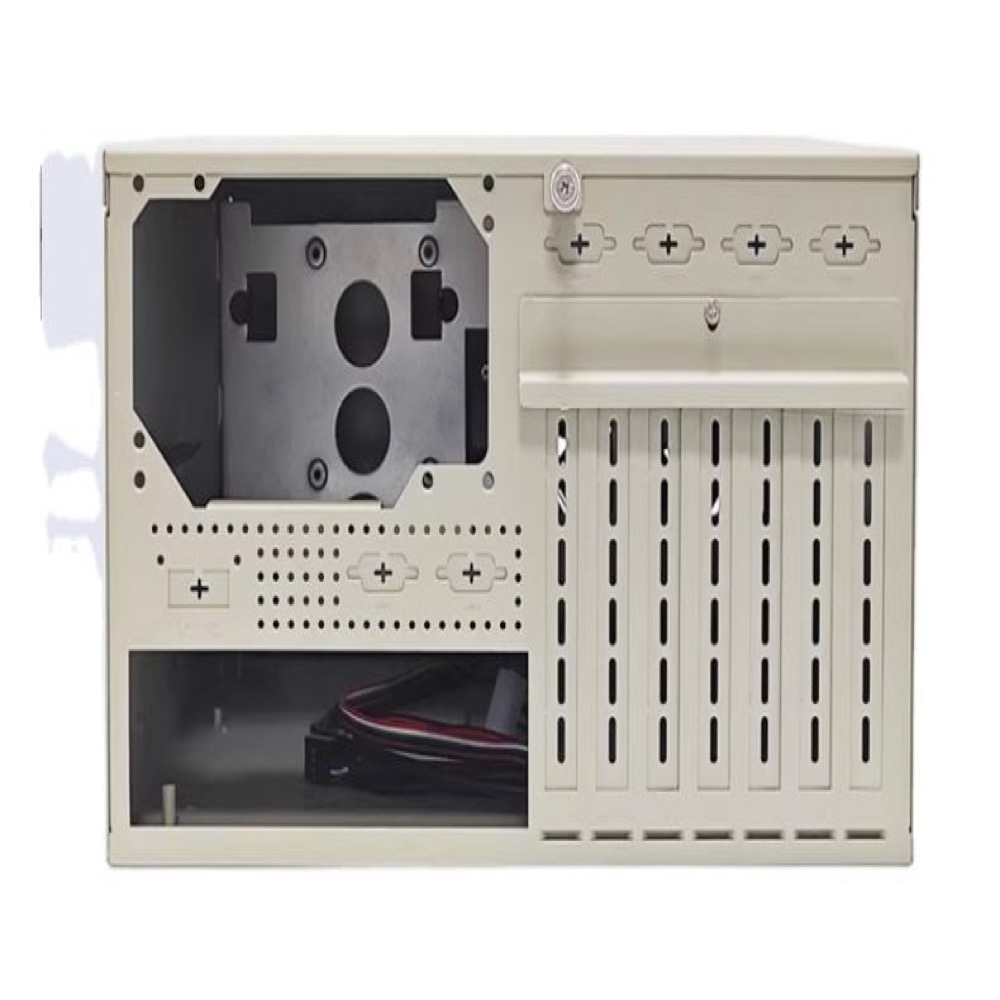

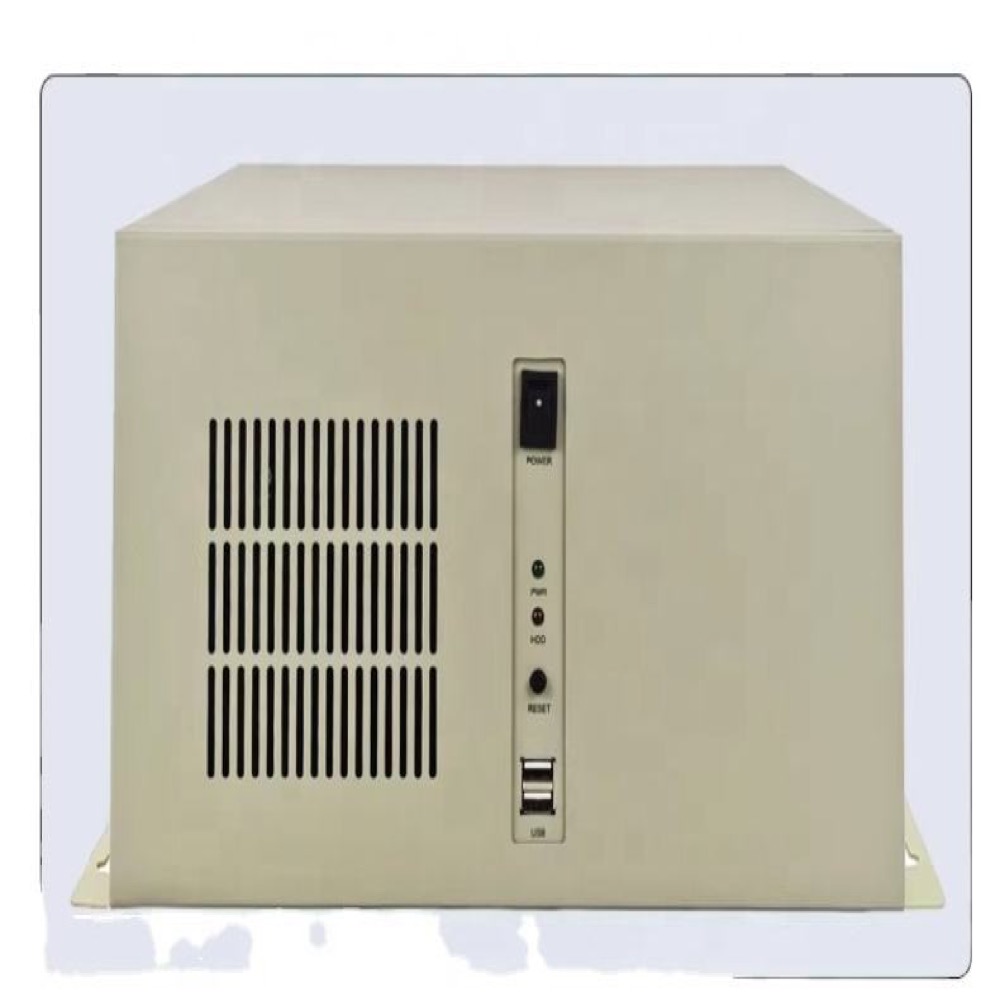

| Custom I/O Details | Front panel: power on/off, reset, and two USB 2.0 ports. Rear plate: seven PCIe slots, six COM-port openings, and one switch opening. |
