In stock
Server Chassis
CHS-SRV-B31

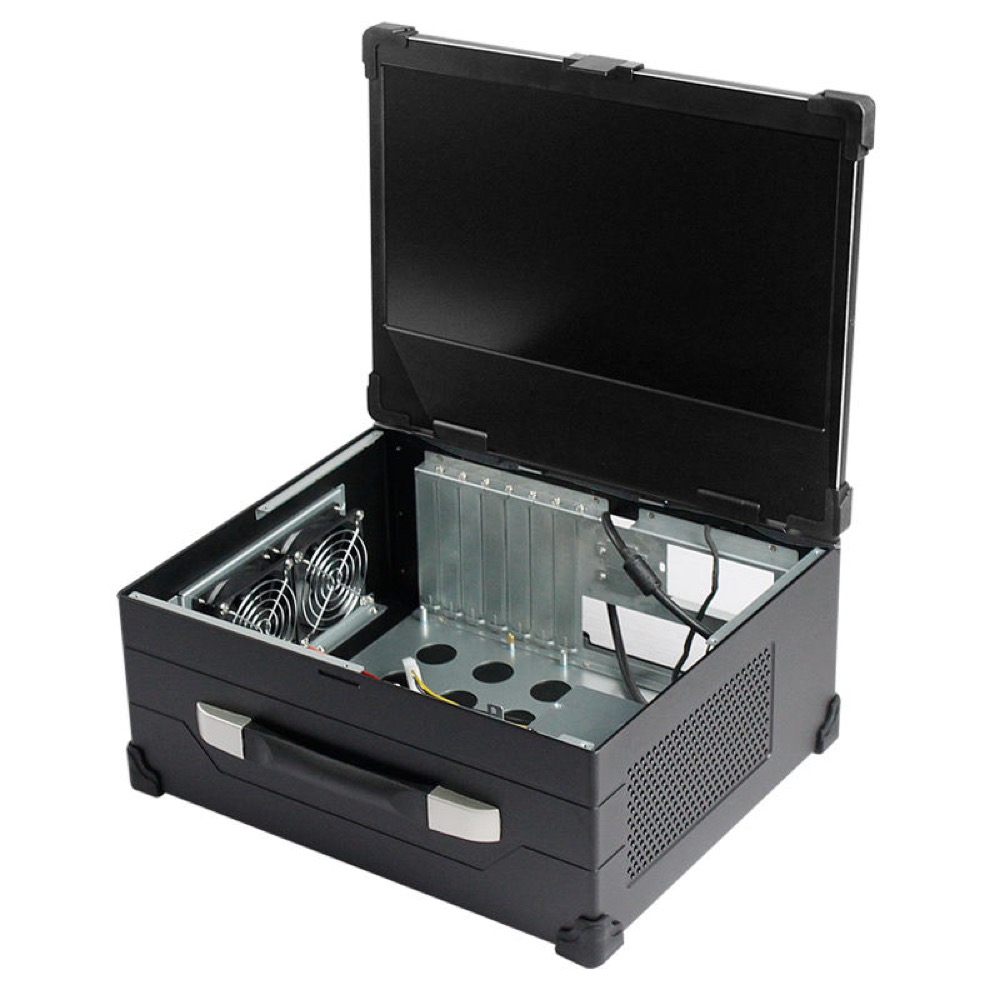

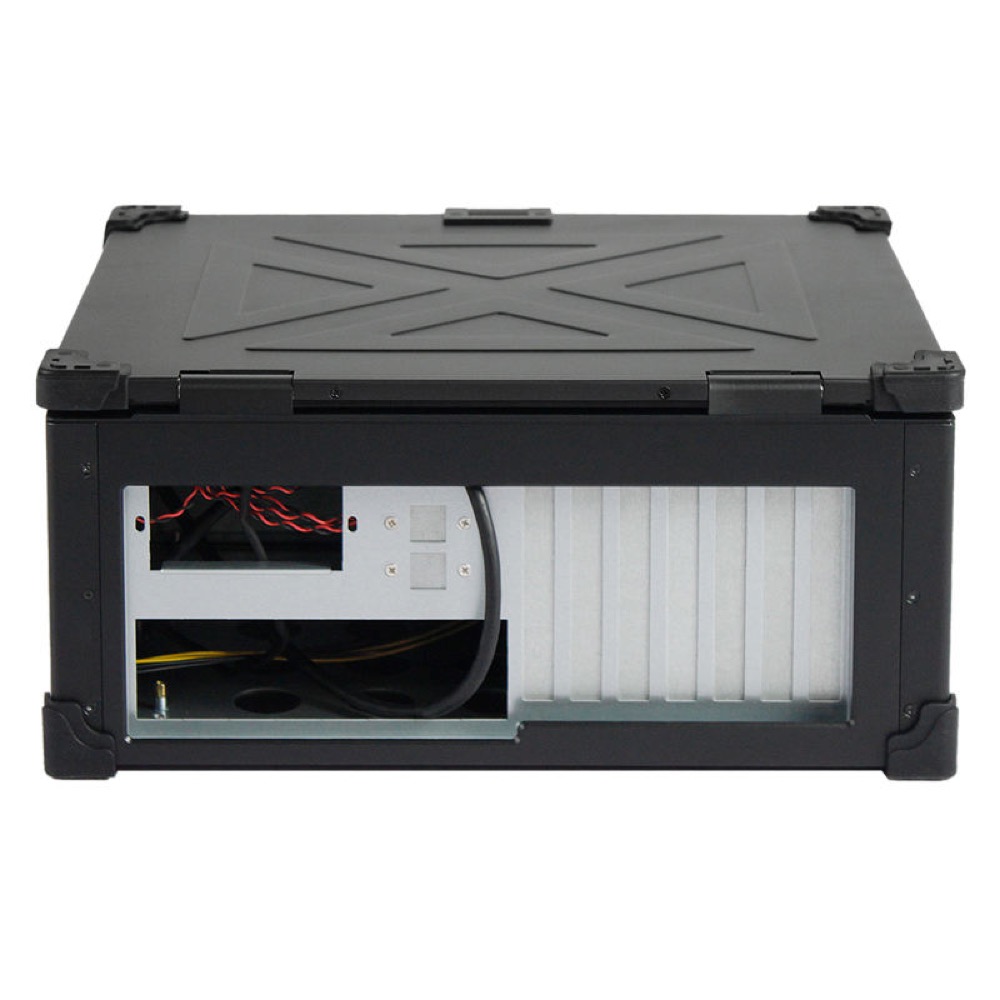

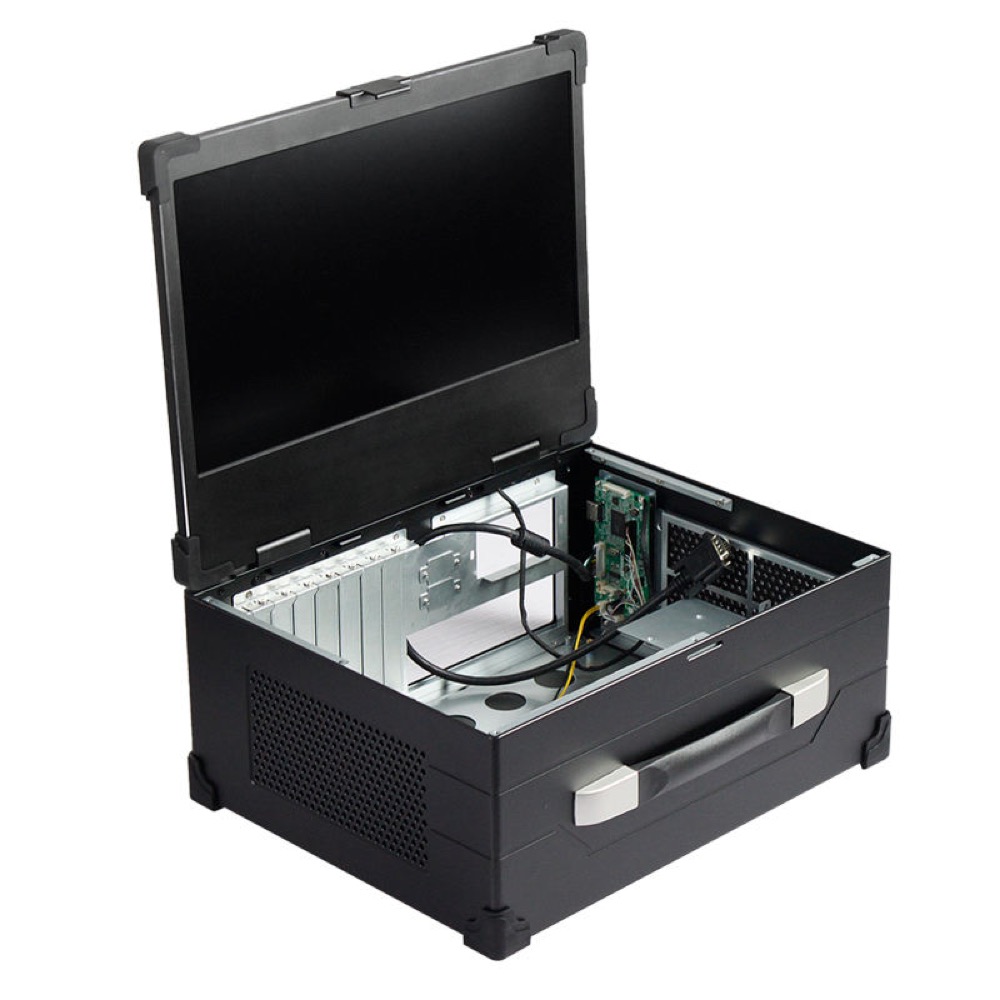

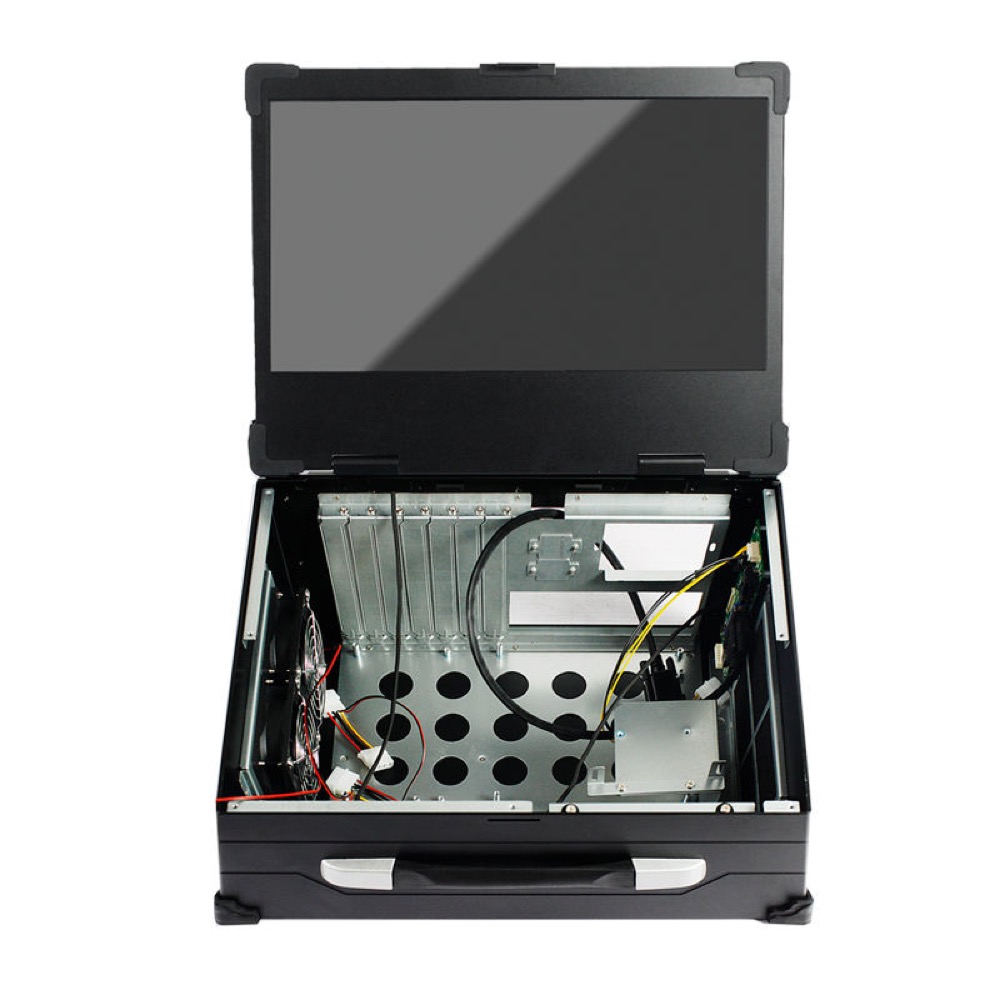

B31 Portable Industrial Panel Chassis with 16.1-inch Display
Product formEmpty chassis
FamilyPanel PC / Display Chassis
Dimension390(W) × 310(D) × 180(H) mm
MountingDesktop
MotherboardITX
Drive Bays1 bays
B31 portable industrial panel-computer chassis for industrial and commercial systems. The supplier lists a 390(W) × 310(D) × 180(H) mm SGCC enclosure with ITX motherboard support, Flex PSU or 1U PSU-adapter support, one 2.5-inch drive position, seven full-height PCIe slots, an integrated 16.1-inch 1920 × 1080 LCD, keyboard/touch-mouse controls, and included 8025 cooling fans. The listing is a chassis rather than a complete system: motherboard, CPU, RAM, SSD, and power supply are optional/not included.
Specifications
Identity
| Model Number | CHS-SRV-B31 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Industrial chassis with integrated 16.1-inch LCD, keyboard/touch-mouse controls, HDD indicator, reset control, and included 8025 cooling fan(s). Motherboard, CPU, RAM, SSD, and power supply are optional and not included in the empty-chassis configuration. |
| Use Case / Application | Industrial PC, Panel PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | SGCC steel |
| Width | 390 mm |
| Height | 180 mm |
| Depth | 310 mm |
| Weight | 8.1 kg gross / 6.3 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | ITX; exact board dimensions not specified |
Power Supply
| PSU Support | Flex PSU, 1U PSU adapter |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 0 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 1 × 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × full-height PCIe slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 1 in key attributes; detailed description states 2 included fans |
| Maximum CPU Cooler Height | 85 mm in key attributes; 65 mm in detailed supplier description |
Display and LCD
| LCD / Display Included | Yes |
| LCD Size | 16.1 in |
| LCD Resolution | 1920 × 1080 |
| Display Position | Integrated display |
I/O and Connectivity
| Front I/O | Integrated 16.1-inch LCD, Keyboard, Touch mouse, HDD activity indicator, Reset switch |
| Custom I/O Details | Supplier lists an integrated 16.1-inch 1920 × 1080 LCD, keyboard/touch-mouse controls, HDD indicator, reset control, seven full-height PCIe slots with two 2×2-port support references, and four USB 2.0 or 3.0 ports in the detailed description. ITX motherboard support, Flex/1U PSU-adapter support, one 2.5-inch drive position, and optional MB/CPU/RAM/SSD/power are listed. The key attributes state one 8025 fan and 85 mm CPU-cooler clearance, while the detailed description states two 8025 fans and 65 mm CPU-cooler clearance; both discrepancies are retained for supplier confirmation. LCD touchscreen capability, exact USB generation, and handle details are not specified. |
Industrial and Portable Characteristics

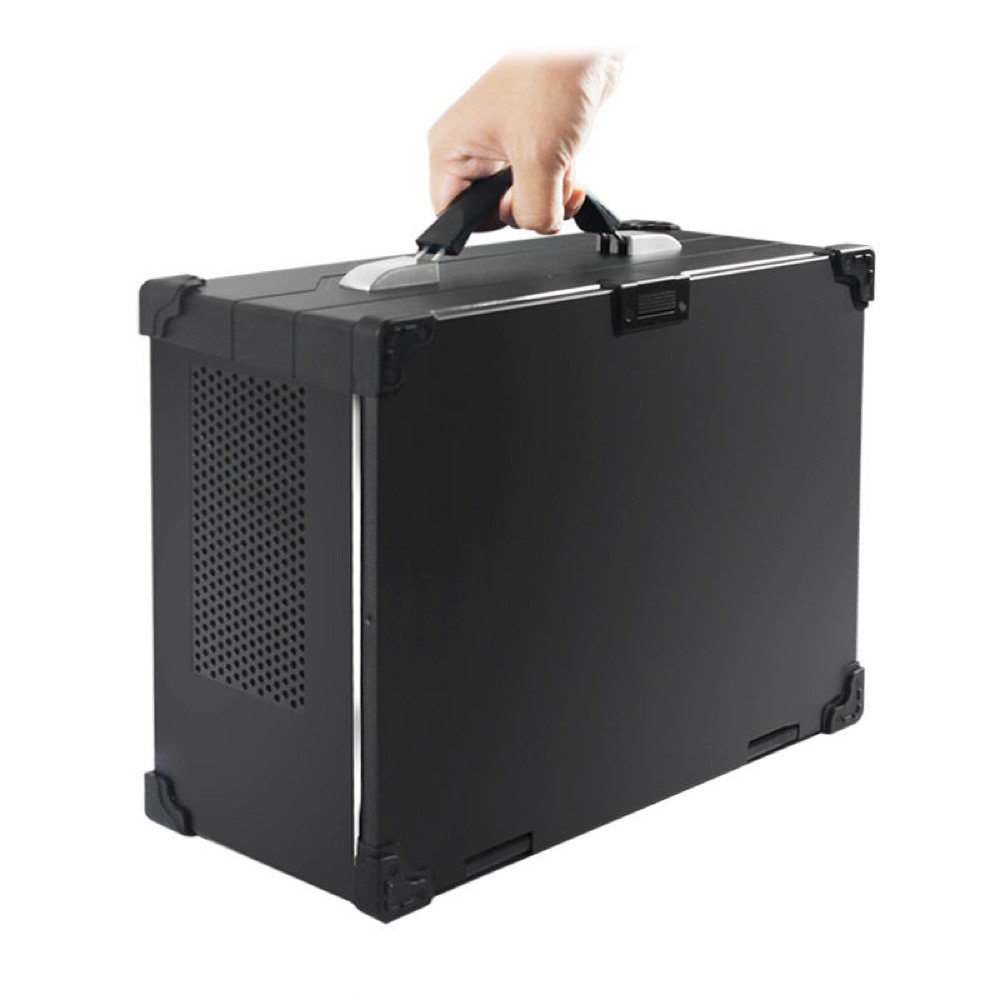

| Portable / Mobile | Yes |
