In stock
Server Chassis
CHS-SRV-N8C

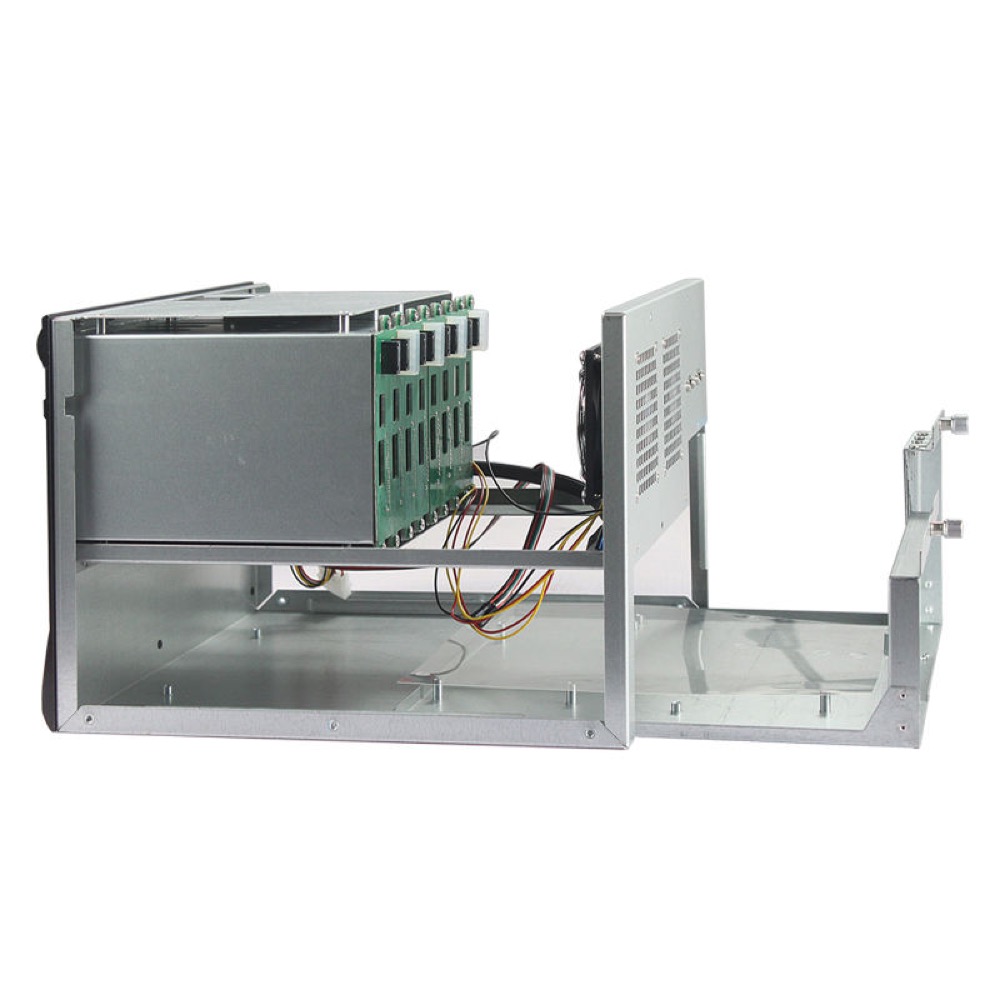

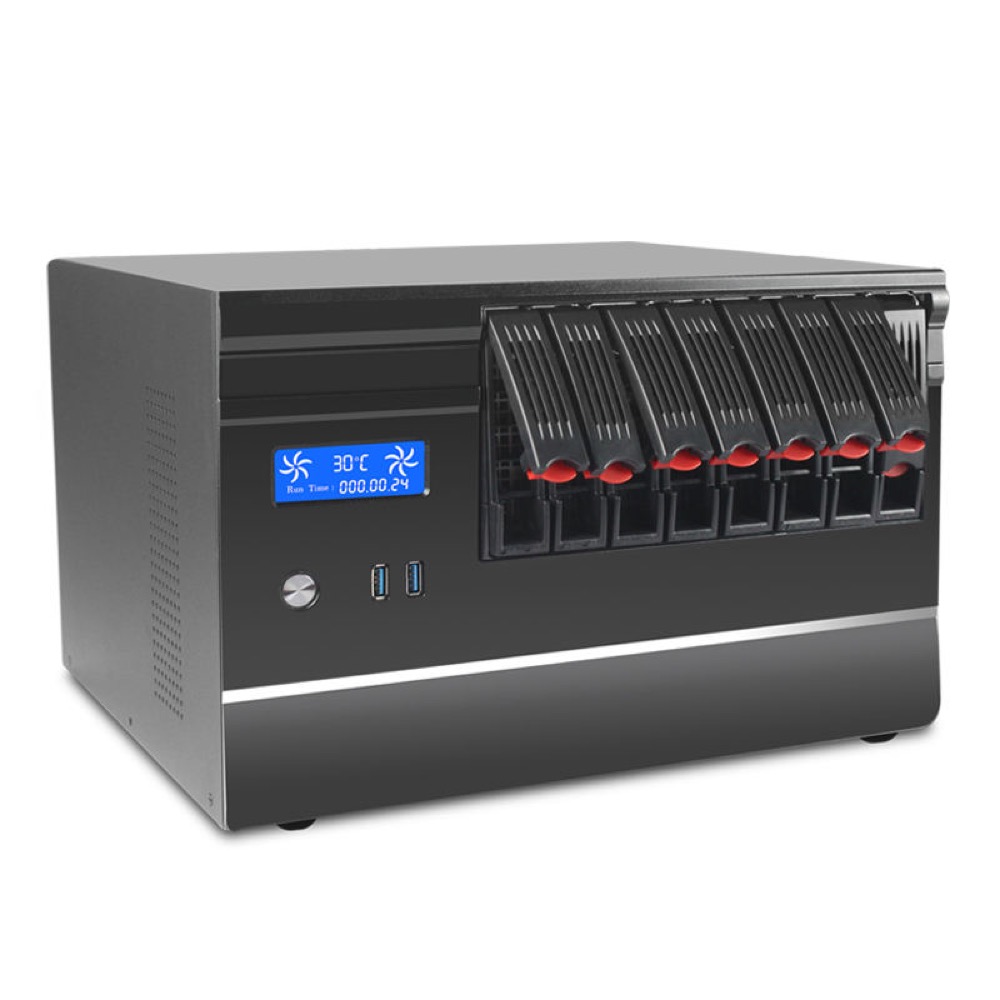

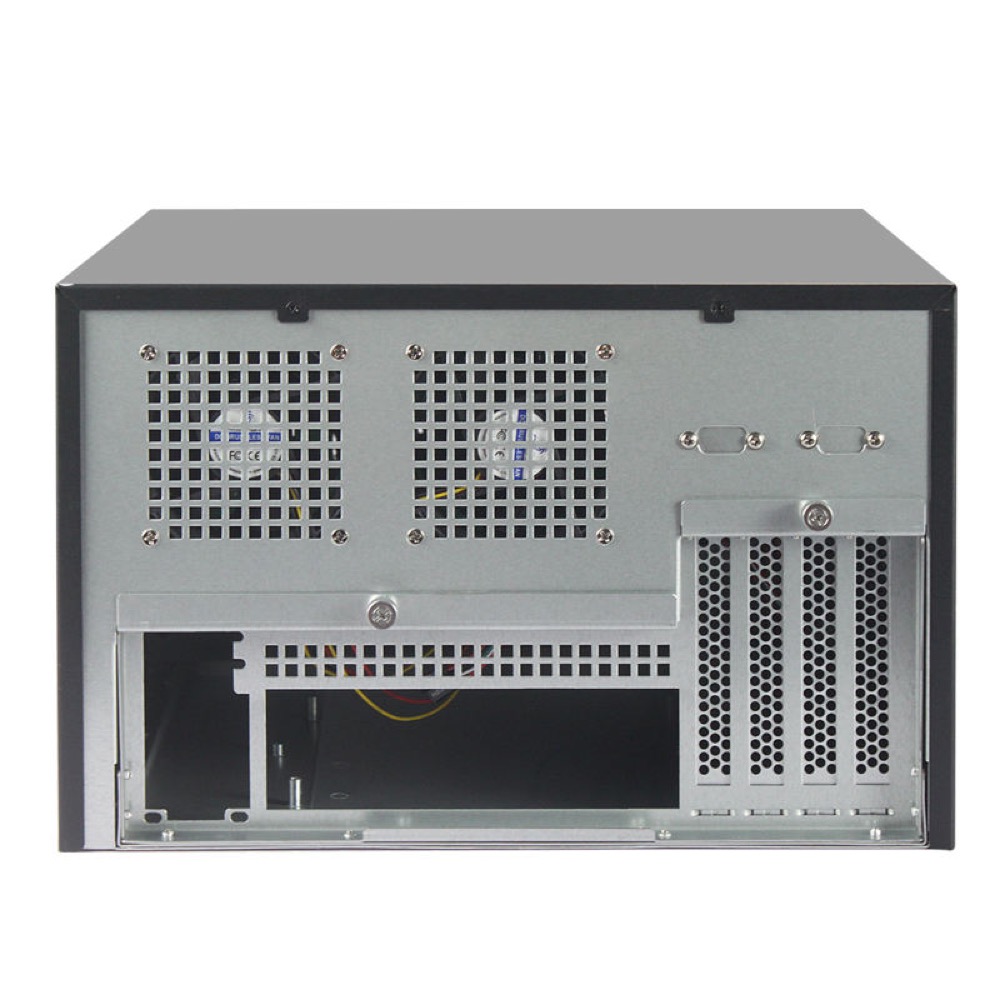

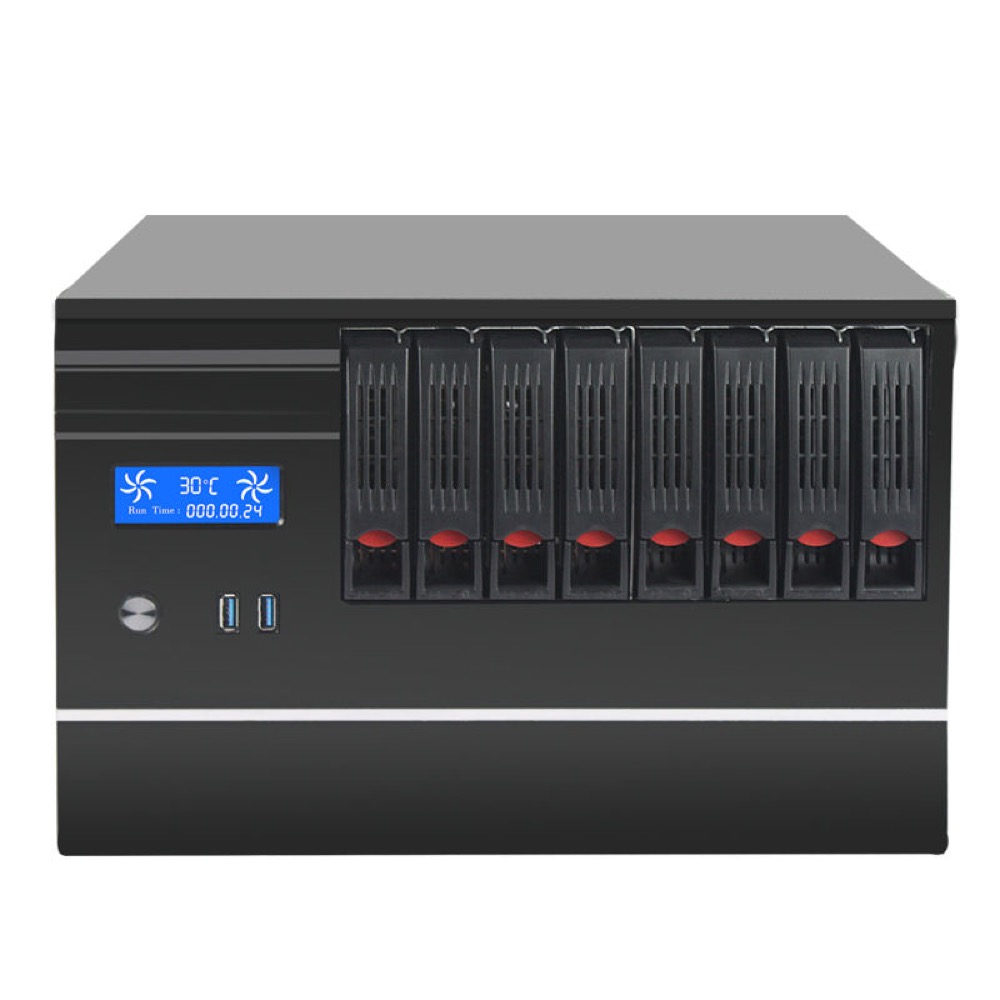

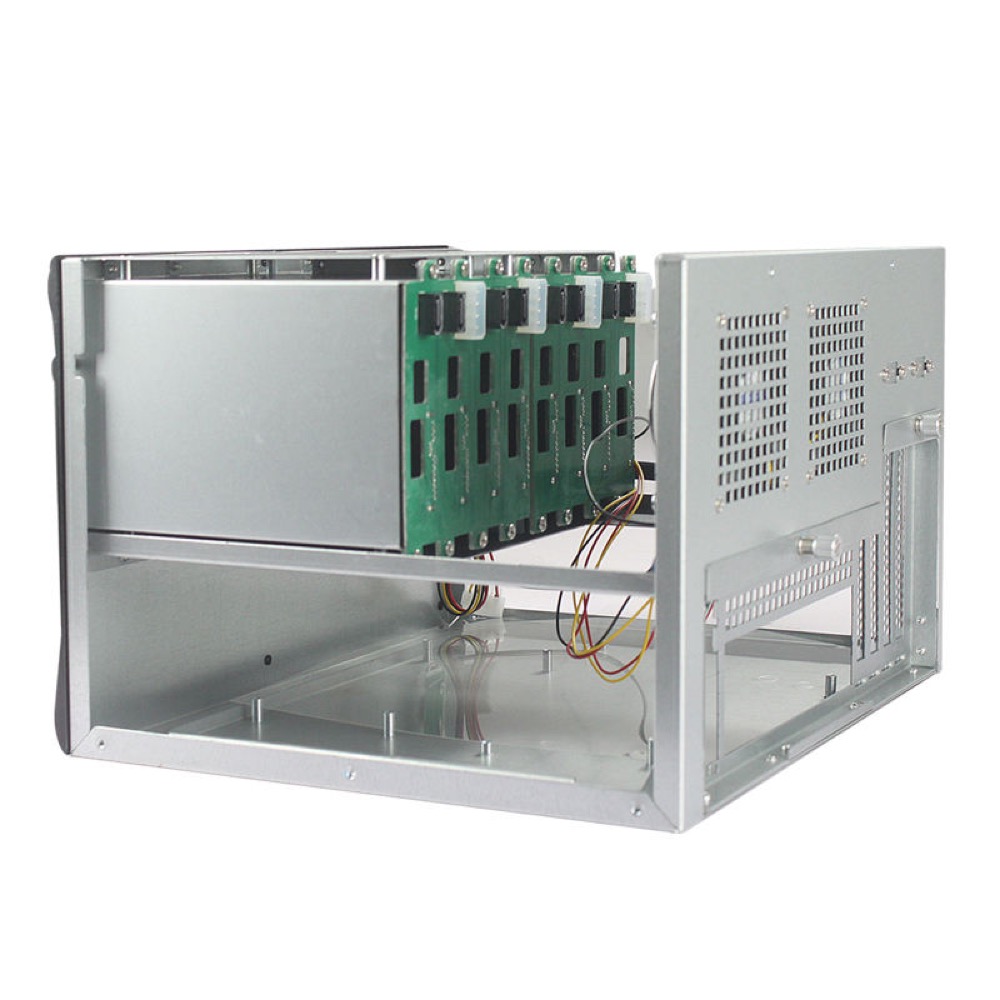

N8C 8-Bay NAS Storage Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension340(W) × 305(D) × 220(H) mm
MountingDesktop
MotherboardMicroATX
Drive Bays8 bays
N8C compact industrial NAS and cloud-storage chassis for home storage, NAS, router, and firewall systems. The supplier lists an aluminum enclosure measuring 340 × 305 × 220 mm, Micro-ATX motherboard support, Flex PSU compatibility, eight 3.5-inch/2.5-inch drive positions, four PCIe slots, two COM interfaces, and two 8025 cooling fans. PSU, motherboard, and drives are not included.
Specifications
Identity
| Model Number | CHS-SRV-N8C |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty aluminum NAS/HTPC chassis with two 8025 cooling fans. Flex PSU support is provided; PSU, motherboard, memory, and storage drives are not included. |
| Use Case / Application | Storage / NAS, Industrial PC, Network Appliance |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | Aluminum |
| Width | 340 mm |
| Height | 220 mm |
| Depth | 305 mm |
| Weight | 10 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | MicroATX; exact board dimensions not specified by supplier |
Power Supply
| PSU Support | Flex PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 8 bays |
| Drive Types | 8 × 3.5-inch HDD or 2.5-inch HDD/SSD positions |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
I/O and Connectivity
| Front I/O | 2 × COM ports |
| Custom I/O Details | Supplier lists four PCIe slots, two COM interfaces, eight 3.5-inch/2.5-inch drive positions, two 8025 fans, Flex PSU support, and Micro-ATX motherboard support. |
| COM Ports | 2 |
