In stock
Server Chassis
CHS-SRV-B43
B43 Portable Industrial Panel Chassis with Triple 17.3-inch Displays
Product formEmpty chassis
FamilyPanel PC / Display Chassis
Dimension430(W) × 340(D) × 250(H) mm
MountingDesktop
MotherboardE-ATX
Drive Bays4 bays

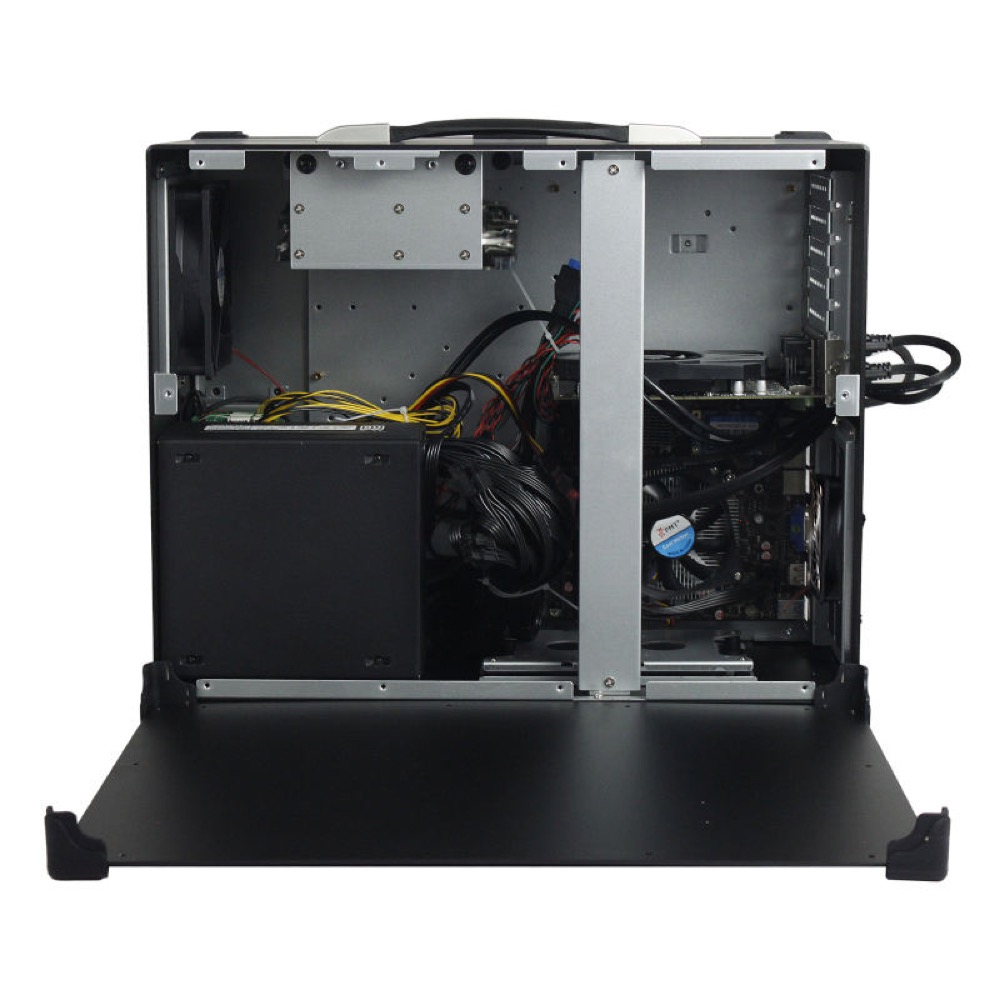

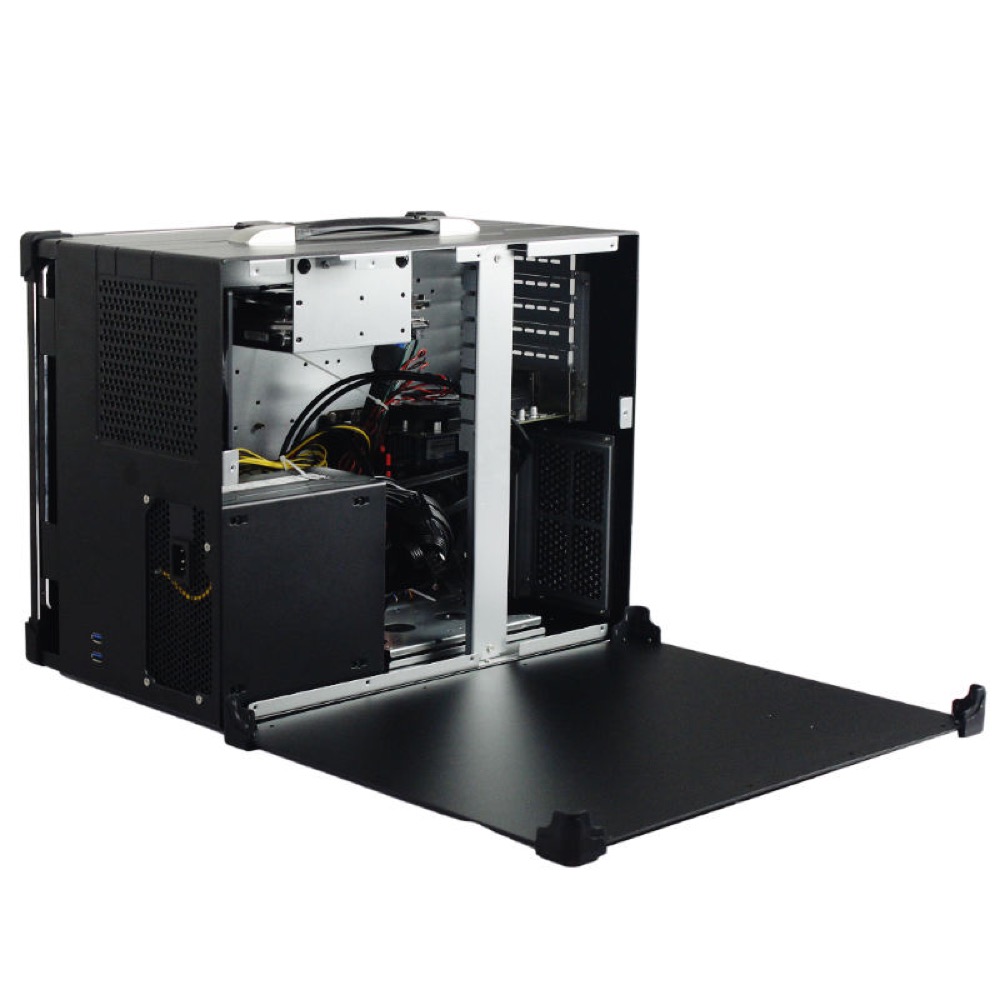

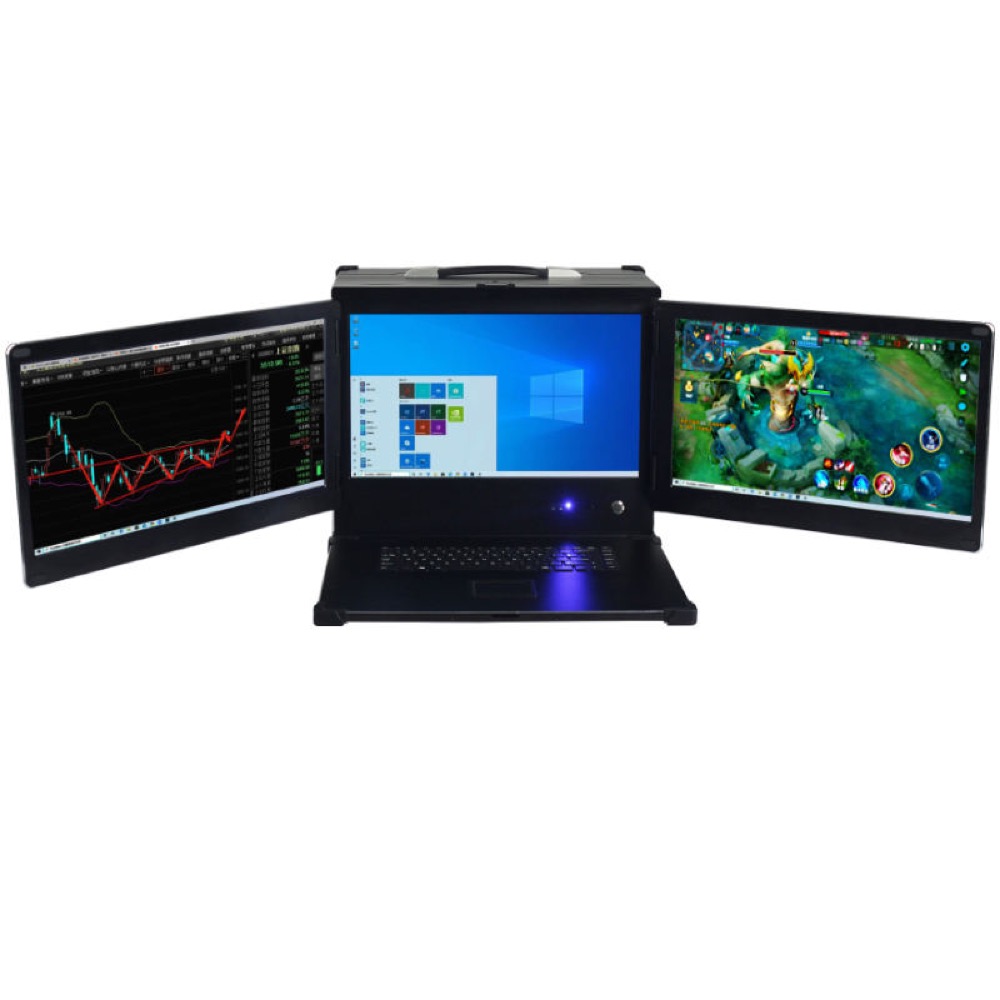

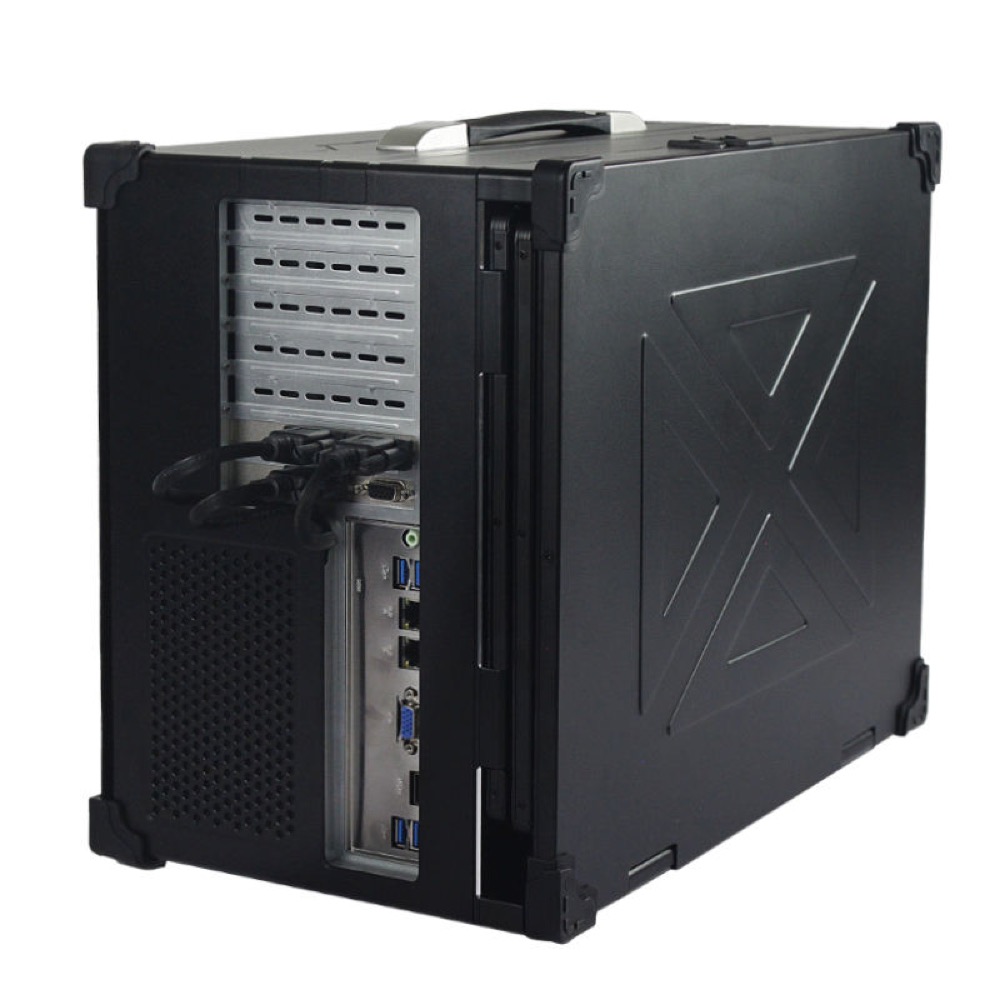

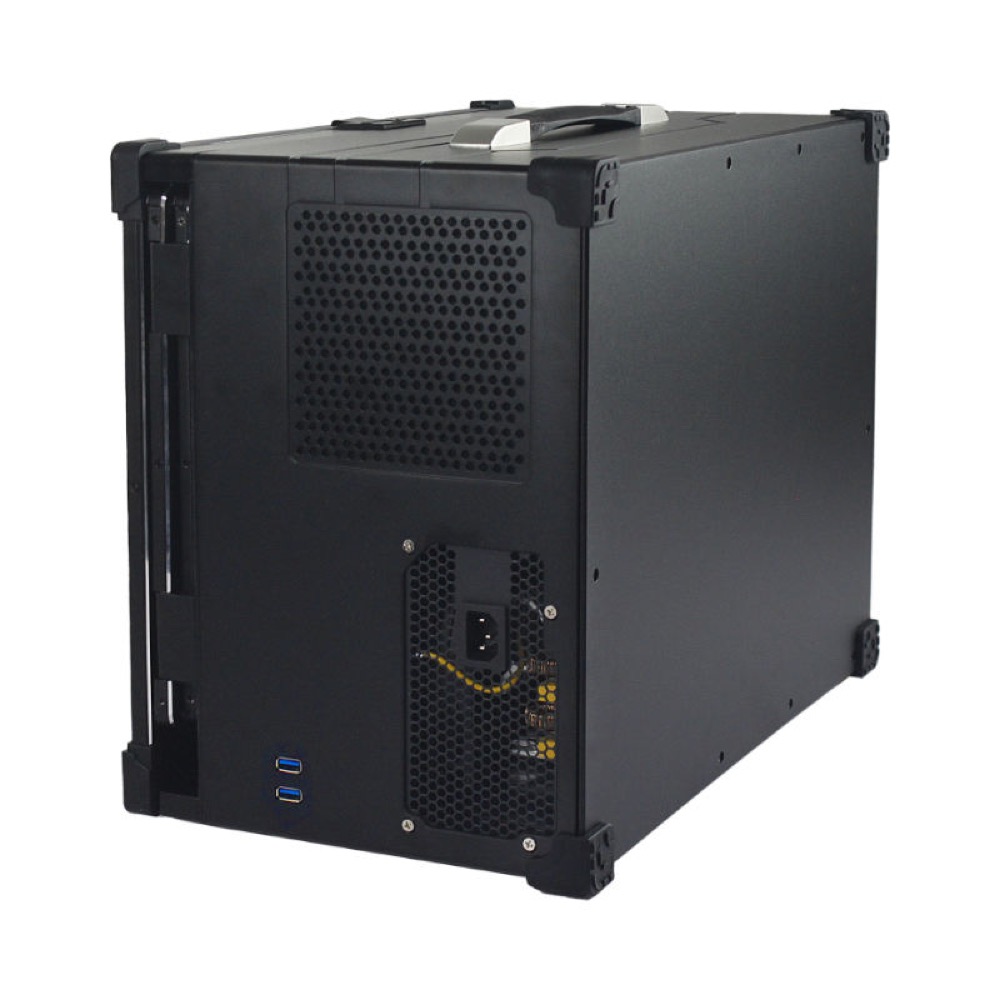

B43 rugged portable industrial panel-computer chassis for multi-display industrial and commercial systems. The supplier lists a 430(W) × 340(D) × 250(H) mm enclosure with support for E-ATX motherboards up to 12 × 13 inches, ATX PSU support, up to four drive positions in alternate 3.5/2.5-inch layouts, seven PCIe slots, three integrated 17.3-inch 1920 × 1080 LCDs, one 12025 fan, one 8025 fan, and CPU/GPU clearance up to 140/360 mm. The listing is a chassis rather than a complete system: motherboard, CPU, memory, storage, graphics card, and power supply are not included.
Specifications
Identity
| Model Number | CHS-SRV-B43 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Portable industrial chassis with three integrated 17.3-inch LCDs, one 12025 fan, and one 8025 fan. ATX PSU support is provided; motherboard, CPU, memory, storage, graphics card, and PSU are not included. |
| Use Case / Application | Industrial PC, Panel PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | Not specified by supplier |
| Width | 430 mm |
| Height | 250 mm |
| Depth | 340 mm |
| Weight | 17 kg gross / 11 kg net in detailed specification; 17.0 kg gross in packaging attributes |
Motherboard and Processor
| Maximum Motherboard Dimensions | Up to 305 × 330 mm (12 × 13 inches) |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 3 bays |
| Drive Types | 1 × 3.5-inch HDD + 3 × 2.5-inch HDD/SSD, Alternate layout: 2 × 3.5-inch HDD + 2 × 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 7 slots |
| PCIe Slot Types | 7 × PCIe expansion slots |
| Maximum GPU Length | Up to 360 mm |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 + 80 × 80 × 25 mm (8025) × 1 |
| Maximum CPU Cooler Height | Up to 140 mm |
Display and LCD
| LCD / Display Included | Yes |
| LCD Size | 17.3 in |
| LCD Resolution | 1920 × 1080 per display |
| Display Position | Integrated multi-display panel |
I/O and Connectivity
| Front I/O | 3 × integrated 17.3-inch LCD |
| Custom I/O Details | Supplier lists three integrated 17.3-inch 1920 × 1080 LCDs, E-ATX motherboard support, ATX PSU support, seven PCIe slots, one 12025 plus one 8025 fan, up to 140 mm CPU cooler and 360 mm GPU clearance, and alternate 3.5/2.5-inch drive layouts. Exact USB, display-input, power, reset, network, and touchscreen details are not specified. |
Industrial and Portable Characteristics
| Portable / Mobile | Yes |
