In stock
Server Chassis
CHS-SRV-N8B

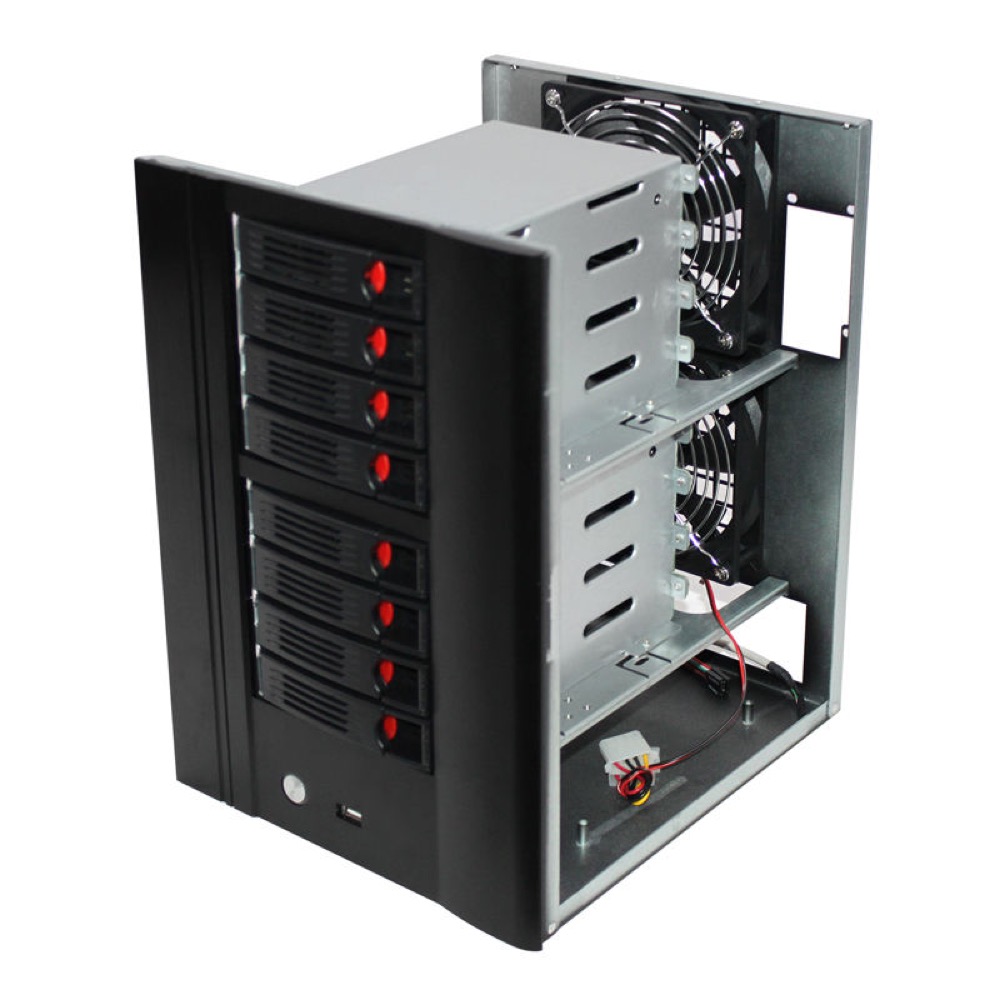

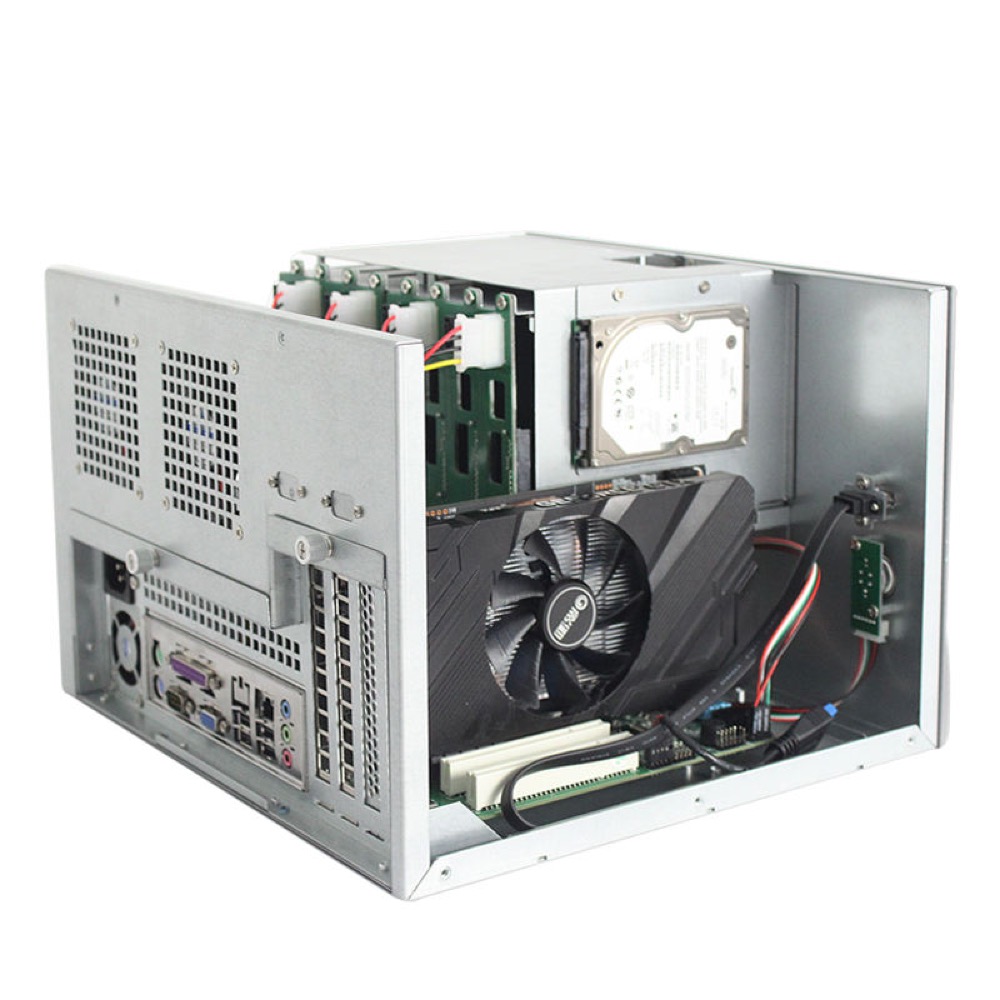

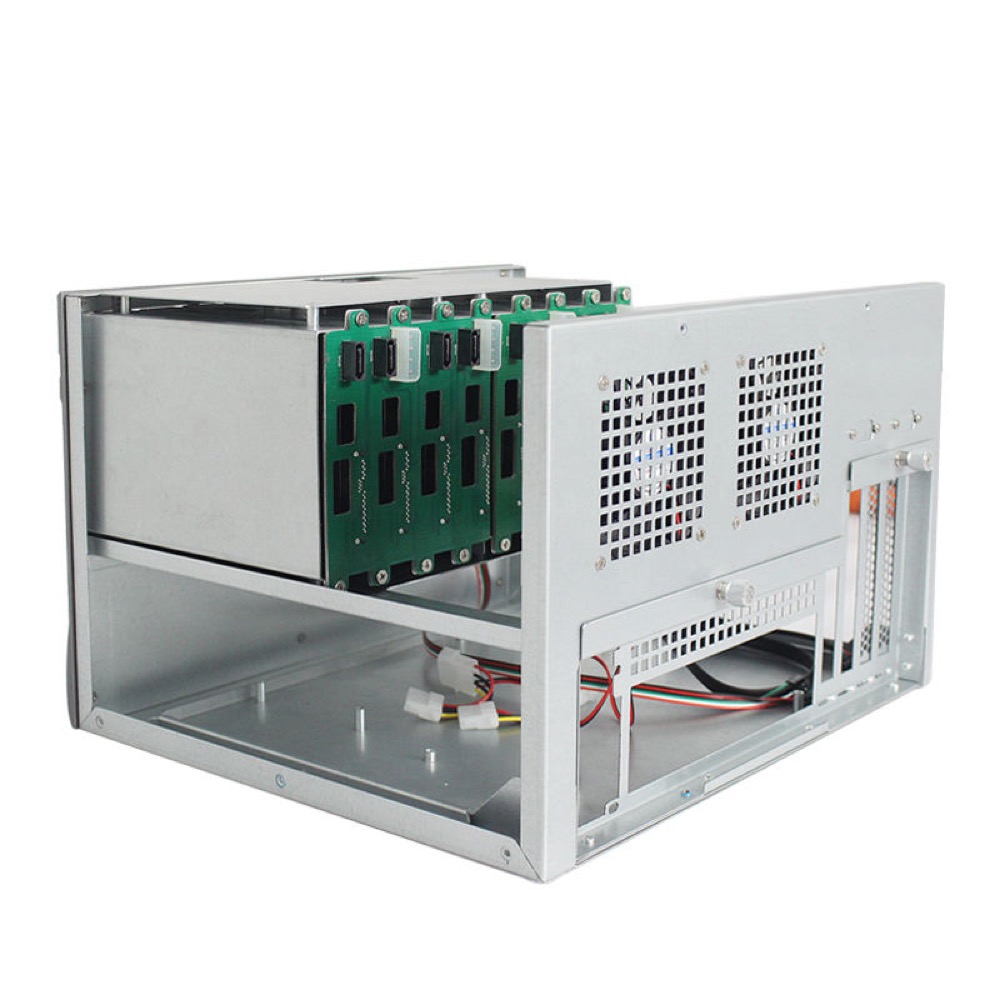

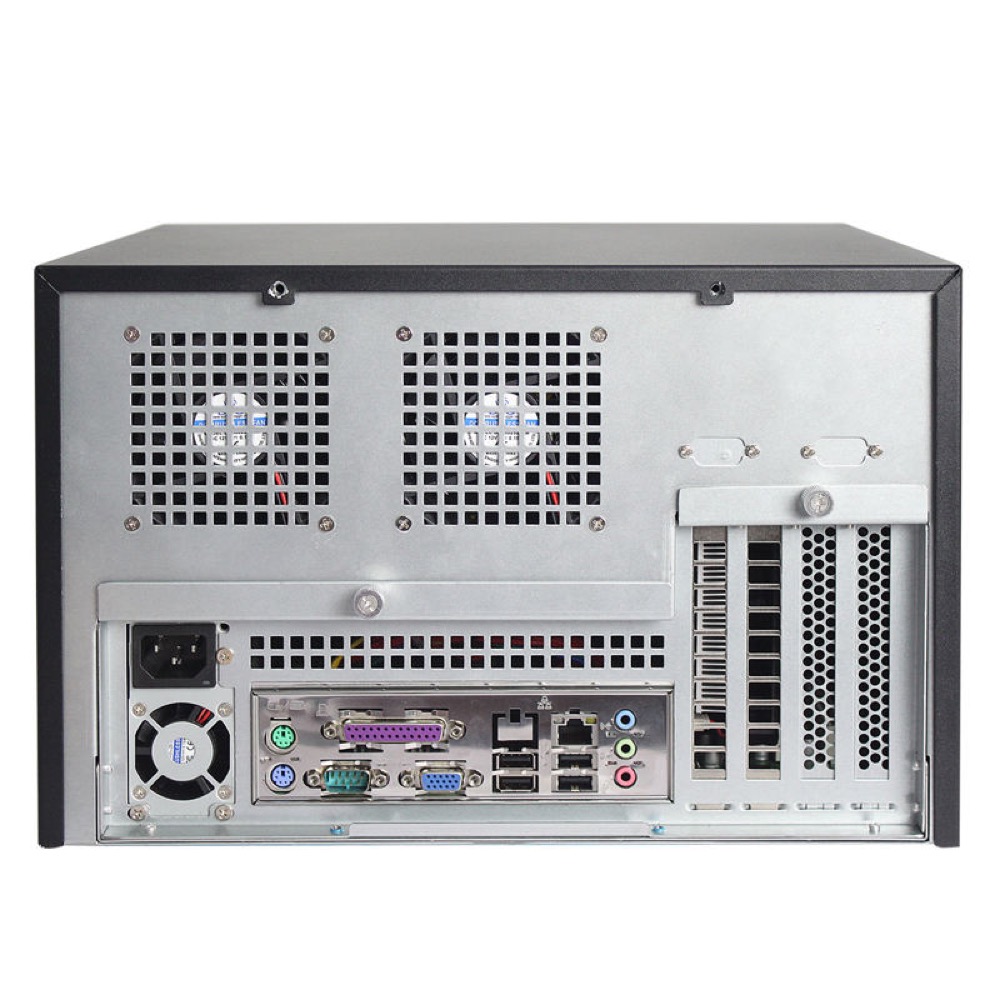

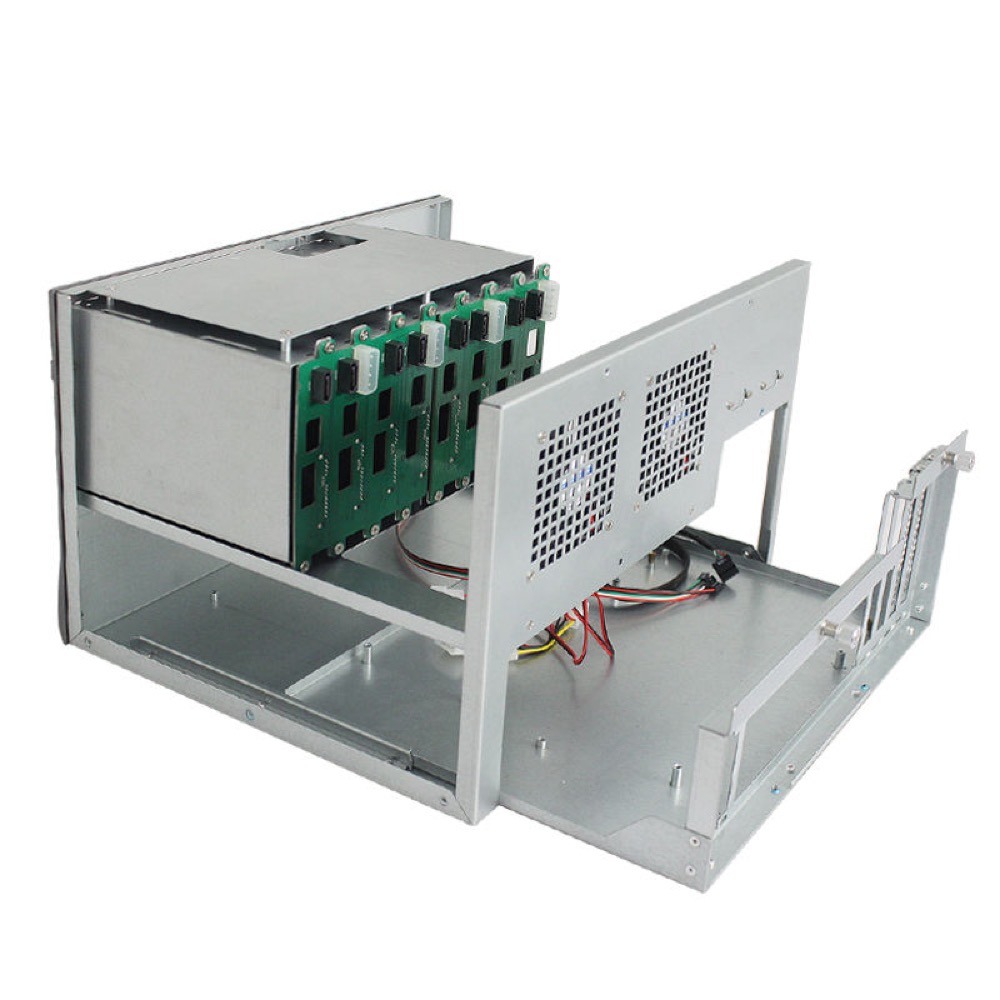

N8B 8-Bay NAS Storage Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension340(W) × 305(D) × 220(H) mm
MountingDesktop
MotherboardMicroATX
Drive Bays9 bays
N8B horizontal NAS and industrial storage chassis for network-attached storage, SAN, router, firewall, and compact server applications. The supplier lists support for eight 3.5-inch hard drives plus one 2.5-inch SSD, a 245 × 245 mm MicroATX-class motherboard, Flex PSU support, four PCIe expansion slots, two 8025 fans, a 65 mm CPU-cooler limit, and up to a 240 mm GPU. The listing is for an empty chassis; motherboard, CPU, memory, storage, and PSU are not included.
Specifications
Identity
| Model Number | CHS-SRV-N8B |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty NAS chassis with eight hot-swap 3.5-inch drive trays, one 2.5-inch SSD position, two included 8025 fans, front USB and power controls, and four PCIe expansion slots. Flex PSU support is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Network Storage, Server, Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Not specified by supplier |
| Rack Height | Not specified by supplier |
| Material | Aluminum / SGCC (supplier listings differ) |
| Width | 340 mm |
| Height | 220 mm |
| Depth | 305 mm |
| Weight | 9.7 kg gross / 8.1 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 245 × 245 mm (9.6 × 9.6 in) |
Power Supply
| PSU Support | Flex PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 1 bays |
| Drive Types | 8 × 3.5-inch HDD hot-swap bays, 1 × 2.5-inch SSD position |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 8 bays |
PCIe and GPU Support
| PCIe Slots | 4 slots |
| PCIe Slot Types | 4 × PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 2 |
| Maximum CPU Cooler Height | Up to 65 mm |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Power switch with indicator, 2 × COM interfaces |
| Custom I/O Details | Supplier lists two USB 3.0 ports, a power switch with indicator, and two COM interfaces. The enclosure is described as aluminum 1.2 mm in the key attributes and as SGCC 1.2 mm in the detailed table; both material descriptions are retained in the supplier notes. |
