CHS-SRV-N8B
Made to order
Server Chassis
CHS-SRV-N8

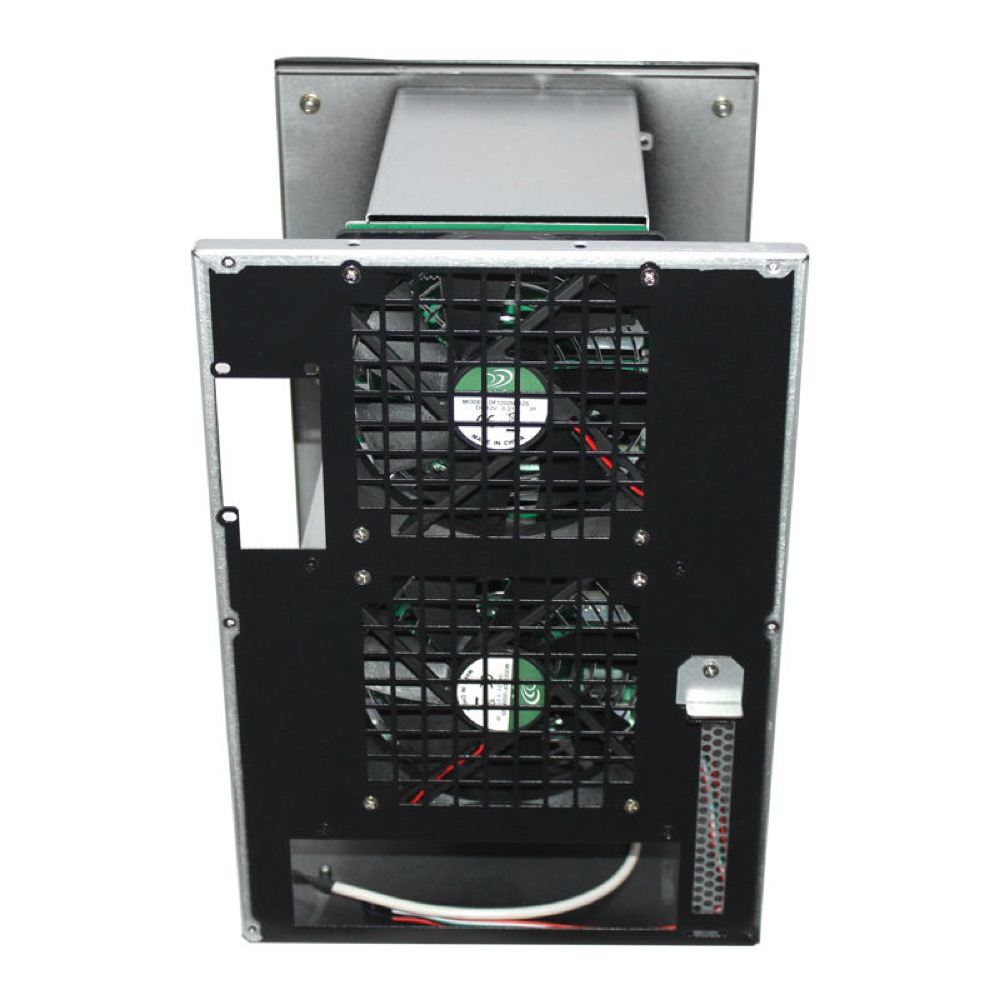

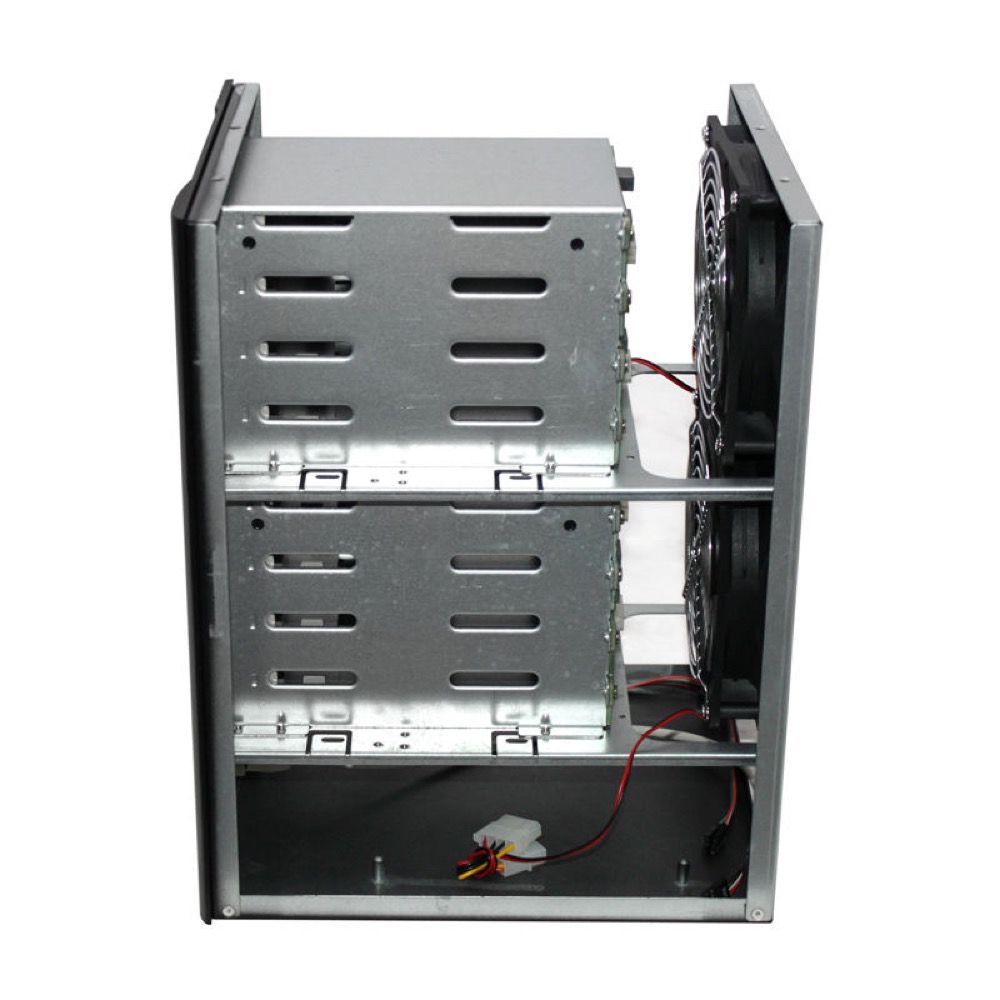

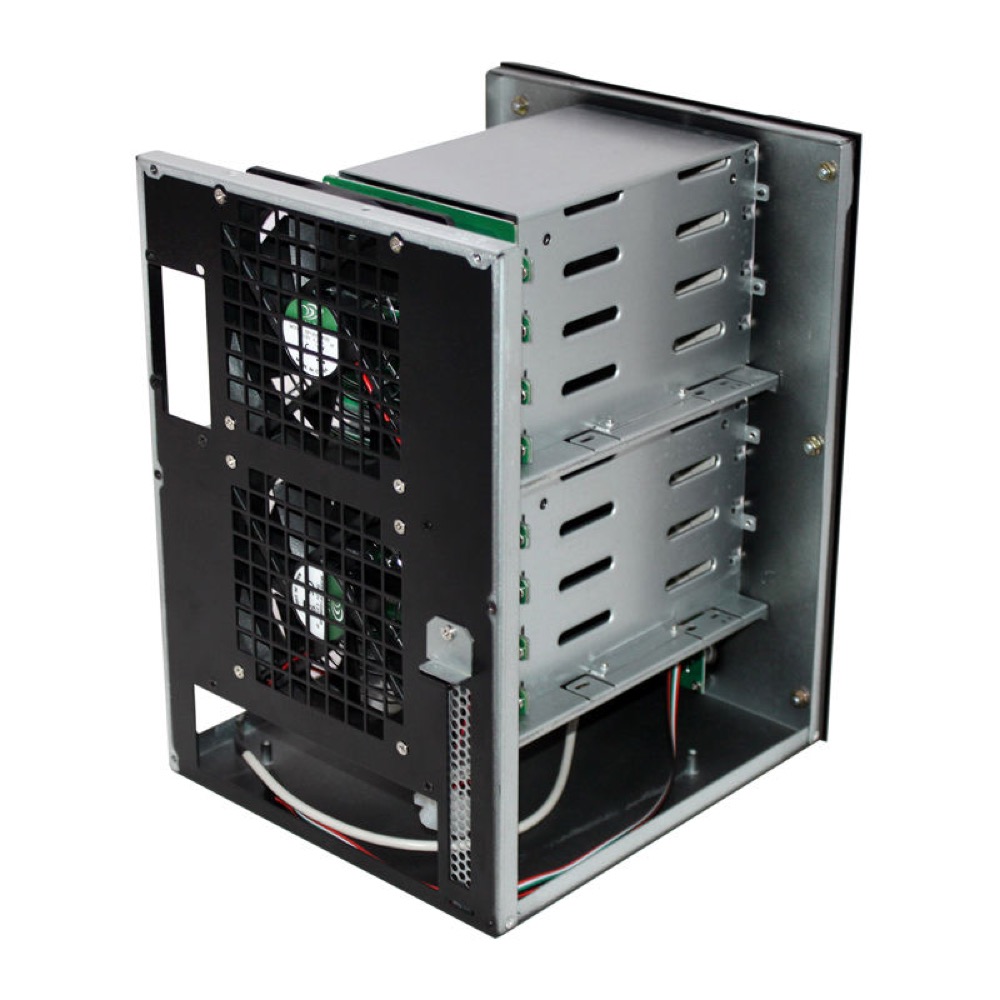

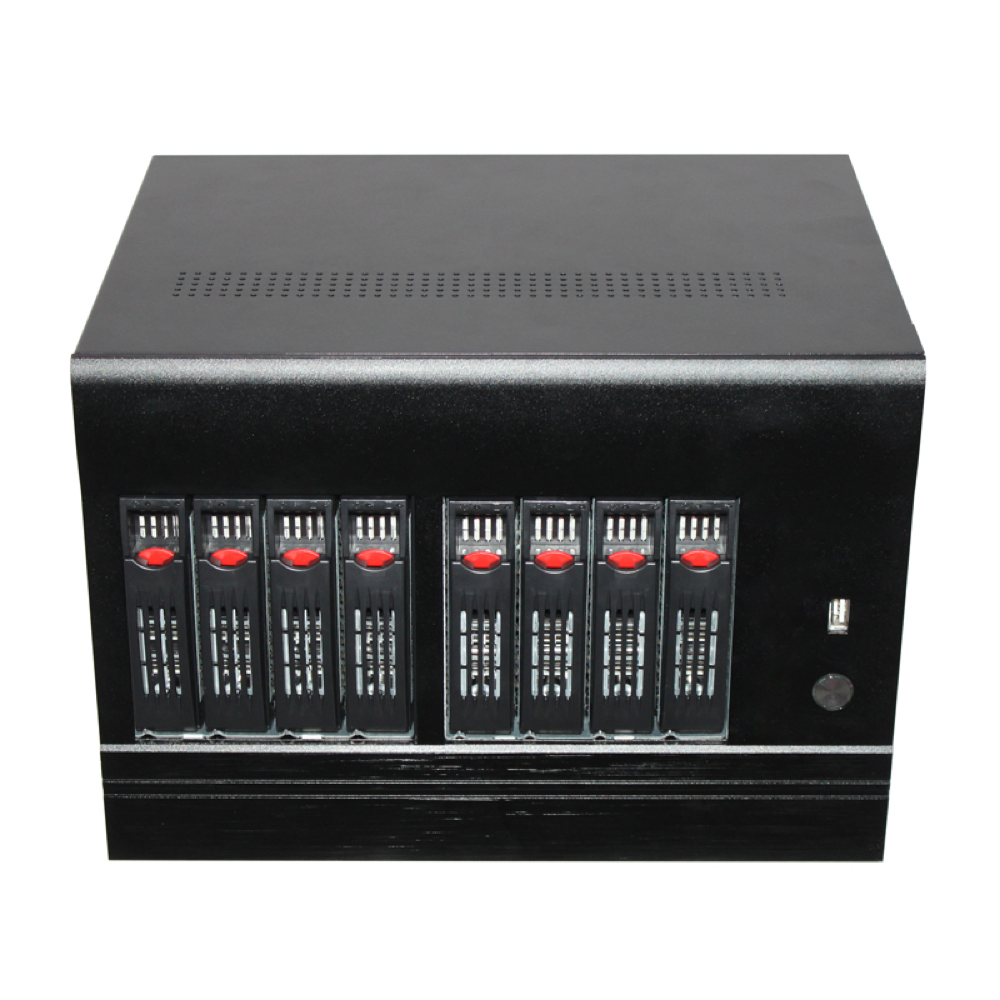

N8 8-Bay ITX NAS Storage Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
DimensionNot specified by supplier
MountingDesktop
MotherboardITX
Drive Bays8 bays
N8 compact NAS storage chassis for home or office network storage and industrial storage applications. The supplier lists support for an ITX motherboard, a Flex PSU, eight 3.5-inch hard drives, one PCIe slot, one USB 2.0 port, and two included 12025 fans. The supplier does not provide enclosure dimensions on this listing. The listing is for an empty chassis; motherboard, CPU, memory, storage, and PSU are not included.
Specifications
Identity
| Model Number | CHS-SRV-N8 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty NAS chassis with eight 3.5-inch drive positions, one PCIe slot, two included 12025 fans, and one USB 2.0 port. Flex PSU compatibility is provided; PSU, motherboard, CPU, memory, and storage are not included. |
| Use Case / Application | Network Storage, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Not specified by supplier |
| Rack Height | Not specified by supplier |
| Material | Not specified by supplier |
| Weight | 10.0 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | ITX (supplier does not specify an exact maximum in mm) |
Power Supply
| PSU Support | Flex PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 8 × 3.5-inch HDD positions |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | 1 × PCIe expansion slot |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 2 |
I/O and Connectivity
| Front I/O | 1 × USB 2.0 |
| Custom I/O Details | Supplier lists one USB 2.0 port, one PCIe slot, and two included 12025 fans. Enclosure dimensions are explicitly shown as unavailable on the supplier listing and are not inferred. |
