In stock
Server Chassis
CHS-SRV-S34H

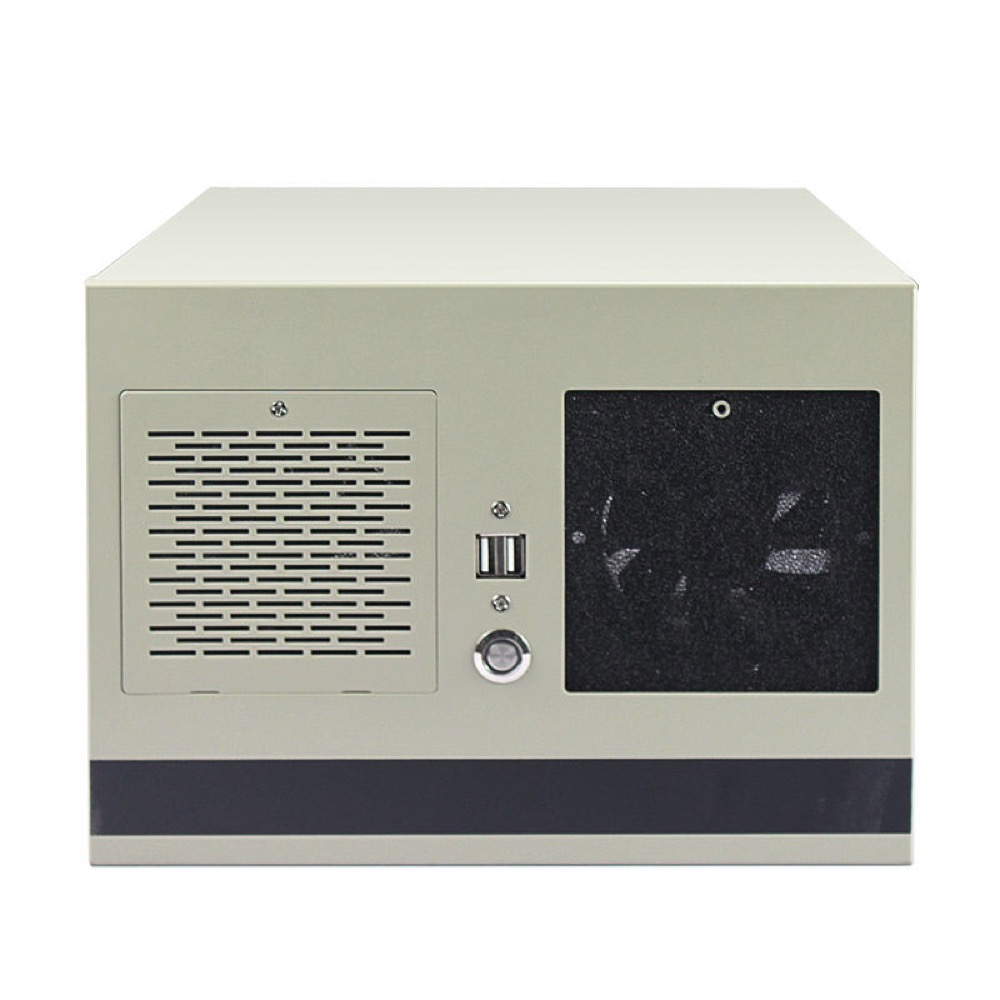

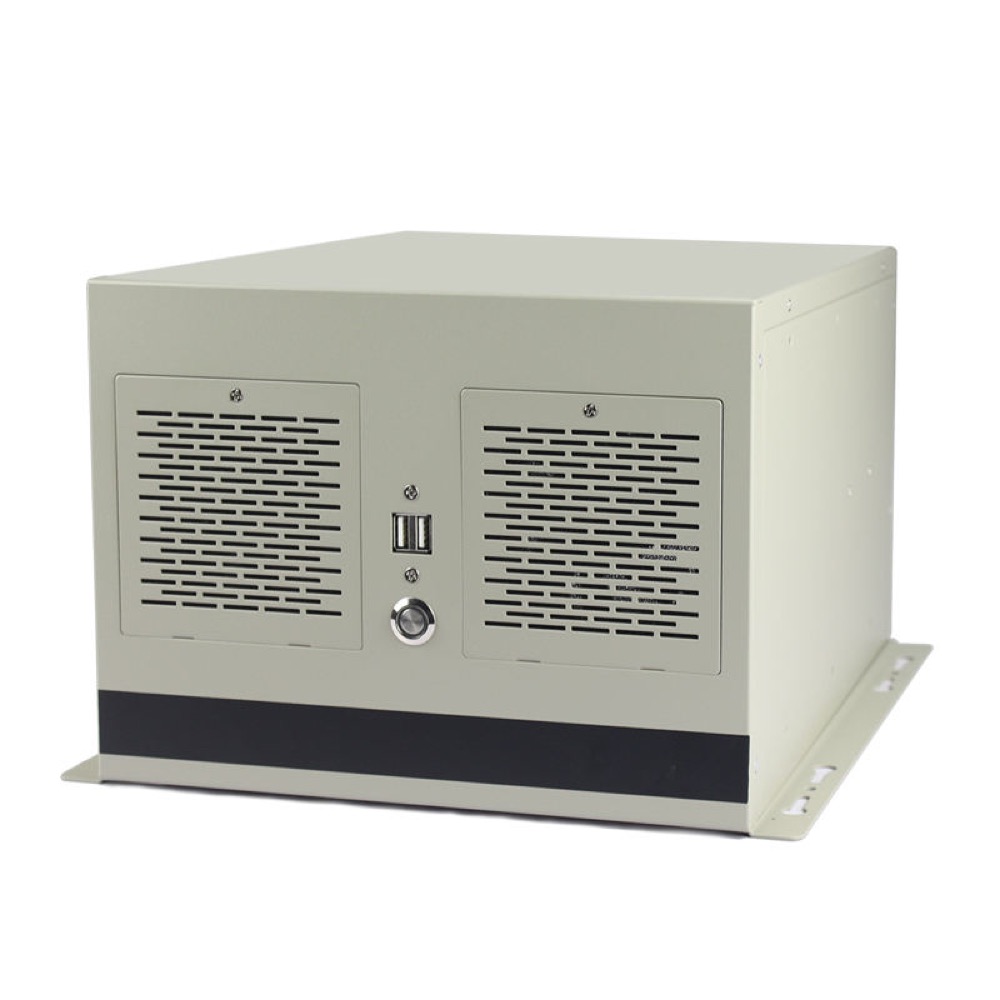

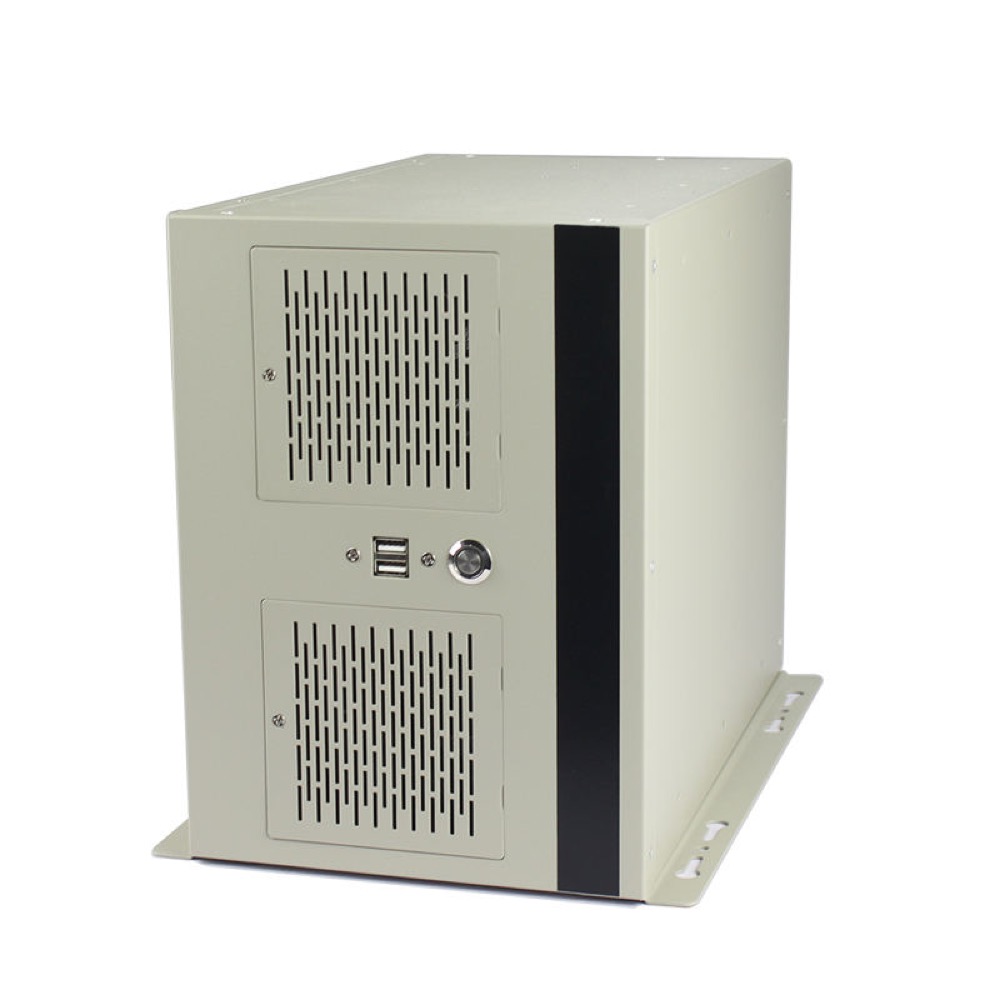

Industrial ITX Wall-Mounted Case with 4PCIE 6*COM Port ATX PSU MATX MB Support Stock Chassis up to 160mm CPU Cooler
Product formEmpty chassis
FamilyIndustrial / Embedded Chassis
Dimension260(W) × 330(D) × 190(H) mm
MountingWall-mount
MotherboardMicro-ATX

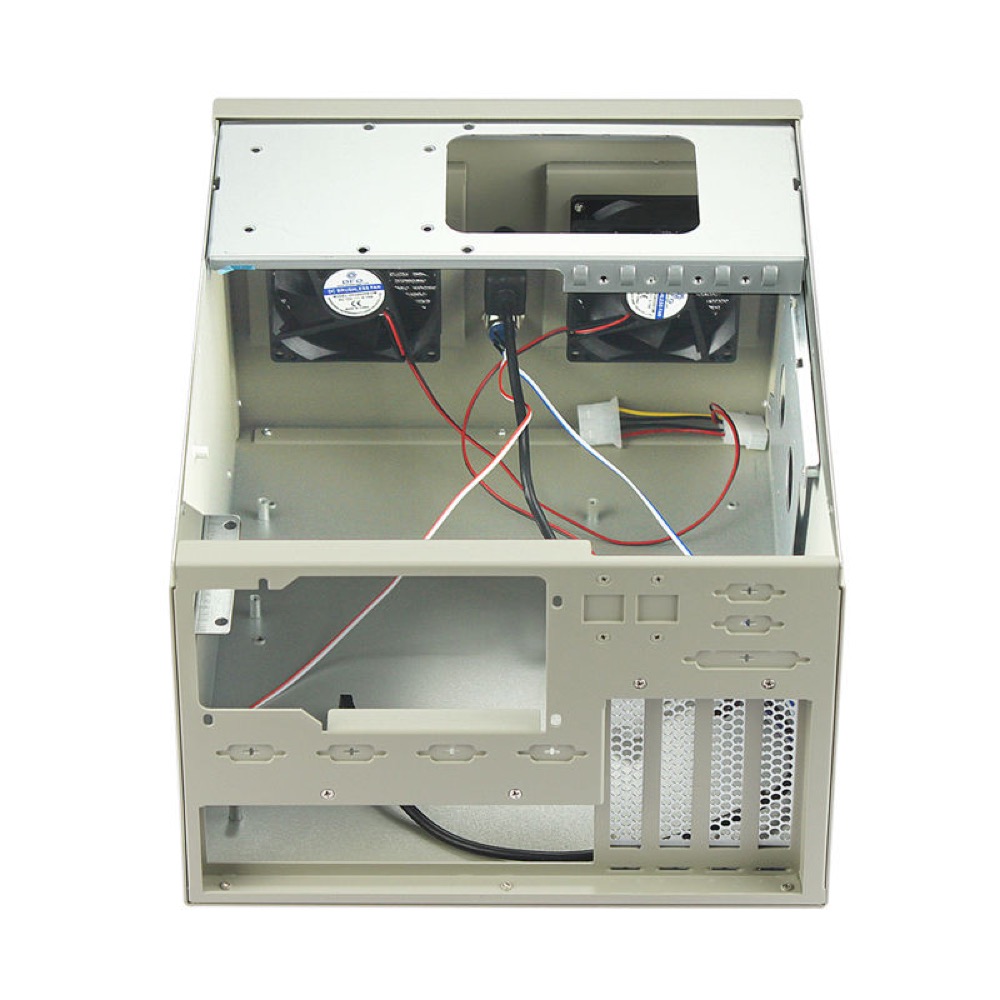

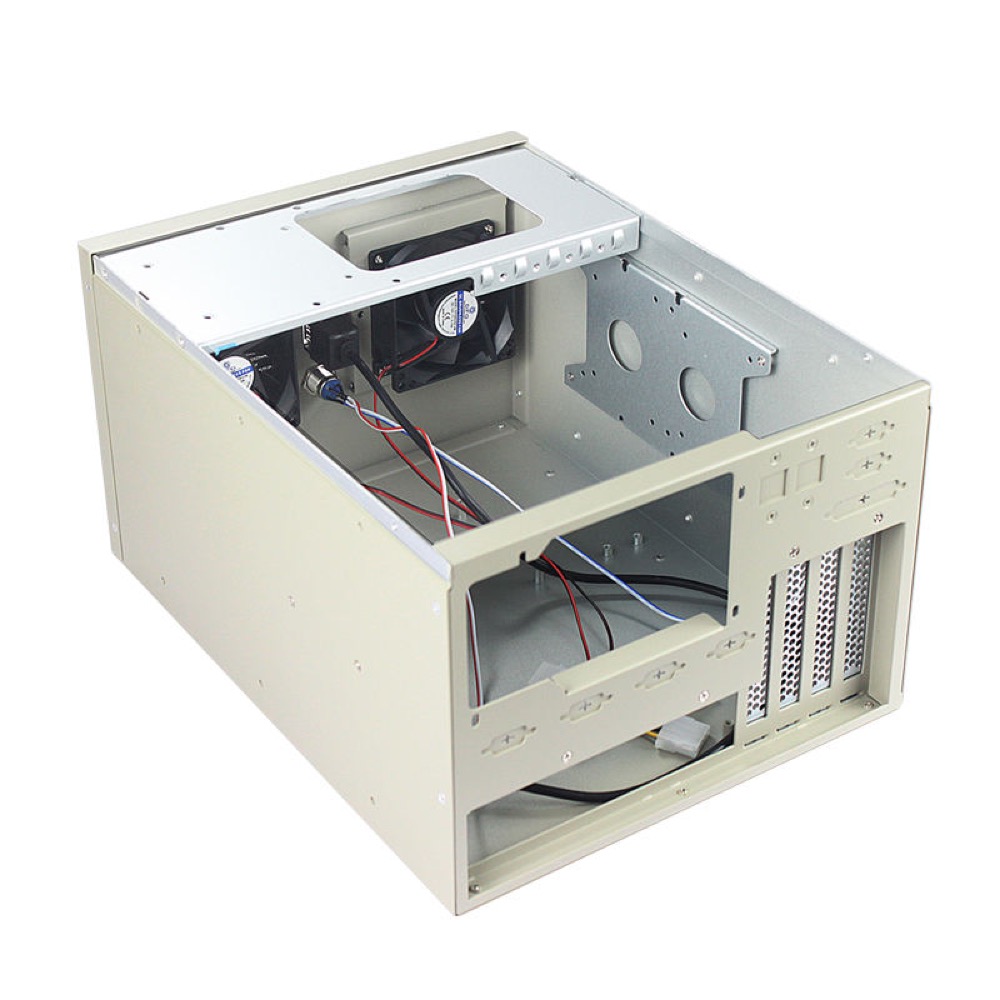

Wall-mounted industrial PC chassis for embedded and industrial computer applications. Supplier-listed configuration: Micro-ATX motherboard support, ATX PSU support, four PCIe slots, six COM ports, two USB ports, two 8025 fans, two 3.5-inch HDD positions or three 2.5-inch drive positions, and CPU cooler clearance up to 160 mm. Dimensions: 260(W) × 330(D) × 190(H) mm. Single-package information: 42 × 36 × 28 cm and 5.7 kg gross weight.
Specifications
Identity
| Model Number | CHS-SRV-S34H |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty chassis enclosure; two 8025 cooling fans; ATX PSU support. Supplier identifies the listing as an empty case; PSU inclusion is not specified. |
| Use Case / Application | Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | Steel; exact grade not specified |
| Finish / Color | Finish/color not specified |
| Width | 260 mm |
| Height | 190 mm |
| Depth | 330 mm |
| Weight | 5.7 kg gross single package; product net weight not specified |
Power Supply
| PSU Support | ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 3 bays |
| Drive Types | 2 × 3.5" HDD or 3 × 2.5" HDD |
PCIe and GPU Support
| PCIe Slots | 4 slots |
Cooling and Thermal
| Included Fan Count | 2 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
| Maximum CPU Cooler Height | 160 mm |
I/O and Connectivity
| Front I/O | USB × 2, COM × 6 |
| Custom I/O Details | Four PCIe slots. Supplier lists an empty case and does not specify reset, power-indicator, audio, or network I/O. |
| COM Ports | 6 |
| USB Ports | 2 |
