Server Chassis
CHS-SRV-S31
Customized Computer Desktop Cases and Logos ATX / Micro-ATX / ITX Case
Product formEmpty chassis
FamilyIndustrial / Embedded Chassis
Dimension230(W) × 230(D) × 155(H) mm
MountingDesktop
MotherboardMini-ITX

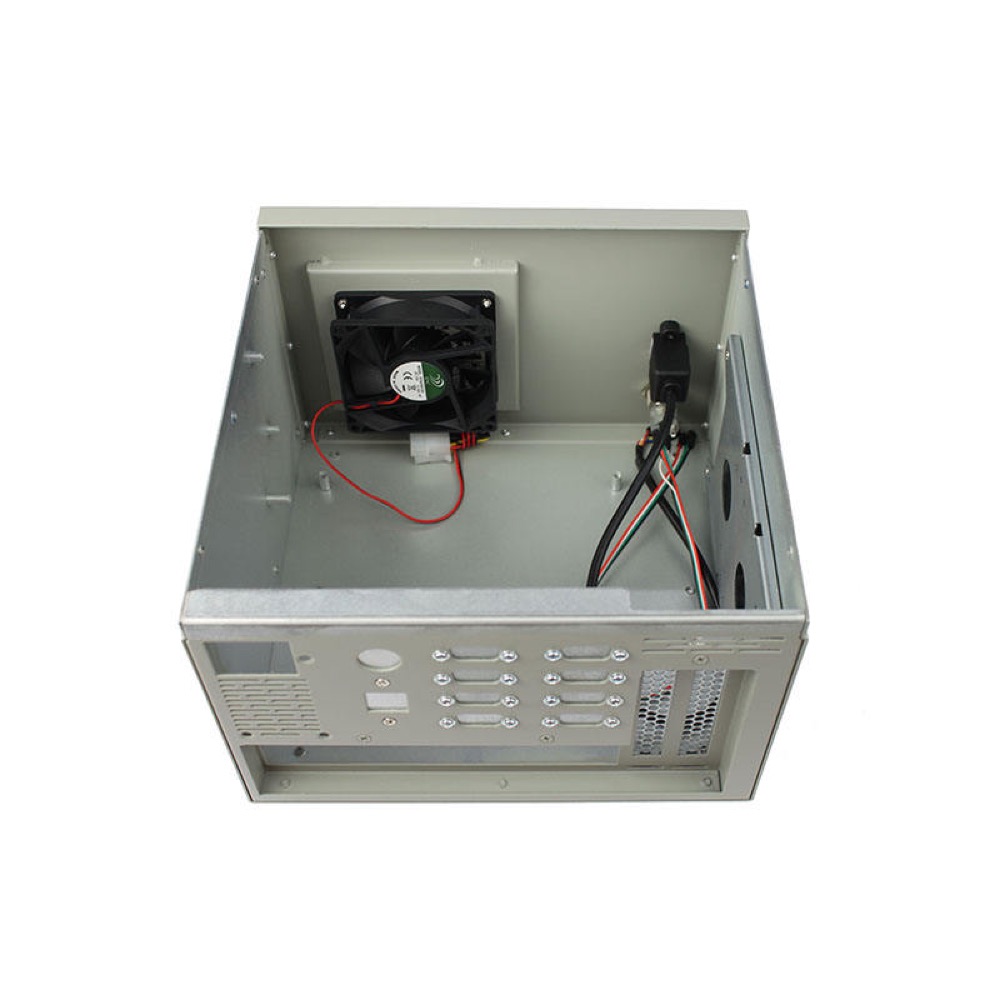

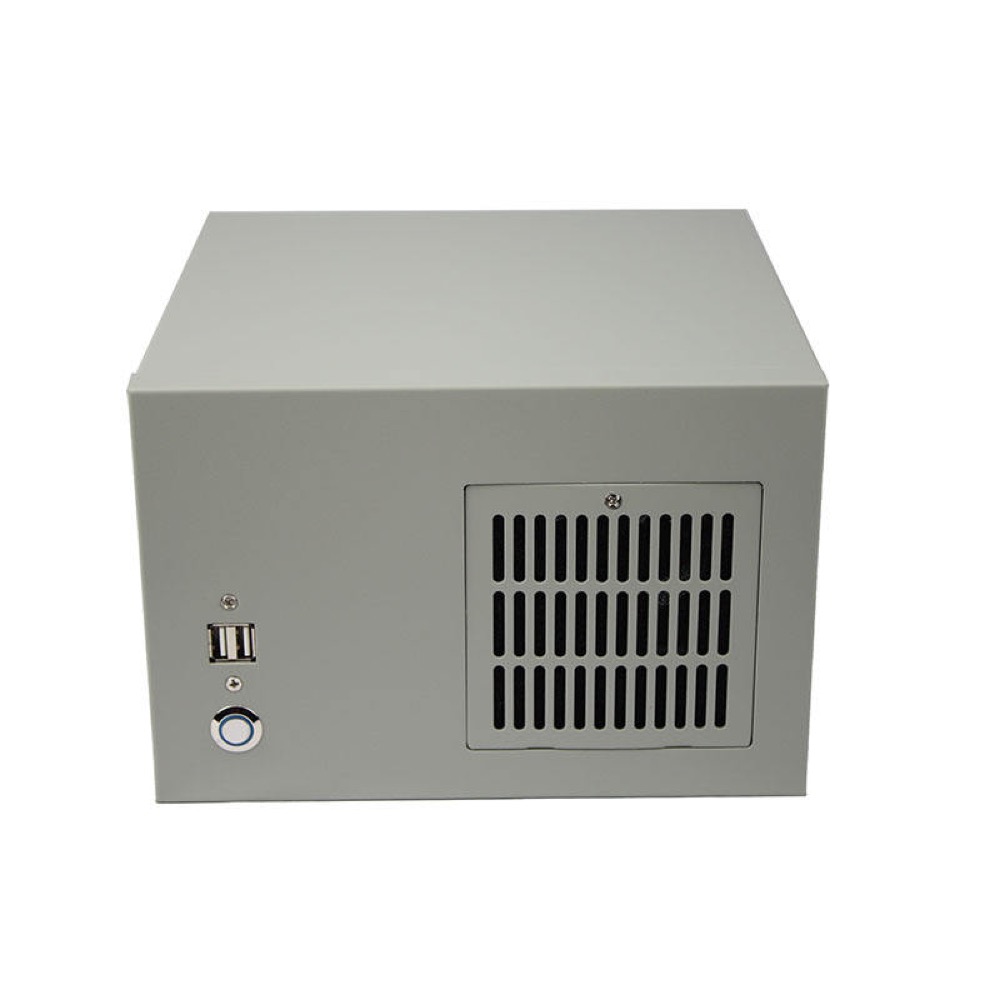

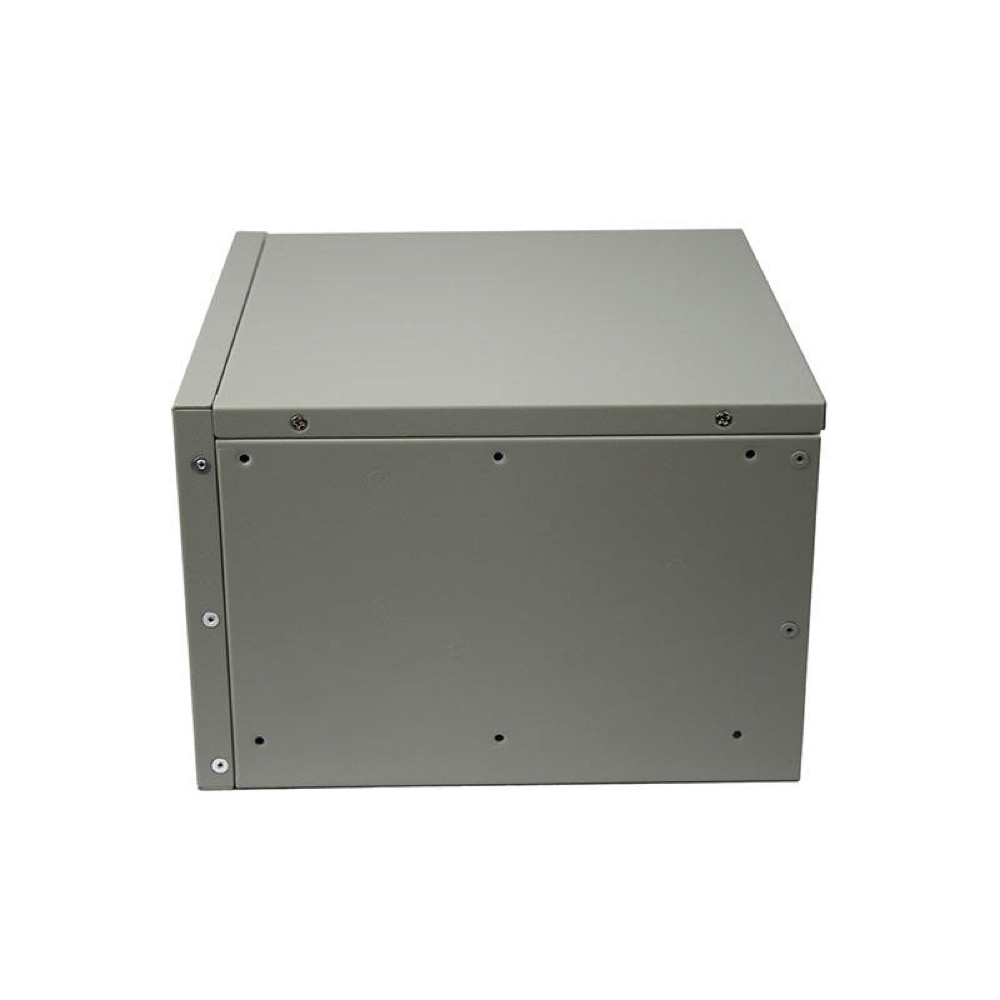

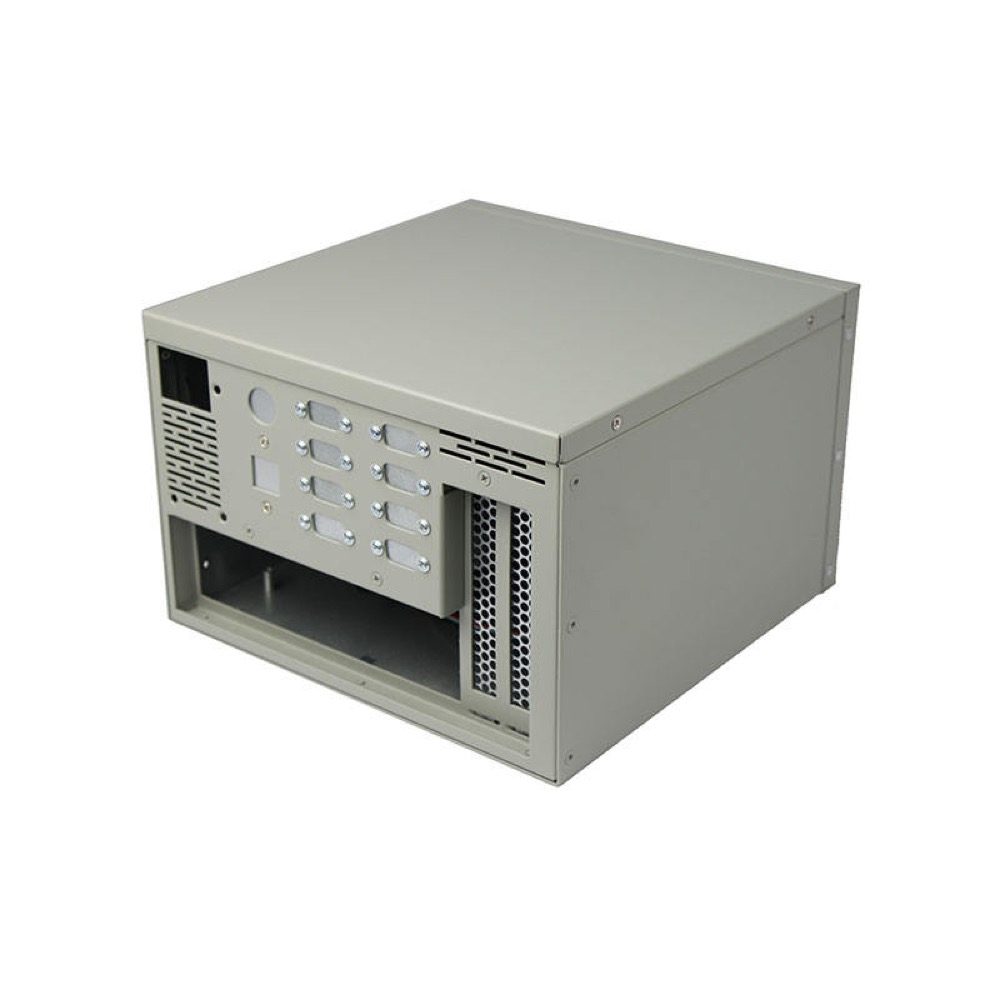

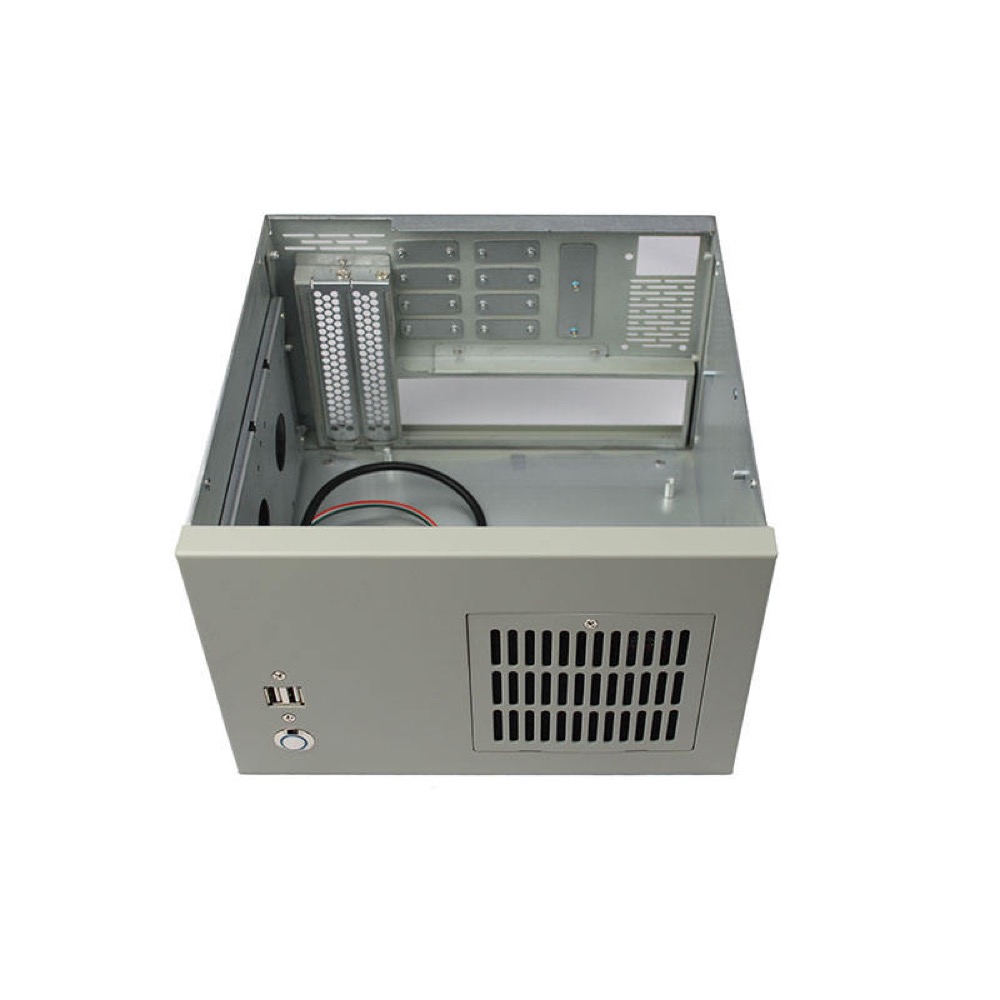

Compact desktop industrial PC chassis for embedded computer applications. Supplier-listed configuration: SGCC construction, Mini-ITX-size motherboard support up to 170 × 170 mm (7 × 7 inches), 1U Flex special PSU support, two 2.5-inch hard-drive positions or one 3.5-inch hard-drive position, one included 8025 cooling fan, and two full-height and straight expansion slots. Dimensions: 230(W) × 230(D) × 155(H) mm. Supplier lists no CD-ROM bay, CE/RoHS certification, and 3.907 kg gross package weight.
Specifications
Identity
| Model Number | CHS-SRV-S31 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty desktop chassis enclosure; one 8025 cooling fan; 1U Flex PSU support. PSU inclusion is not specified by the supplier. |
| Use Case / Application | Industrial PC |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | SGCC steel |
| Finish / Color | Finish/color not specified |
| Width | 230 mm |
| Height | 155 mm |
| Depth | 230 mm |
| Weight | 3.907 kg gross single package; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7 × 7 inches) |
Power Supply
| PSU Support | 1U Flex |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 2 × 2.5" HDD or 1 × 3.5" HDD |
PCIe and GPU Support
| PCIe Slots | 2 slots |
| PCIe Slot Types | Full-height, Straight slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 80 × 80 × 25 mm (8025) |
I/O and Connectivity
| Custom I/O Details | Compact desktop industrial chassis. Supplier lists no CD-ROM bay and CE/RoHS certification; front USB, audio, network, power, and reset I/O are not specified. |
