In stock
Server Chassis
CHS-SRV-M38
4U 6/8-GPU Rackmount Server System
Product formComplete system
FamilyGPU / AI Chassis
Dimension482(W) × 415(D) × 178(H) mm
MountingRackmount
MotherboardATX
4U 19-inch rackmount GPU server system for multi-GPU compute and server applications. The supplier lists an ATX-form-factor system with a B85 motherboard, Intel G1840 CPU included, optional Intel i3-4130 CPU, 4 GB memory, 64 GB hard disk, included 2000 W power supply, three 12038 fans at 6000 RPM, and support for six or eight GPUs up to 340 mm long and approximately 65 mm wide. Supplier-listed dimensions are 482(W) × 415(D) × 178(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-M38 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | 4U rackmount chassis; B85 motherboard; Intel G1840 CPU; 4 GB memory; 64 GB hard disk; included 2000 W PSU; three 12038 cooling fans. Supplier lists an optional Intel i3-4130 CPU and support for six or eight GPUs; no specific GPU model is stated as included. |
| Use Case / Application | Server, Workstation / GPU |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | 19-inch |
| Rack Height | 4U |
| Material | Aluminum alloy and steel |
| Finish / Color | Black |
| Width | 482 mm |
| Height | 178 mm |
| Depth | 415 mm |
| Weight | 10 kg net / 12 kg gross |
Power Supply
| PSU Support | ATX |
| PSU Included | Yes |
| PSU Wattage | 2000 W |
PCIe and GPU Support
| Maximum GPU Count | 8 GPUs |
| Maximum GPU Length | 340 mm |
Cooling and Thermal
| Included Fan Count | 3 fans |
| Fan Size | 120 × 120 × 38 mm (12038), 6000 RPM |
I/O and Connectivity
| Front I/O | Custom I/O |
| Custom I/O Details | Supplier lists USB front-port connectivity; exact front USB version and count are not specified. GPU support is listed for RTX 2080, RTX 3080 Ti, RX470/RX570/RX580, P104, 1060, and similar cards, with GPU dimensions up to approximately 65 mm × 340 mm. |
Complete System Configuration
| Included CPU / Processor | Intel G1840 included; Intel i3-4130 optional |
| Included Memory | 4 GB included |
| Included Storage | 64 GB hard disk included |
| Included GPU | No specific included GPU model stated; supports six- or eight-GPU configurations |
Similar products
Alternatives in this class

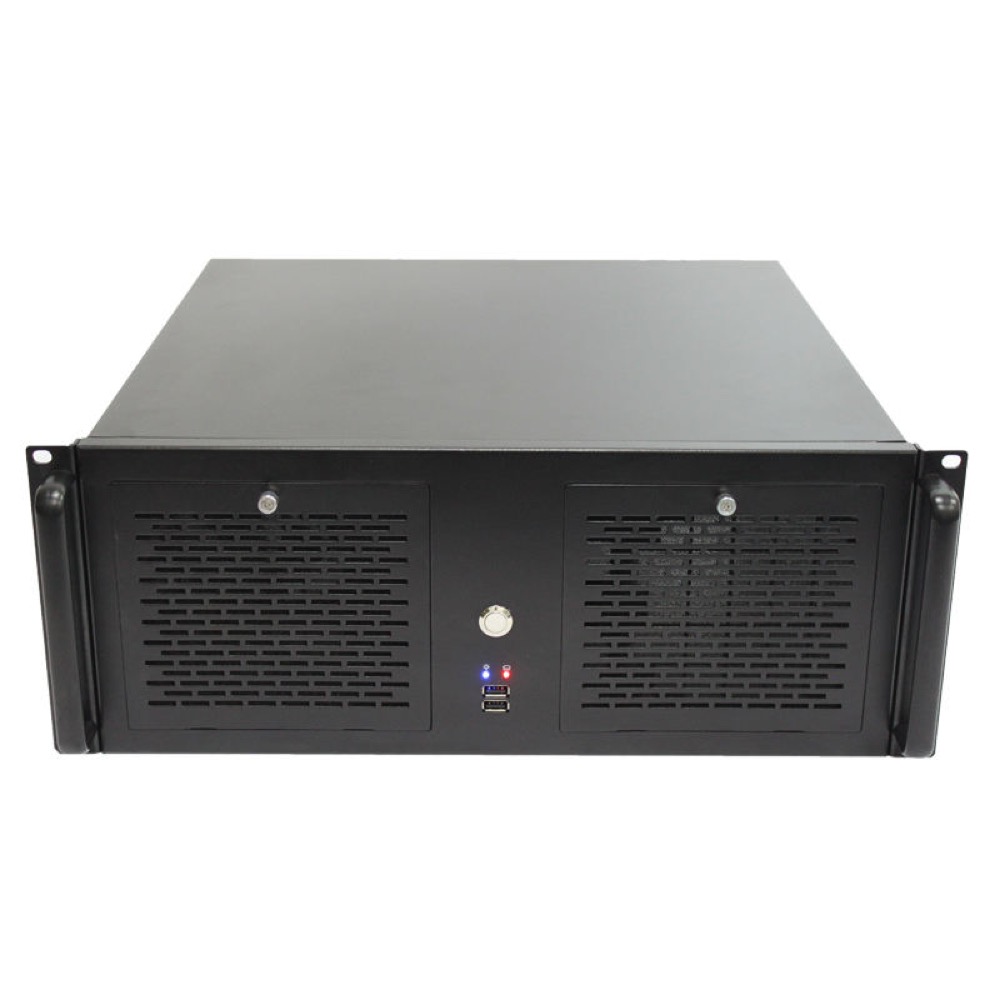

CHS-SRV-4K-118
