Server Chassis
CHS-SRV-T9-Y570

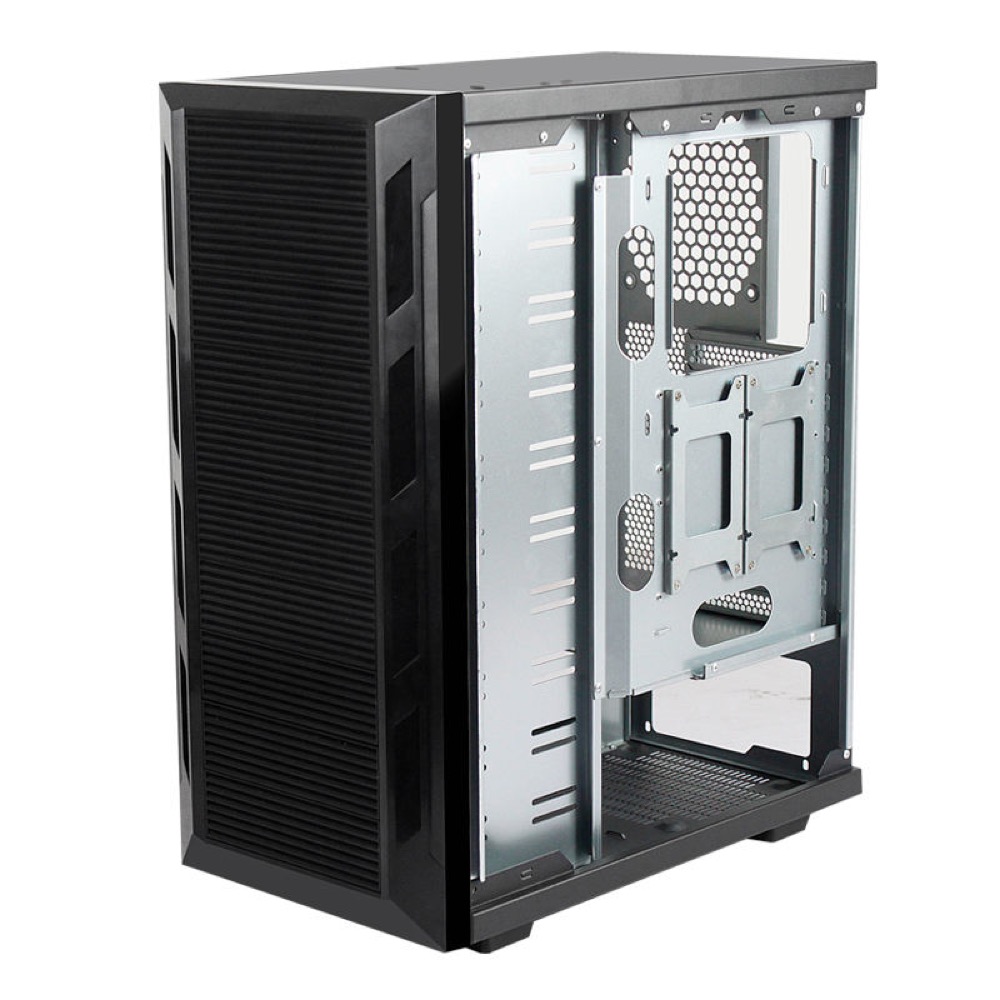

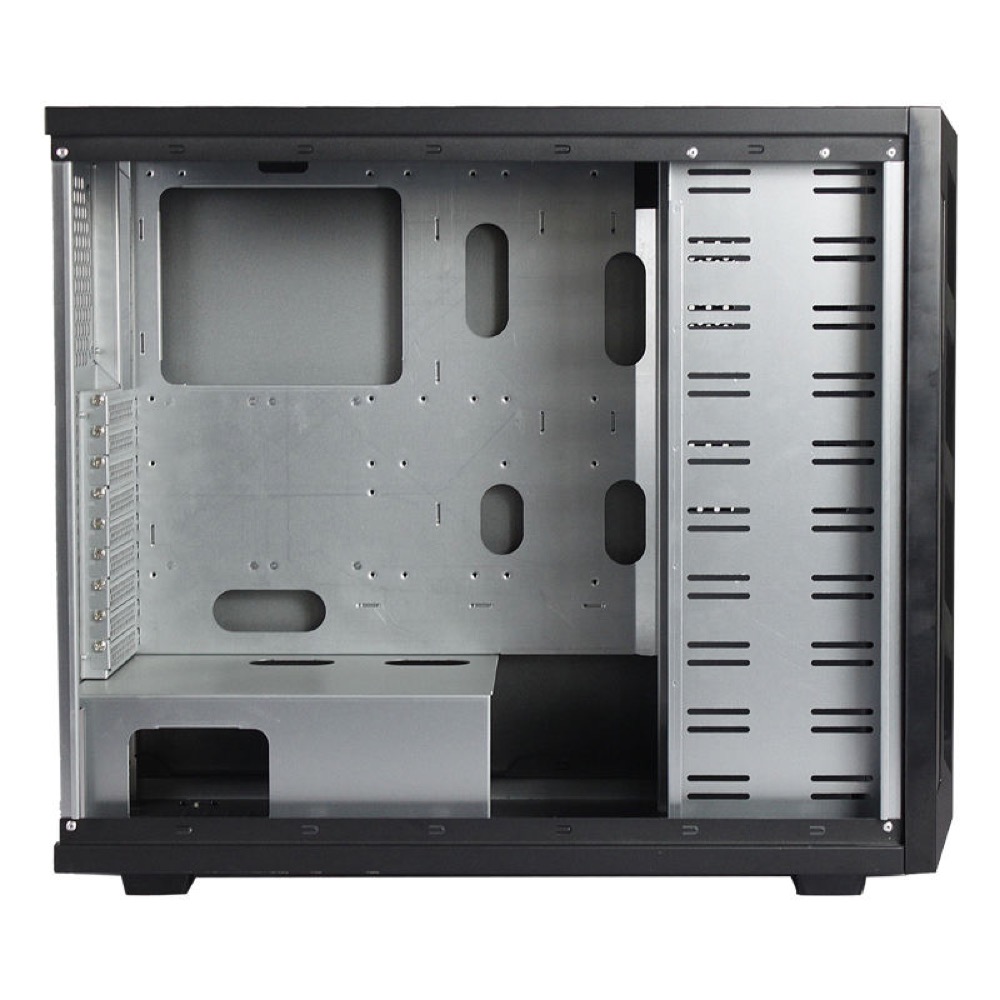

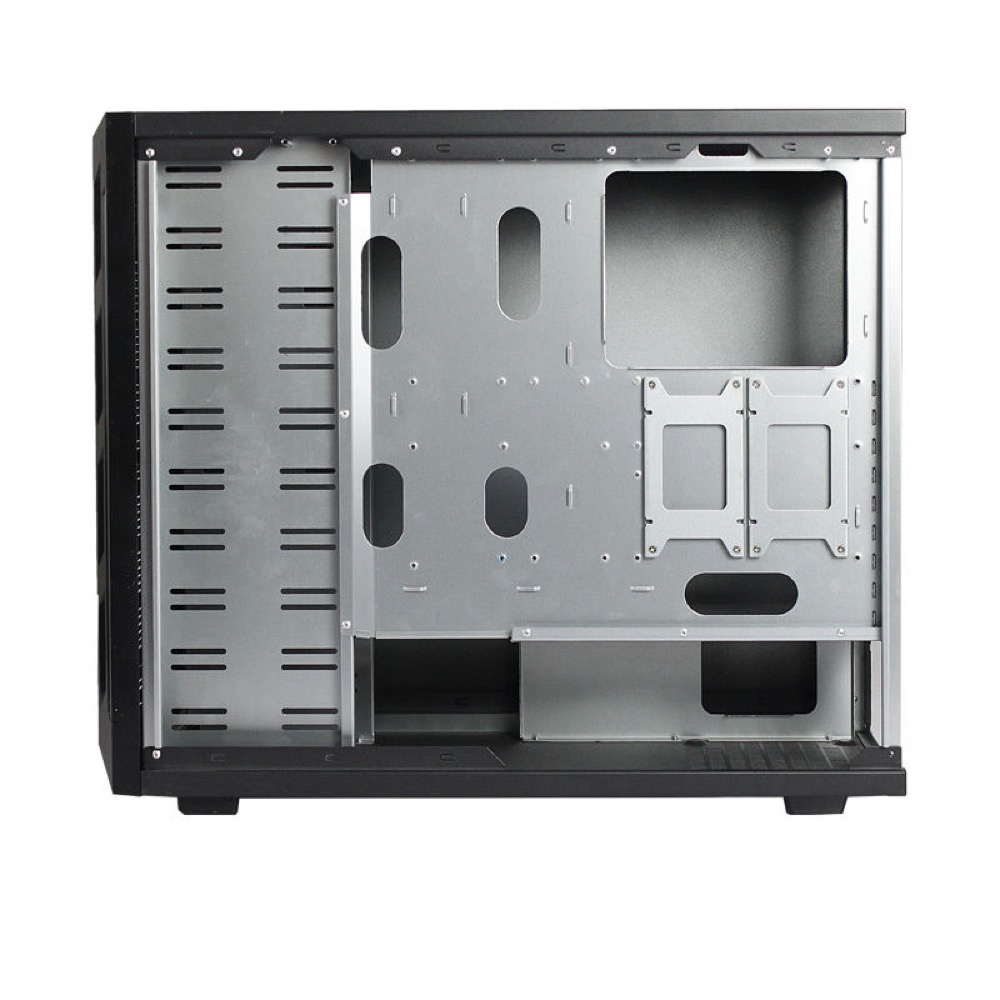

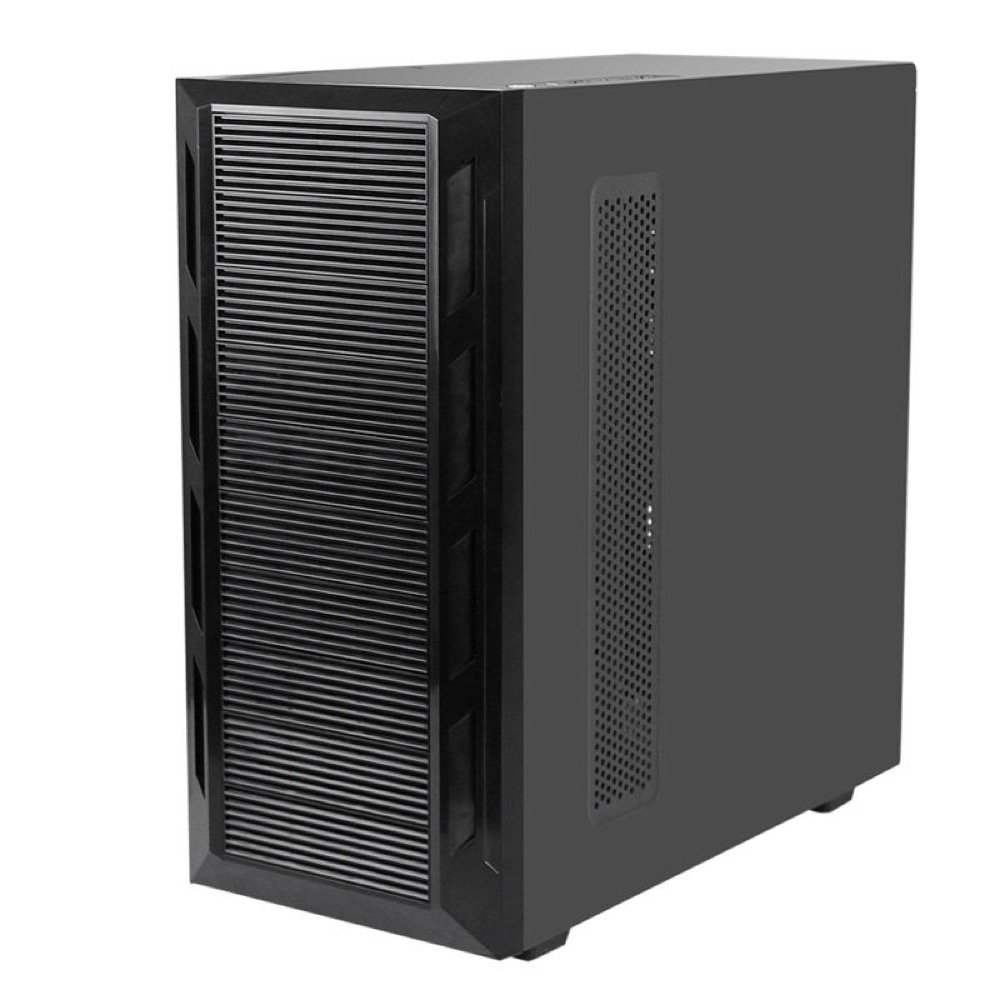

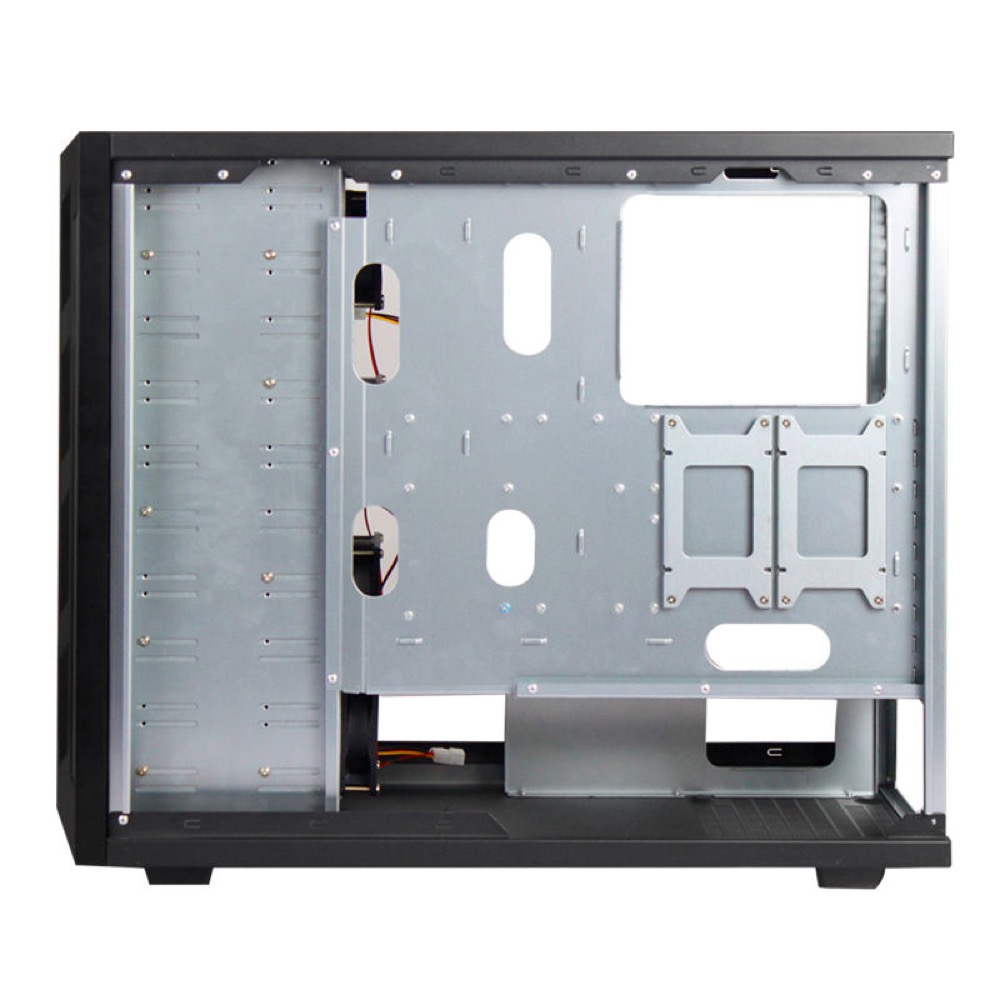

T9-Y570 E-ATX Mid-Tower Desktop Chassis
Product formEmpty chassis
FamilyDesktop / Tower Chassis
Dimension229(W) × 497(D) × 570(H) mm
MountingDesktop
MotherboardE-ATX, ATX
Drive Bays3 bays
T9-Y570 vertical mid-tower desktop chassis for E-ATX and ATX systems. The supplier lists an aluminum-alloy and steel enclosure, support for two 2.5-inch drives and one 3.5-inch drive, nine PCIe slots, two USB 3.0 front ports, one 12025 fan, a 120 mm radiator position, and CPU cooler support up to 180 mm. Supplier-listed dimensions are 229(W) × 497(D) × 570(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-T9-Y570 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty mid-tower desktop chassis with one 12025 fan. PSU, motherboard, storage drives, and liquid-cooling components are not included. |
| Use Case / Application | Desktop |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Material | Aluminum Alloy, Steel |
| Finish / Color | Black |
| Width | 229 mm |
| Height | 570 mm |
| Depth | 497 mm |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 345 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 3.5-inch HDD, 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 9 slots |
| PCIe Slot Types | PCIe expansion slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Power button |
| Custom I/O Details | Supplier lists 10 × 5.25-inch CD-room positions, optional HDD modular configurations, a 120 mm radiator position, and CPU cooler support up to 180 mm. The exact optical-drive bay arrangement is retained as supplier-provided because it is described as optional/modular. |
