In stock
Server Chassis
CHS-SRV-T8-480

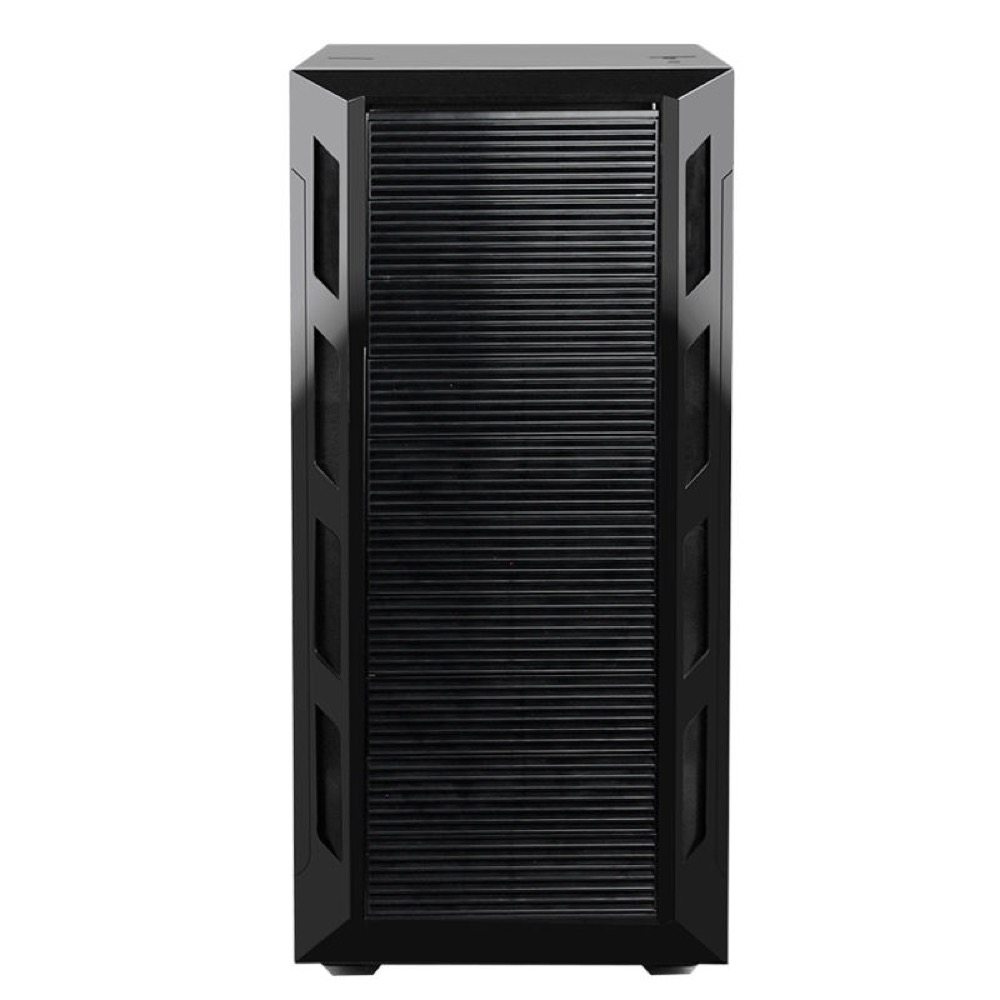

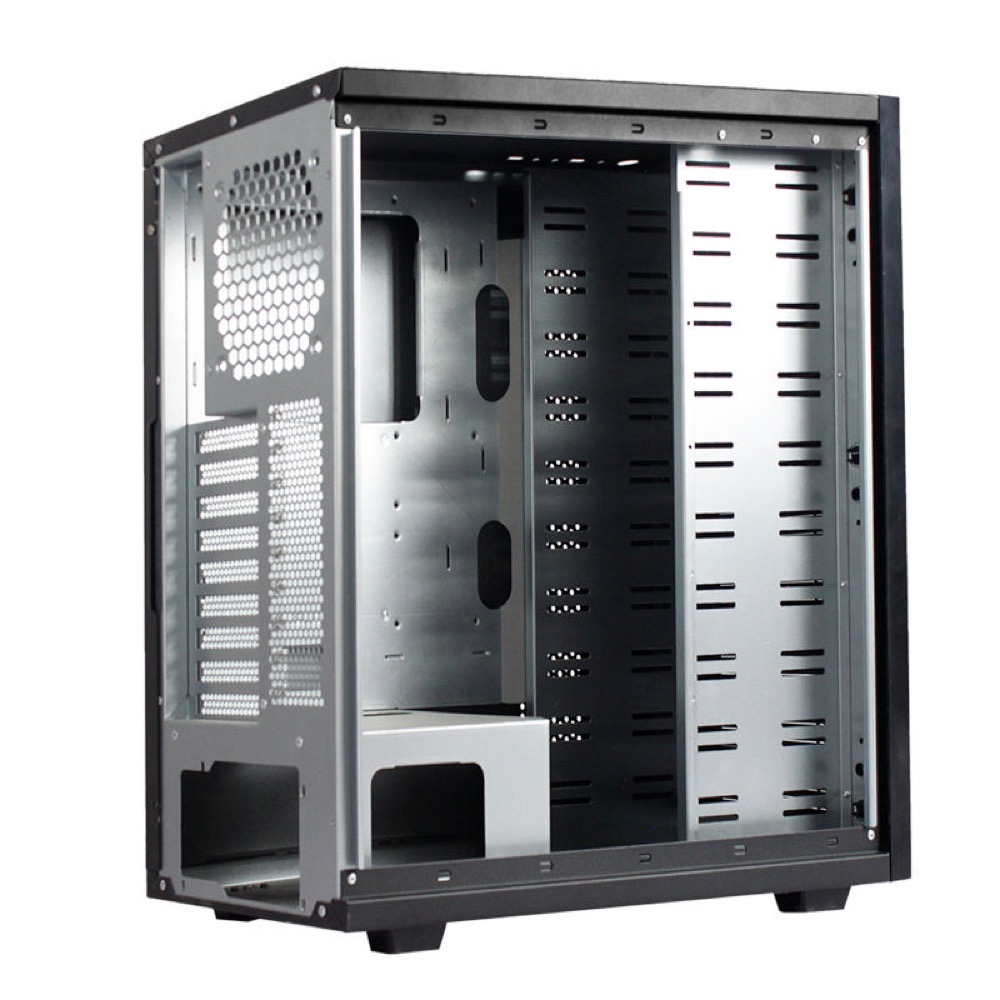

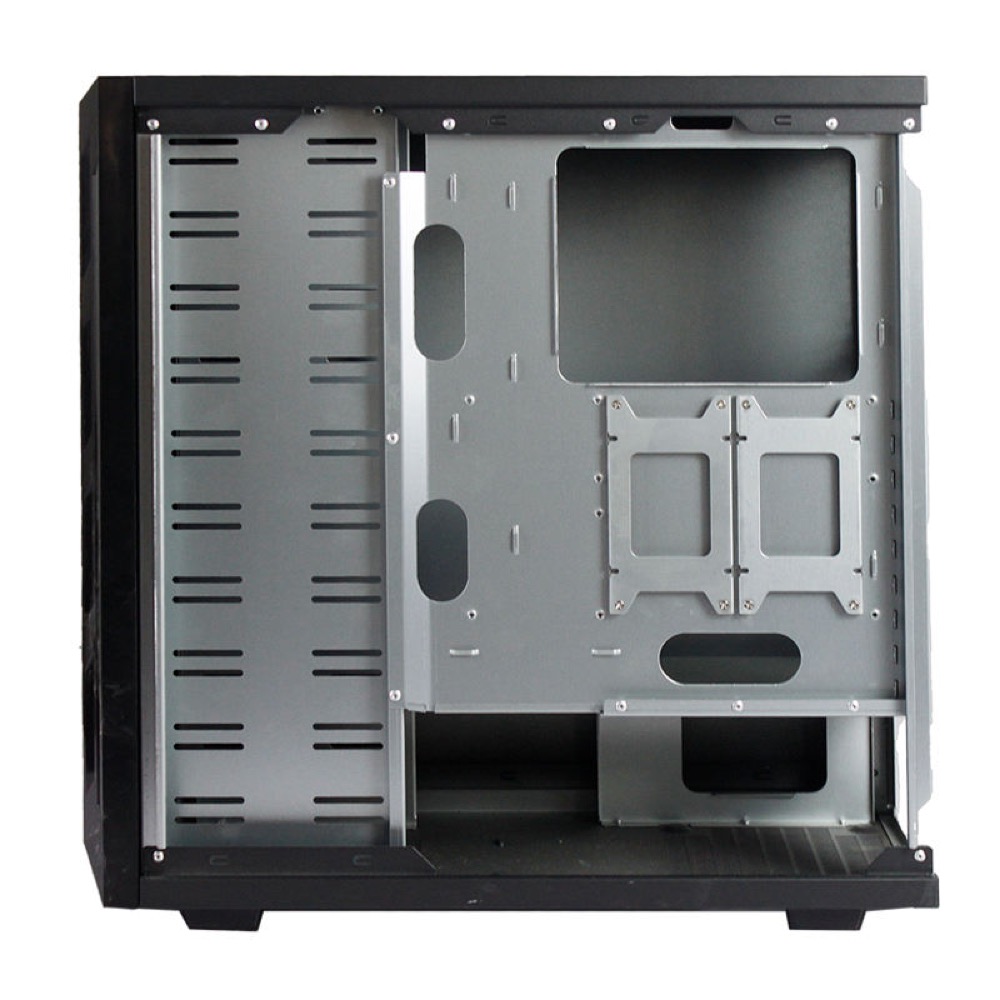

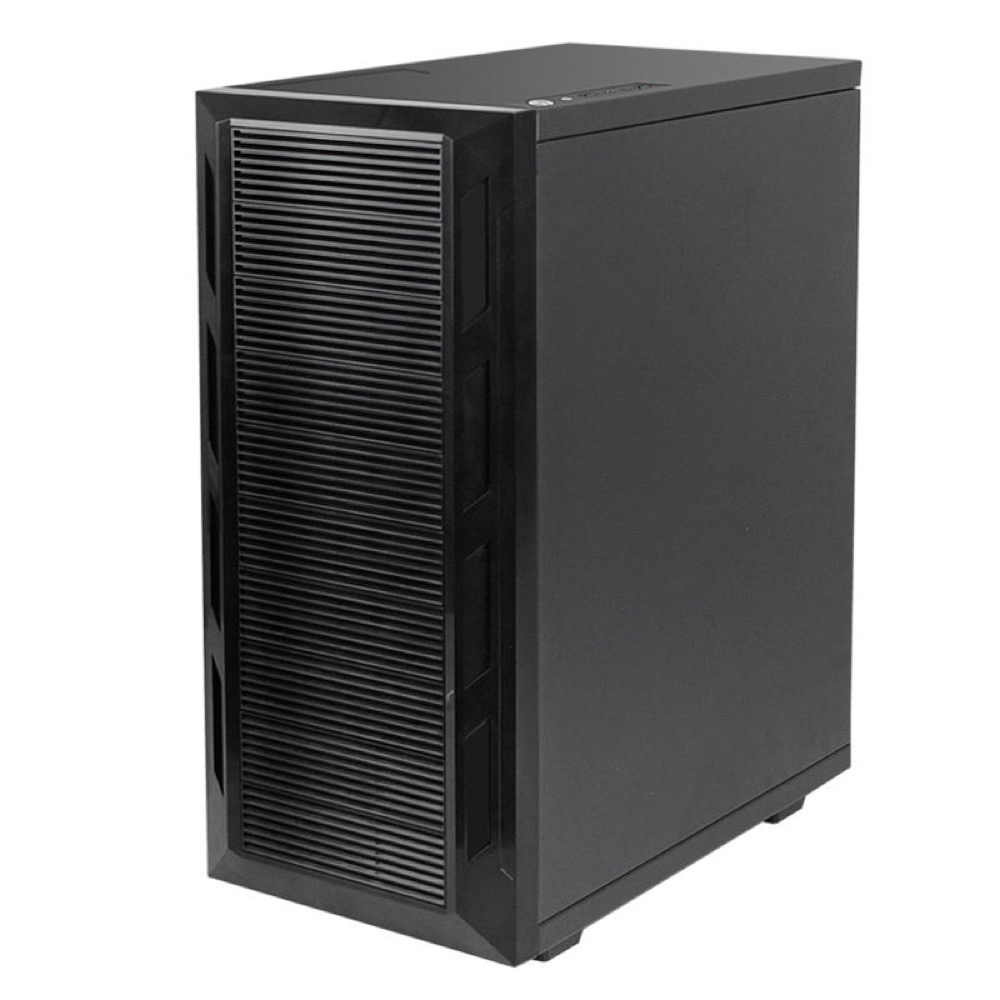

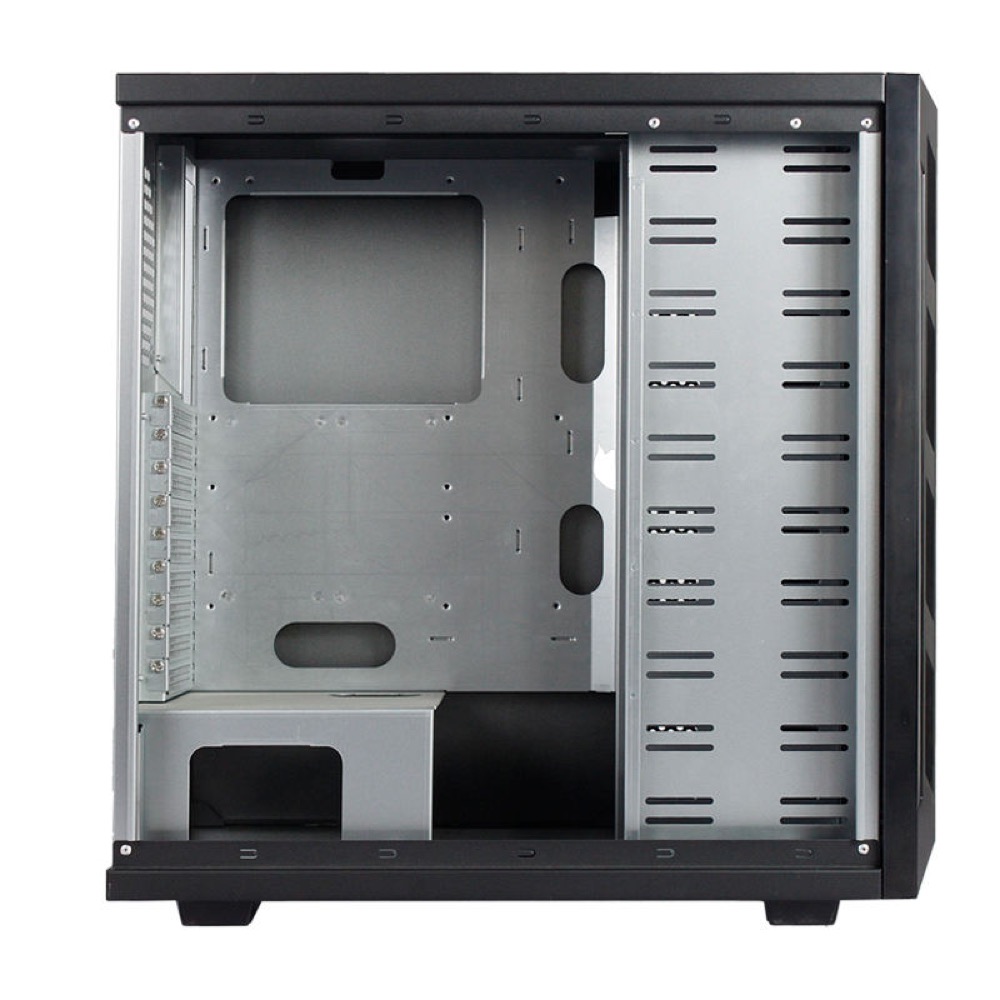

T8-480 ATX Mid-Tower Chassis
Product formEmpty chassis
FamilyDesktop / Tower Chassis
Dimension229(W) × 497(D) × 480(H) mm
MountingDesktop
MotherboardATX
Drive Bays3 bays
T8-480 mid-tower empty chassis for ATX desktop and workstation builds. The supplier lists a steel enclosure measuring 229(W) × 497(D) × 480(H) mm, support for motherboards up to 305 × 245 mm, ATX PSU compatibility, nine PCIe positions, one 3.5-inch HDD bay, two 2.5-inch HDD/SSD bays, a 10-position 5.25-inch optical-drive area, one included 120 × 120 × 25 mm fan, front USB 3.0 ports, and support for CPU coolers up to 180 mm.
Specifications
Identity
| Model Number | CHS-SRV-T8-480 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty steel mid-tower chassis with one 120 mm cooling fan. PSU, motherboard, CPU, memory, storage, and graphics card are not included. |
| Use Case / Application | Desktop, Workstation |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Material | Steel |
| Finish / Color | Black |
| Width | 229 mm |
| Height | 480 mm |
| Depth | 497 mm |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 245 mm |
Power Supply
| PSU Support | ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 1 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 3.5-inch HDD, 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 9 slots |
| PCIe Slot Types | Full-height PCIe positions |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, Power button |
| Custom I/O Details | Supplier also lists a 10-position 5.25-inch CD/optical-drive area, ATX PSU support, CPU cooler clearance up to 180 mm, and a water-cooling adapter. |
