In stock
Server Chassis
CHS-SRV-MS-T12

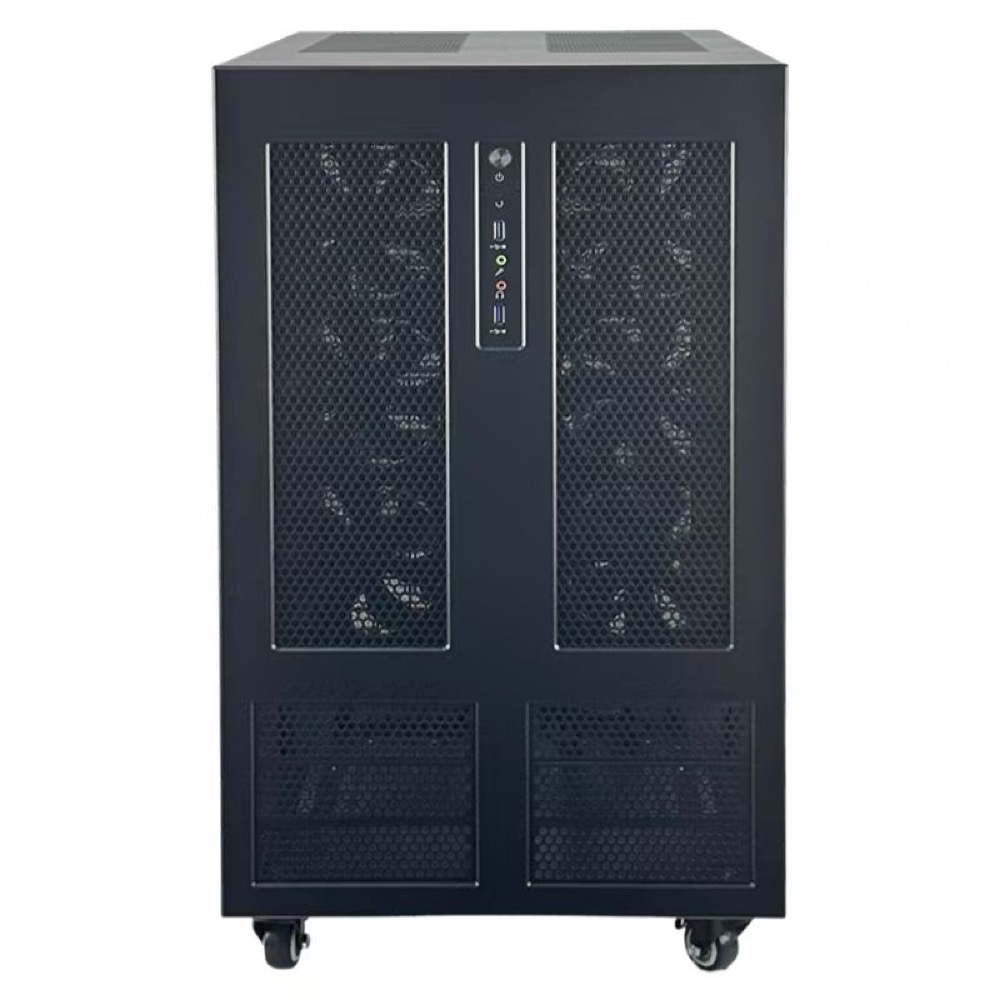

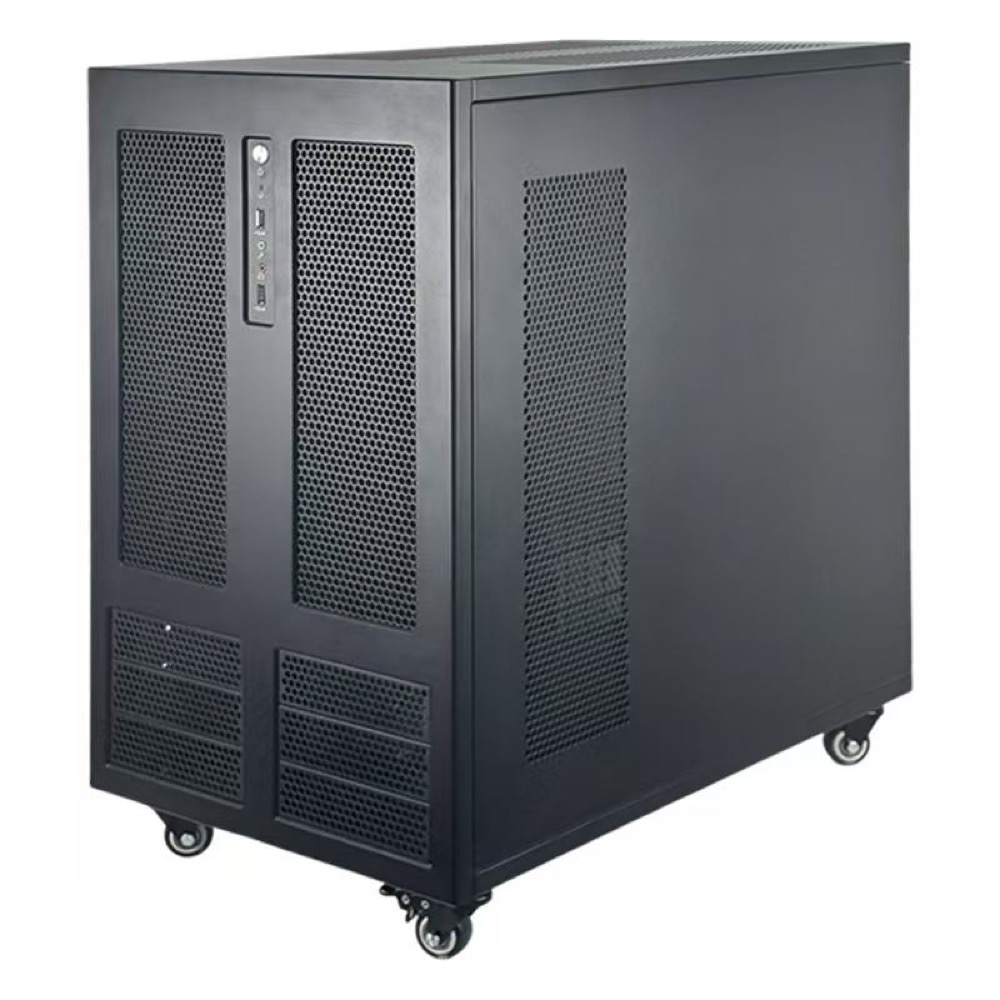

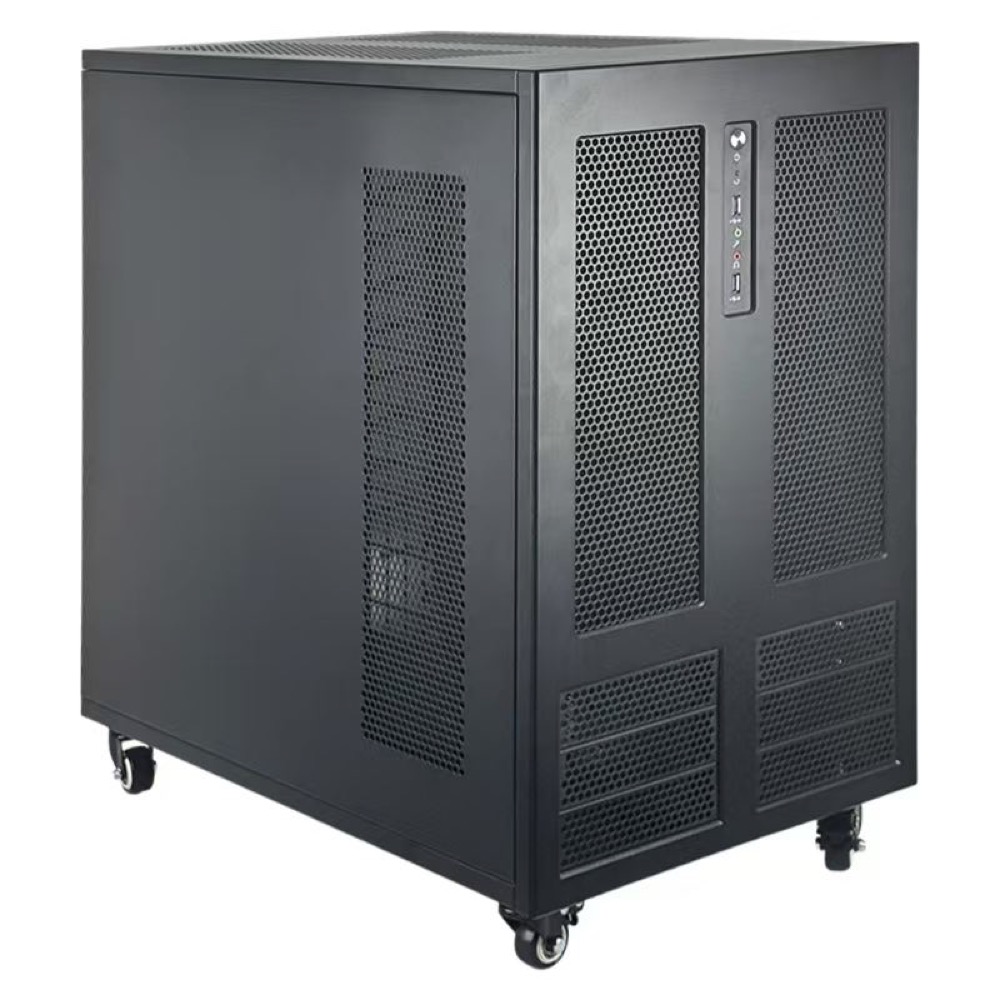

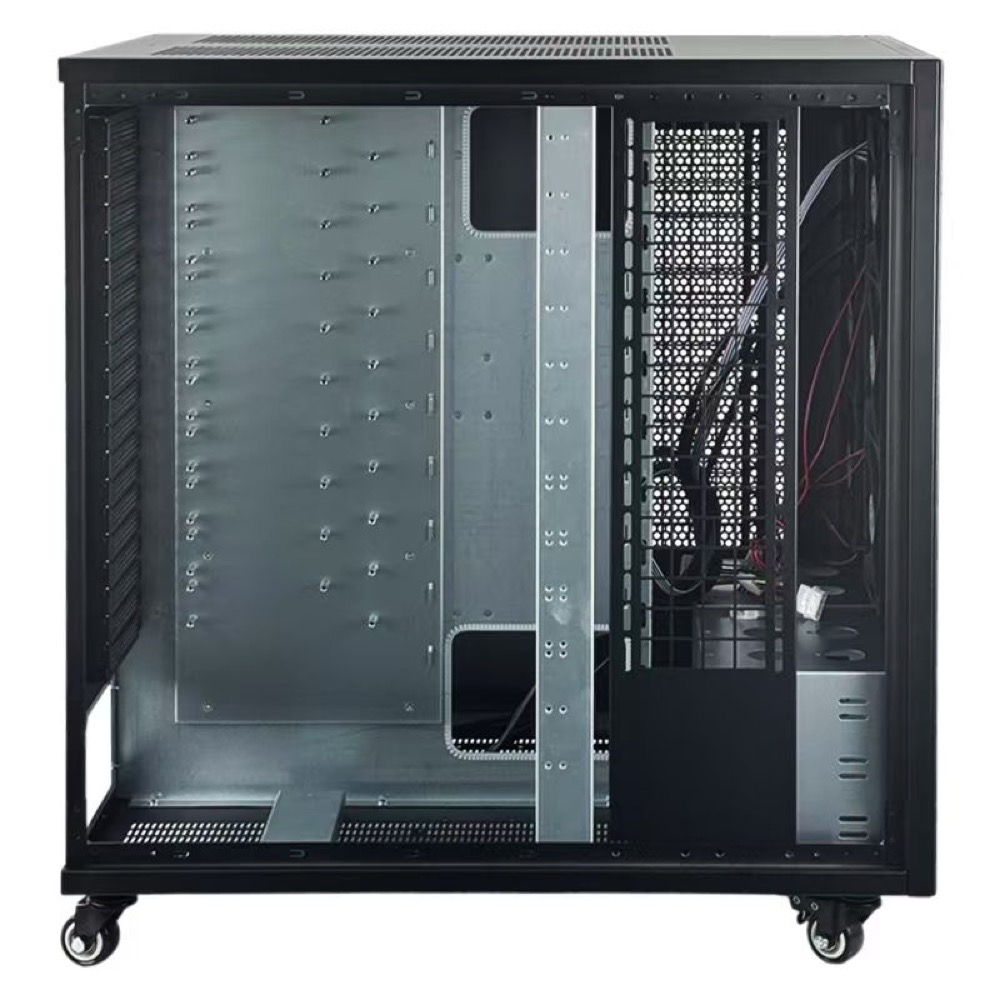

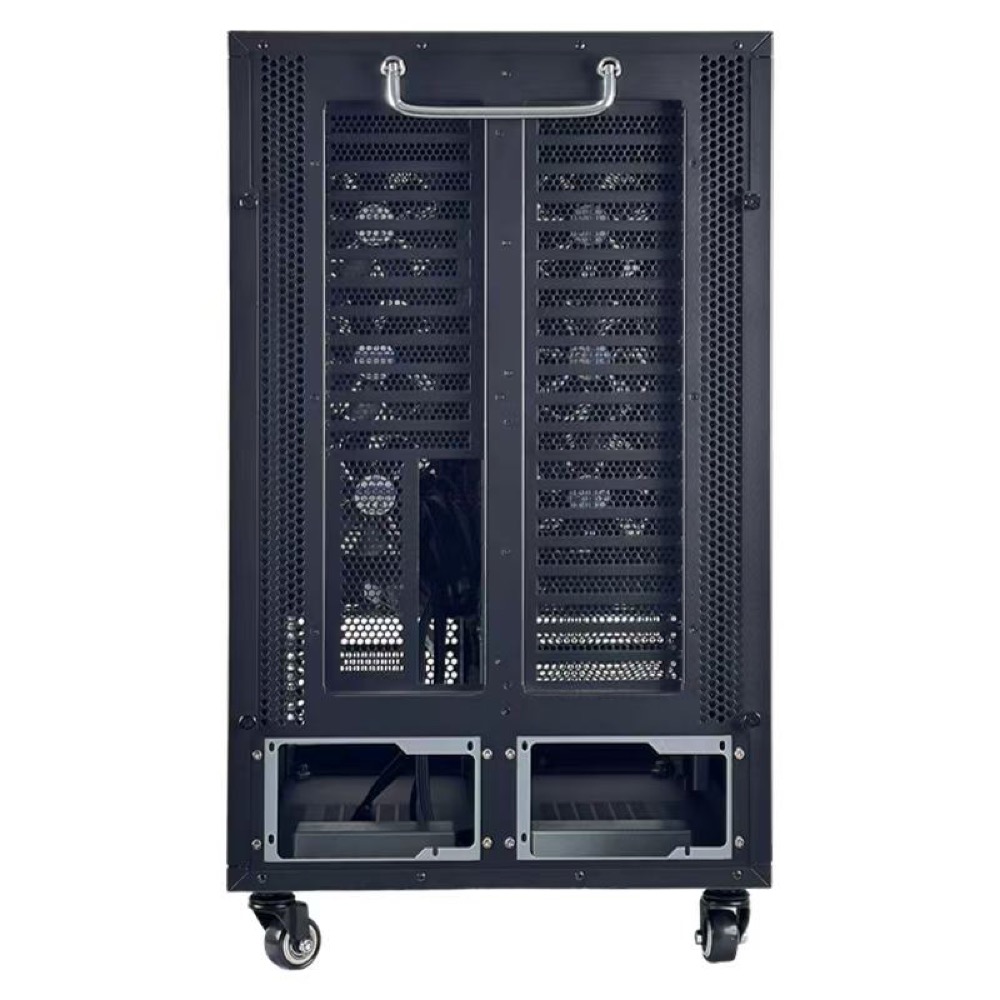

MS-T12 E-ATX Mid-Tower Desktop Chassis
Product formEmpty chassis
FamilyDesktop / Tower Chassis
Dimension380(W) × 600(D) × 600(H) mm
MountingDesktop
MotherboardE-ATX, ATX, MicroATX, Mini-ITX
Drive Bays2 bays
MS-T12 mid-tower desktop chassis for E-ATX and ATX systems. The supplier lists a steel enclosure, dual ATX PSU support with redundant/PS2 adapter options, six 12025 fans, 240/360 mm water-cooling support, twenty PCIe positions, GPU length up to 320 mm, CPU cooler height up to 150 mm, and two 2.5-inch drive positions in the standard configuration. Supplier-listed dimensions are 380(W) × 600(D) × 600(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-MS-T12 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty mid-tower chassis with six 12025 fans. PSUs, motherboard, storage drives, and liquid-cooling components are not included. |
| Use Case / Application | Desktop, Workstation |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Material | Steel |
| Width | 380 mm |
| Height | 600 mm |
| Depth | 600 mm |
| Weight | 28 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 305 × 345 mm |
Power Supply
| PSU Support | ATX PSU, Redundant PSU adapter |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 0 bays |
| 2.5-inch Drive Bays | 2 bays |
| Drive Types | 2.5-inch HDD/SSD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 20 slots |
| PCIe Slot Types | PCIe expansion positions |
Cooling and Thermal
| Included Fan Count | 6 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 6 |
I/O and Connectivity
| Front I/O | 2 × USB 3.0, AUX audio, Microphone, Reset button, Power button |
| Custom I/O Details | Supplier lists six 5.25-inch CD-room positions with a modular exchange option for four 3.5-inch HDD bays, two 2.5-inch HDD positions in the standard configuration, 240/360 mm water-cooler support, CPU cooler height up to 150 mm, GPU length up to 320 mm, and redundant/PS2 PSU adapter support. |
