In stock
Server Chassis
CHS-SRV-N4-BAREBONE

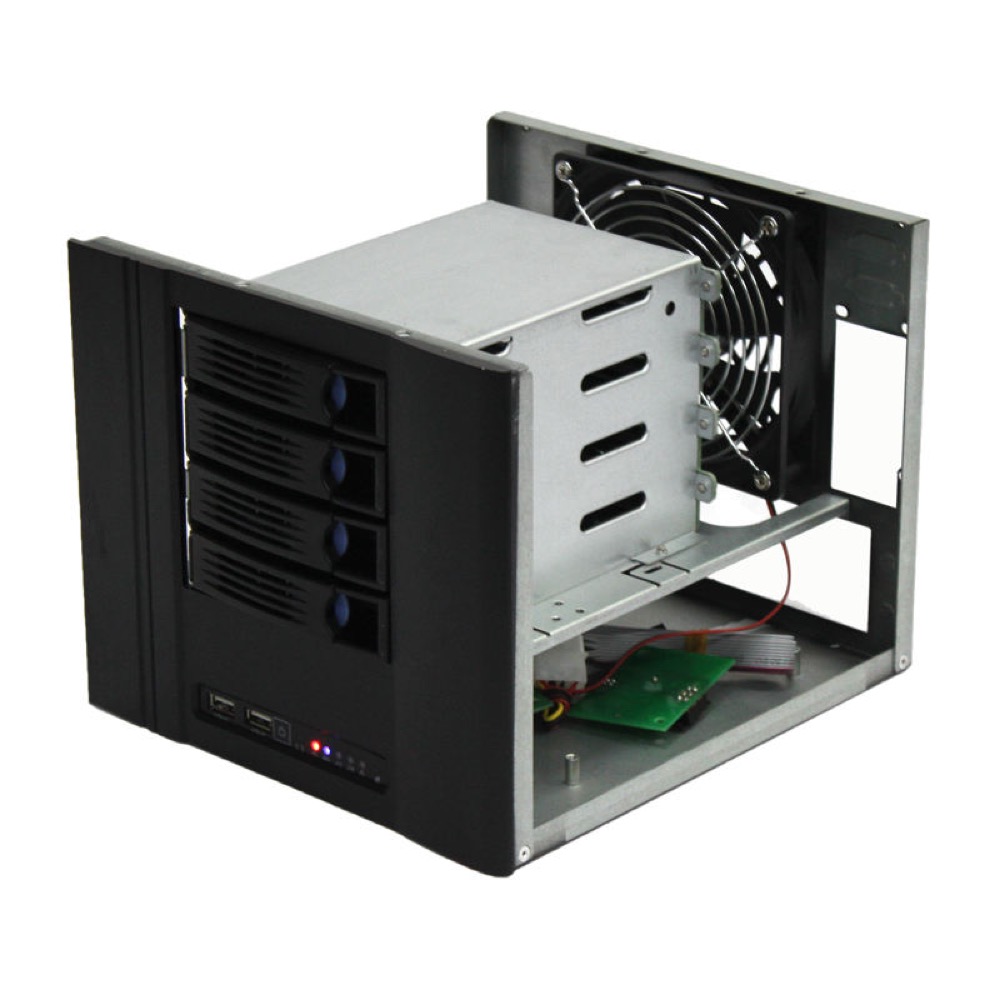

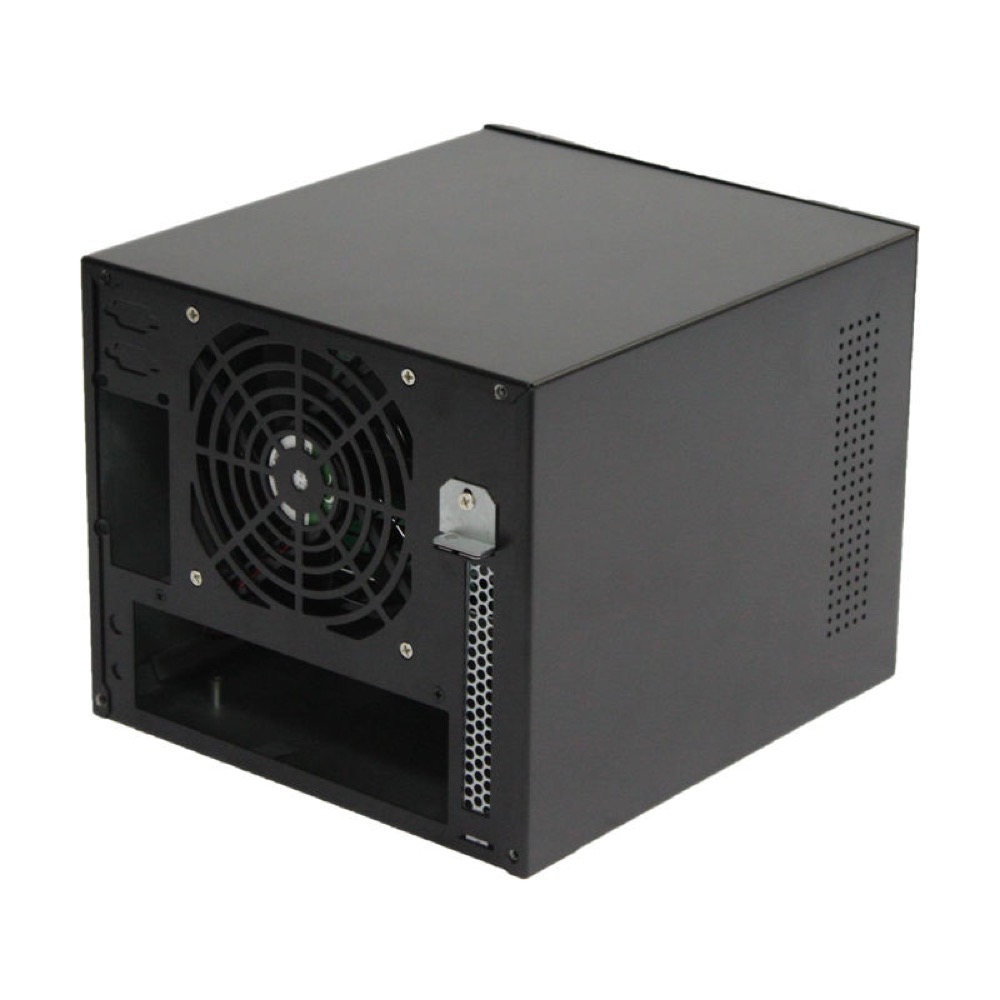

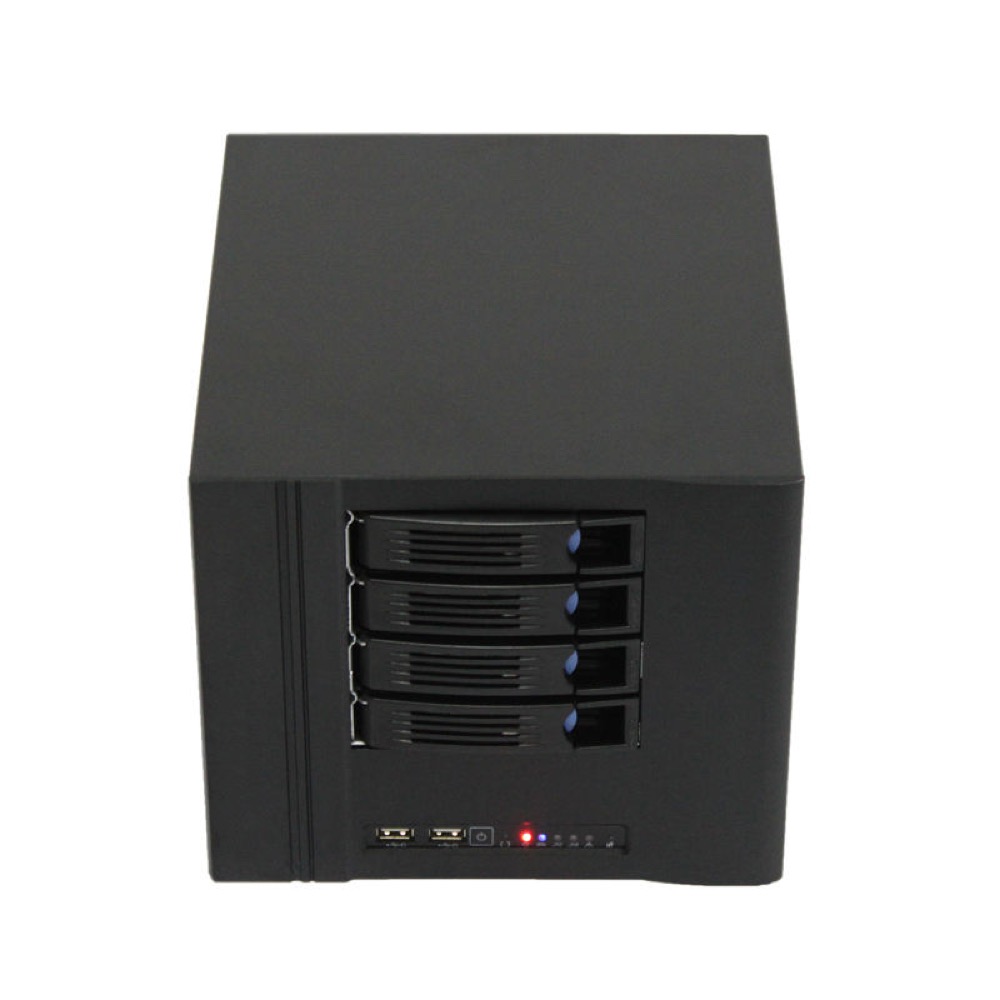

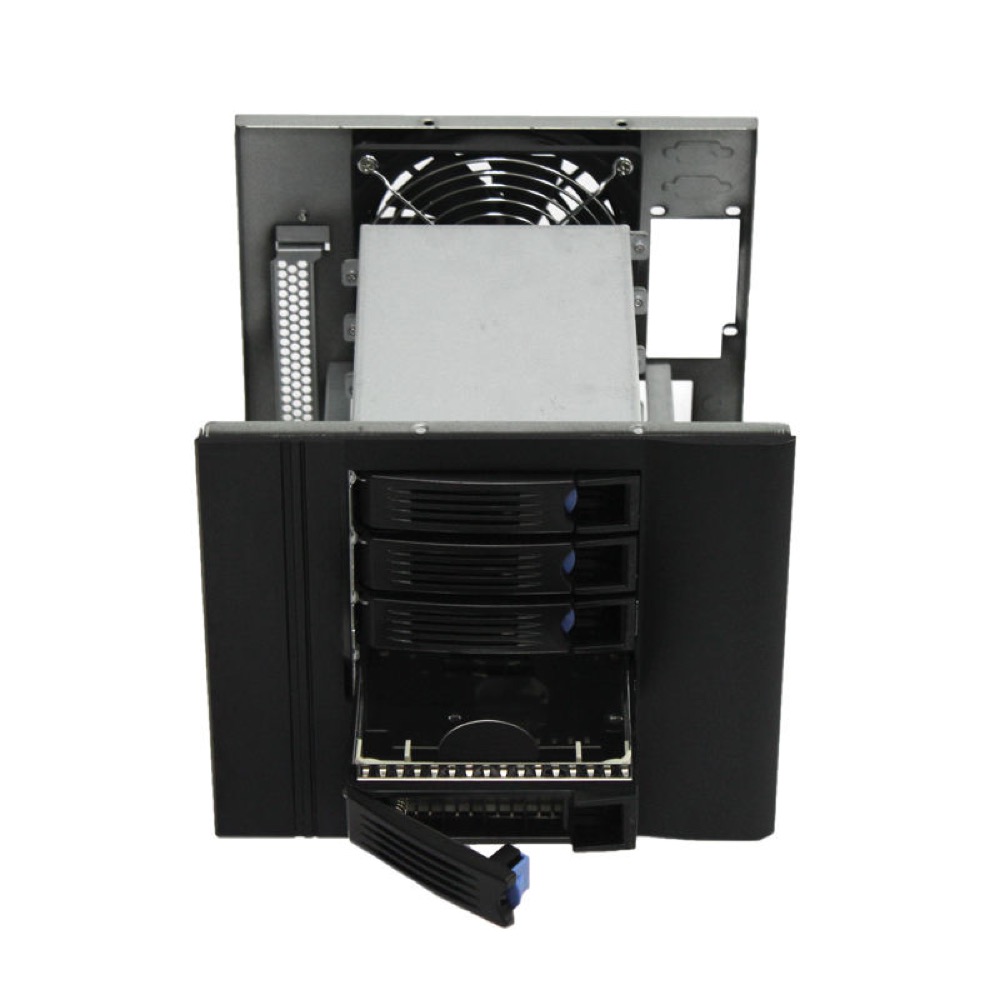

N4 4-Bay Mini-ITX Hot-Swap NAS Chassis
Product formBarebone
FamilyStorage / NAS Chassis
Dimension220.4(W) × 244.5(D) × 189.8(H) mm
MountingDesktop
MotherboardMini-ITX
Drive Bays4 bays
Compact Mini-ITX NAS chassis with four hot-swappable 3.5-inch drive bays, an included SATA backplane, FLEX power-supply support, one included 12025 fan, one full-height PCIe slot, and front USB, power, and hard-drive indicators. The enclosure measures 220.4 × 244.5 × 189.8 mm and uses SGCC steel.
Specifications
Identity
| Model Number | CHS-SRV-N4-BAREBONE |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Barebone NAS chassis with four hot-swap drive trays, SATA backplane, one included 12025 fan, and one full-height PCIe slot. FLEX PSU, Mini-ITX motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | NAS, Storage Server, Desktop |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Rack Width | Not rackmount |
| Rack Height | Not rackmount |
| Material | SGCC steel |
| Width | 220.4 mm |
| Height | 189.8 mm |
| Depth | 244.5 mm |
| Weight | 4.48 kg gross / 3.36 kg net |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7 × 7 in) |
Power Supply
| PSU Support | FLEX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 4 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 4 × hot-swappable 3.5-inch SATA/SAS HDD trays |
| Hot-swap Bay Count | 4 bays |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | 1 × full-height and straight PCIe slot |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 included |
I/O and Connectivity
| Front I/O | USB 2.0, Power switch, Power indicator, Hard-drive indicator |
| Custom I/O Details | Front panel includes USB 2.0, a power switch, a power indicator, and a hard-drive indicator. The supplier includes a SATA backplane and supports SATA/SAS drives. |
