In stock
Server Chassis
CHS-SRV-N4

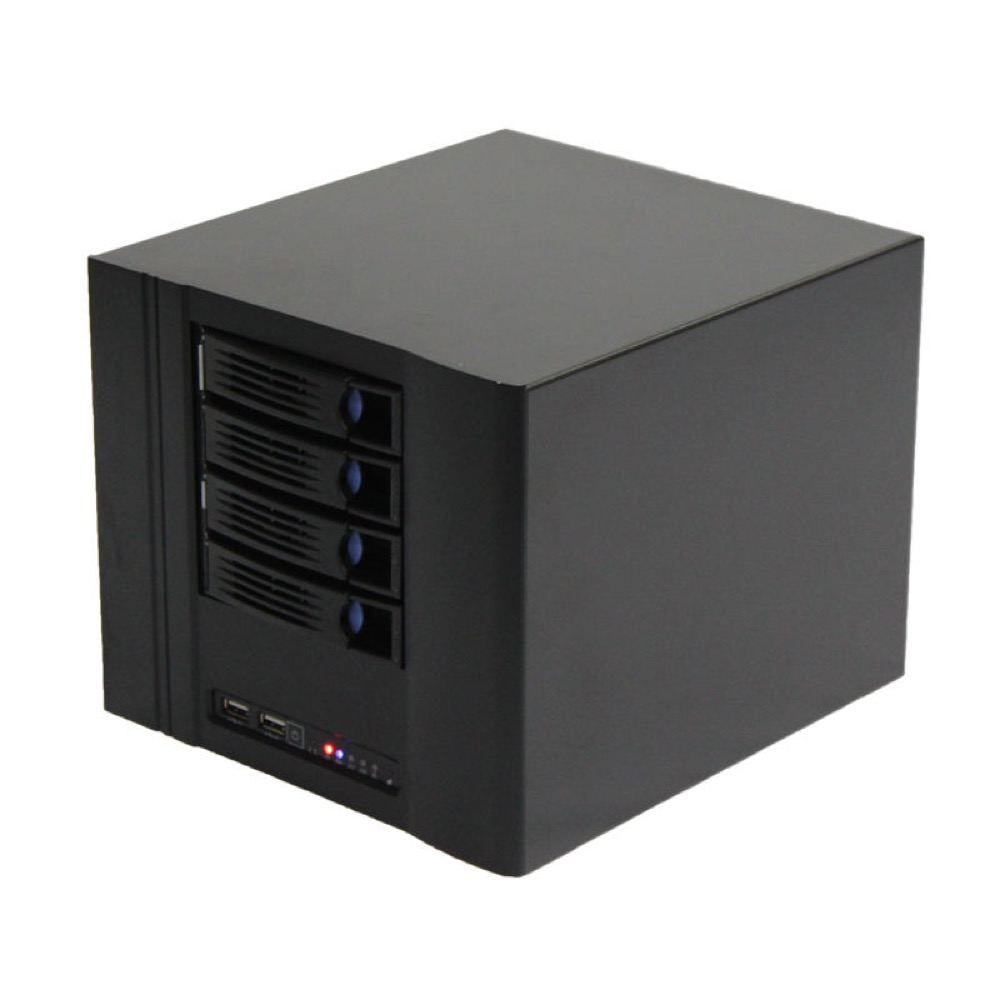

4-Bay Hot-Swap NAS Storage Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension220.4(W) × 244.5(D) × 189.8(H) mm
MountingDesktop
MotherboardMini-ITX
Drive Bays4 bays

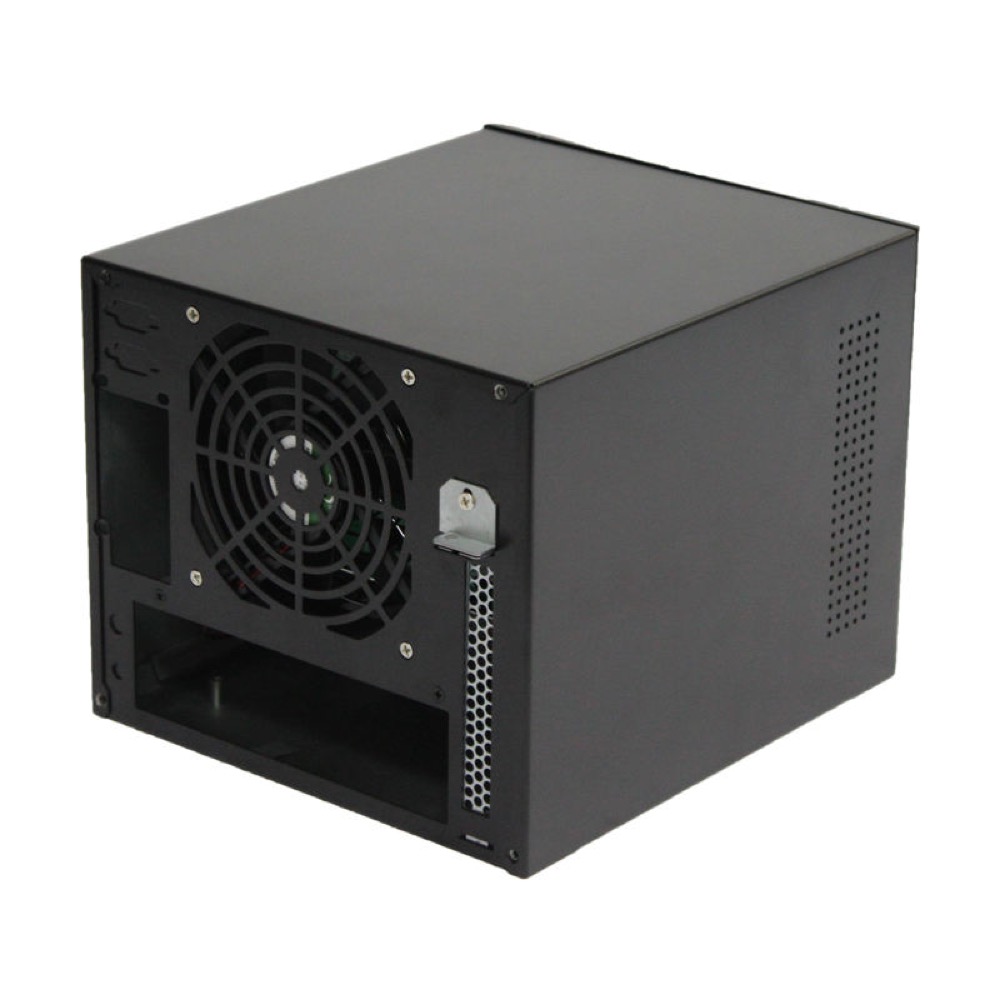

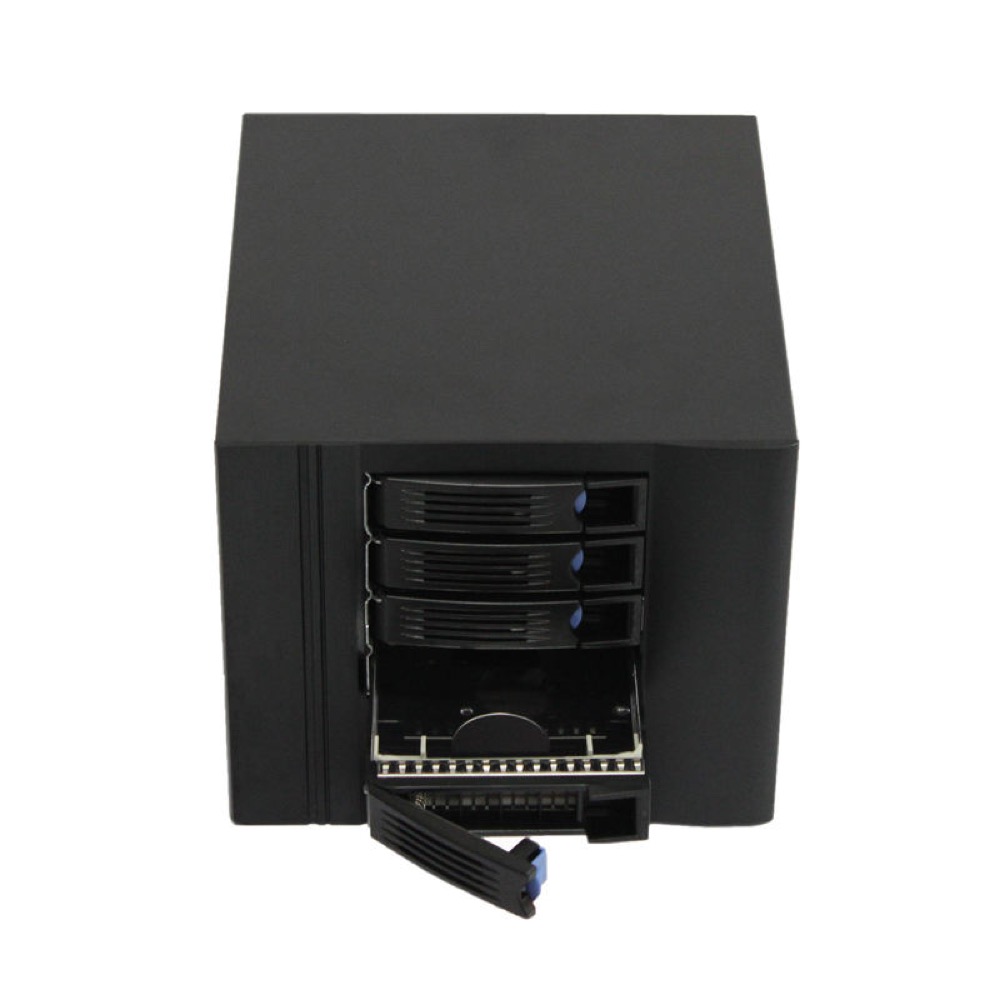

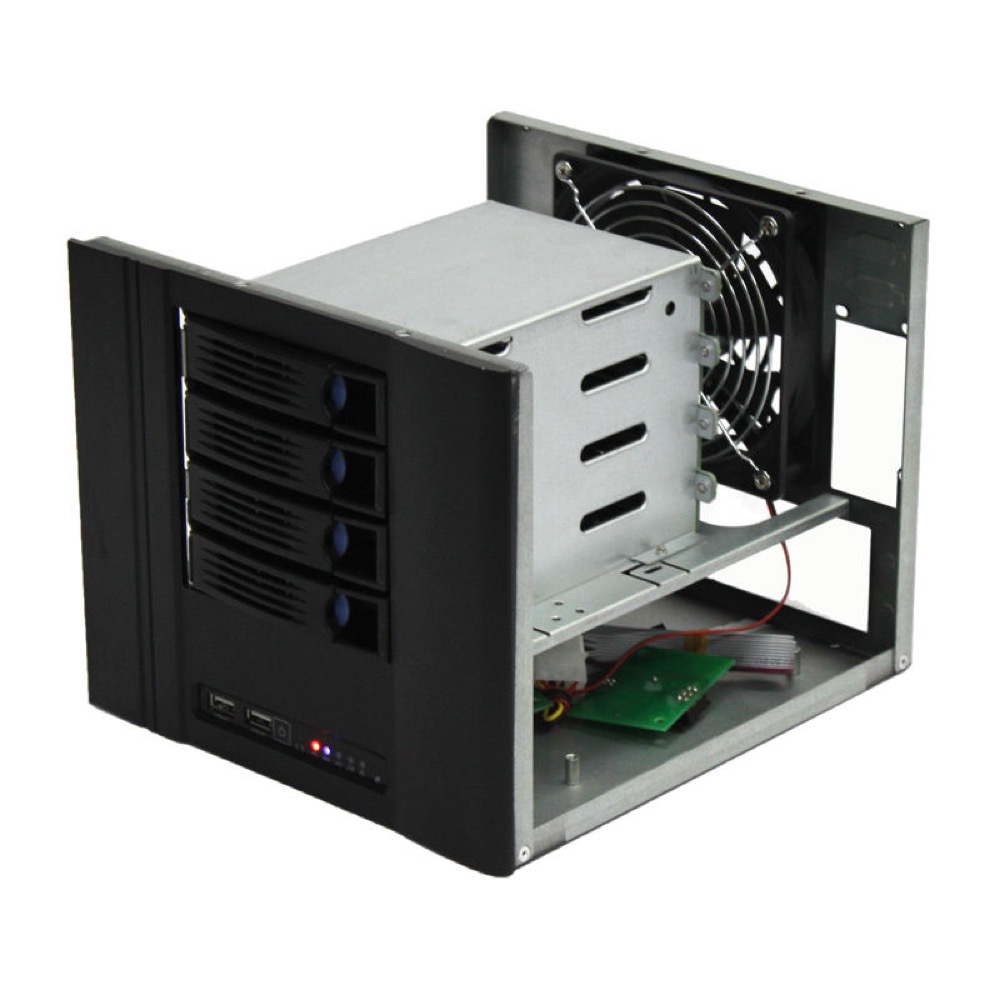

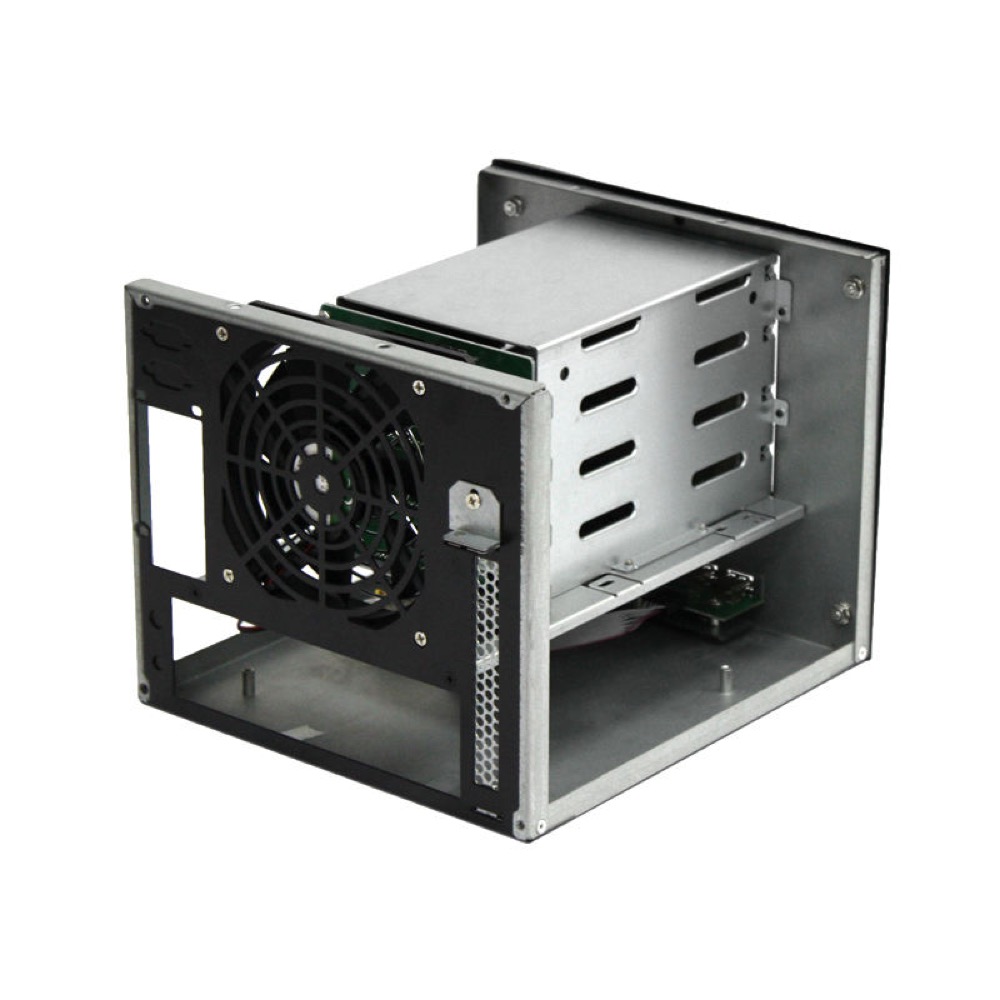

Compact desktop NAS storage chassis with an aluminum-alloy and SGCC-steel enclosure, support for a 7 × 7-inch Mini-ITX motherboard, four 3.5-inch hot-swap drive bays, Flex ATX PSU support, one 12025 fan, and one full-height expansion slot with optional riser-card support. Supplier-listed dimensions are 220.4(W) × 244.5(D) × 189.8(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-N4 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty NAS chassis enclosure; four hot-swap 3.5-inch drive bays; one 12025 cooling fan. Flex ATX PSU support is provided; PSU inclusion is not specified by the supplier. |
| Use Case / Application | Storage / NAS |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Rack Width | Non-rackmount |
| Material | Aluminum alloy and SGCC steel, 1.2 mm flower-free zinc-plated steel |
| Width | 220.4 mm |
| Height | 189.8 mm |
| Depth | 244.5 mm |
| Weight | 4.5 kg gross in supplier description; 6.0 kg in supplier attributes |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7 × 7 inches) |
Power Supply
| PSU Support | Flex ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 4 bays |
| Drive Types | 3.5" |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 4 bays |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | Full-height |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) |
I/O and Connectivity
| Front I/O | USB 3.x, Custom I/O |
| Custom I/O Details | Front panel: one USB 3.0 port, power switch, power indicator, and HDD indicator. One full-height straight expansion slot is available; supplier states that a riser card is needed and optional. |
Similar products
Alternatives in this class

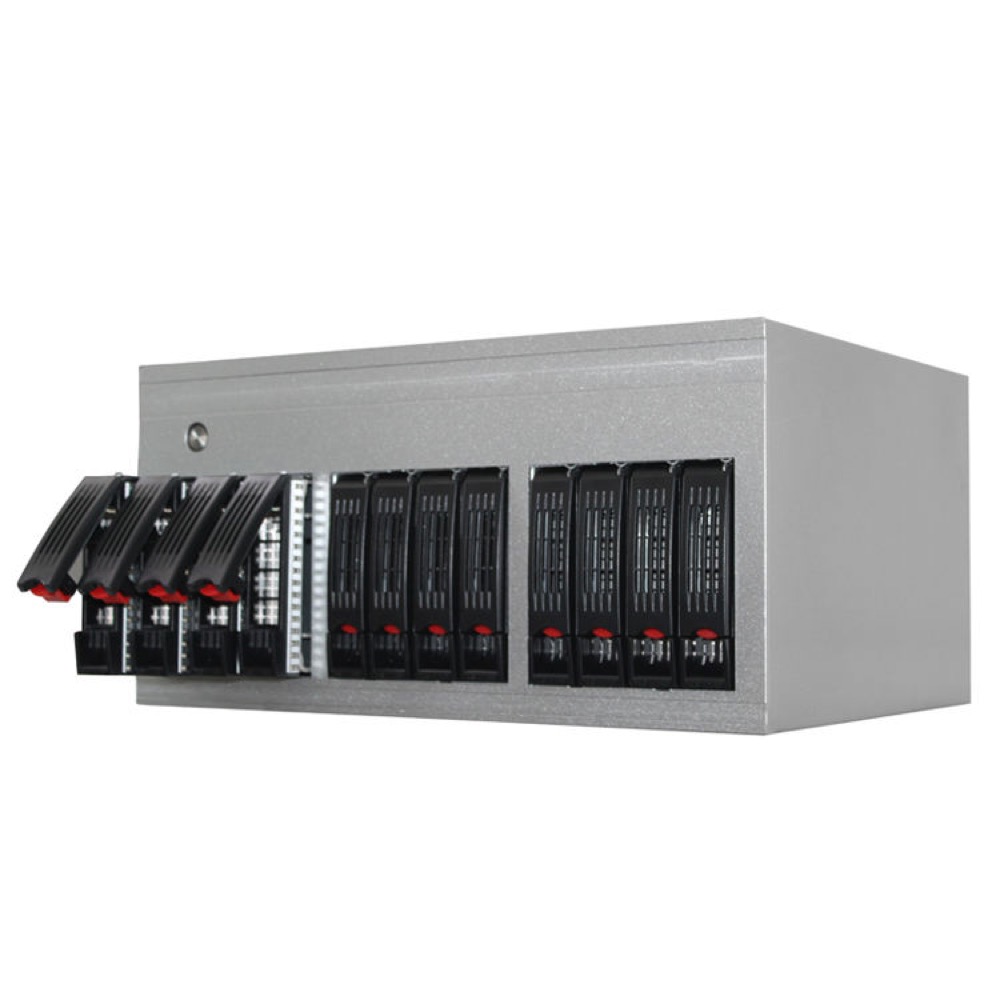

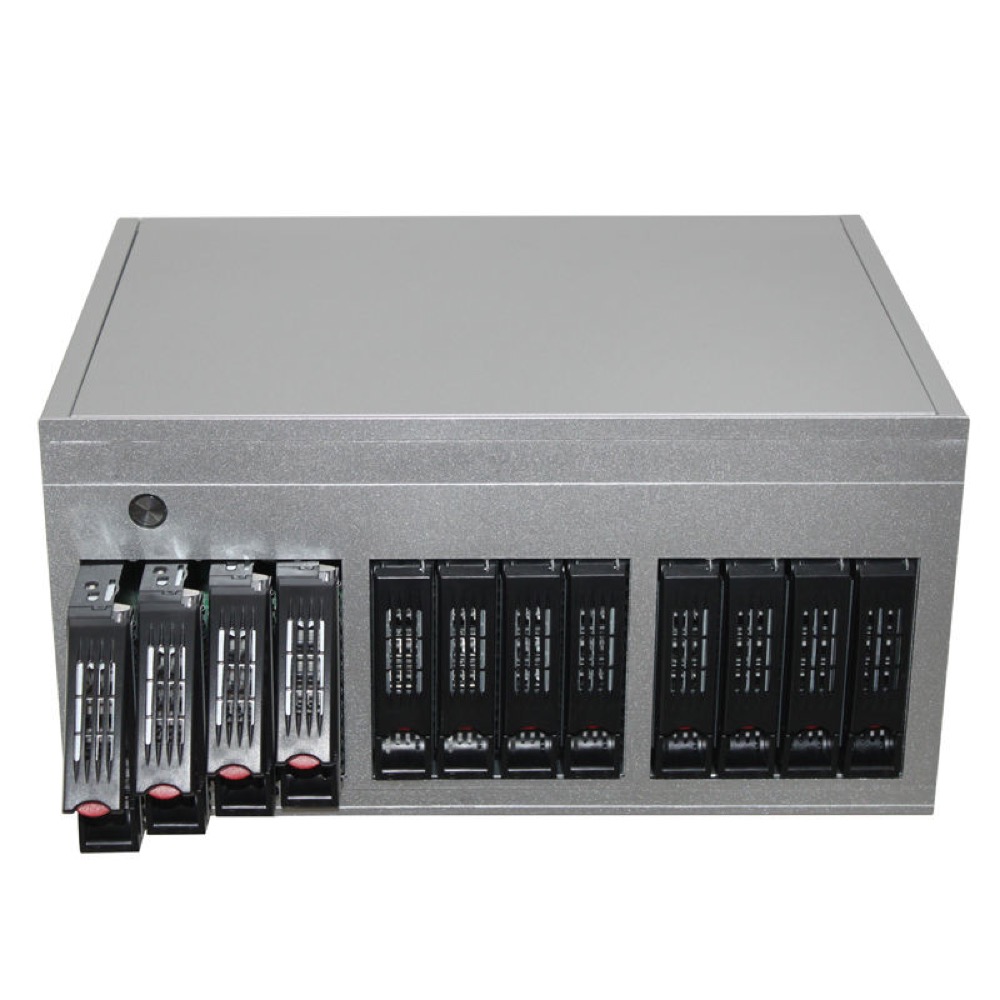

CHS-SRV-N12
