In stock
Server Chassis
CHS-SRV-N4-MT

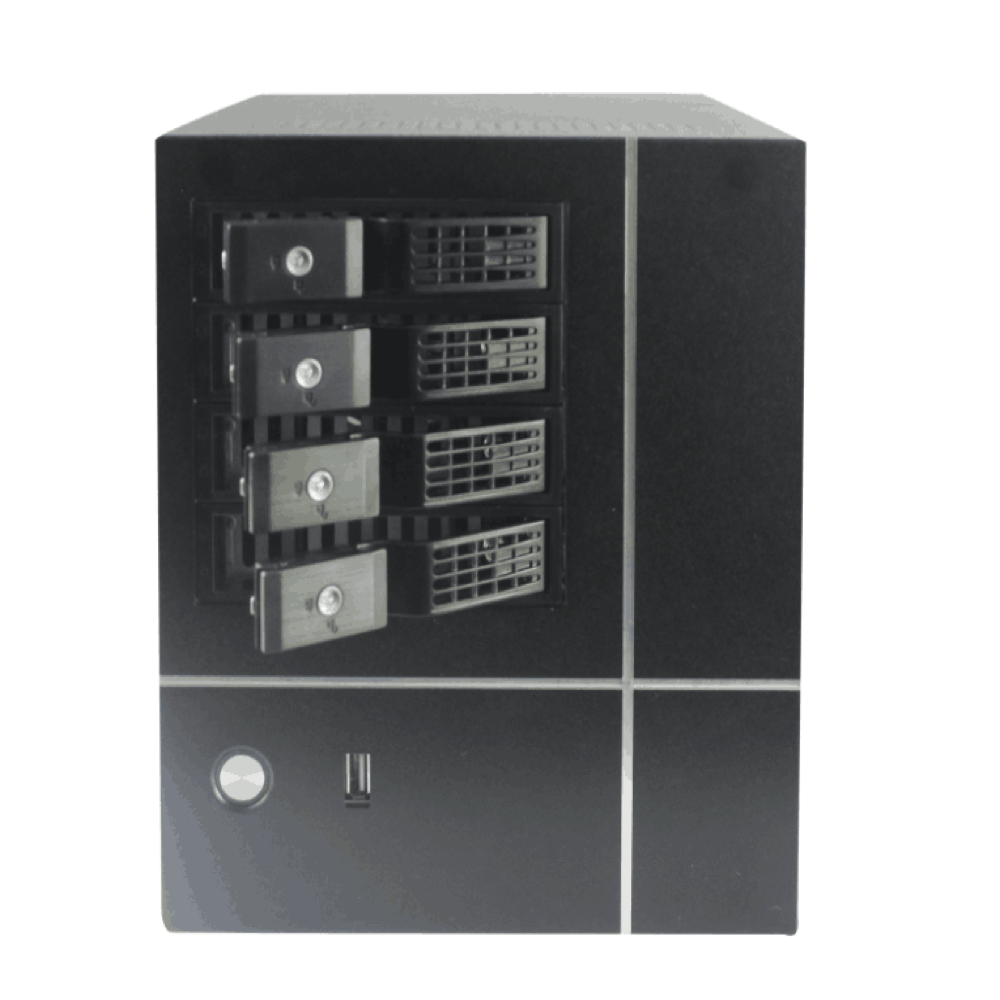

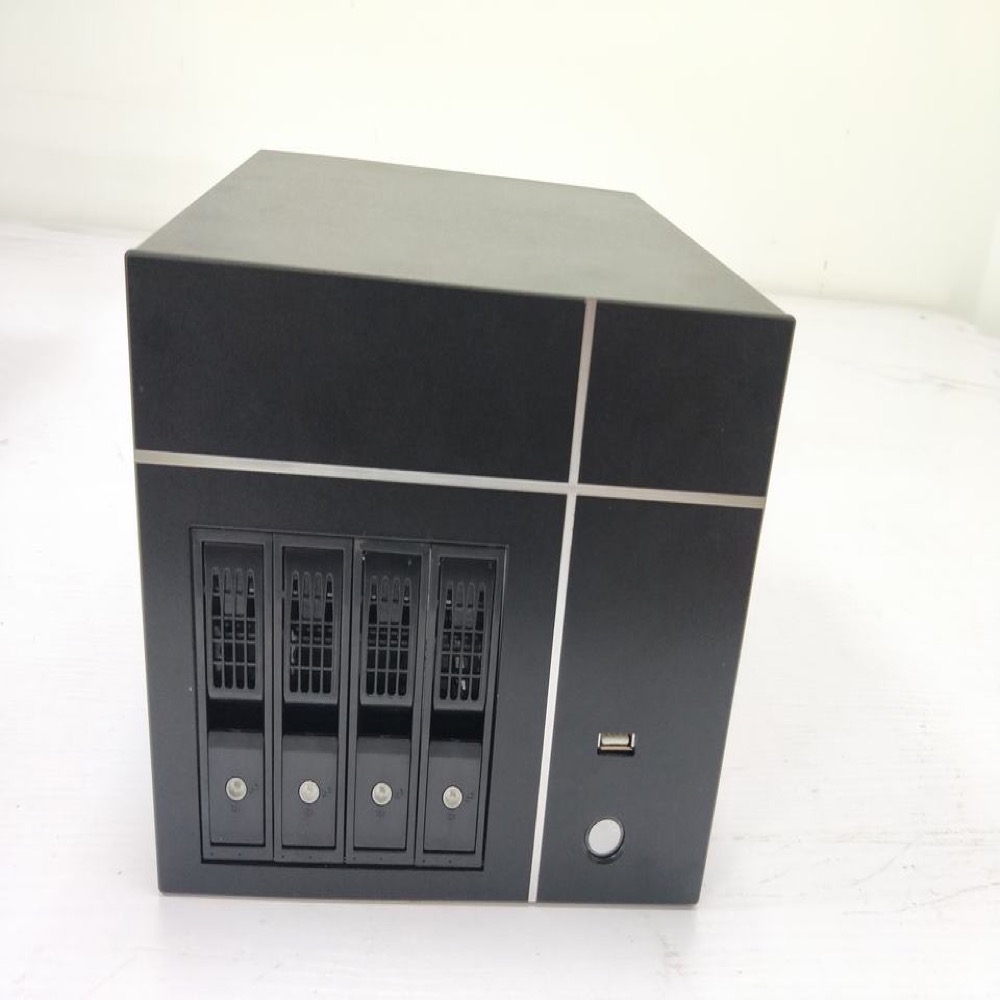

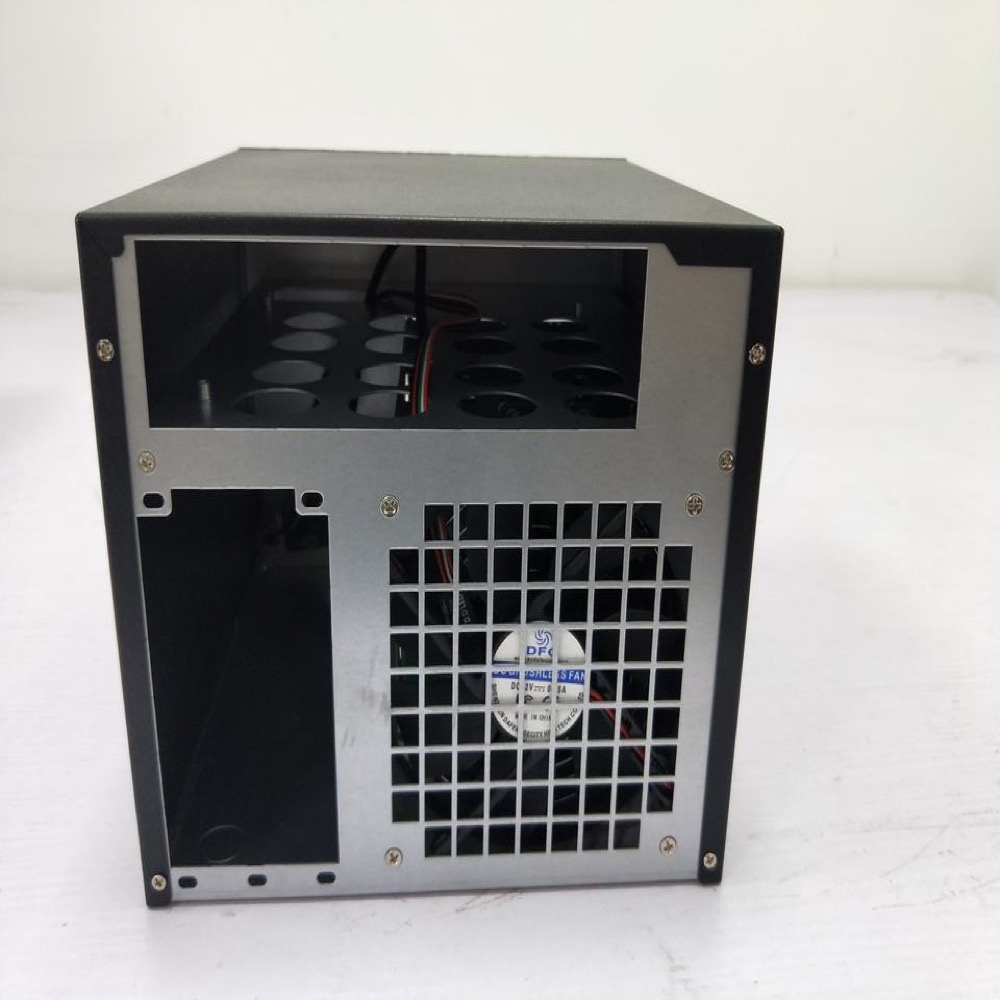

N4-MT 4-Bay Mini-ITX NAS Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension220.4(W) × 244.5(D) × 189.8(H) mm
MountingDesktop
MotherboardMini-ITX
Drive Bays4 bays
N4-MT compact mini-tower NAS chassis for home and small-office storage. The supplier lists four 3.5-inch hard-drive positions, Mini-ITX motherboard support up to 170 × 170 mm, Micro-ATX PSU support, one 12025 cooling fan, a USB 3.0 front port, and aluminum-panel/zinc-plated steel construction. Supplier-listed dimensions are 220.4(W) × 244.5(D) × 189.8(H) mm.
Specifications
Identity
| Model Number | CHS-SRV-N4-MT |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty mini-tower NAS chassis with one 12025 cooling fan. PSU, motherboard, and storage drives are not included. |
| Use Case / Application | Storage / NAS, Industrial |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Material | Aluminum panel, zinc-plated steel |
| Width | 220.4 mm |
| Height | 189.8 mm |
| Depth | 244.5 mm |
| Weight | 4.48 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm |
Power Supply
| PSU Support | Micro-ATX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 4 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 3.5-inch HDD |
| Hot-swap Support | No |
| Hot-swap Bay Count | 0 bays |
PCIe and GPU Support
| PCIe Slots | 0 slots |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 1 |
I/O and Connectivity
| Front I/O | USB 3.0, Power button, Power indicator, HDD activity indicator |
| Custom I/O Details | Supplier lists no expansion slot, one USB 3.0 front port, one power switch, one power indicator, one HDD indicator, 1.2 mm material thickness, and CE/RoHS certification. |
