In stock
Server Chassis
CHS-SRV-N6

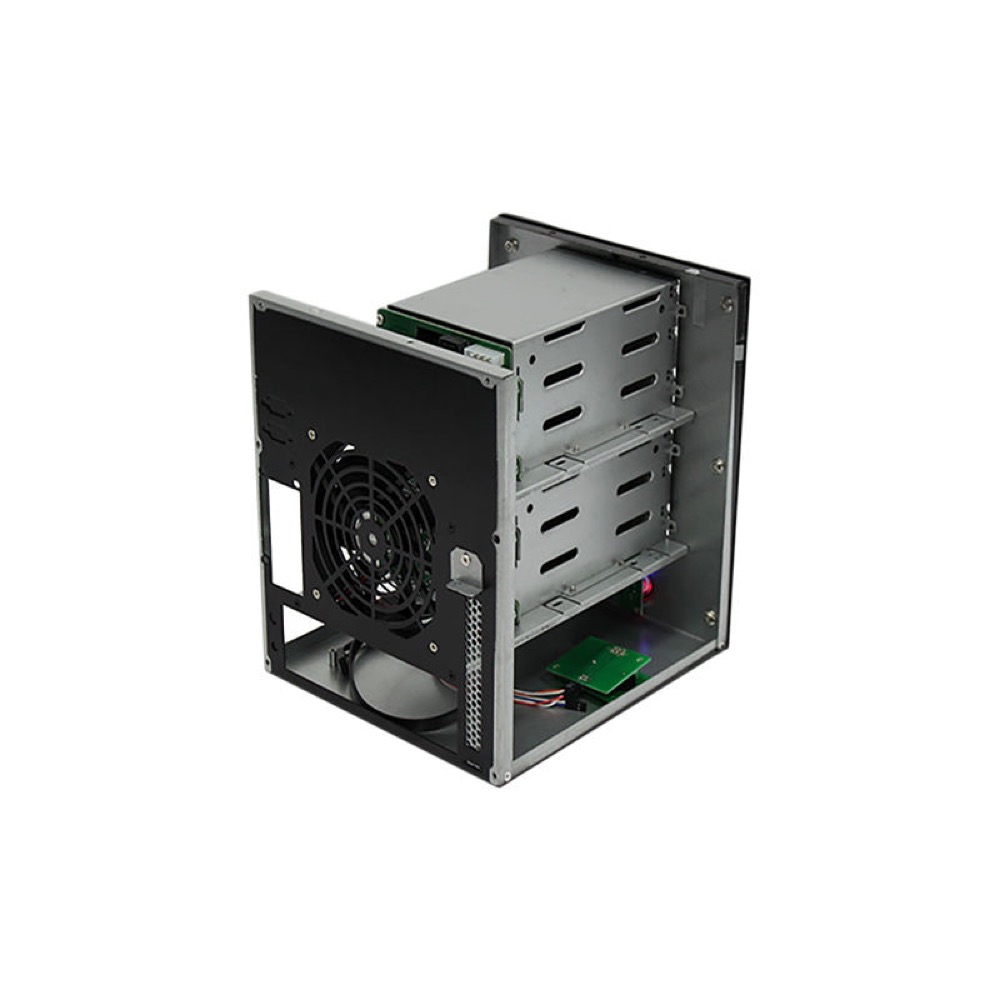

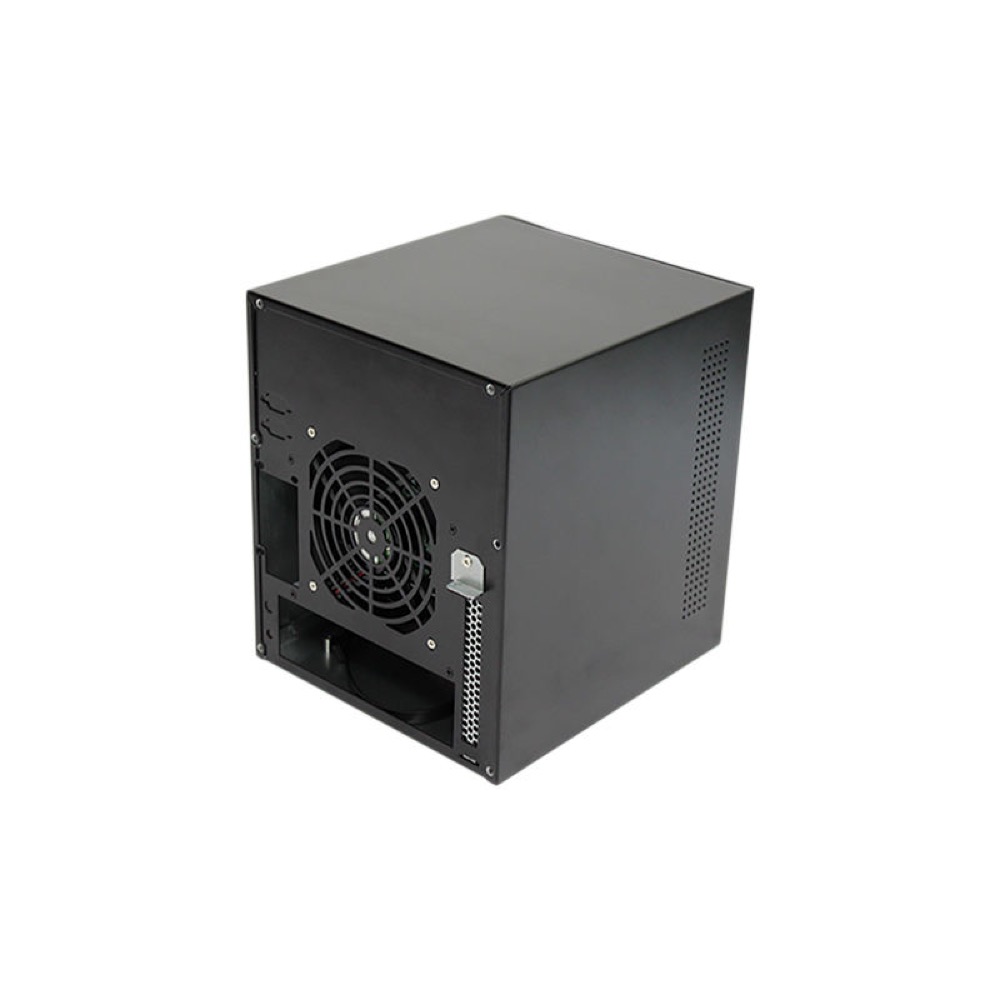

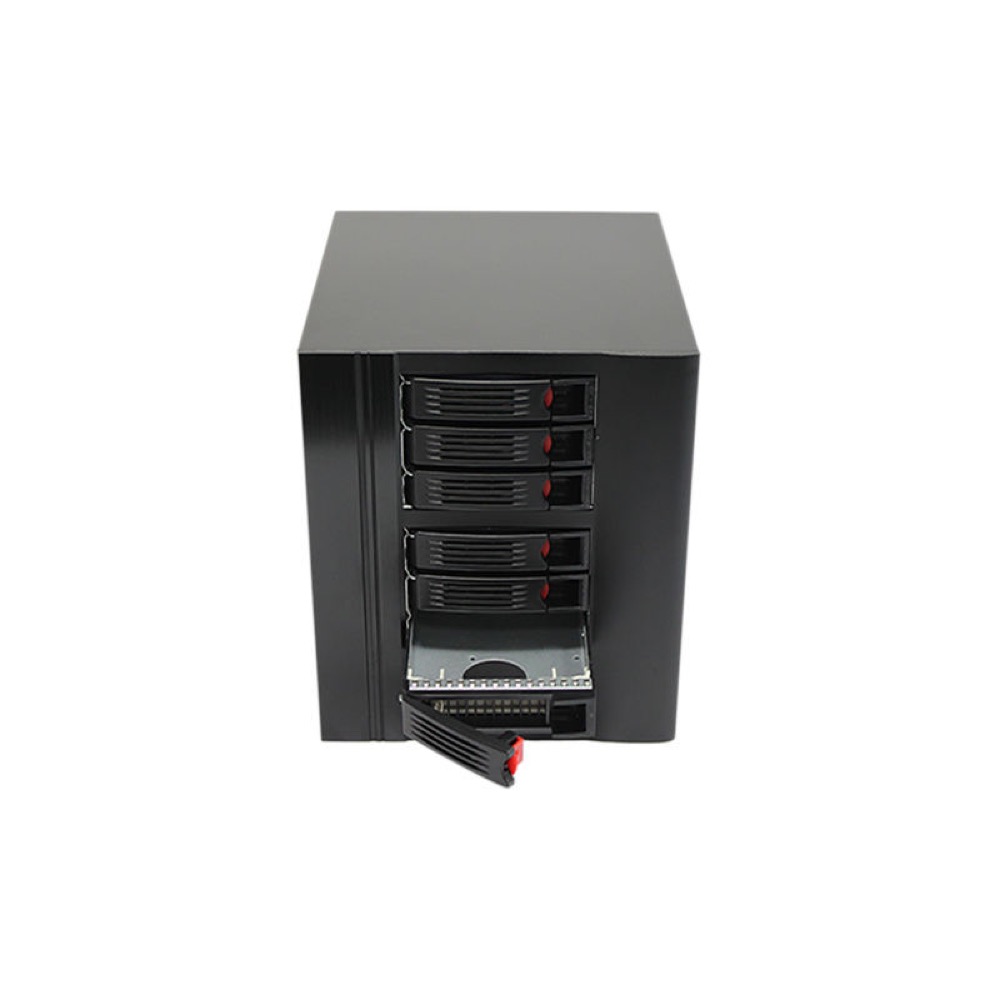

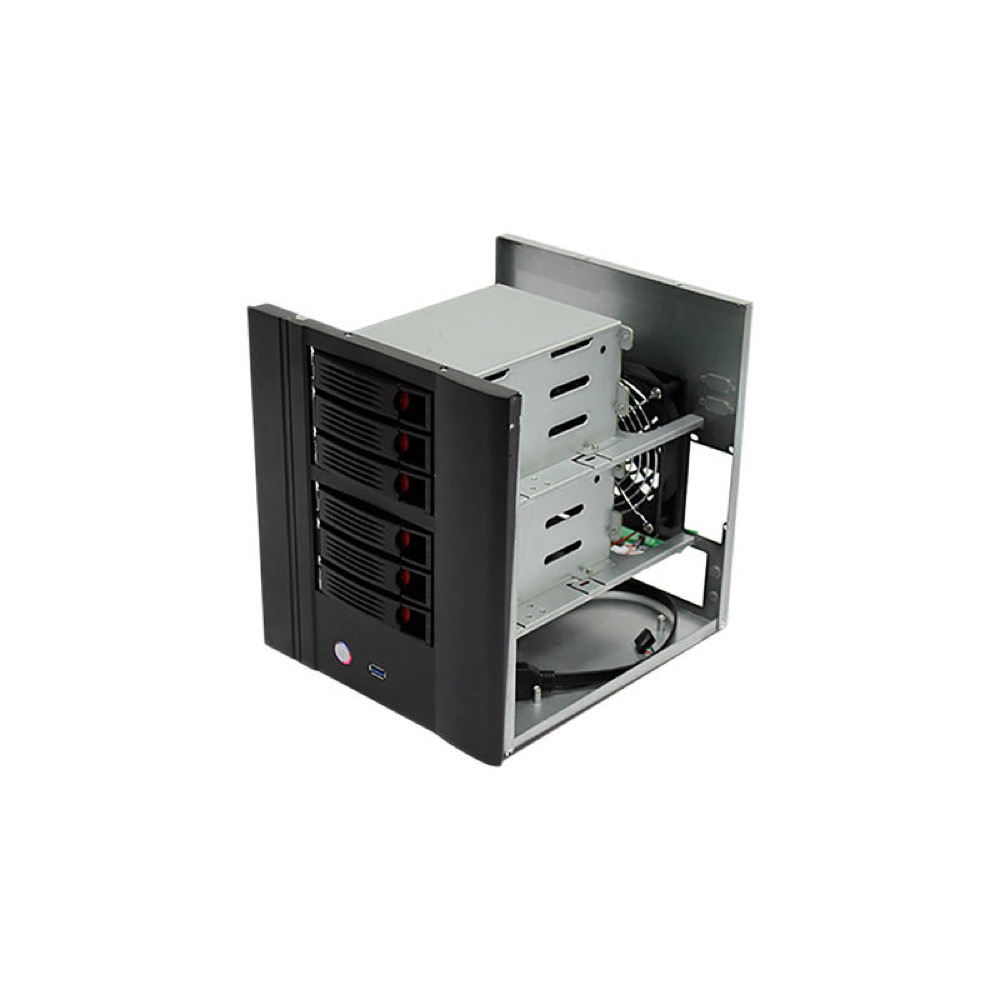

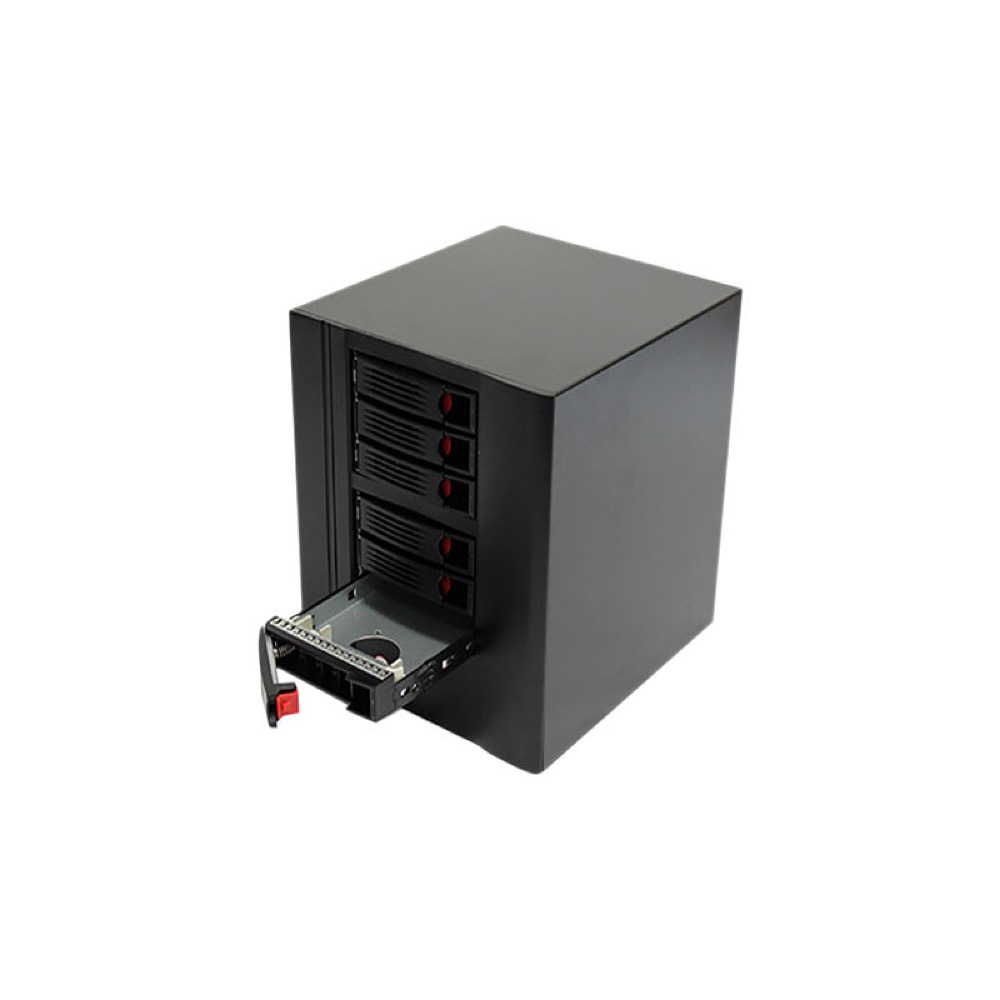

NAS 6bays Mini Tower Server Case Computer Case of Storage Rack Case
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension220(W) × 250(D) × 260(H) mm
MountingTower
MotherboardMini-ITX
Drive Bays6 bays
Compact Mini-Tower storage/NAS chassis for server applications. Supplier-listed configuration: six 3.5-inch hard-disk bays, Mini-ITX motherboard support (170 × 170 mm), FLEX PSU support, one 12025 fan, one full-height straight expansion slot, USB front port, SGCC steel construction (1.2 mm), and CE/RoHS certification. Dimensions: 220(W) × 250(D) × 260(H) mm. The listing also identifies the case as black, with a side panel window, and states that no CD-ROM is included. Single-package information: 34 × 34 × 29 cm and 6.0 kg gross weight.
Specifications
Identity
| Model Number | CHS-SRV-N6 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Chassis enclosure; one 12025 fan; side panel window. Supplier lists FLEX PSU support; PSU inclusion is not specified. |
| Use Case / Application | Storage / NAS, Server |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | SGCC steel |
| Finish / Color | Black; side panel window |
| Width | 220 mm |
| Height | 260 mm |
| Depth | 250 mm |
| Weight | 6.0 kg gross single package; product net weight not specified |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7" × 7") |
Power Supply
| PSU Support | Flex ATX |
Storage and Hot-swap
| 3.5-inch Drive Bays | 6 bays |
| Drive Types | 3.5" |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | Full-height |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (supplier: 12025) |
I/O and Connectivity
| Custom I/O Details | Front USB port (generation not specified); CD-ROM: none. |
