Server Chassis
CHS-SRV-N12-3

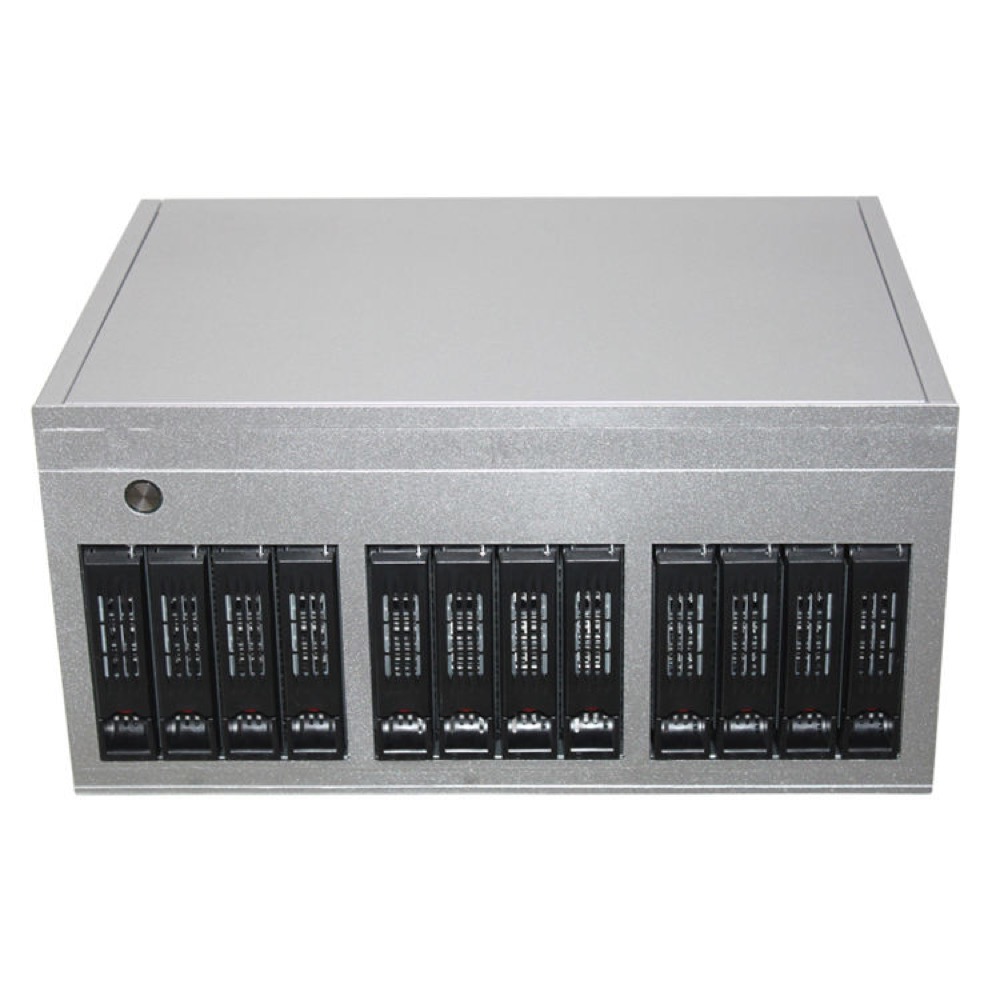

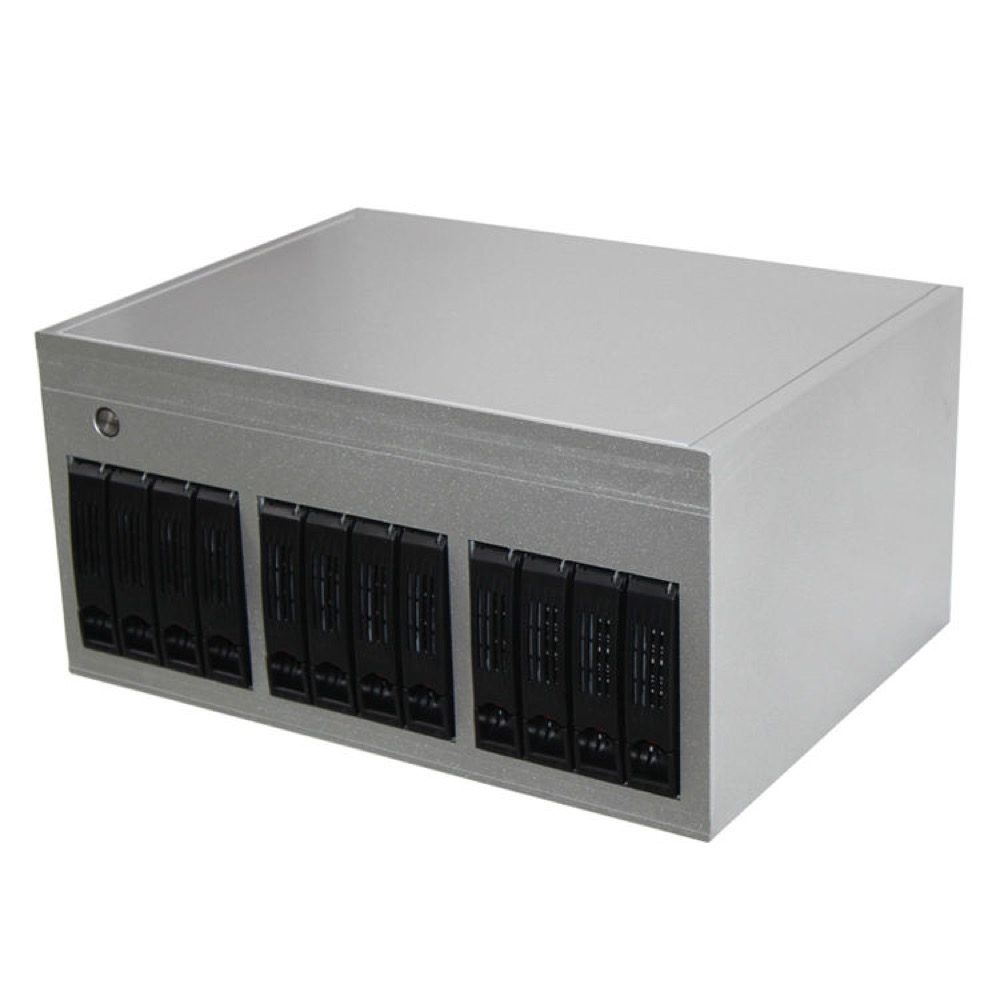

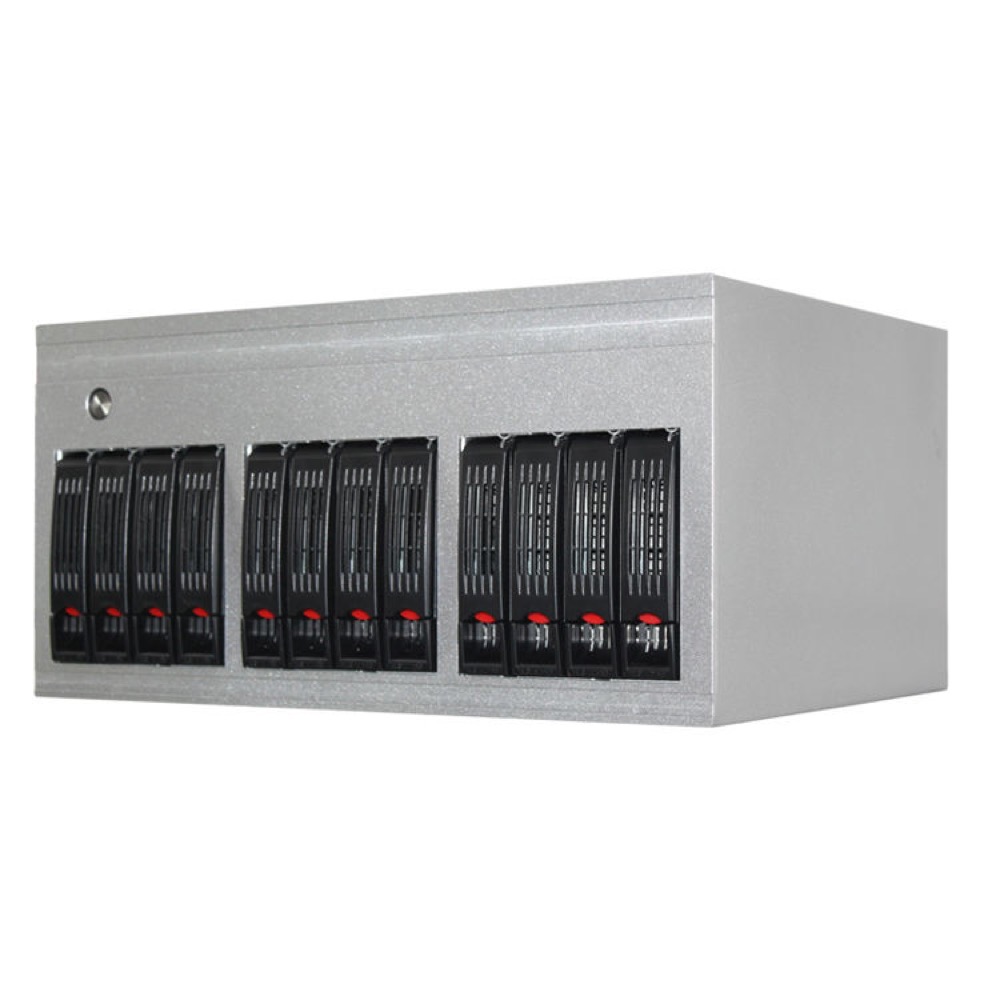

N12 12-Bay Vertical NAS Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension190(W) × 280(D) × 385(H) mm
MountingTower
MotherboardMini-ITX
Drive Bays12 bays
Compact vertical NAS/storage chassis for a 12-drive network-attached storage system. The supplier lists a steel enclosure with 1.2 mm material thickness, support for a 7 × 7-inch motherboard (170 × 170 mm), twelve hot-swap 3.5-inch drive positions, no CD-ROM position, FLEX PSU support, three 12025 fans, no expansion slot, and one front power switch with indicator. Dimensions are 190(W) × 280(D) × 385(H) mm. This is a separate supplier listing from the other N12 records and is retained as its own product because it has a different Alibaba product ID and image set.
Specifications
Identity
| Model Number | CHS-SRV-N12-3 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty NAS chassis enclosure; twelve hot-swap 3.5-inch drive bays; three 12025 cooling fans. FLEX PSU support is provided, but the supplier does not state that a PSU is included. |
| Use Case / Application | Storage / NAS |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | Steel, 1.2 mm |
| Width | 190 mm |
| Height | 385 mm |
| Depth | 280 mm |
| Weight | 9.14 kg gross package weight |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7 × 7 inches) |
Power Supply
| PSU Support | Flex ATX |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 12 bays |
| Drive Types | 3.5-inch |

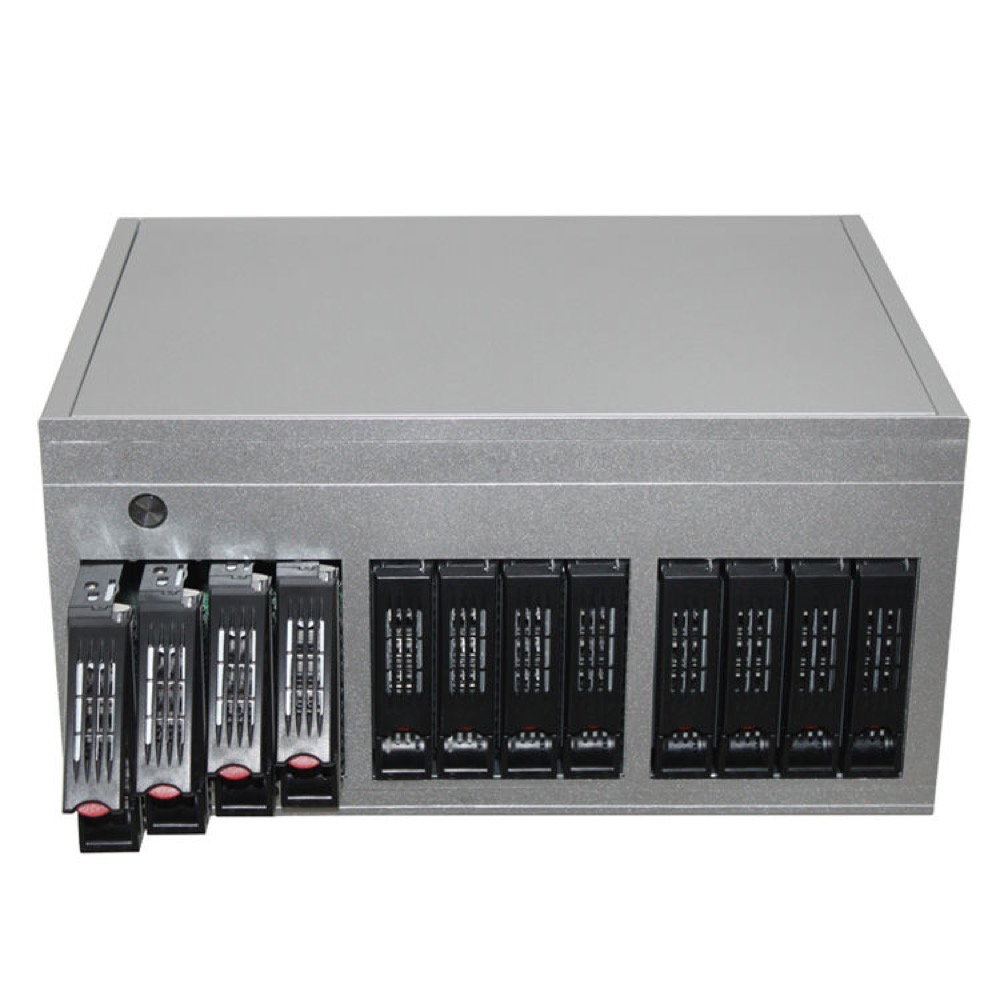

| Hot-swap Support | Yes |
| Hot-swap Bay Count | 12 bays |
PCIe and GPU Support
| PCIe Slots | 0 slots |
Cooling and Thermal

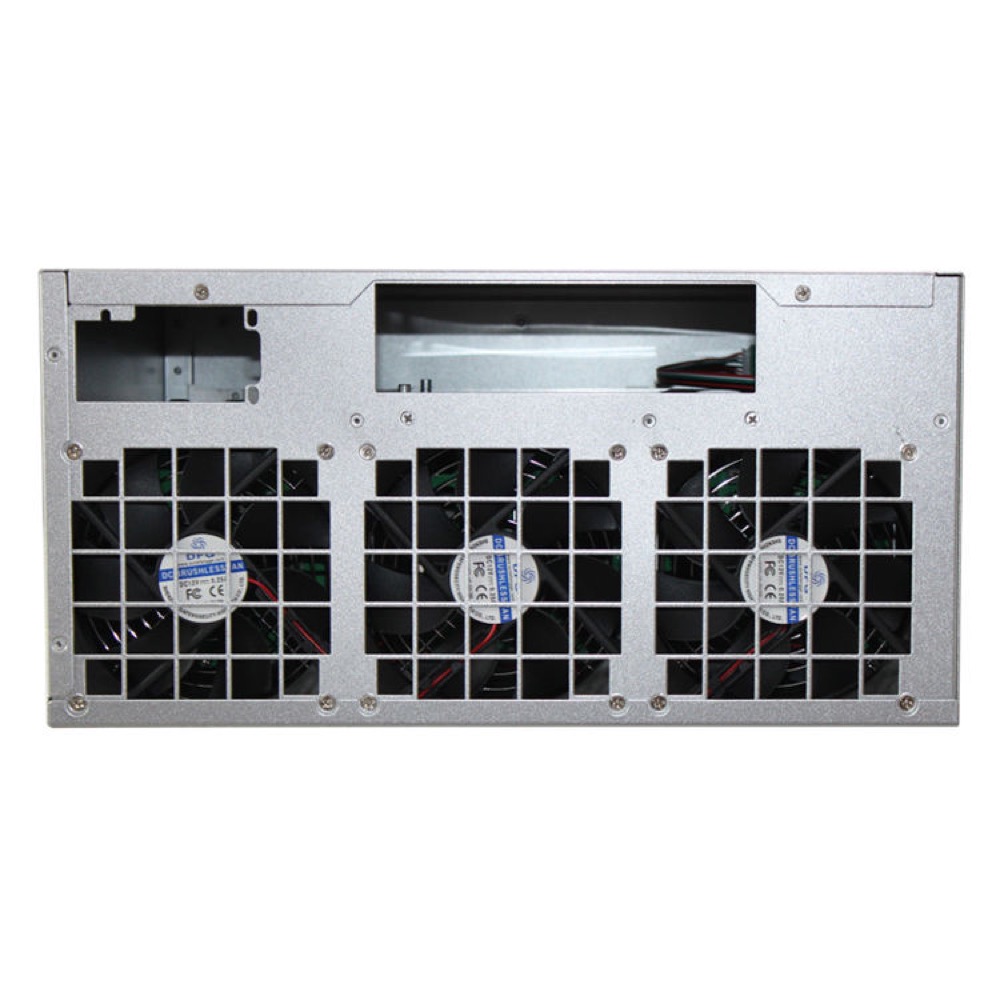

| Included Fan Count | 3 fans |
| Fan Size | 120 × 120 × 25 mm (12025) |
I/O and Connectivity
| Front I/O | Custom I/O |
| Custom I/O Details | Front panel: one power switch with indicator. Supplier lists twelve hot-swap 3.5-inch drive bays, no CD-ROM position, and no expansion slot. |
