In stock
Server Chassis
CHS-SRV-N6-250W

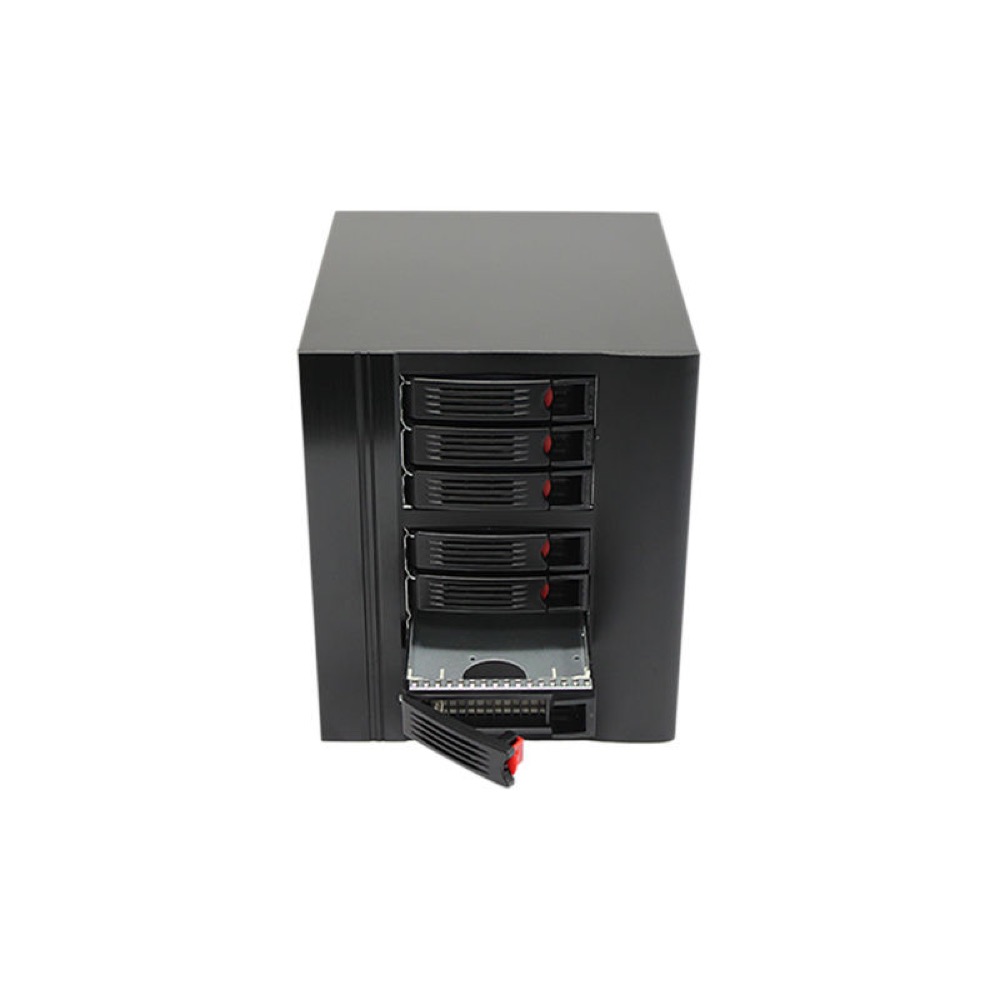

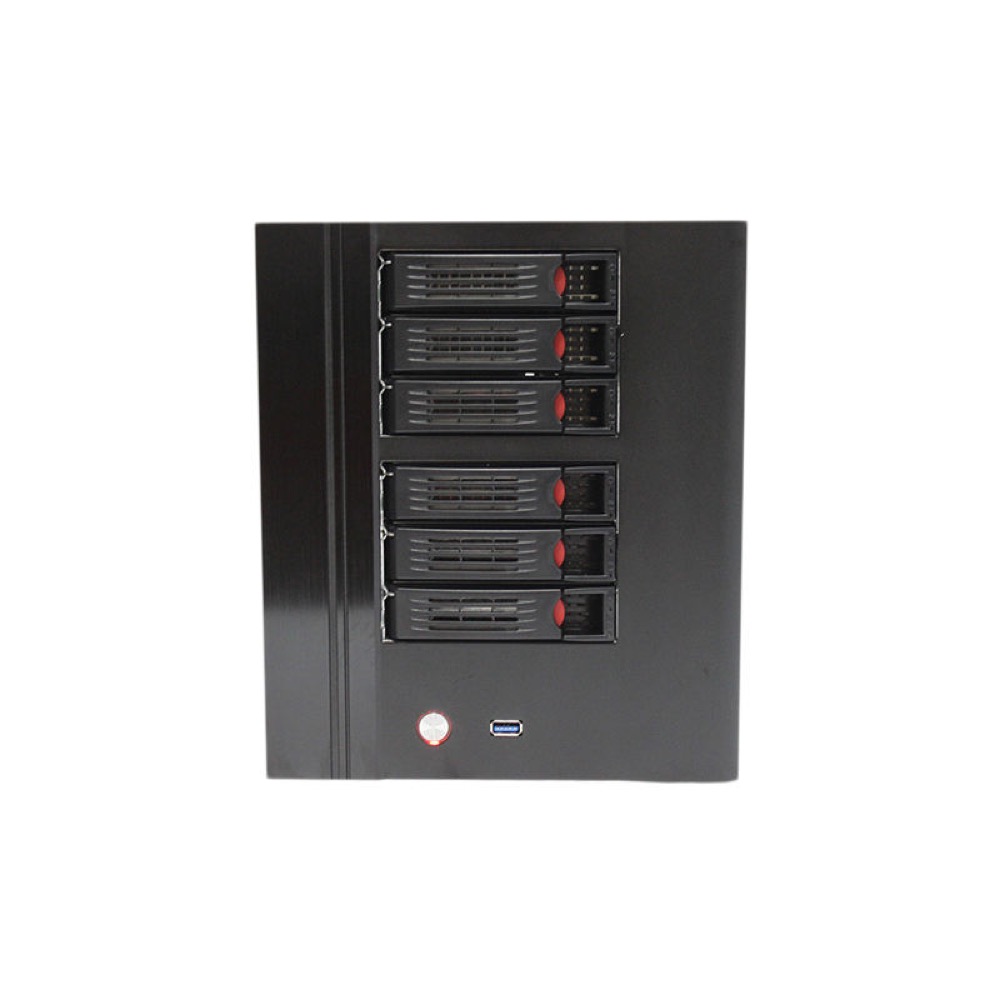

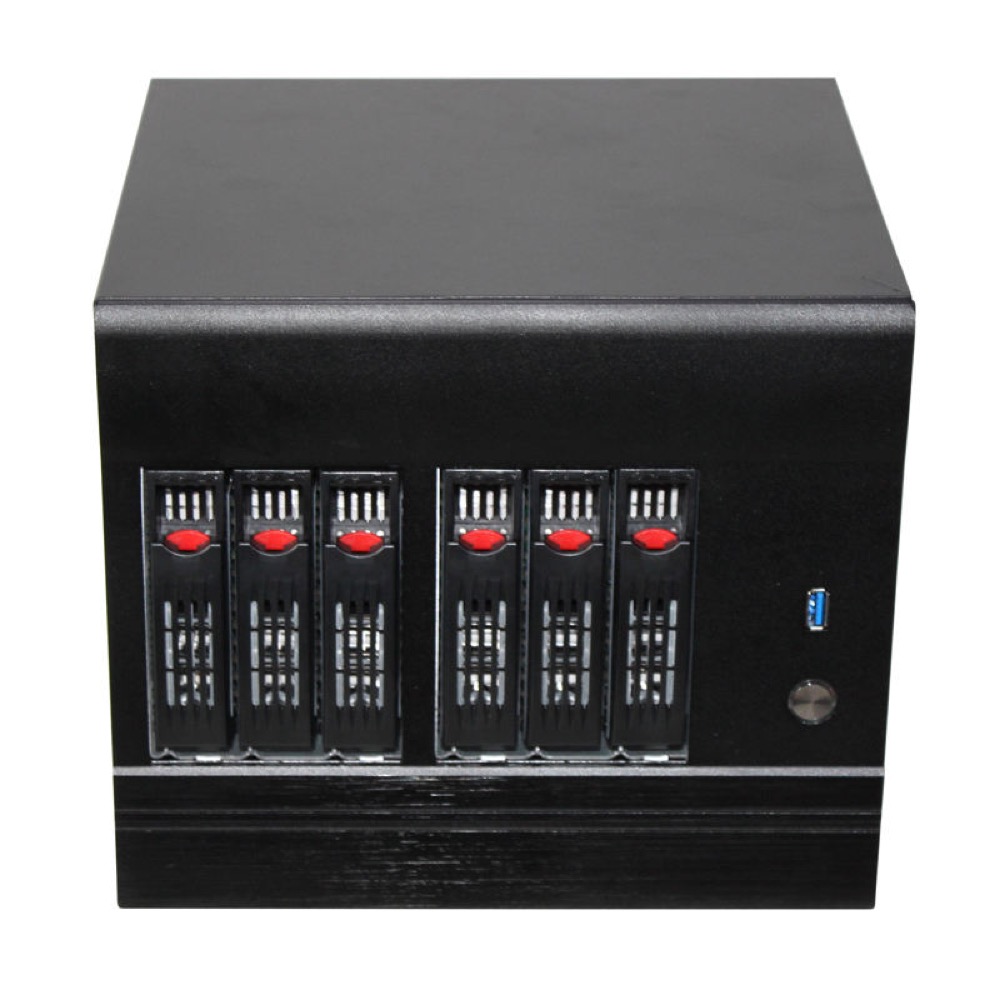

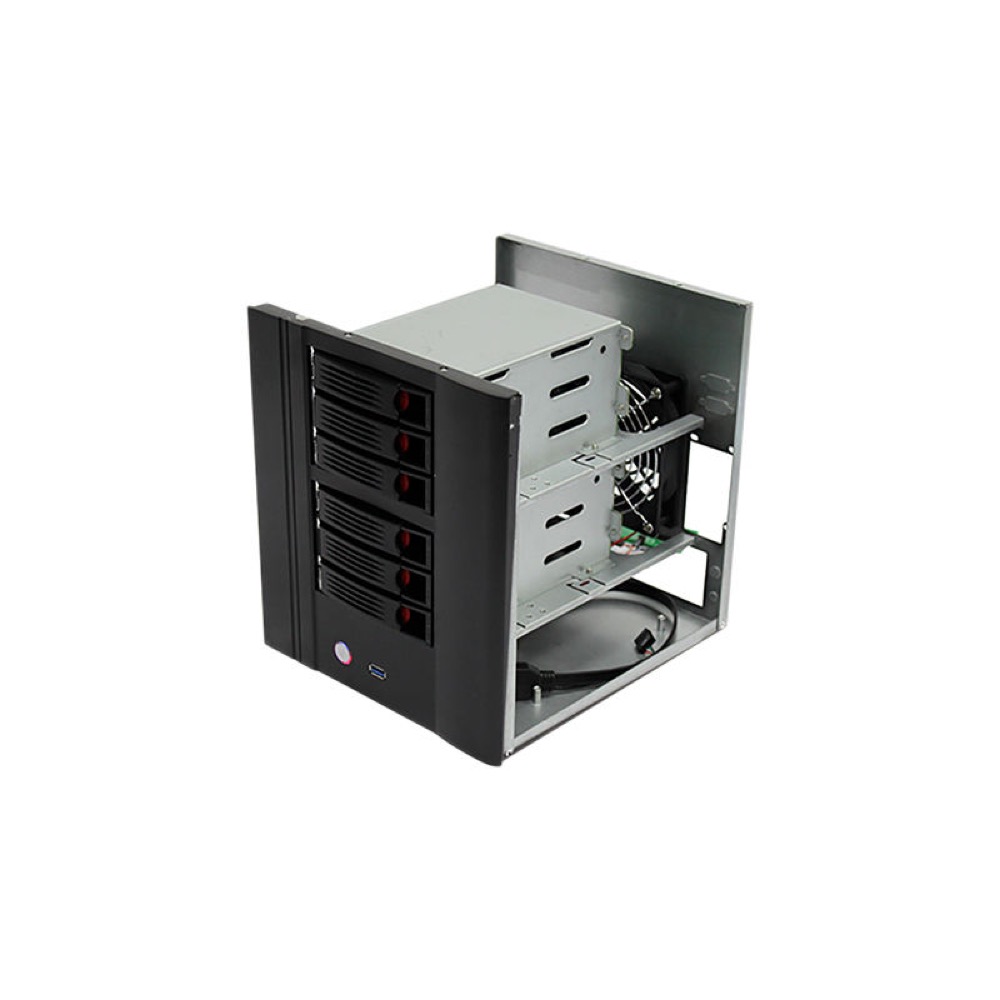

N6 6-Bay Mini-ITX NAS Chassis with 250W PSU
Product formChassis with PSU
FamilyStorage / NAS Chassis
Dimension220(W) × 250(D) × 260(H) mm
MountingTower
MotherboardMini-ITX
Drive Bays6 bays
Compact 6-bay Mini-ITX NAS tower chassis for server and storage applications. The supplier-listed configuration includes six hot-swap 3.5-inch drive bays, an optional 170 × 170 mm Mini-ITX board, an included 250W FLEX power supply, one 12025 fan, one full-height straight expansion slot, a USB 3.0 front port, and SGCC steel construction with aluminum-alloy elements. Dimensions are 220 × 250 × 260 mm.
Specifications
Identity
| Model Number | CHS-SRV-N6-250W |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | NAS chassis enclosure, six hot-swap 3.5-inch drive bays, one 12025 fan, and included 250W FLEX PSU. Mini-ITX motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | Storage / NAS, Server |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Rack Width | Non-rackmount |
| Rack Height | Non-rackmount |
| Material | Aluminum alloy and SGCC steel; 1.2 mm steel thickness |
| Finish / Color | Black; side panel window |
| Width | 220 mm |
| Height | 260 mm |
| Depth | 250 mm |
| Weight | 6.5 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7 × 7 in), optional |
Power Supply
| PSU Support | FLEX PSU |
| PSU Included | Yes |
| PSU Wattage | 250 W |
Storage and Hot-swap
| 3.5-inch Drive Bays | 6 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 6 × hot-swap 3.5-inch HDD bays |
| Hot-swap Support | Yes |
| Hot-swap Bay Count | 6 bays |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | 1 × full-height and straight slot |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 120 × 120 × 25 mm (12025) |
I/O and Connectivity
| Front I/O | 1 × USB 3.0, Power switch, Power indicator, Hard-drive indicator |
| Custom I/O Details | Front panel includes one USB 3.0 port, power switch, power indicator, and hard-drive indicator. Supplier lists a side panel window. |
