Server Chassis
CHS-SRV-N2

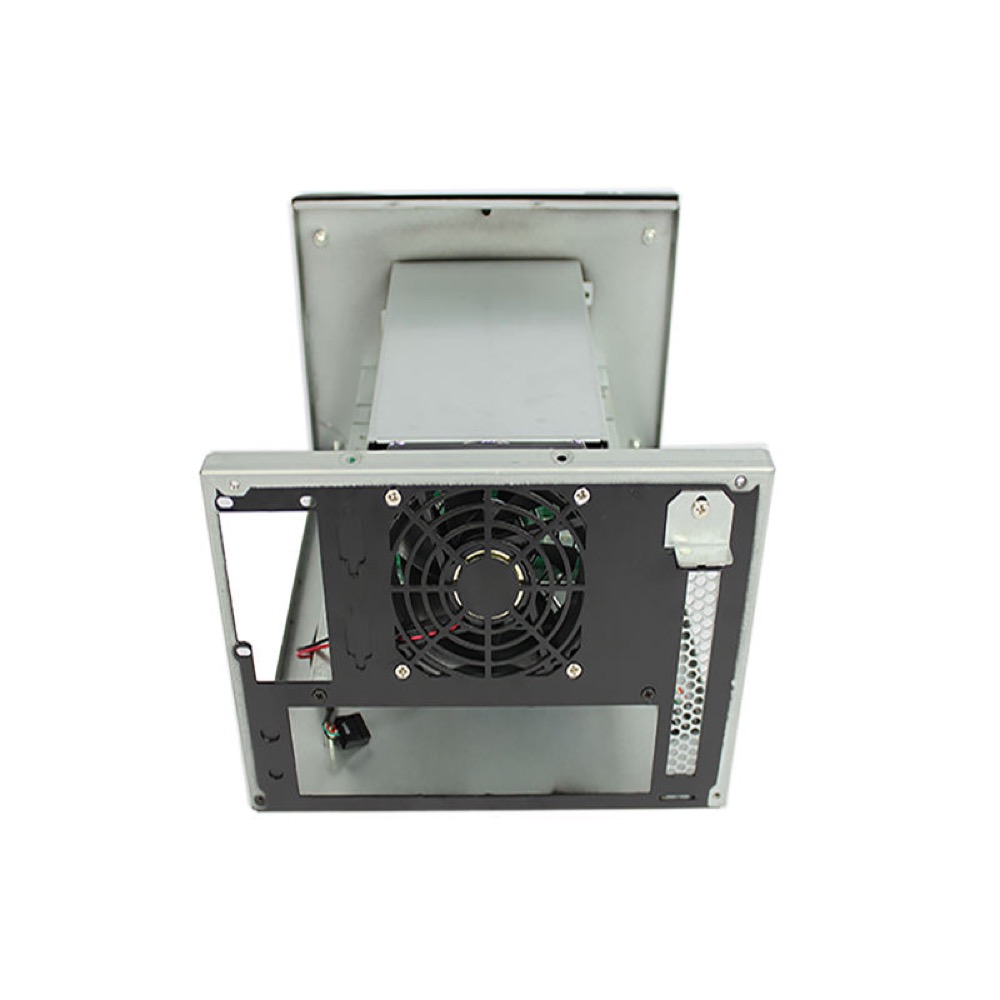

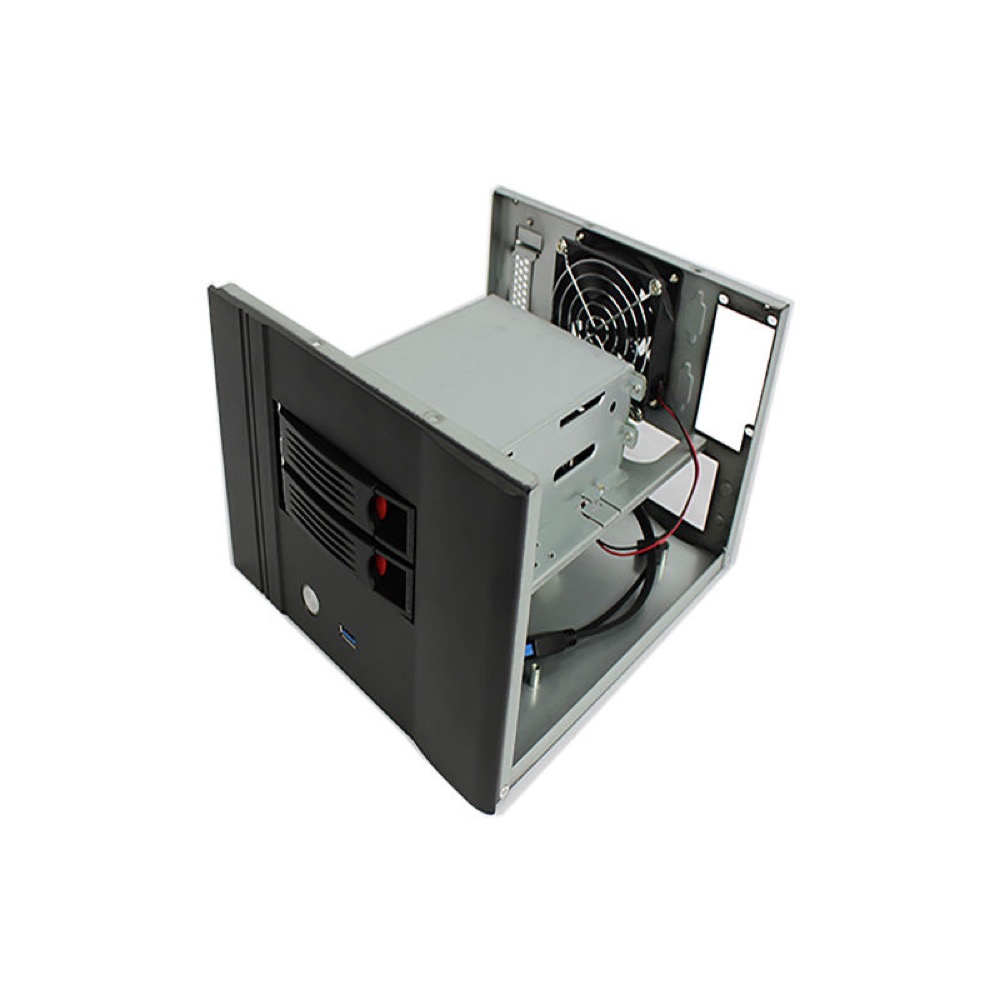

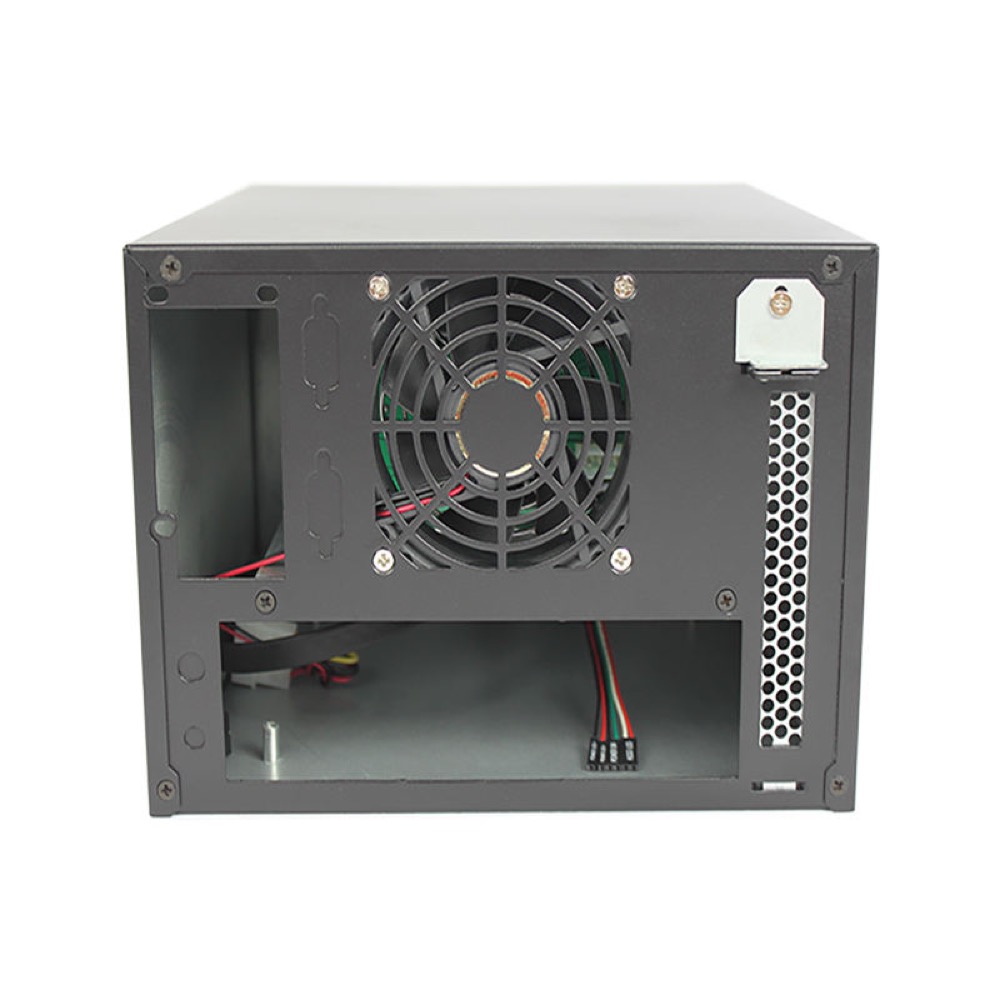

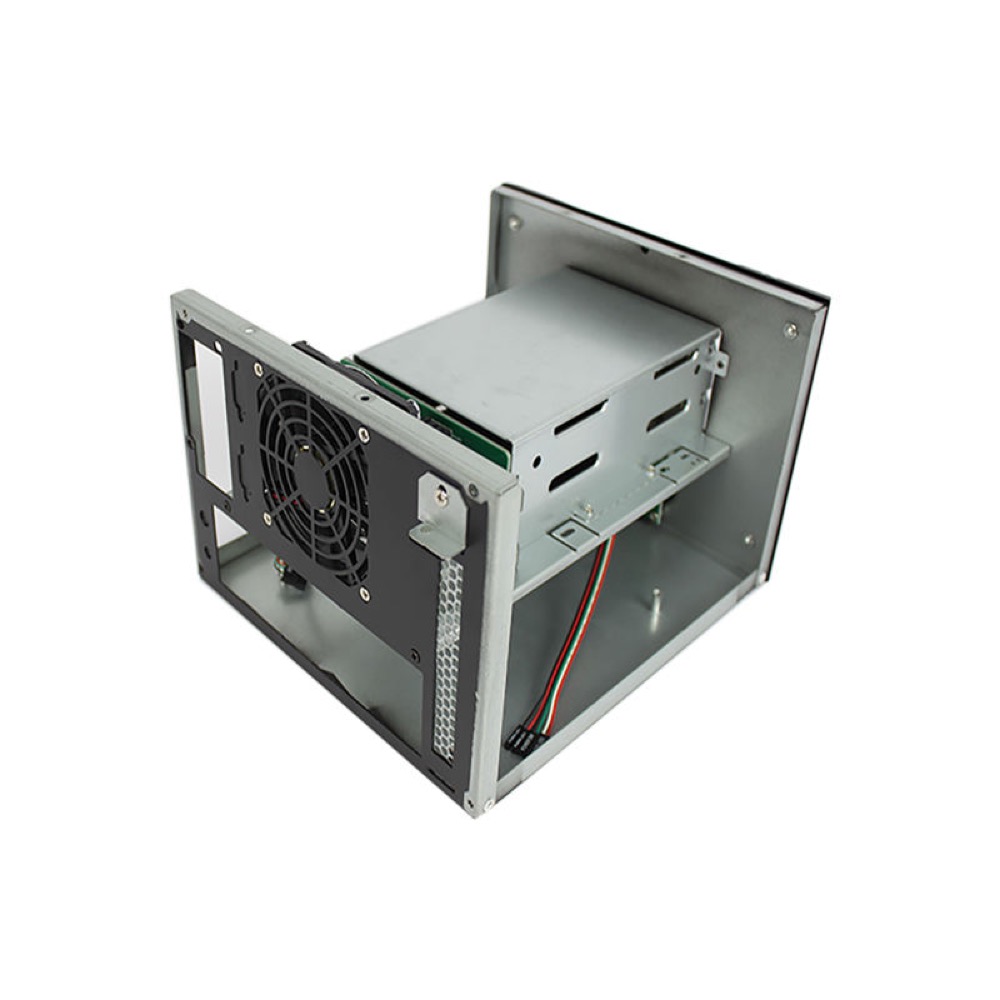

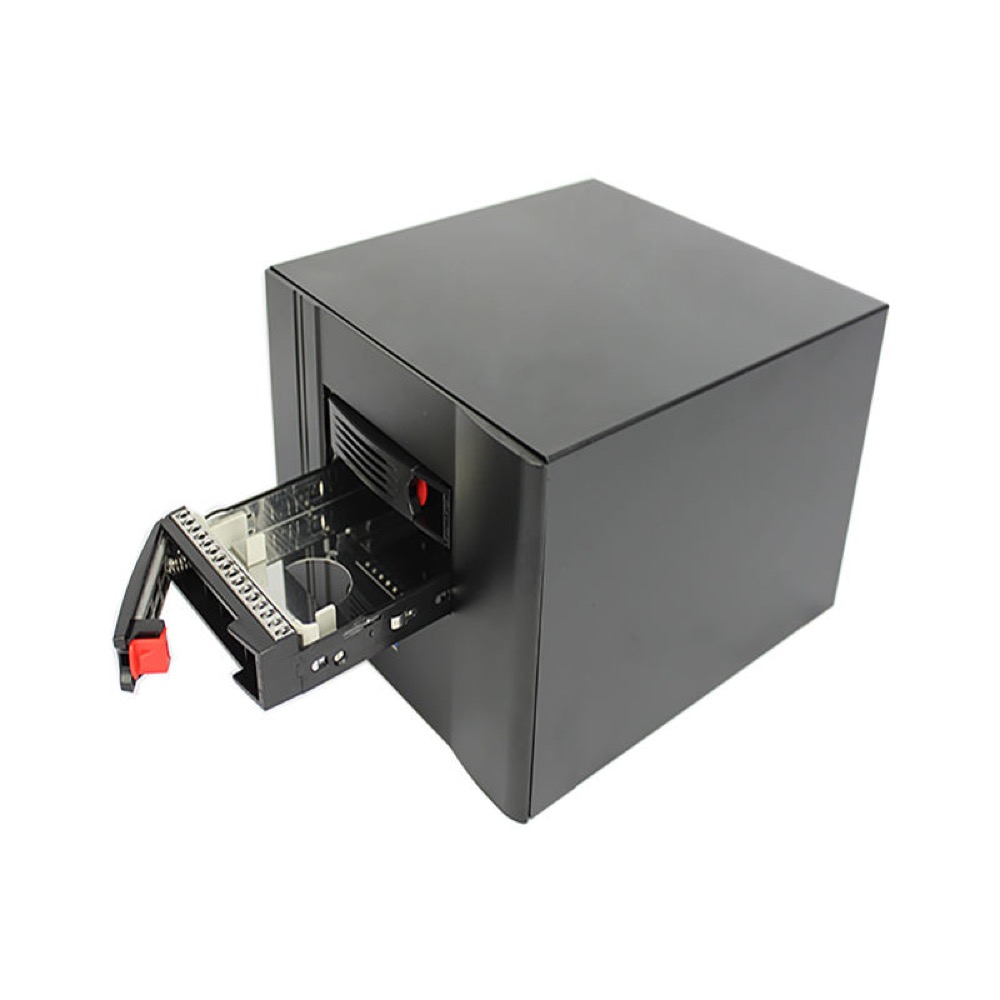

N2 2-Bay Mini-ITX Hot-Swap NAS Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension220.4(W) × 242.5(D) × 154.2(H) mm
MountingDesktop
MotherboardMini-ITX
Drive Bays2 bays
Compact desktop NAS chassis for Mini-ITX boards, with two hot-swap 3.5-inch drive trays, FLEX power-supply support, one included 8025 fan, one USB 3.0 port, a full-height expansion position with optional riser, and power and hard-drive indicators. The enclosure measures 220.4 × 242.5 × 154.2 mm and uses 1.2 mm SGCC steel.
Specifications
Identity
| Model Number | CHS-SRV-N2 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty NAS chassis with two hot-swap drive trays and one included 8025 fan. FLEX PSU, Mini-ITX motherboard, CPU, memory, and storage drives are not included; riser card is optional. |
| Use Case / Application | NAS, Storage Server, Desktop |
Mounting and Enclosure
| Mounting Orientation | Vertical |
| Rack Width | Not rackmount |
| Rack Height | Not rackmount |
| Material | 1.2 mm SGCC steel |
| Width | 220.4 mm |
| Height | 154.2 mm |
| Depth | 242.5 mm |
| Weight | 5.5 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7 × 7 in) |
Power Supply
| PSU Support | FLEX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 2 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 2 × hot-swappable 3.5-inch HDD trays |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | 1 × full-height and straight slot; optional riser card required |
Cooling and Thermal
| Included Fan Count | 1 fans |
| Fan Size | 80 × 80 × 25 mm (8025) × 1 included |
I/O and Connectivity
| Front I/O | Power switch, USB 3.0, Power indicator, Hard-drive indicator |
| Custom I/O Details | Front panel includes a power switch, one USB 3.0 port, a power indicator, and a hard-drive indicator. |
