CHS-SRV-N8-311

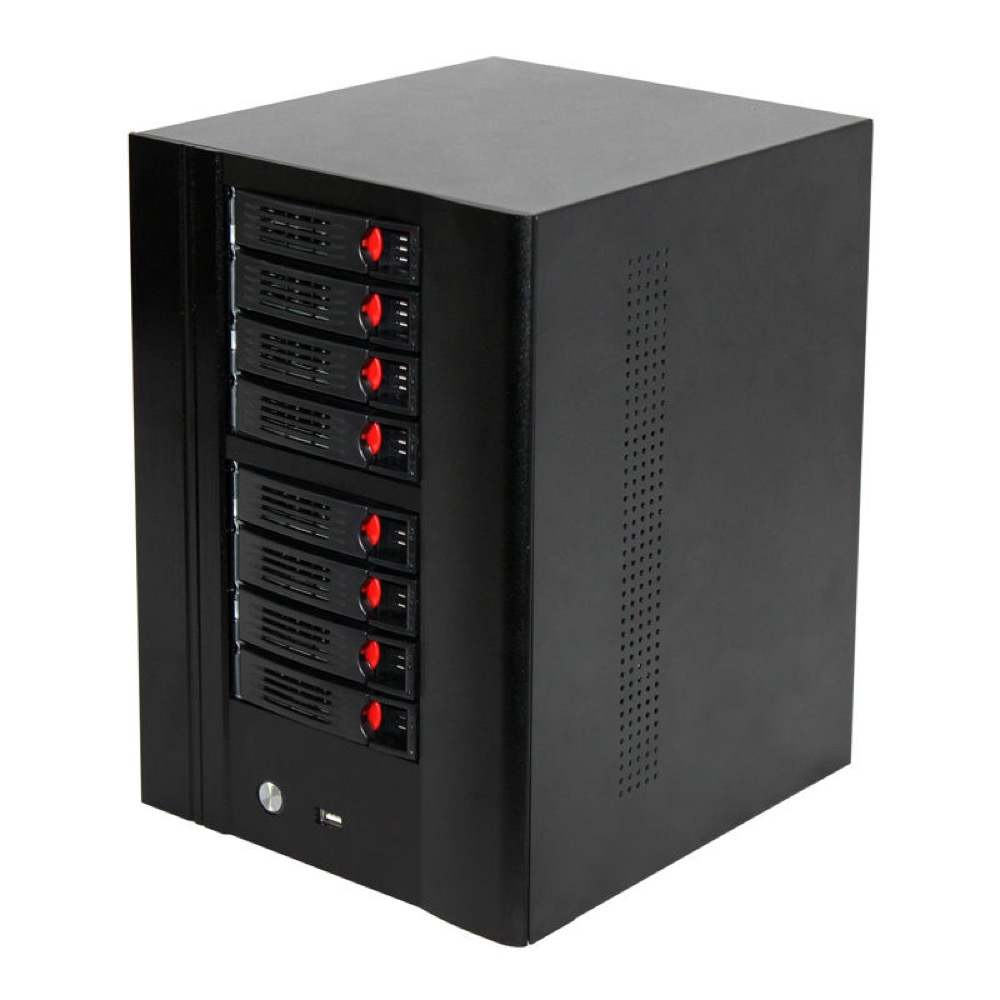

N8 8-Bay Mini-ITX Hot-Swap NAS Chassis
Product formEmpty chassis
FamilyStorage / NAS Chassis
Dimension220.4(W) × 244.5(D) × 311.7(H) mm
MountingDesktop
MotherboardMini-ITX
Drive Bays8 bays

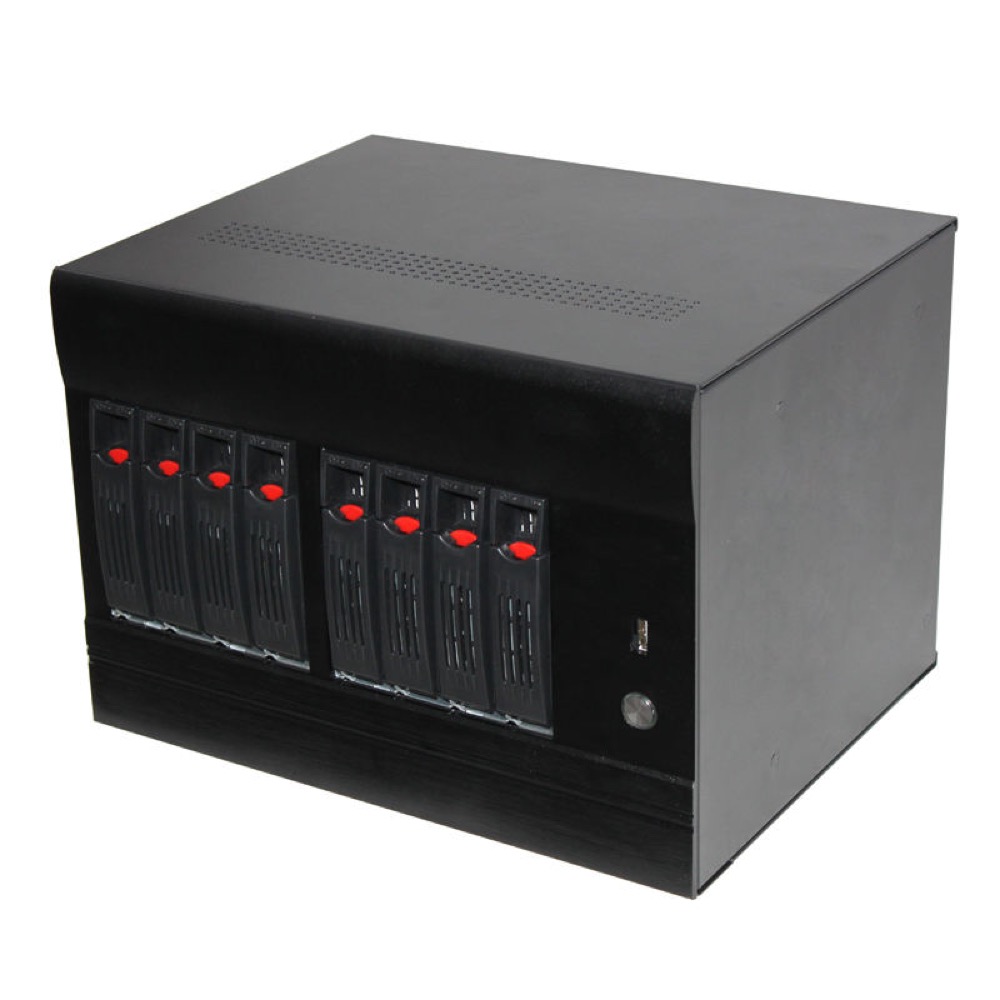

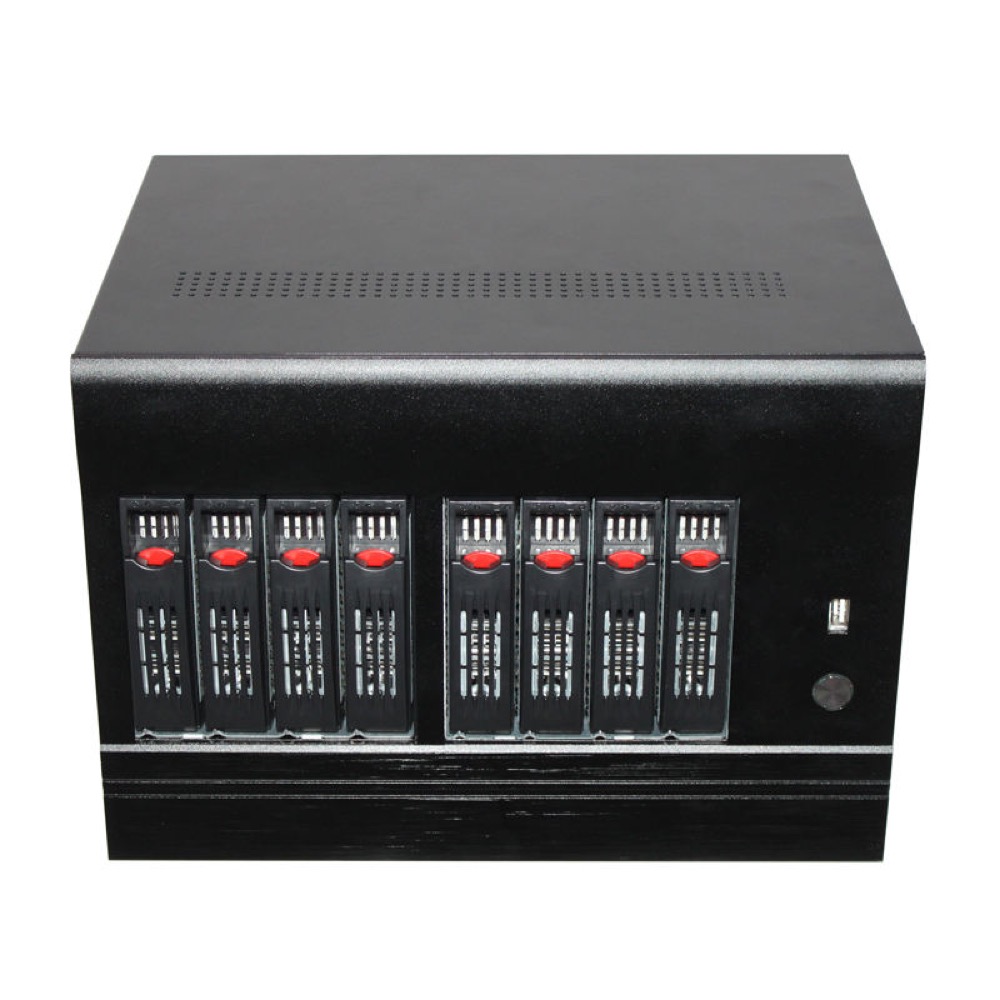

Compact horizontal NAS chassis for Mini-ITX boards, with eight hot-swappable 3.5-inch drive bays, FLEX power-supply support, two included 12025 fans, one full-height expansion slot, and front power and hard-drive indicators. The enclosure measures 220.4 × 244.5 × 311.7 mm and combines SGCC steel with an aluminum panel.
Specifications
Identity
| Model Number | CHS-SRV-N8-311 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | Empty NAS chassis with eight hot-swap drive bays and two included 12025 fans. FLEX PSU, Mini-ITX motherboard, CPU, memory, and storage drives are not included. |
| Use Case / Application | NAS, Storage Server, Desktop |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Not rackmount |
| Rack Height | Not rackmount |
| Material | 1.0 mm SGCC steel with aluminum panel |
| Width | 220.4 mm |
| Height | 311.7 mm |
| Depth | 244.5 mm |
| Weight | 6.82 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | 170 × 170 mm (7 × 7 in) |
Power Supply
| PSU Support | FLEX PSU |
| PSU Included | No |
Storage and Hot-swap
| 3.5-inch Drive Bays | 8 bays |
| 2.5-inch Drive Bays | 0 bays |
| Drive Types | 8 × hot-swappable 3.5-inch SATA/SAS HDD bays |
PCIe and GPU Support
| PCIe Slots | 1 slots |
| PCIe Slot Types | 1 × full-height and straight slot |
Cooling and Thermal

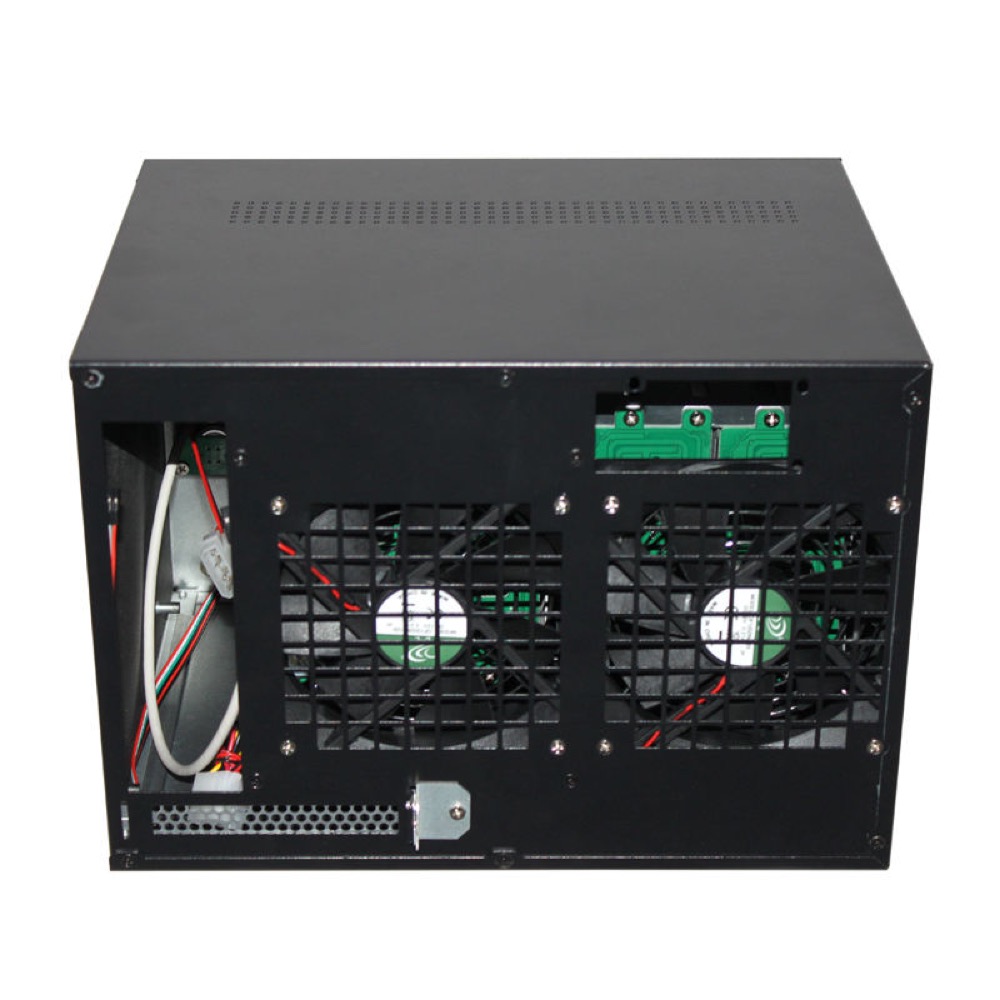

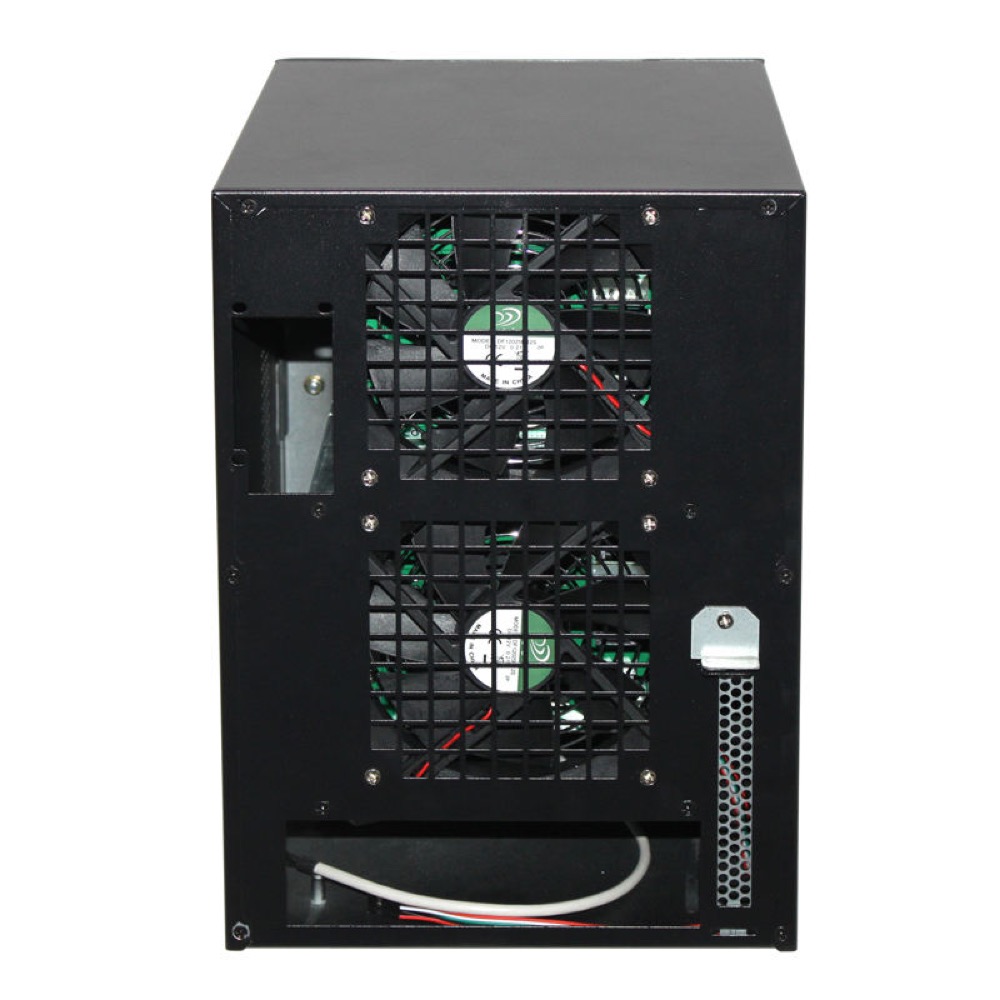

| Included Fan Count | 2 fans |
| Fan Size | 120 × 120 × 25 mm (12025) × 2 included |
I/O and Connectivity
| Front I/O | Power switch with indicator, Hard-drive indicator, USB 3.0 optional |
| Custom I/O Details | Front panel includes a power switch with indicator and a hard-drive indicator. USB 3.0 is listed by the supplier as optional. |
