In stock
Server Chassis
CHS-SRV-M466A-1
M466A-1 8-GPU Server System with 2400W PSU
Product formComplete system
FamilyGPU / AI Chassis
Dimension715(W) × 420(D) × 180(H) mm
MountingRack (supplier classification); width is not standard 19-inch
MotherboardATX, B85/B75 option

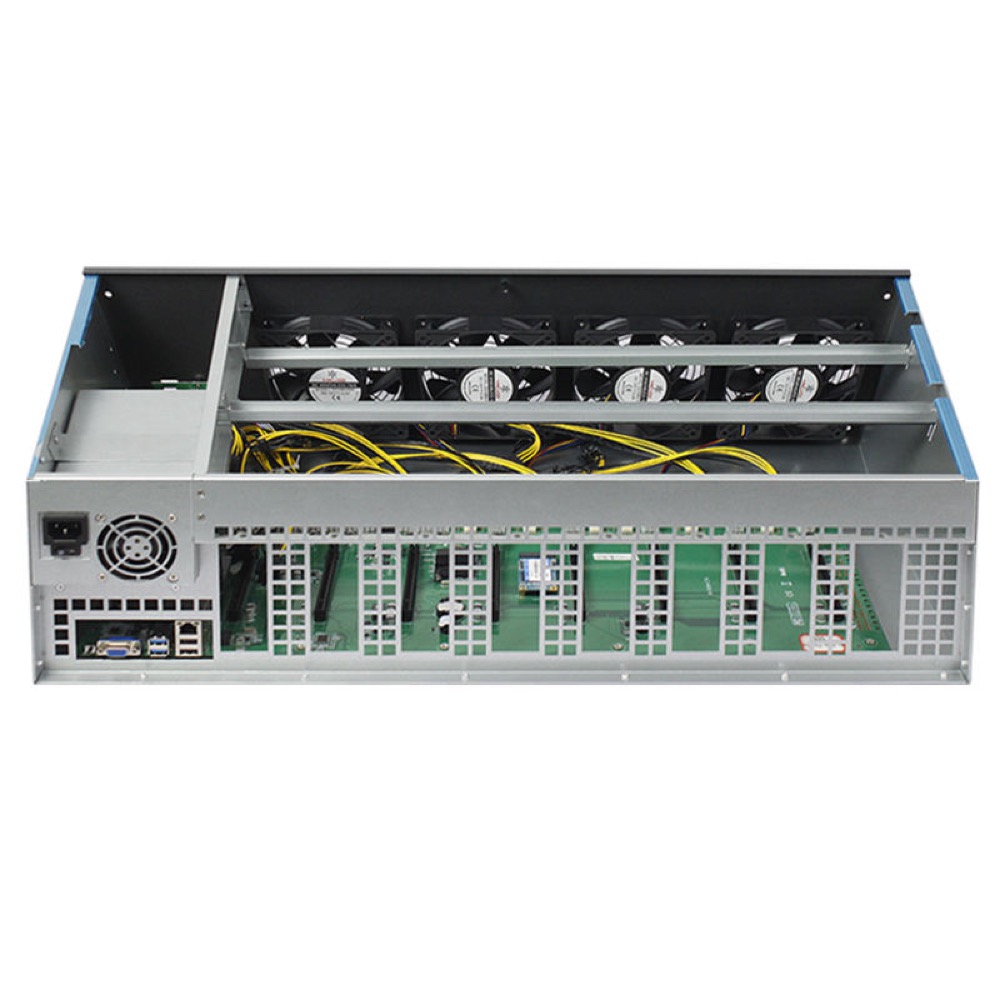

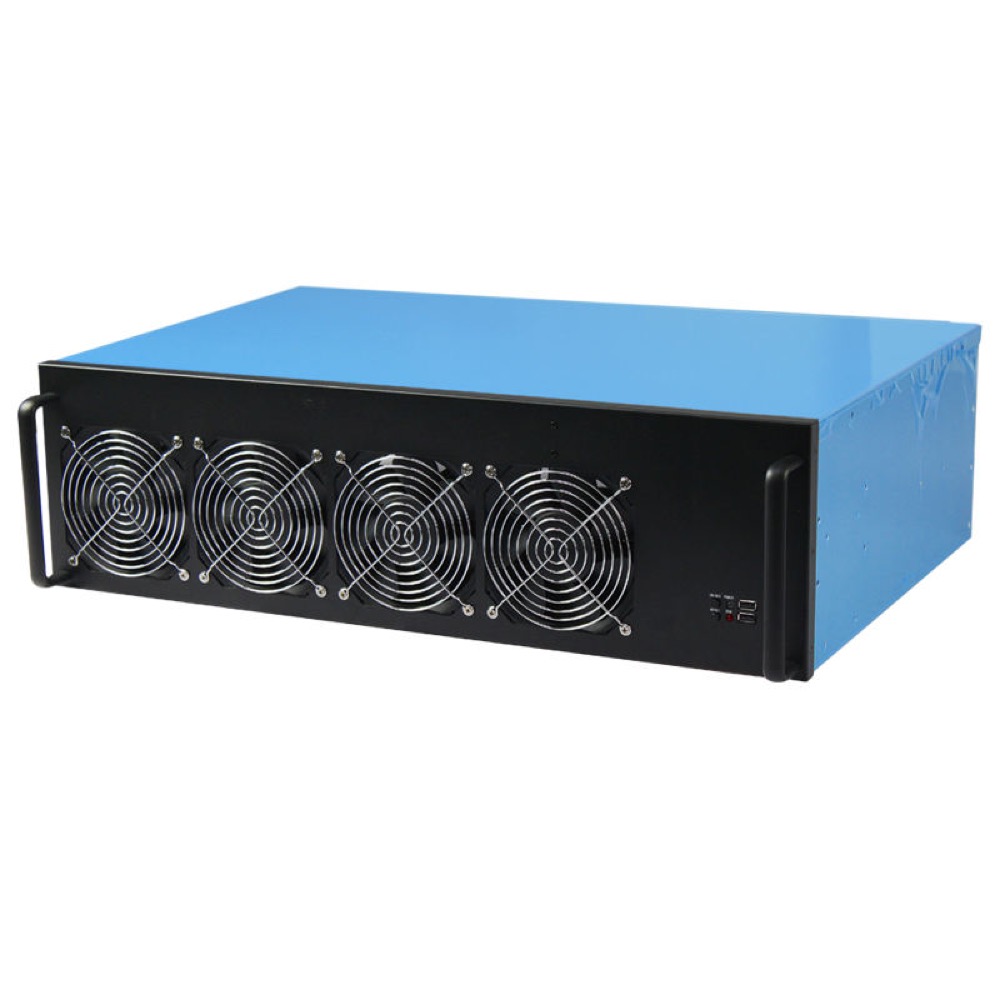

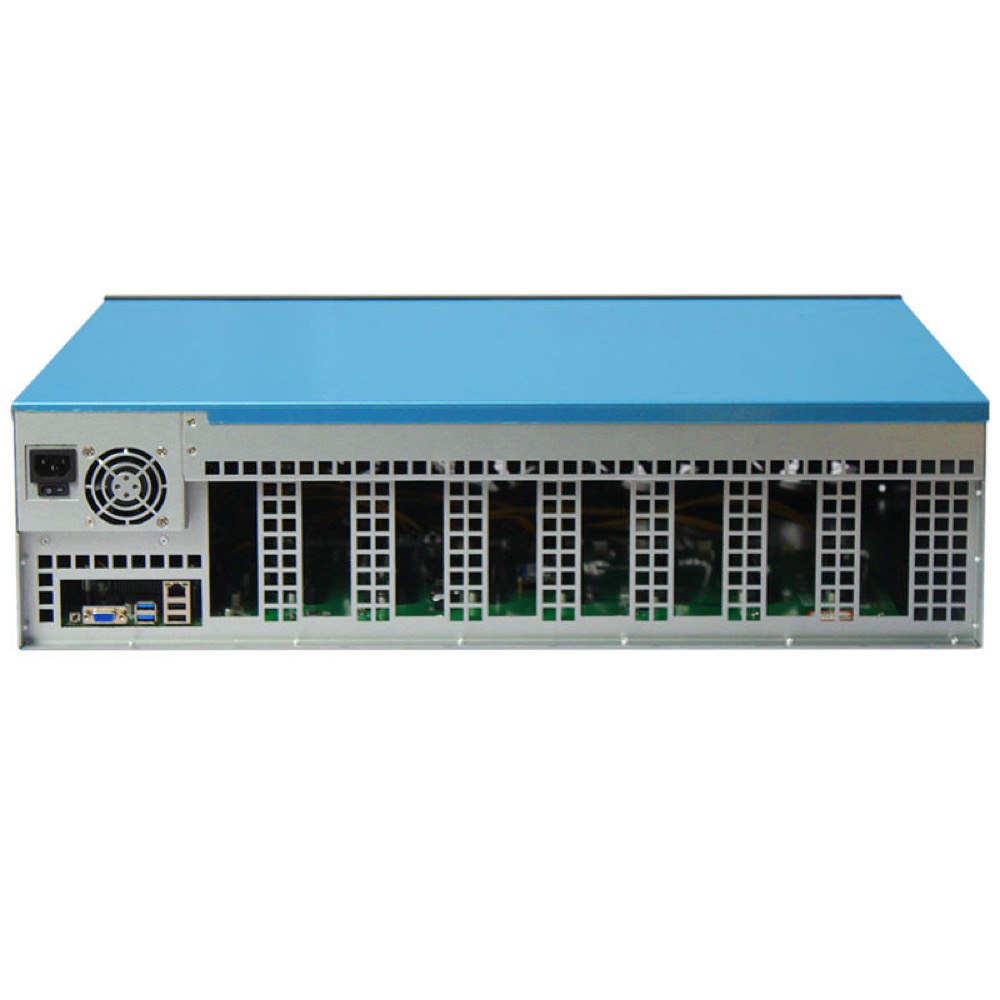

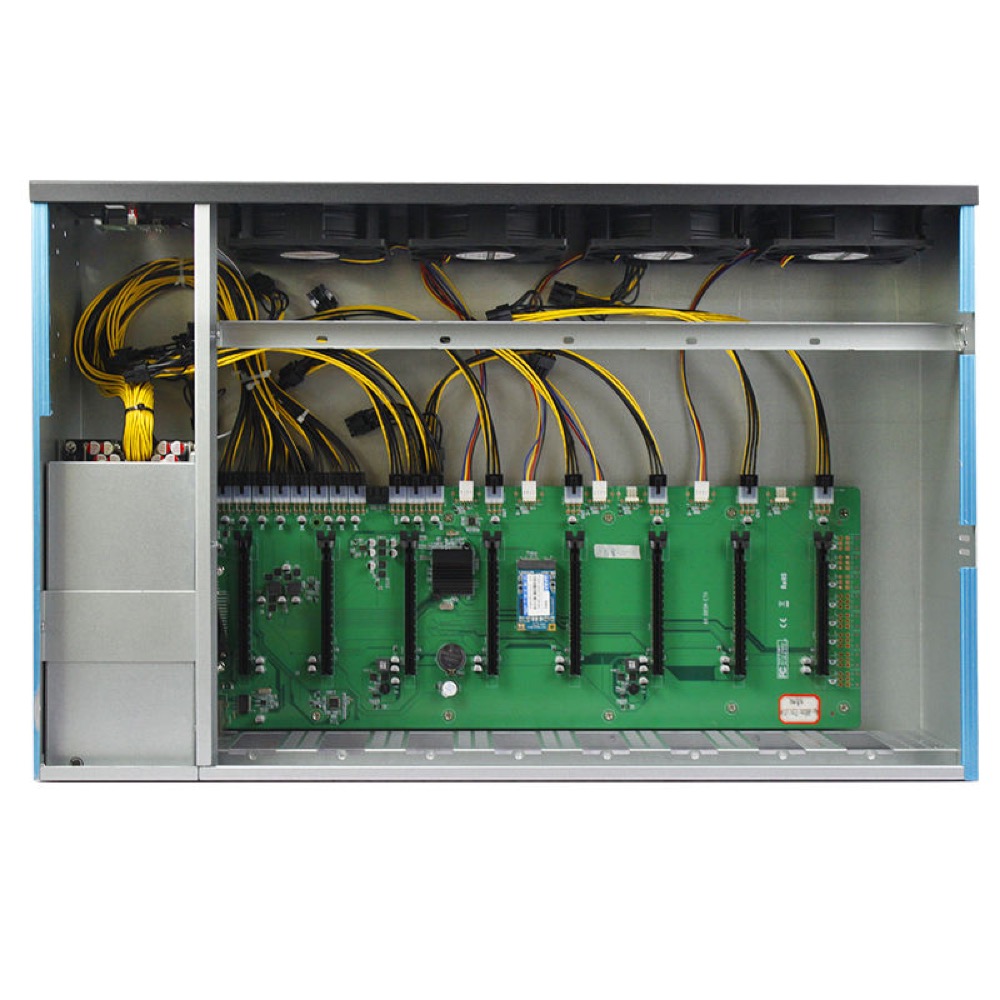

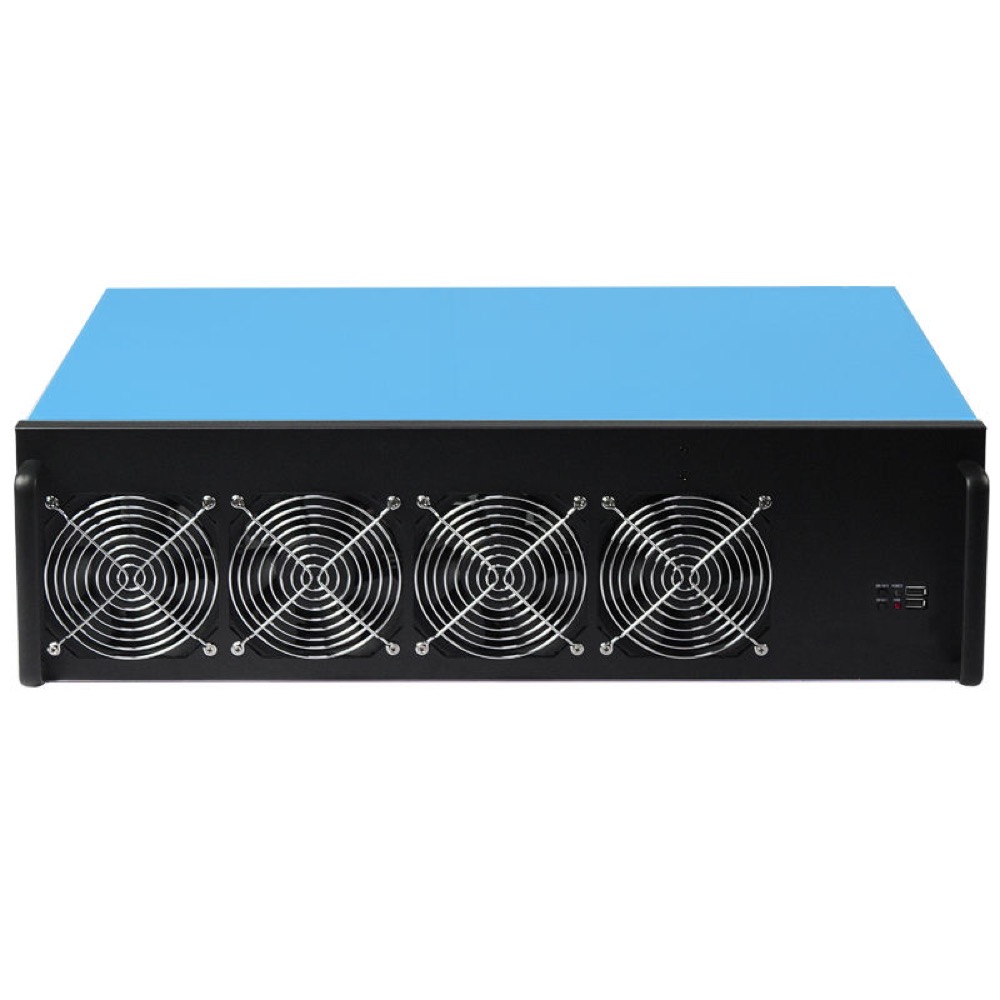

M466A-1 8-GPU server system for GPU computing and AI workloads. The supplier lists an aluminum-alloy and steel ATX system measuring 715 × 420 × 180 mm, a 2400 W power supply, four 12038 fans at 6000 RPM, and support for up to eight GPUs measuring up to 340 mm long and 65 mm thick. The supplier also lists B85/B75 motherboard options, Intel i3 CPU options, 4 GB or 8 GB memory, and 128 GB storage. Exact component inclusion and the final CPU/memory/storage configuration should be confirmed before quoting because the supplier presents several options. GPUs are not stated as included.
Specifications
Identity
| Model Number | CHS-SRV-M466A-1 |
| Product Type | Server Chassis |
Configuration and Use
| Included Components | GPU server chassis; listed 2400 W power supply; four 12038 cooling fans; ATX/B85/B75 platform options; CPU, memory, and storage configuration shown by supplier as selectable options. GPU cards are not stated as included. |
| Use Case / Application | GPU Computing, AI Server, Server |
Mounting and Enclosure
| Mounting Orientation | Horizontal |
| Rack Width | Not 19-inch; supplier lists 715 mm width |
| Rack Height | Not specified by supplier |
| Material | Aluminum alloy and steel |
| Finish / Color | Black |
| Width | 715 mm |
| Height | 180 mm |
| Depth | 420 mm |
| Weight | 16.5 kg gross |
Motherboard and Processor
| Maximum Motherboard Dimensions | ATX; supplier does not specify maximum dimensions |
Power Supply
| PSU Support | 2400 W power supply |
| PSU Included | Yes |
| PSU Wattage | 2400 W |
PCIe and GPU Support
| Maximum GPU Count | 8 GPUs |
| Maximum GPU Length | 340 mm |
Cooling and Thermal
| Included Fan Count | 4 fans |
| Fan Size | 120 × 120 × 38 mm (12038) × 4, 6000 RPM |
I/O and Connectivity
| Front I/O | USB front port; count and version not specified |
| Custom I/O Details | Supplier lists USB front-port connectivity but does not specify the count or version. GPU support is listed for up to eight cards with a maximum approximate envelope of 65 mm × 340 mm. |
Complete System Configuration
| Included CPU / Processor | Intel i3-4130 listed; i3-3220/i3-4150/i3-4170 options shown by supplier; confirm final CPU |
| Included Memory | 4 GB or 8 GB listed by supplier; confirm final configuration |
| Included Storage | 128 GB listed by supplier; confirm final configuration |
| Included GPU | No specific GPU cards stated as included; supports up to eight compatible GPUs |
