Made to order
CPU Cooling
SRV-1700-4UR96

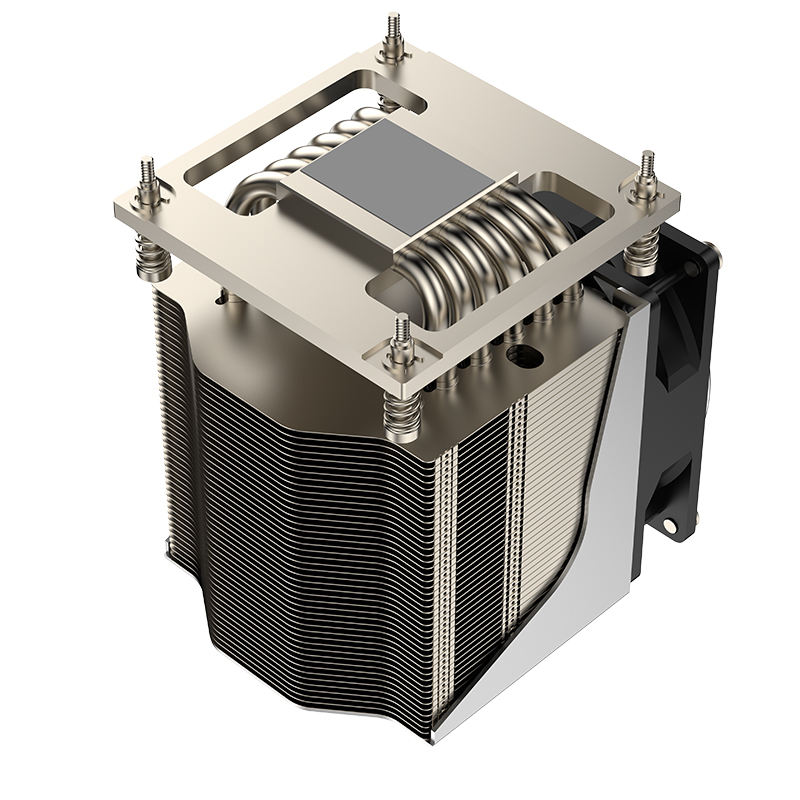

COOLSERVER Intel LGA 1700 4UR96 Square Mother Board CPU Cooler Cooling Computer Radiator 6 Heat Pipe Intel Compatible TDP 245W
CPU PlatformLGA1700
Noise40 dBA
Power (TDP)245 W
Air Volume61.46 CFM
COOLSERVER Intel LGA 1700 4UR96 Square Mother Board CPU Cooler Cooling Computer Radiator 6 Heat Pipe Intel Compatible TDP 245W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-1700-4UR96 |
| Short Description | COOLSERVER Intel LGA 1700 4UR96 Square Mother Board CPU Cooler Cooling Computer Radiator 6 Heat Pipe Intel Compatible TDP 245W |
| Description | COOLSERVER Intel LGA 1700 4UR96 Square Mother Board CPU Cooler Cooling Computer Radiator 6 Heat Pipe Intel Compatible TDP 245W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
| CPU Generation / Platform | LGA1700 Square Motherboard |
Thermal and Mechanical
| Heat Pipe Count | 6 |
| Heatsink Material | Copper & Aluminum |
| Cooler Dimensions | 114 × 92.5 × 125.7 mm |
| Weight | 0.476 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 92x92x25mm |
| Fan Speed | 1300-3800RPM |
| Connector | 4pin |
| Bearing Type | Ball Bearing |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
Similar products
Alternatives in this class
SRV-1700-2UR67
COOLSERVER Brand-New LGA1700 12th & 13th Generation 5 Heat Pipe High-Power Server Radiator Air Cooler CPU Cooling Fans & Cooling• Socket: LGA1700• Height: 67 mm• TDP: Up to 240 W
SRV-1700-4UR23
COOLSERVER 1700 4UR23 LGA1700 5 Heat Pipes High Power Copper Aluminum Server Radiator Air Cooler for Server Cooler TDP 235W• Socket: LGA1700• Height: 126.2 mm• TDP: Up to 235 W

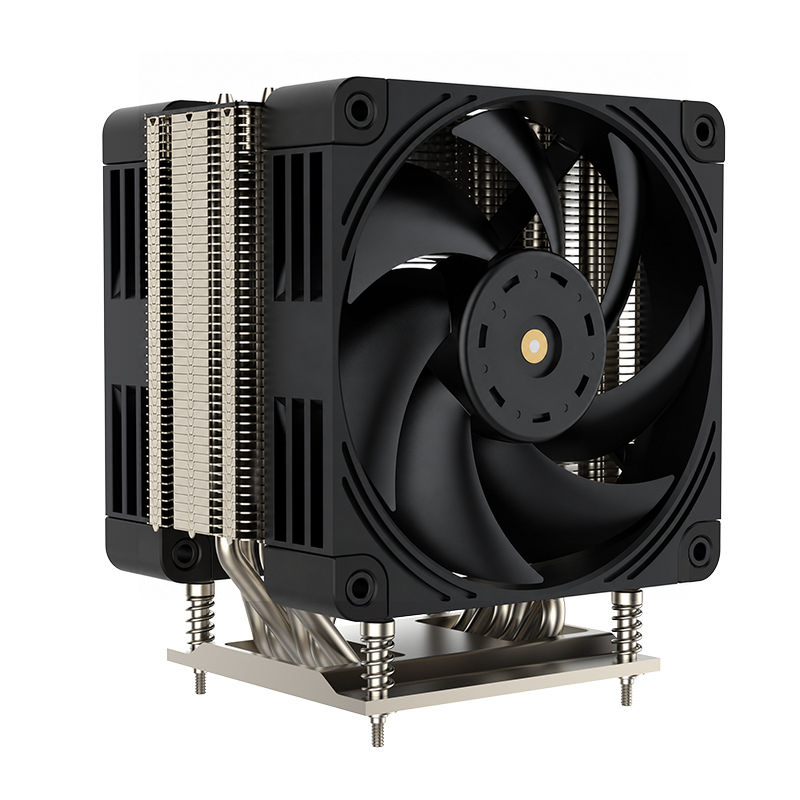

SRV-1700-4UR25
COOLSERVER LGA1700 4UR25 12th Generation CPU Server Radiator Dual Fan 6 Heat Pipe Silent 13900K New Computer Processor TDP 255W• Socket: LGA1700• Height: 155 mm• TDP: Up to 255 W

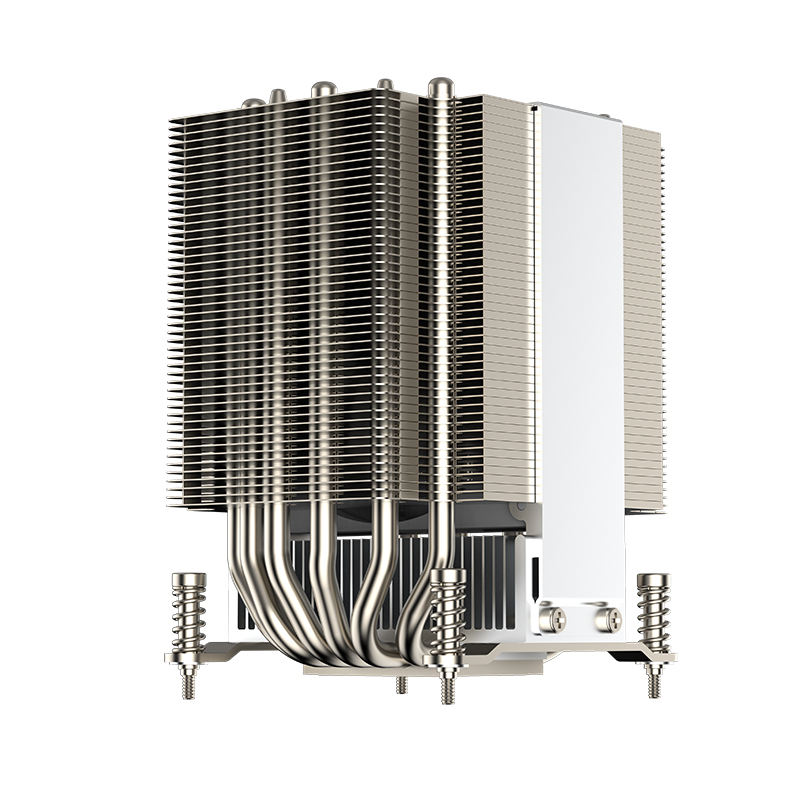

SRV-1700-4UR28
