Made to order
CPU Cooling
SRV-1700-4UR22

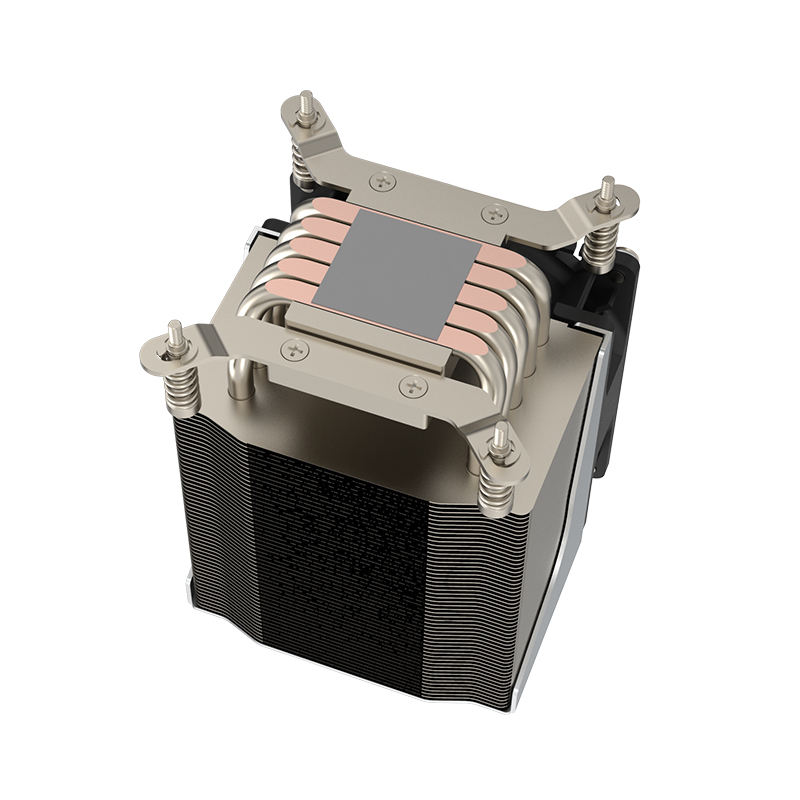

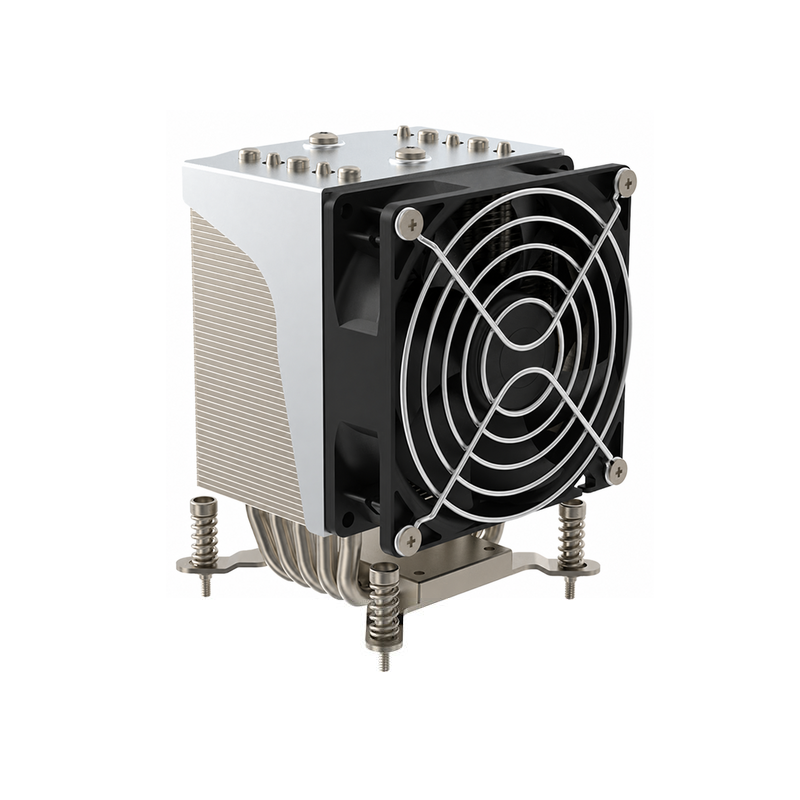

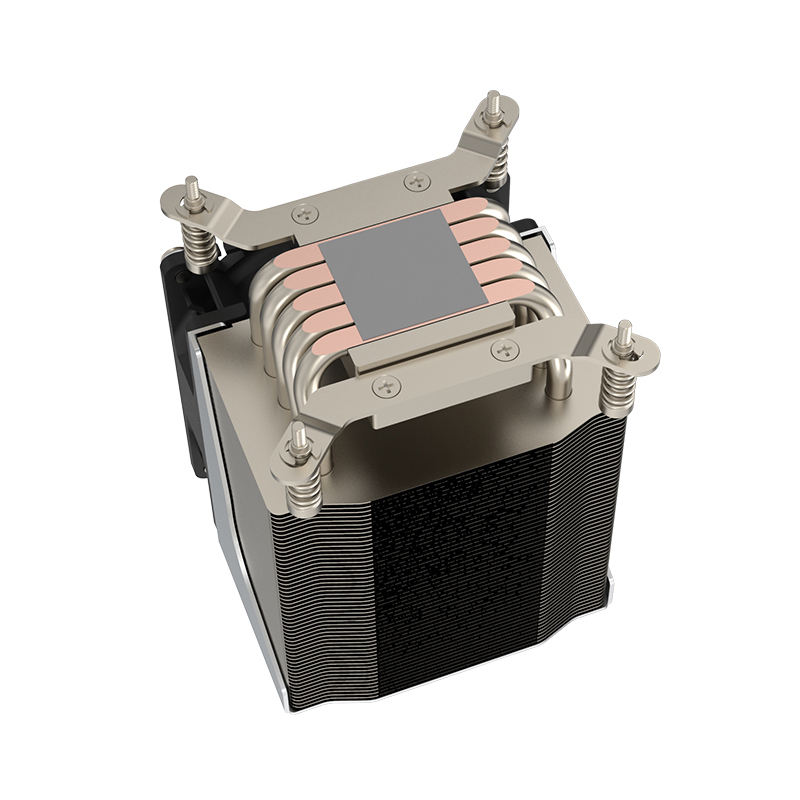

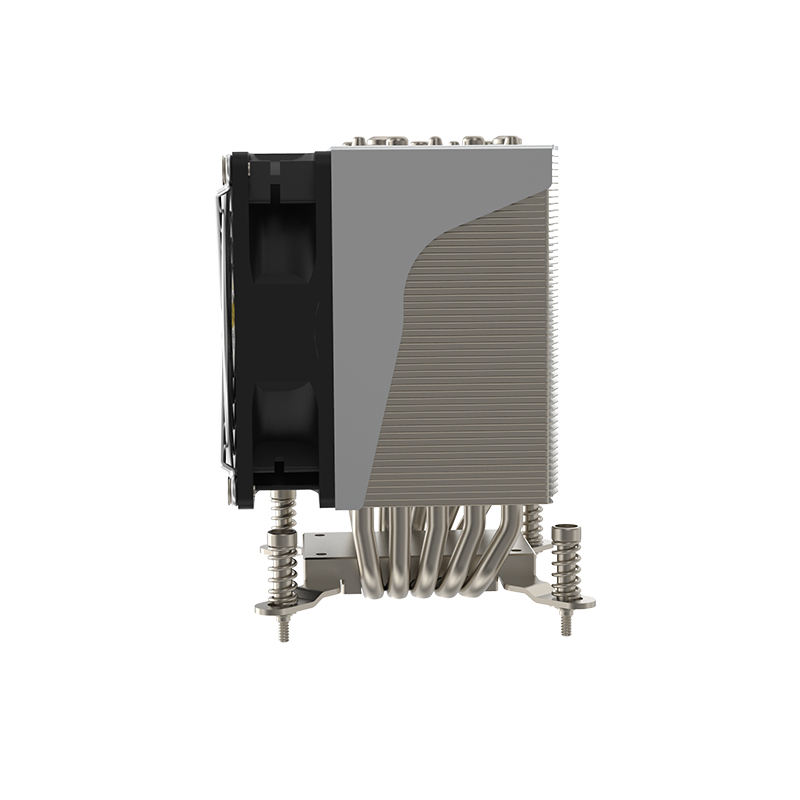

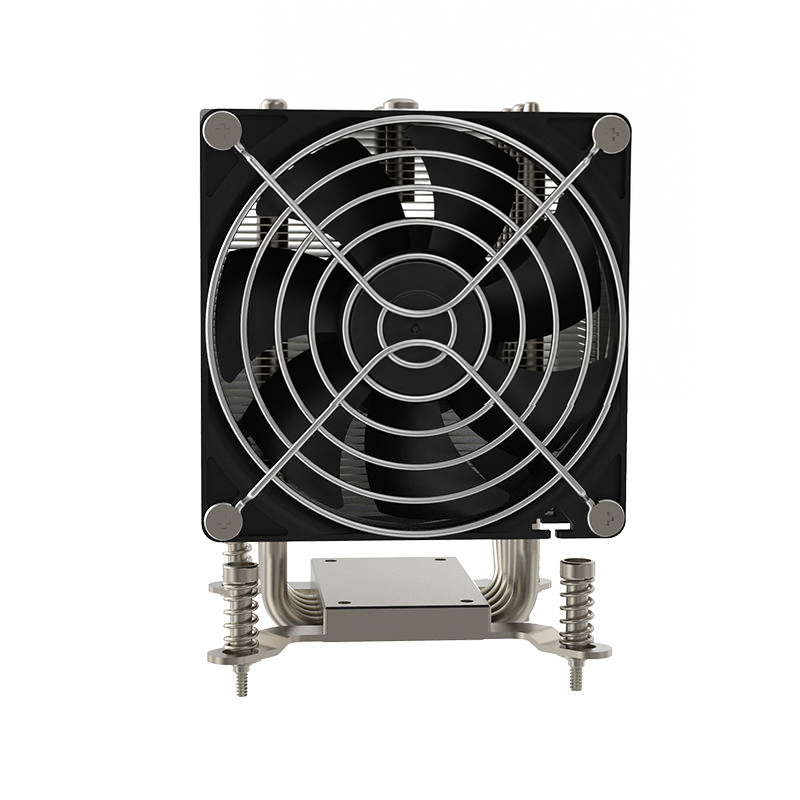

COOLSERVER Intel LGA1700 4UR22 Thermal Simulation Desktop 4U 4pin PWM Server Cooler Aluminum 4U 4pin PWM Server
CPU PlatformLGA1700
Power InterfacePWM
Noise40 dBA
Power (TDP)200 W
Air Volume61.46 CFM
COOLSERVER Intel LGA1700 4UR22 Thermal Simulation Desktop 4U 4pin PWM Server Cooler Aluminum 4U 4pin PWM Server. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-1700-4UR22 |
| Short Description | COOLSERVER Intel LGA1700 4UR22 Thermal Simulation Desktop 4U 4pin PWM Server Cooler Aluminum 4U 4pin PWM Server |
| Description | COOLSERVER Intel LGA1700 4UR22 Thermal Simulation Desktop 4U 4pin PWM Server Cooler Aluminum 4U 4pin PWM Server. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
Thermal and Mechanical
| Heatsink Material | Aluminum |
| Weight | 0.775 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 92x92x25mm |
| Fan Speed | PWM 1300-3800rpm |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
