Made to order
CPU Cooling
SRV-1700-2UR63

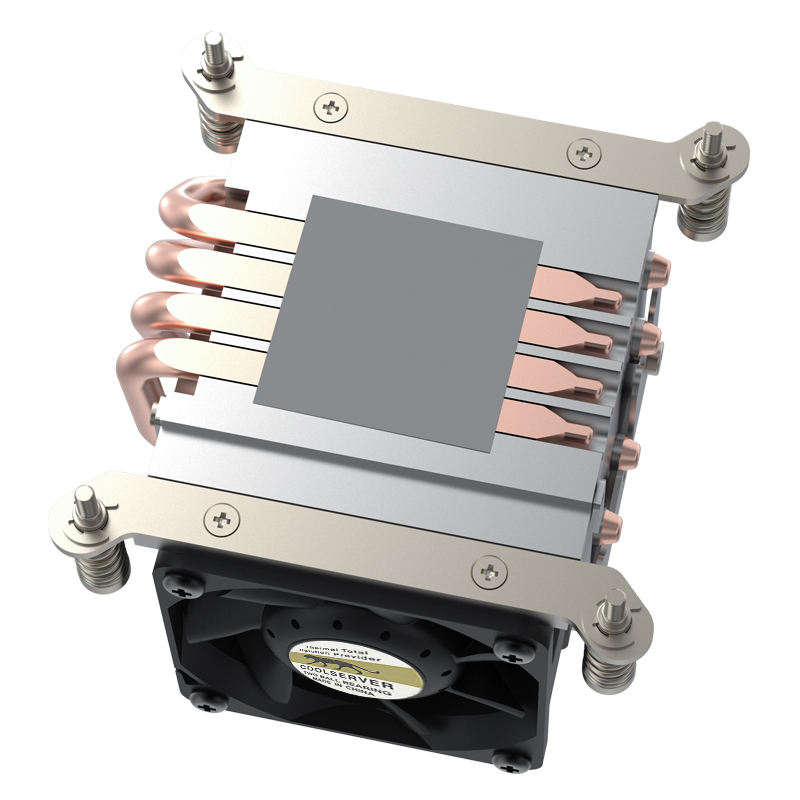

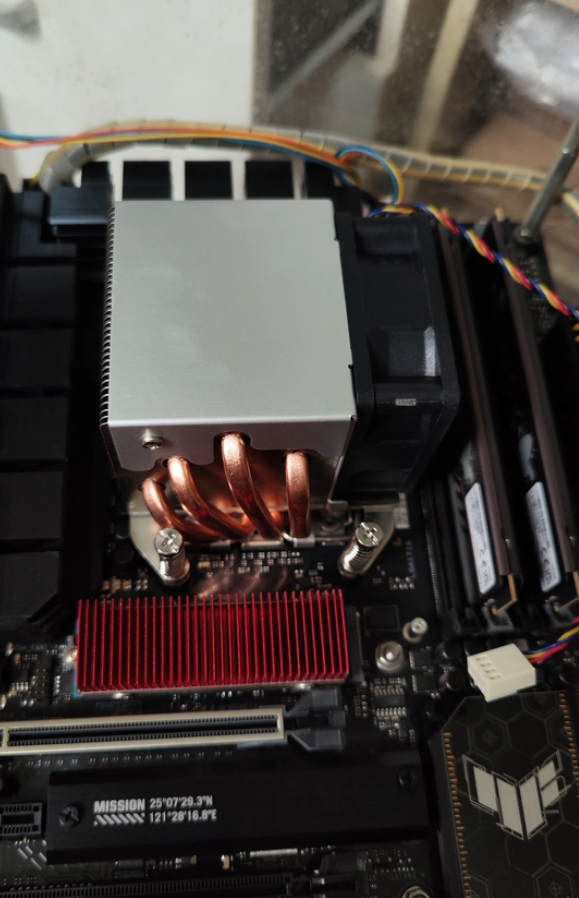

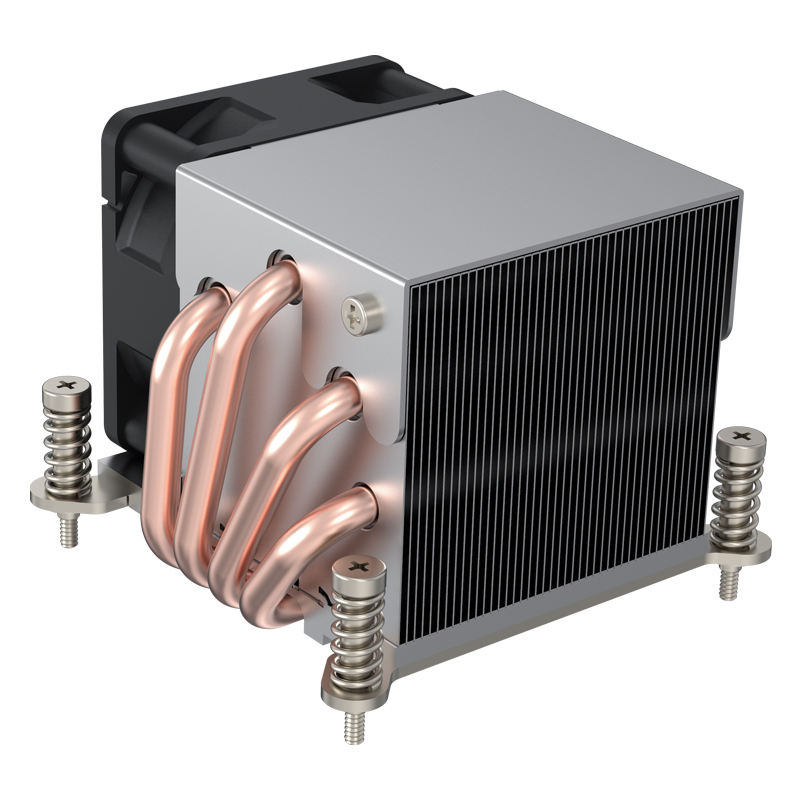

COOLSERVER 1700 2UR63 Universal Server CPU Cooler Air Cooling 4 Heat Pipes Heat Sink Server Cooler TDP 165W
CPU PlatformLGA1700, LGA1851
Power InterfacePWM
Noise52 dBA
Power (TDP)165 W
Air Volume34.5 CFM
COOLSERVER 1700 2UR63 Universal Server CPU Cooler Air Cooling 4 Heat Pipes Heat Sink Server Cooler TDP 165W. Supplier detail-page values captured from Alibaba.
Specifications
Identity
| Model Number | SRV-1700-2UR63 |
| Short Description | COOLSERVER 1700 2UR63 Universal Server CPU Cooler Air Cooling 4 Heat Pipes Heat Sink Server Cooler TDP 165W |
| Description | COOLSERVER 1700 2UR63 Universal Server CPU Cooler Air Cooling 4 Heat Pipes Heat Sink Server Cooler TDP 165W. Supplier detail-page values captured from Alibaba. |
CPU Compatibility
| CPU Manufacturer | Intel |
Thermal and Mechanical
| Heat Pipe Count | 4 |
| Heatsink Material | Copper & Aluminum |
| Base Material | Contact Engineering |
| Cooler Dimensions | 90 x 90 x 67 mm |
| Weight | 0.796 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 60X60X25MM |
| Fan Speed | 6800rpm |
| Connector | 4pin |
| Bearing Type | TWO BALL BEARING |
| Operating Voltage | 12V |
| Fan Life | 50000 Hrs hours |
